Analysis Fields

	Current Cycle	Cycle - 6 h	Cycle - 12 h	Cycle - 18 h	Cycle - 24 h	Cycle - 30 h	Cycle - 36 h	Cycle - 42 h	Cycle - 48 h	Loop

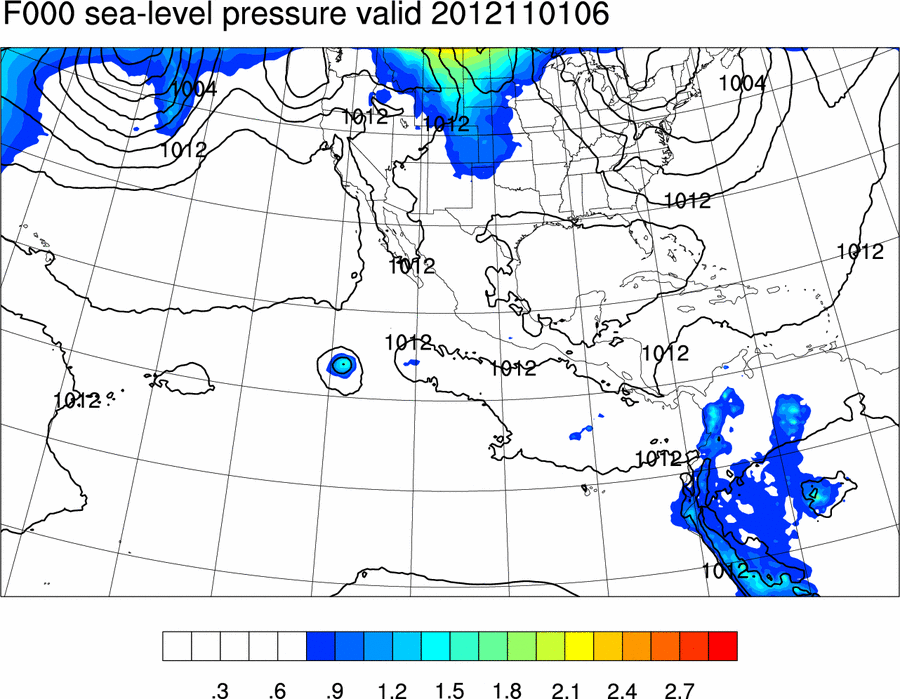

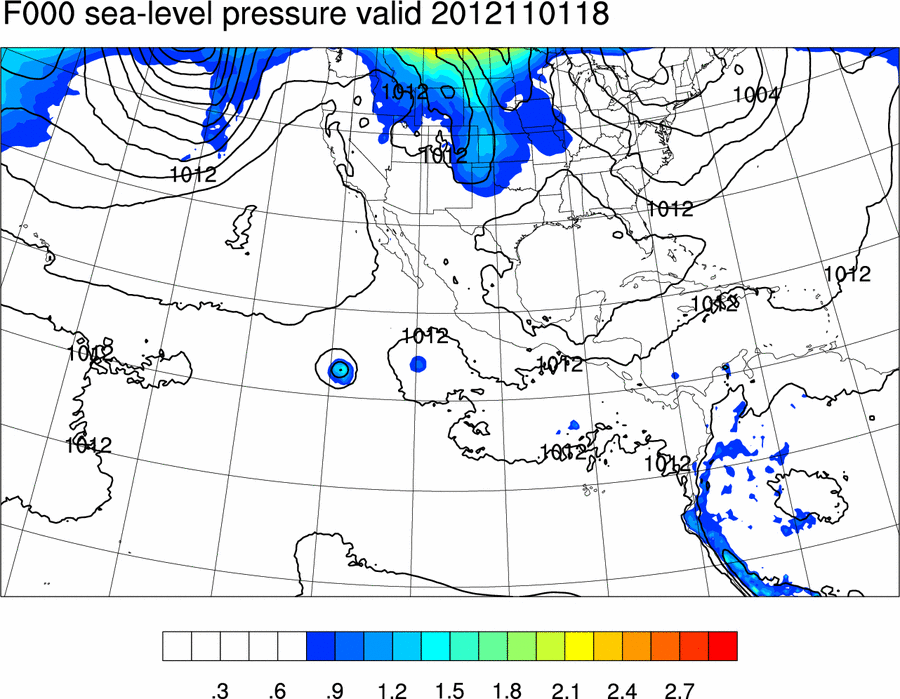

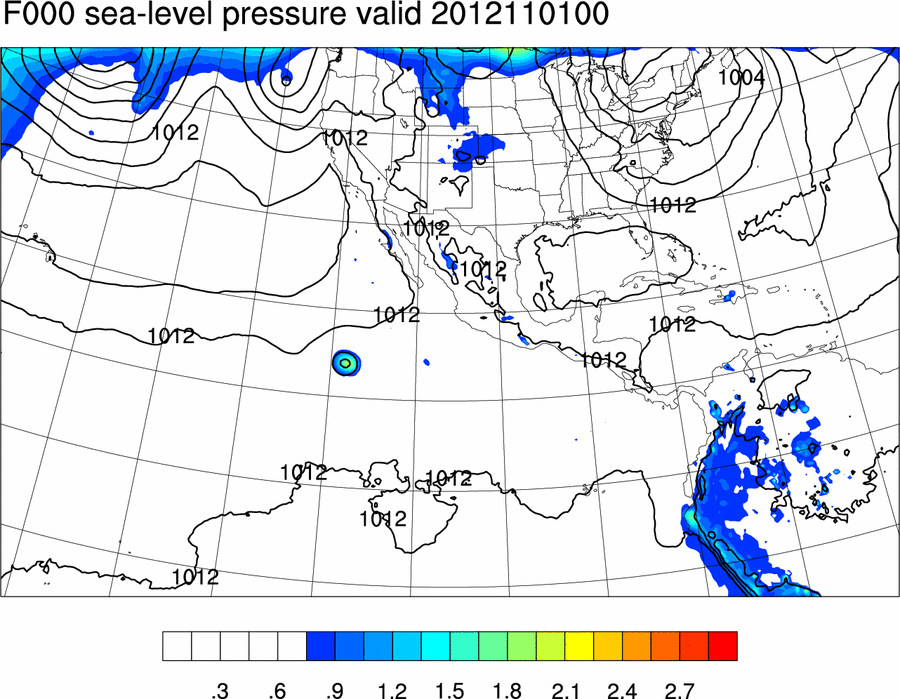

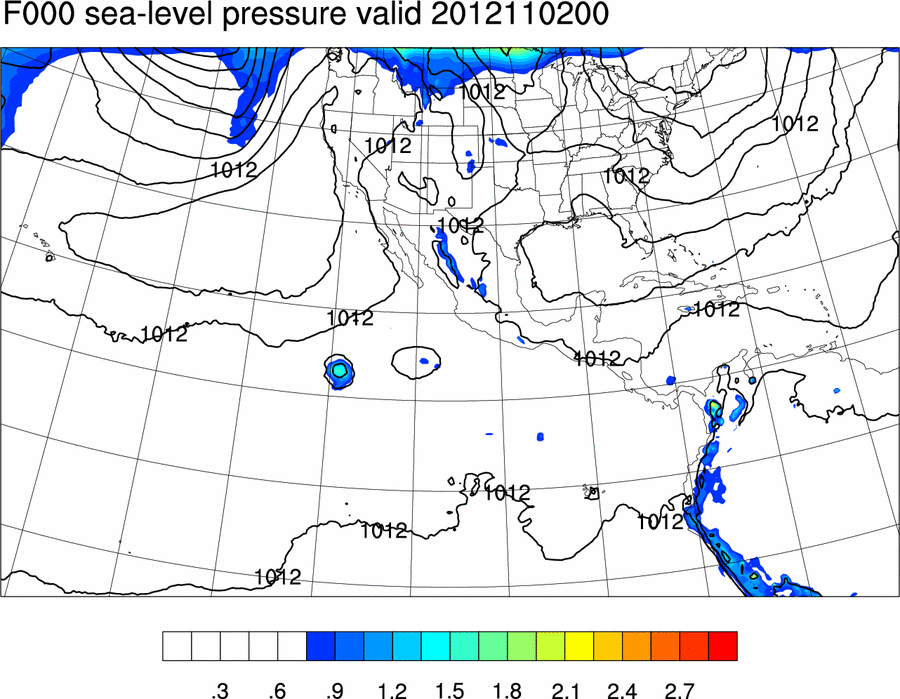

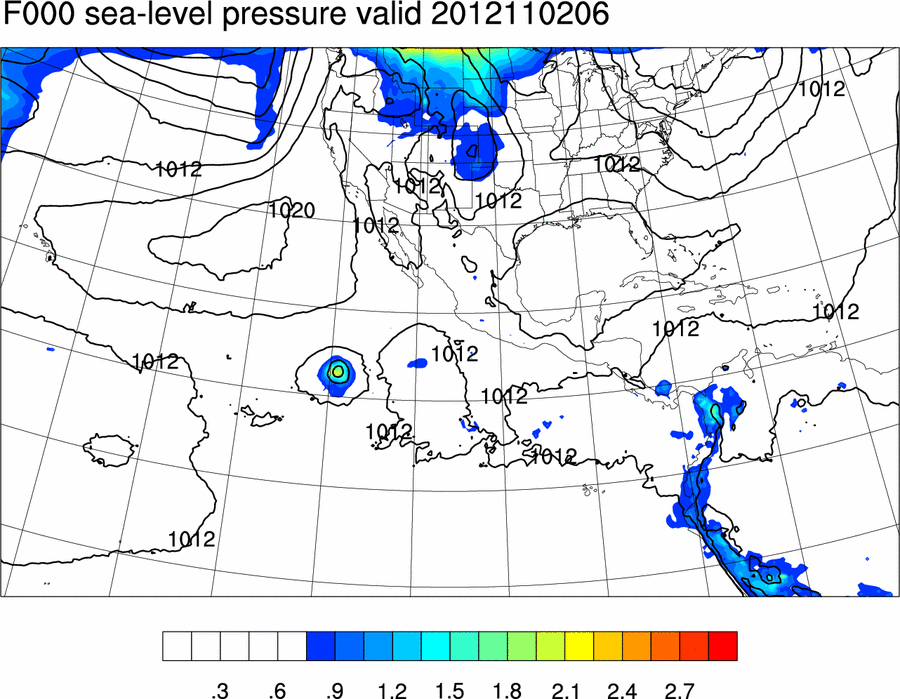

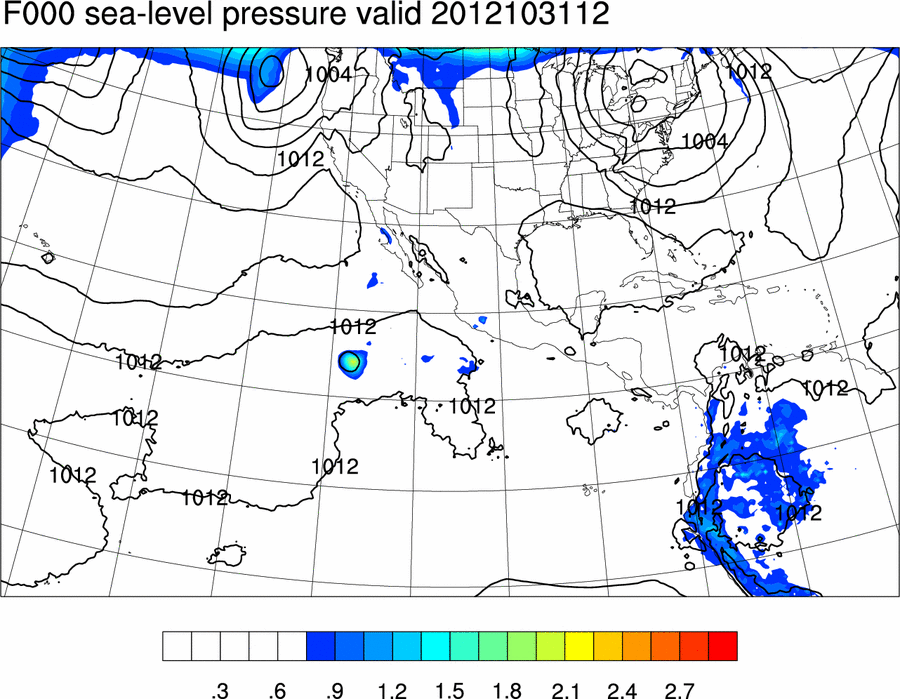

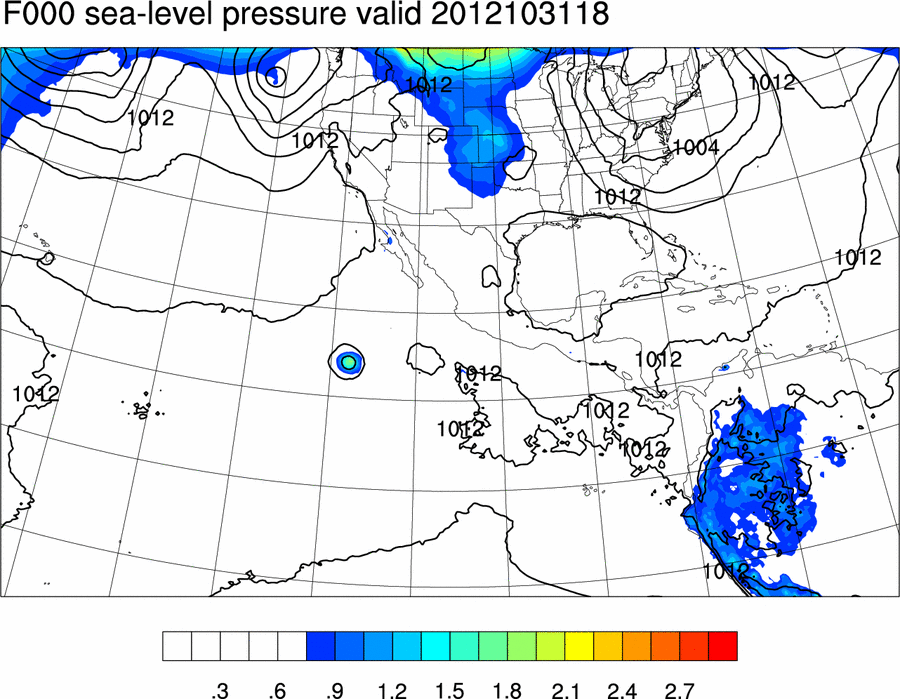

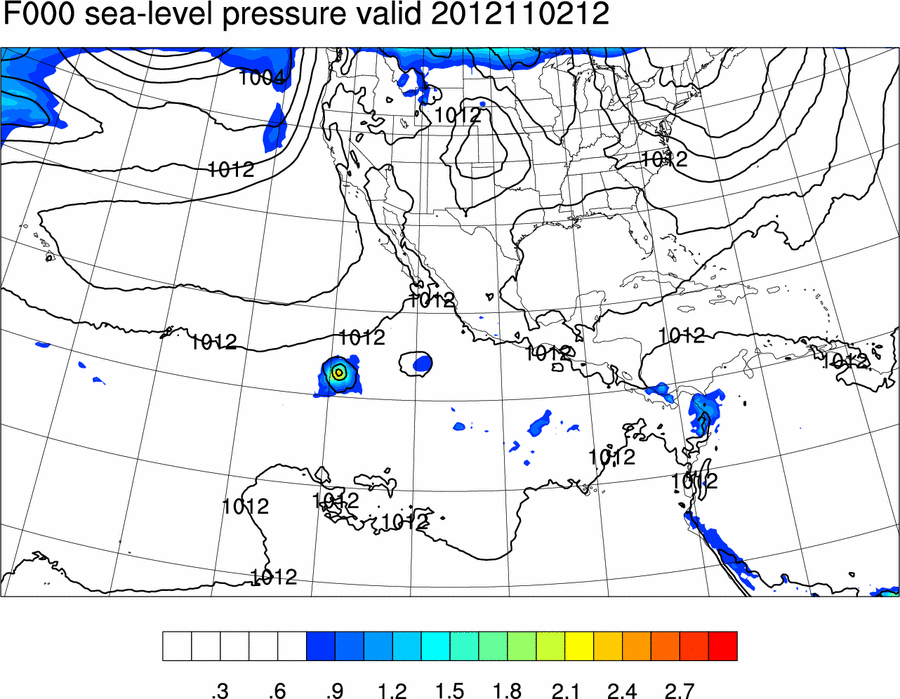

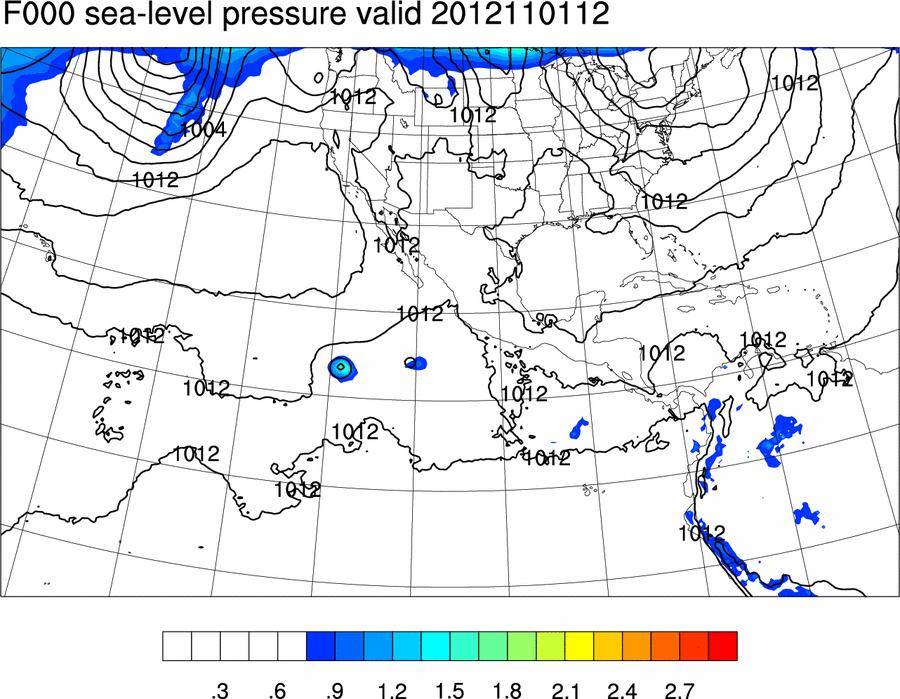

Sea Level Pressure Analysis Ensemble mean (contours, hPa) and ensemble standard deviation (shading) sea level pressure.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

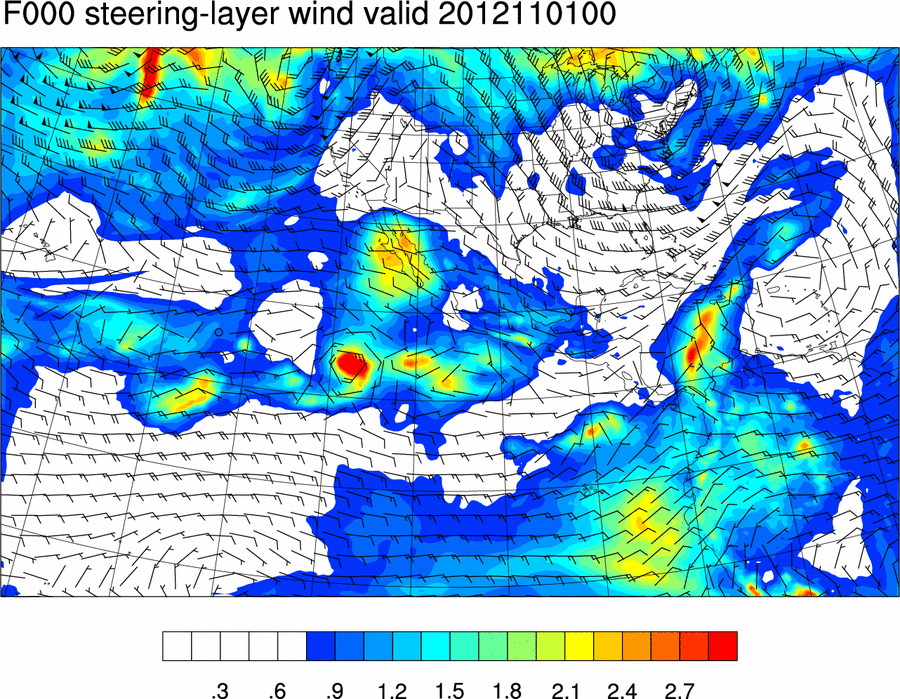

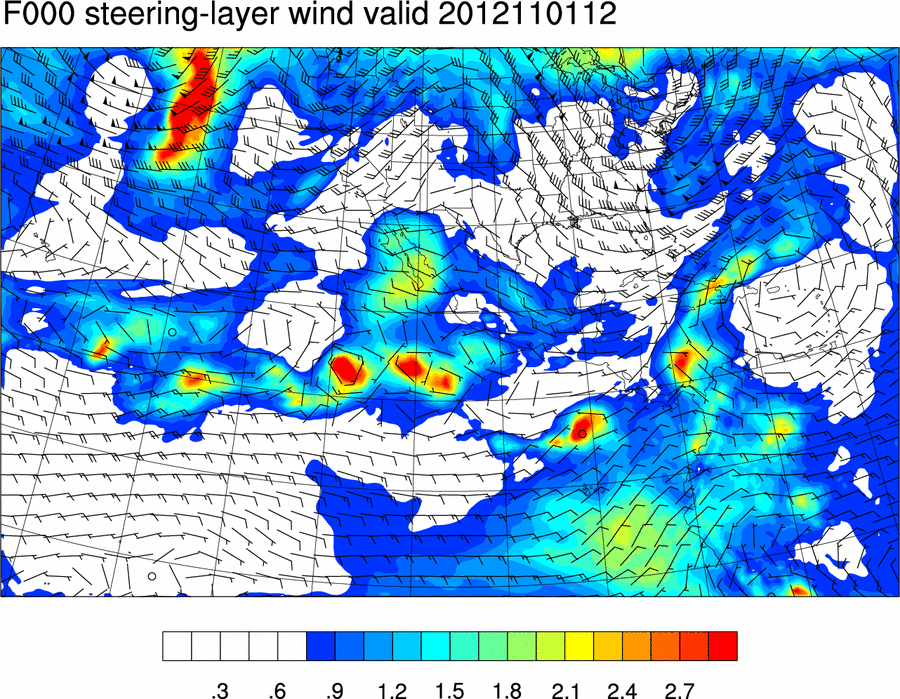

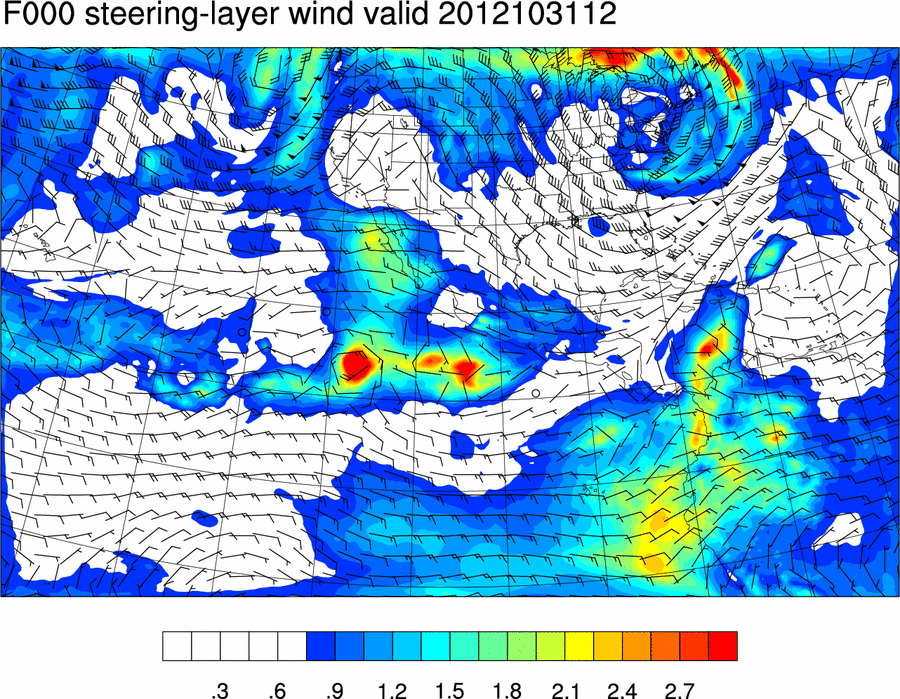

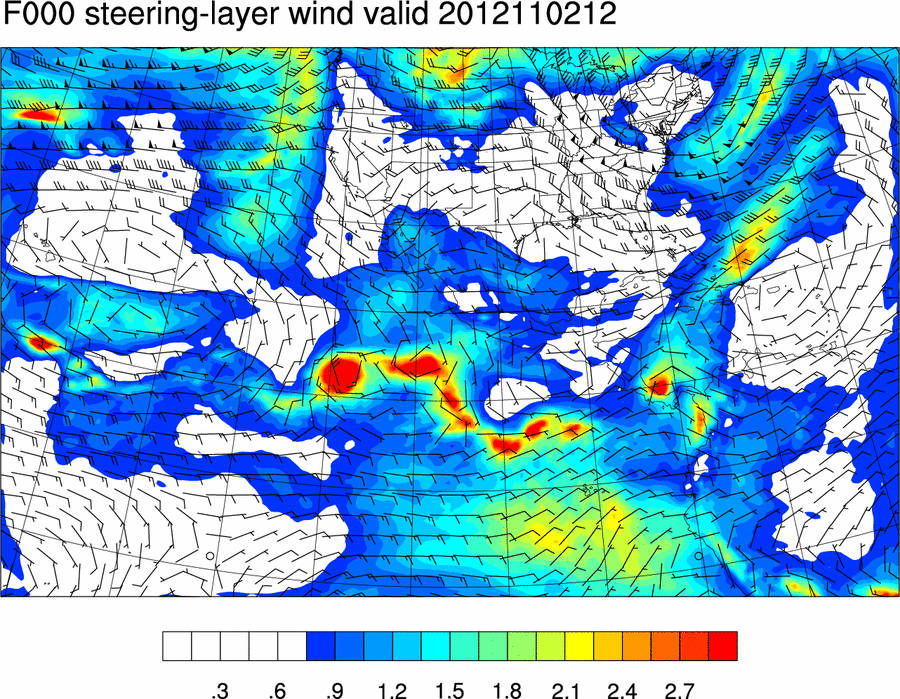

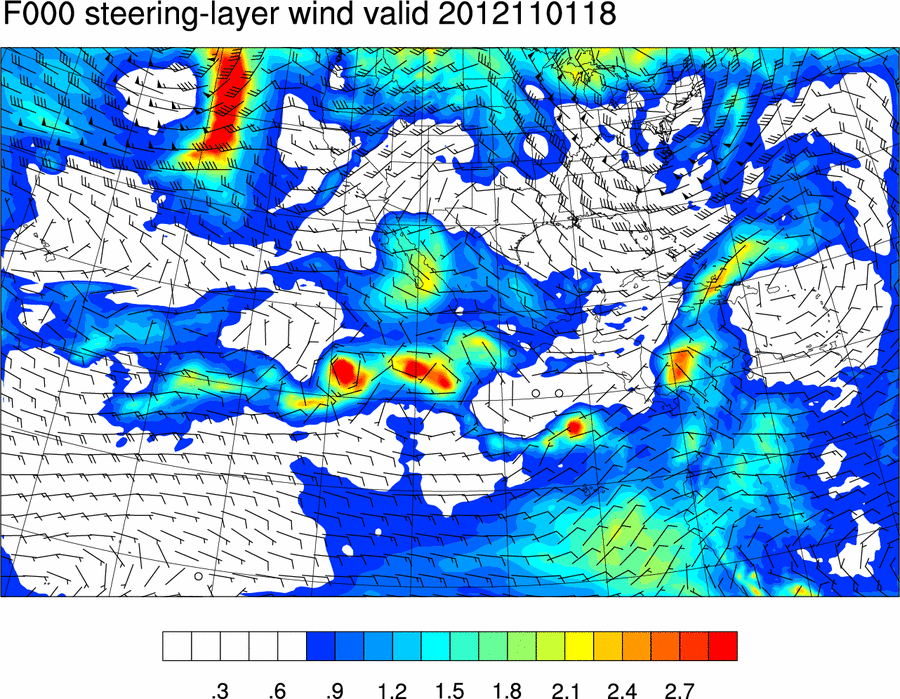

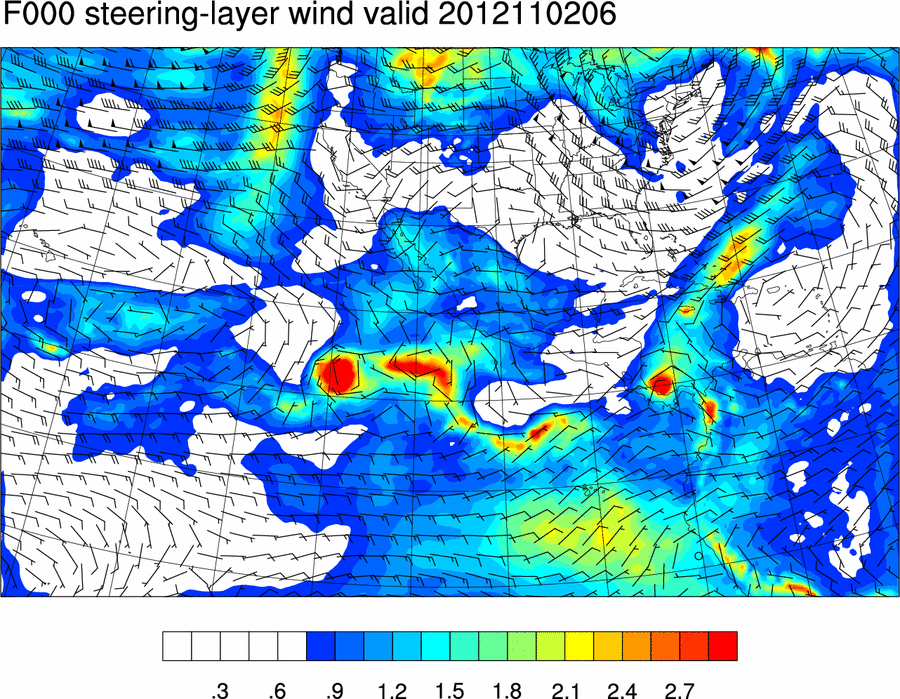

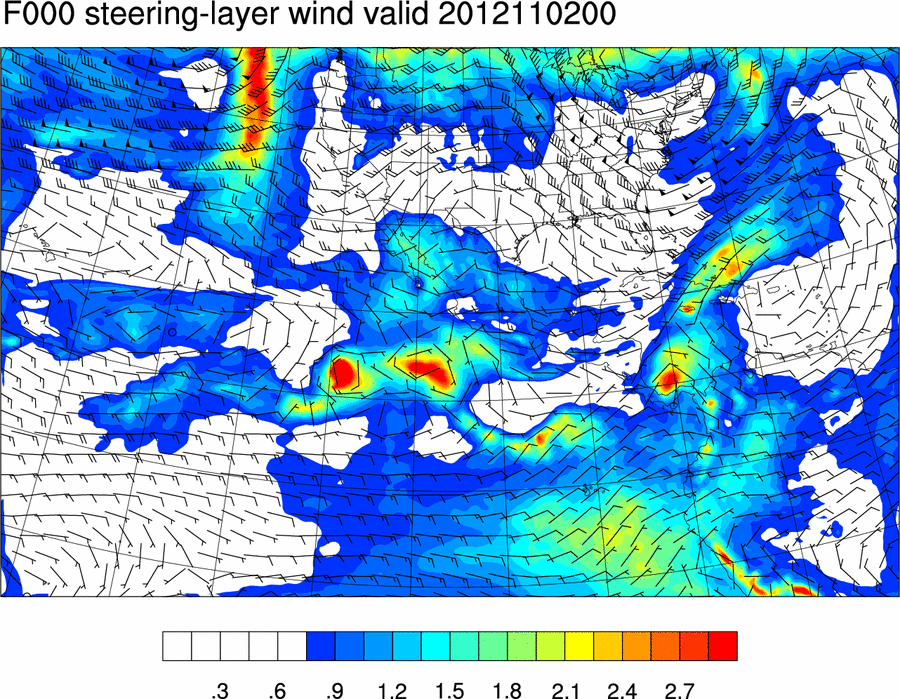

Analysis Steering Wind Analysis ensemble mean (barbs) and vector ensemble standard deviation (shading) of 400-800 hPa layer average wind.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

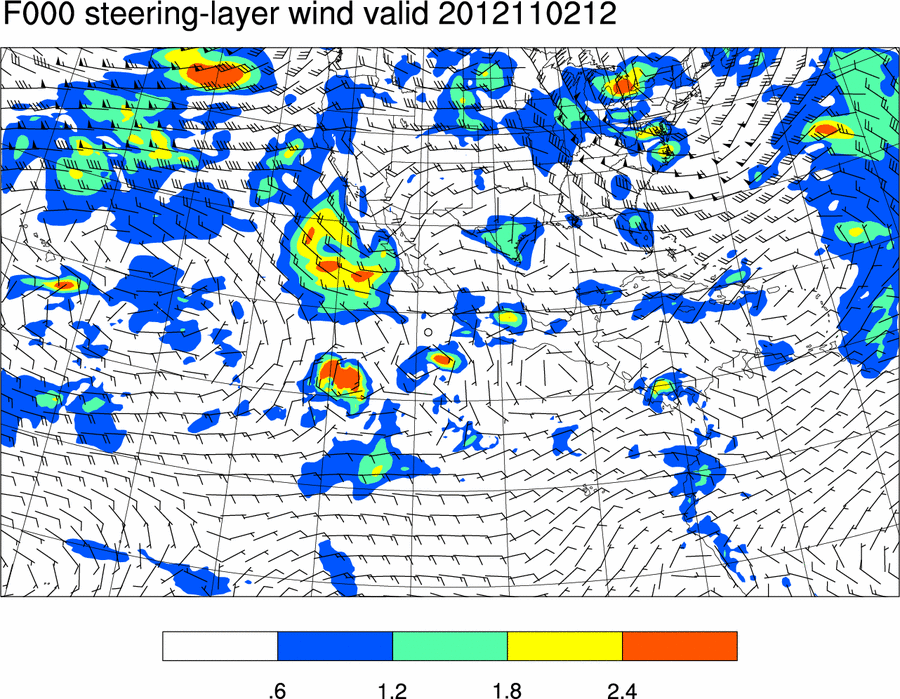

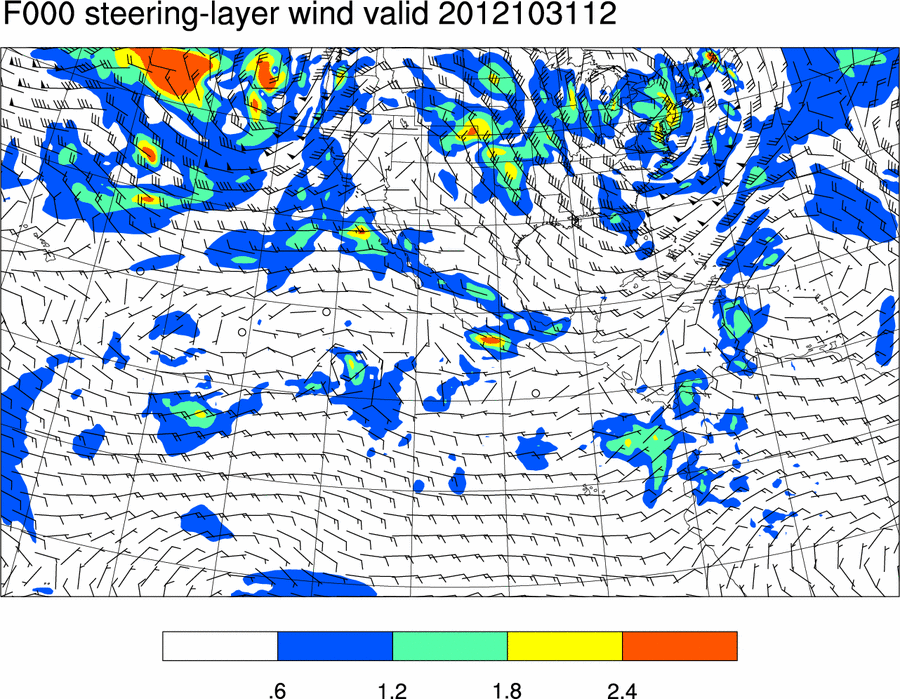

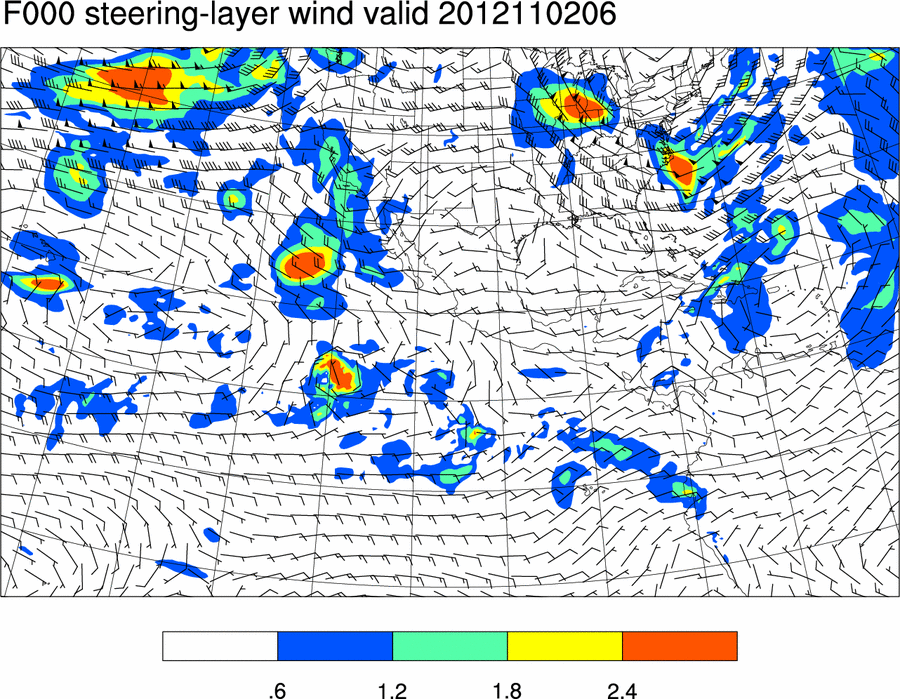

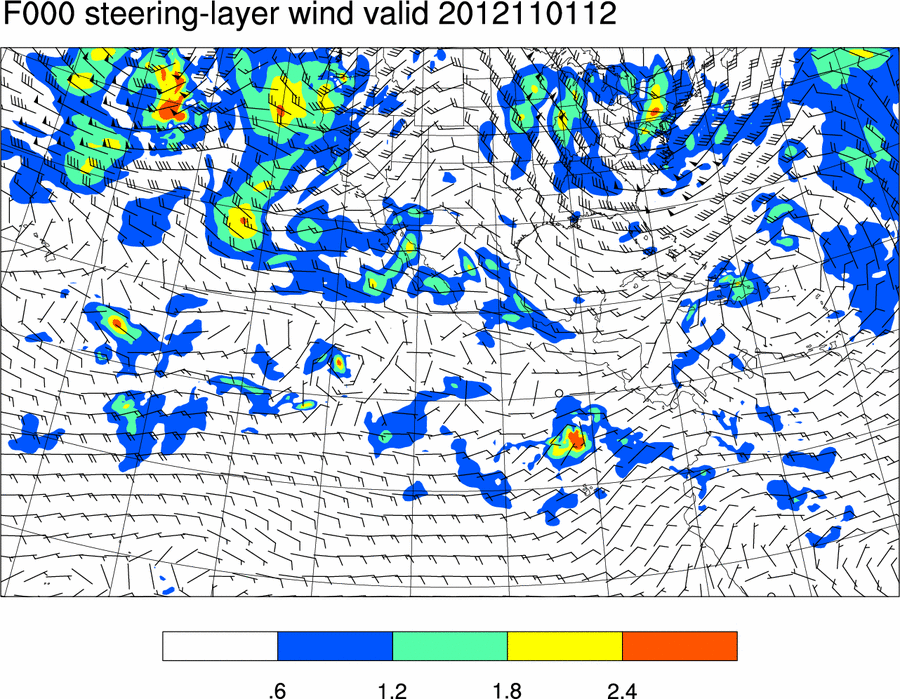

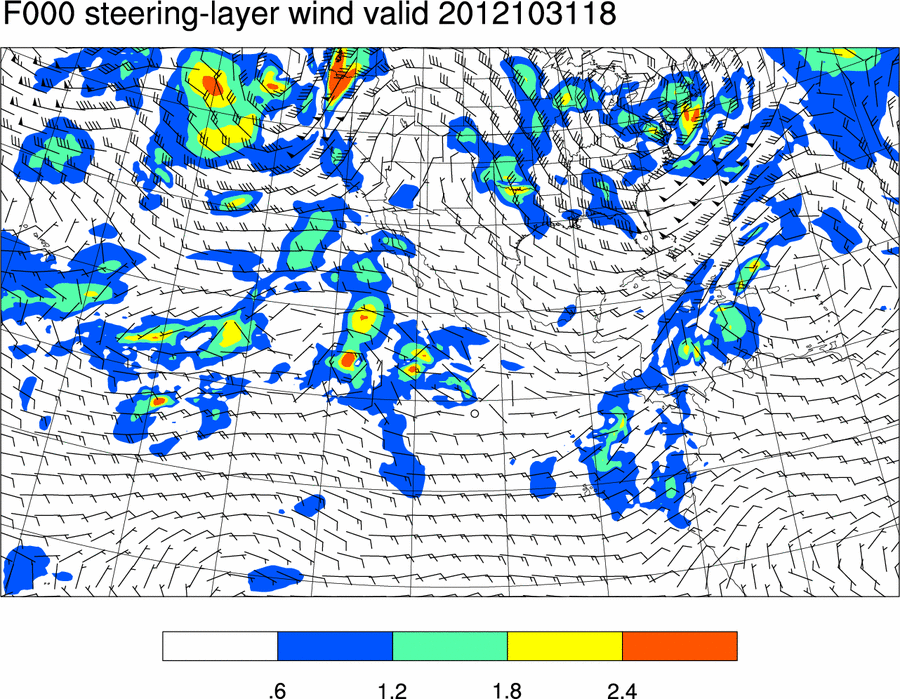

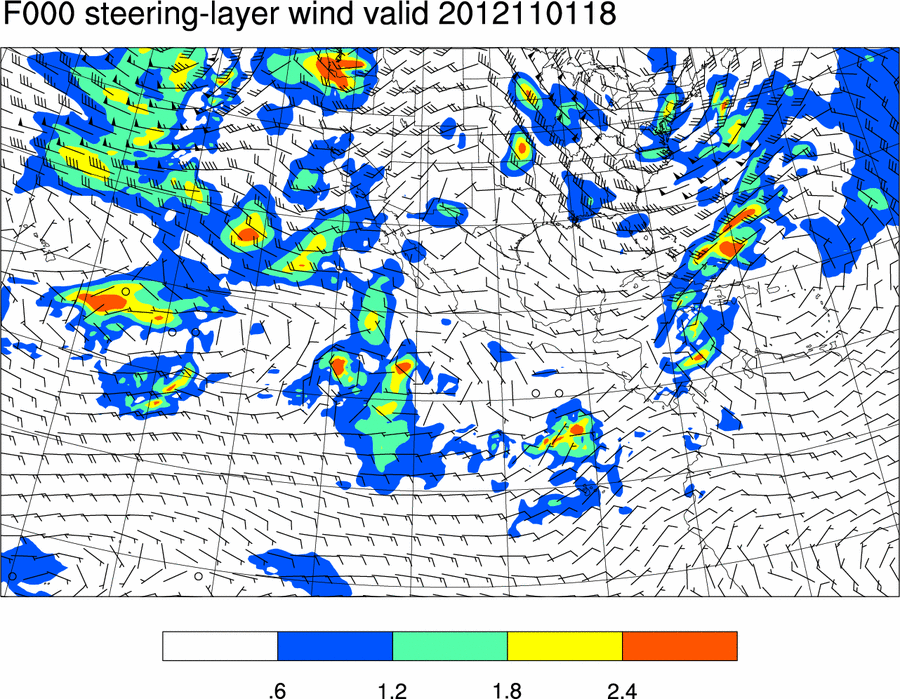

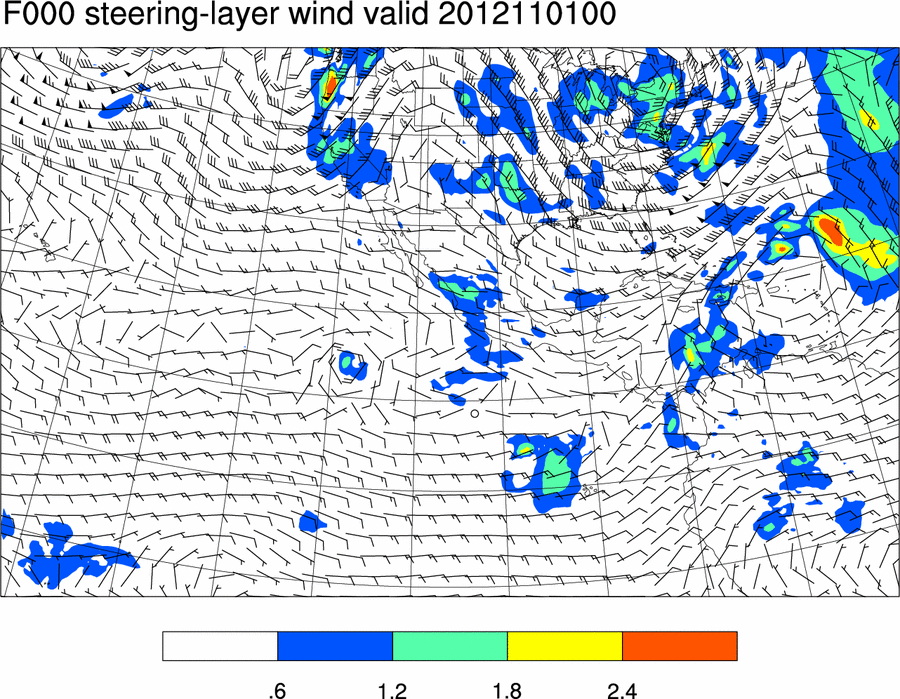

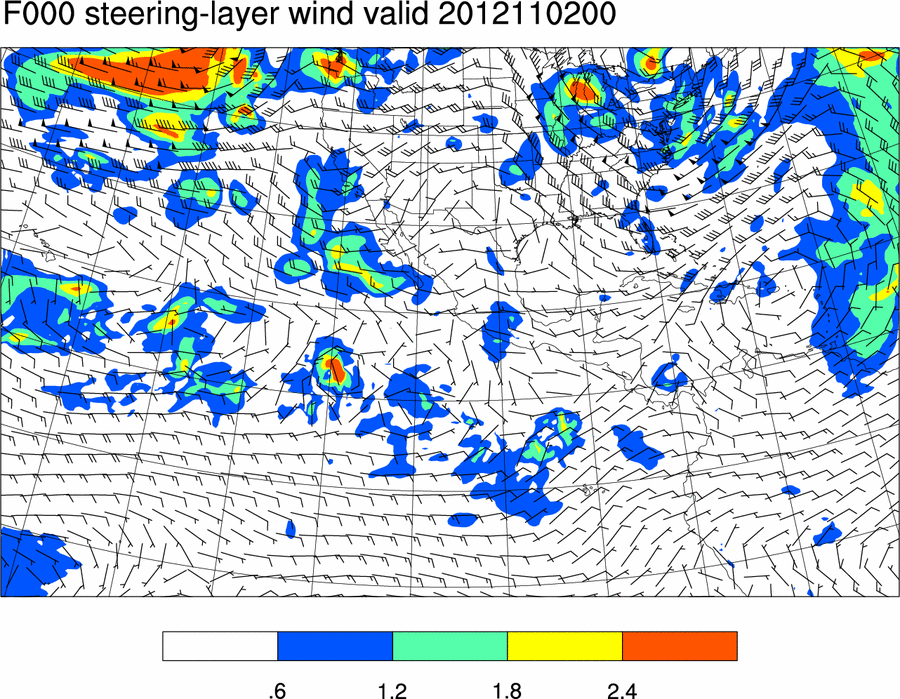

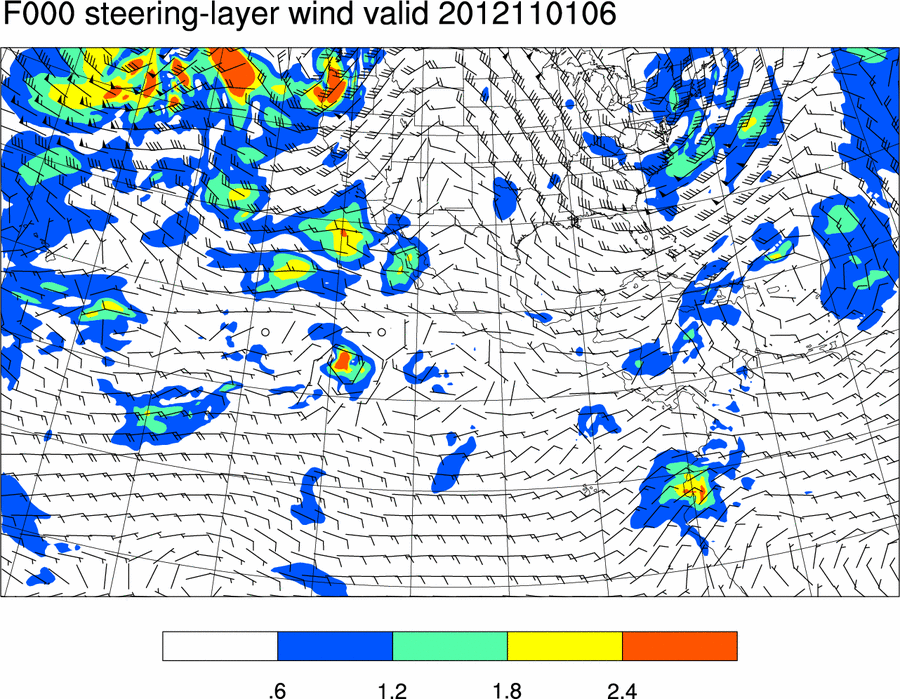

Steering Wind Inc. Background ensemble mean (barbs) and vector increment (shading) 400-800 hPa layer average wind.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

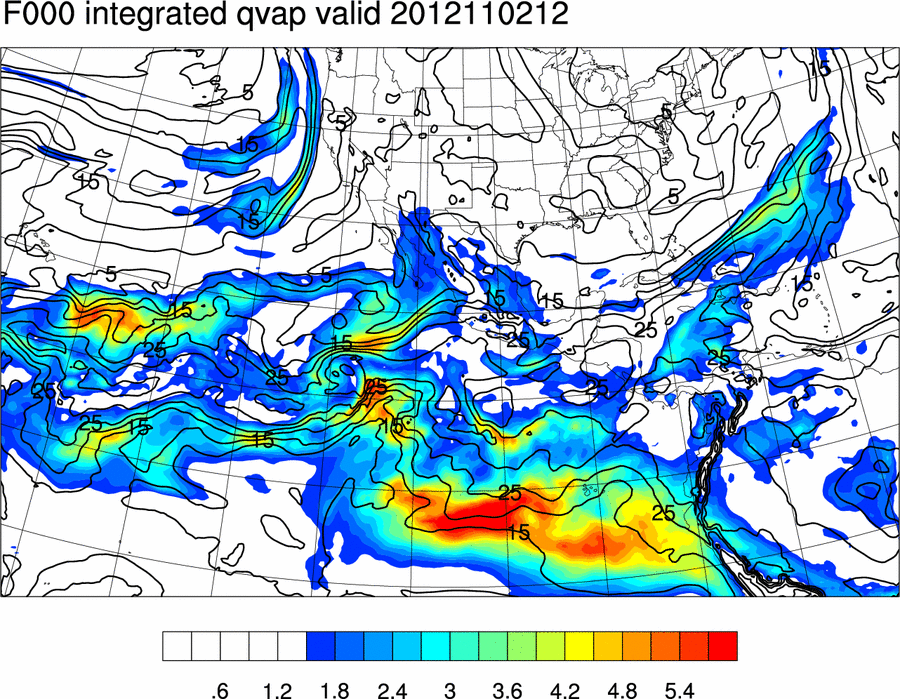

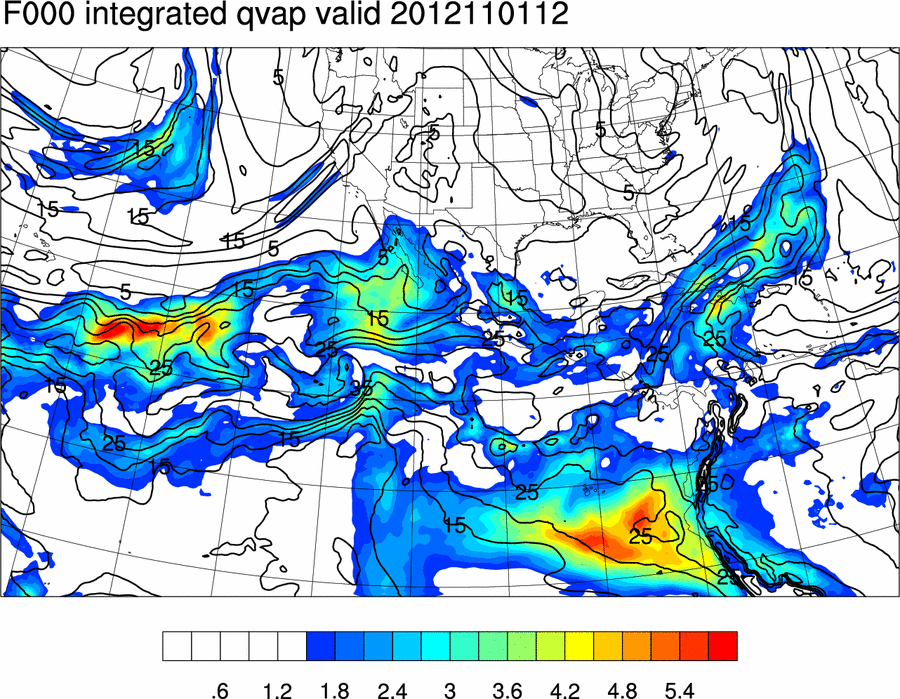

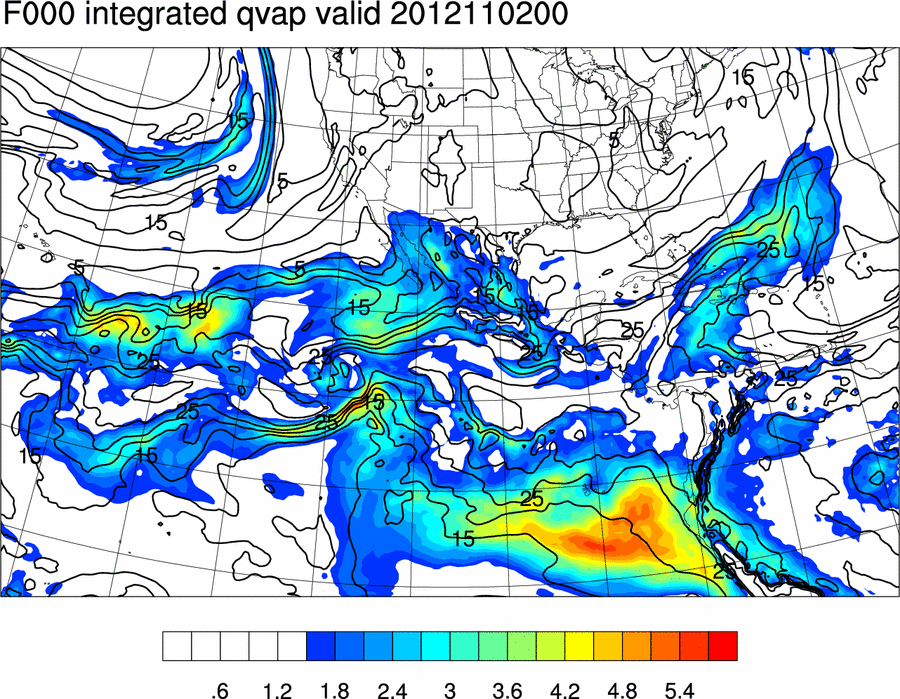

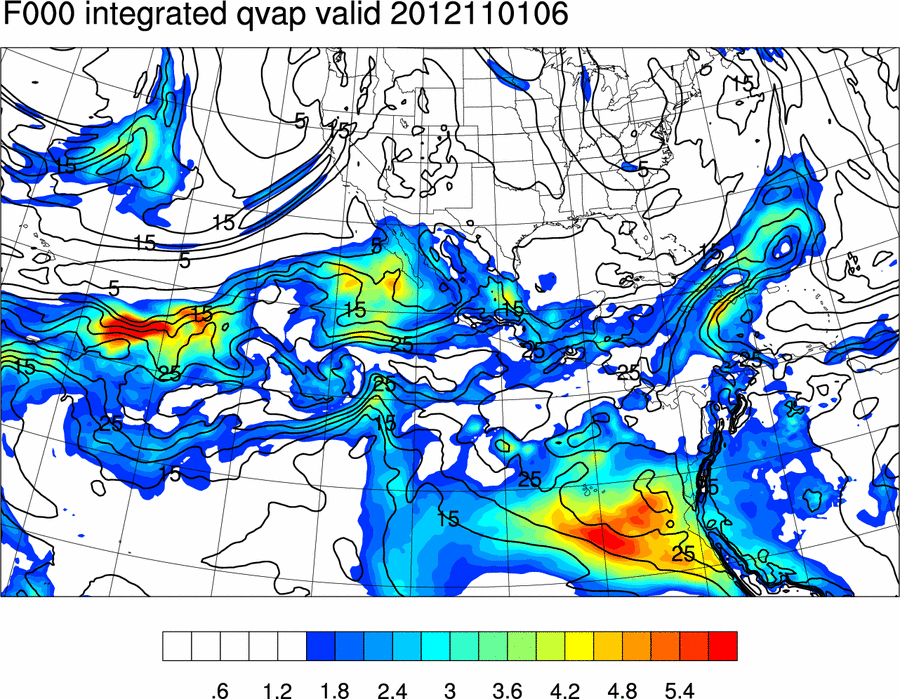

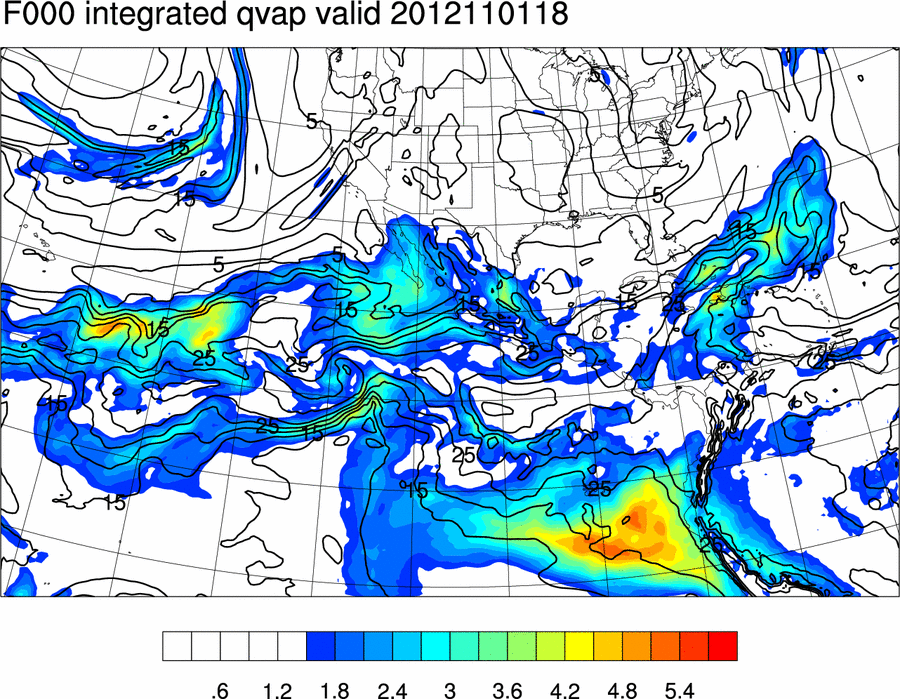

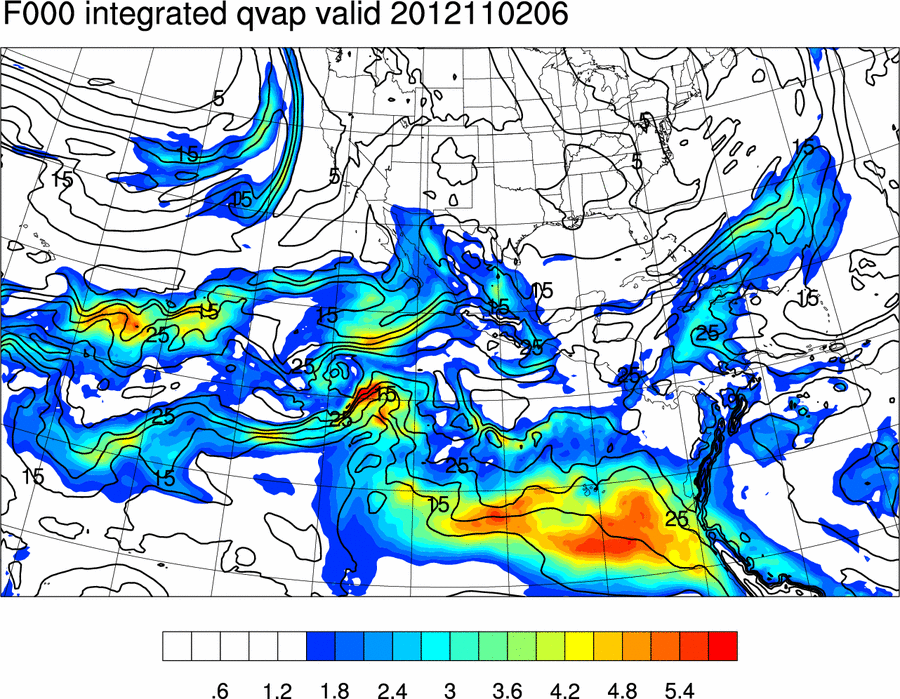

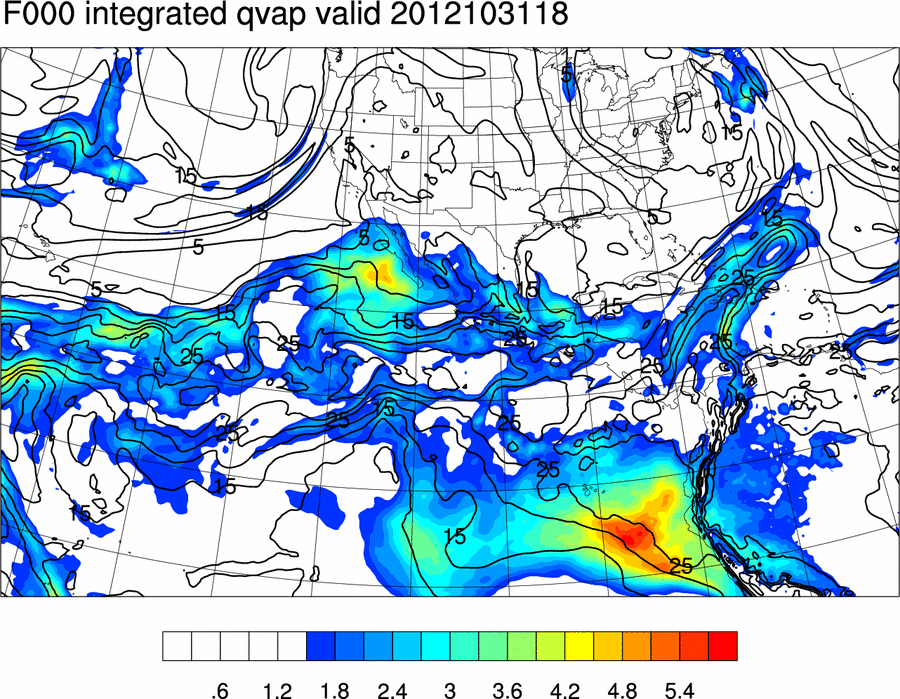

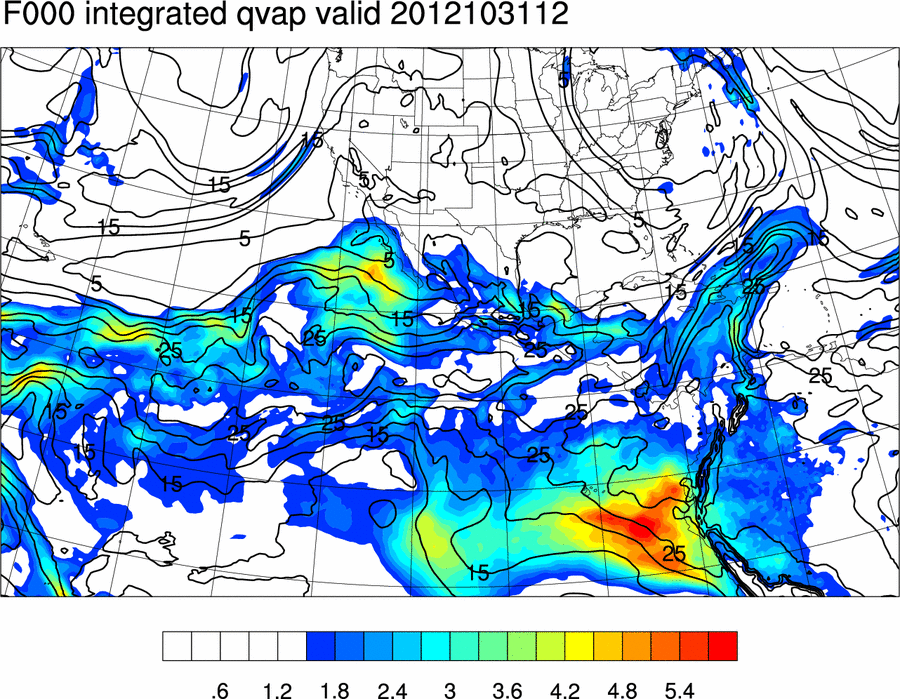

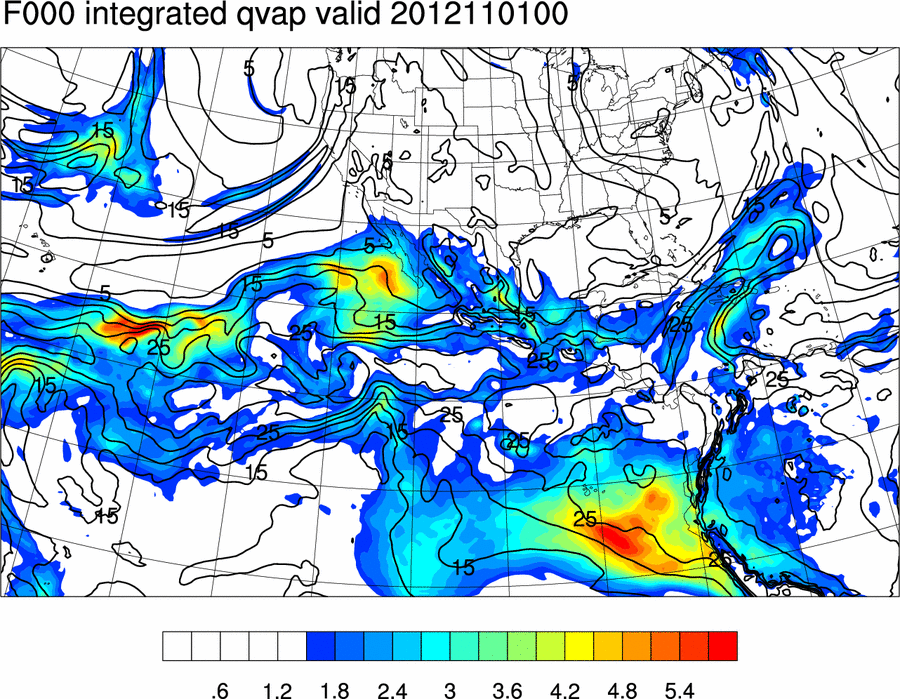

Analysis Precipitable Water Analysis ensemble mean (contours, mm) and ensemble standard deviation (shading) precipitable water.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

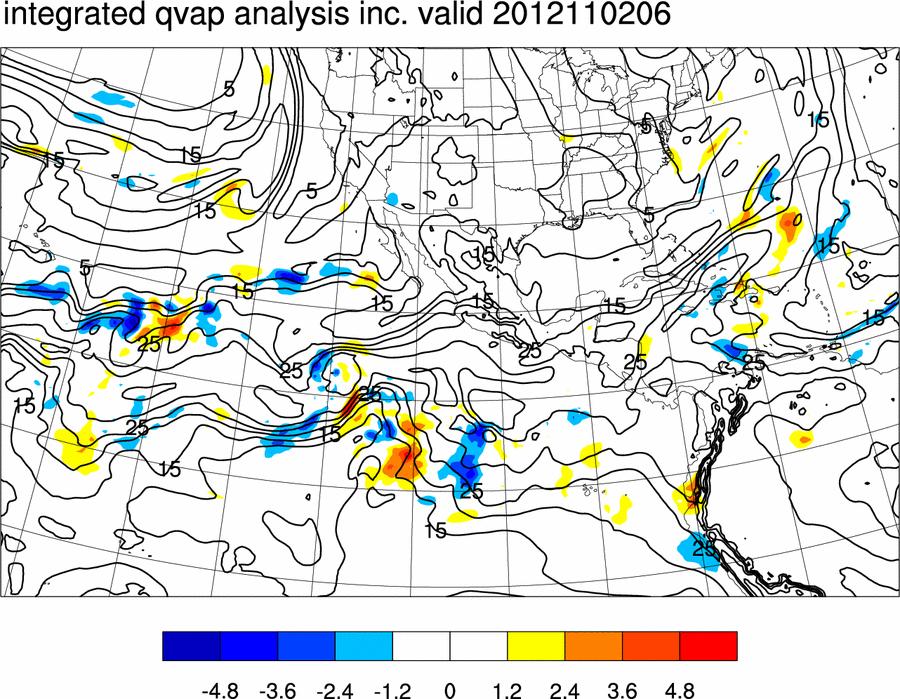

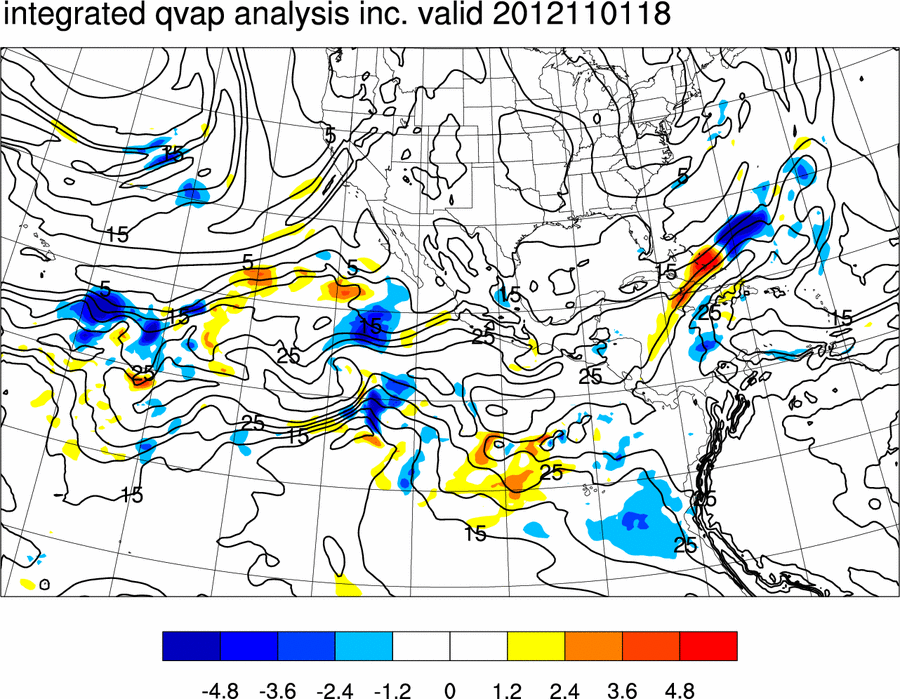

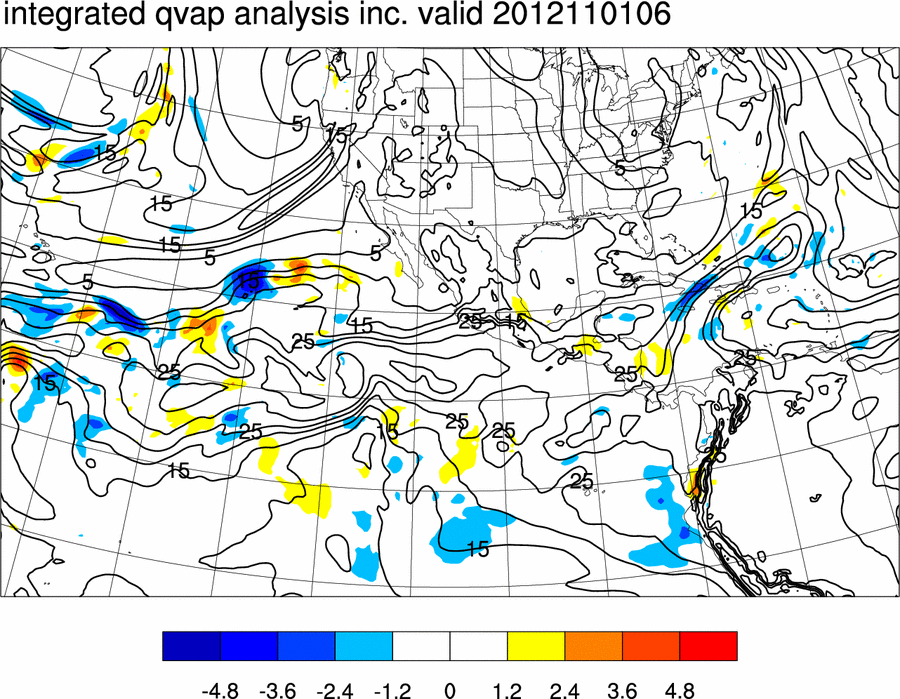

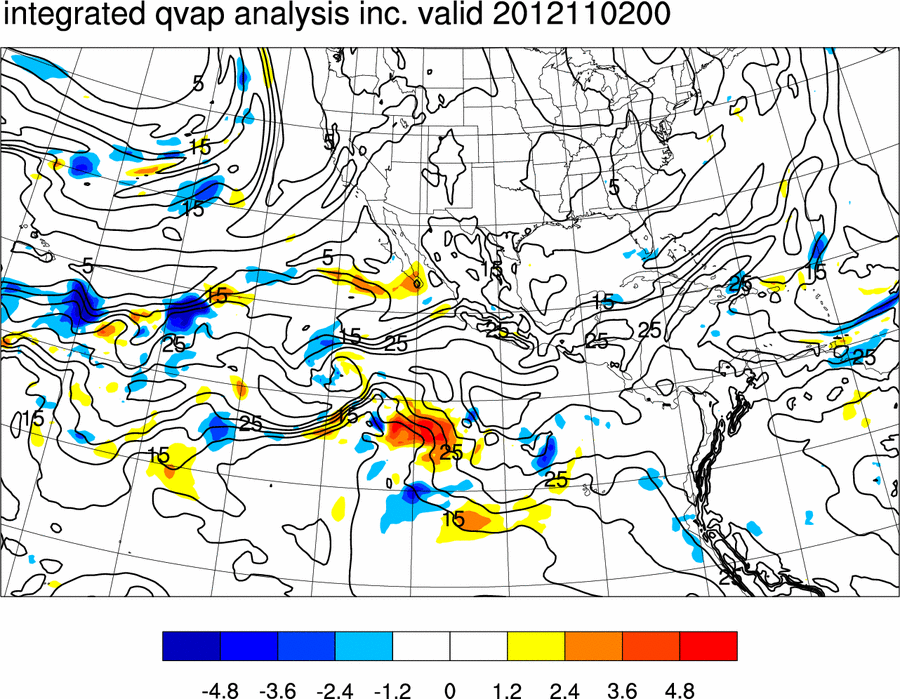

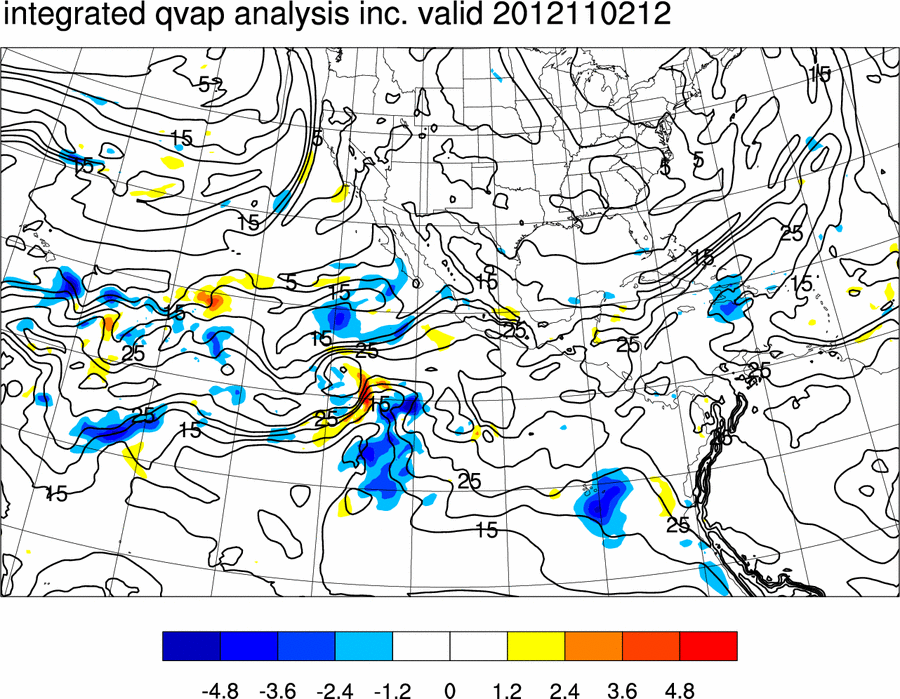

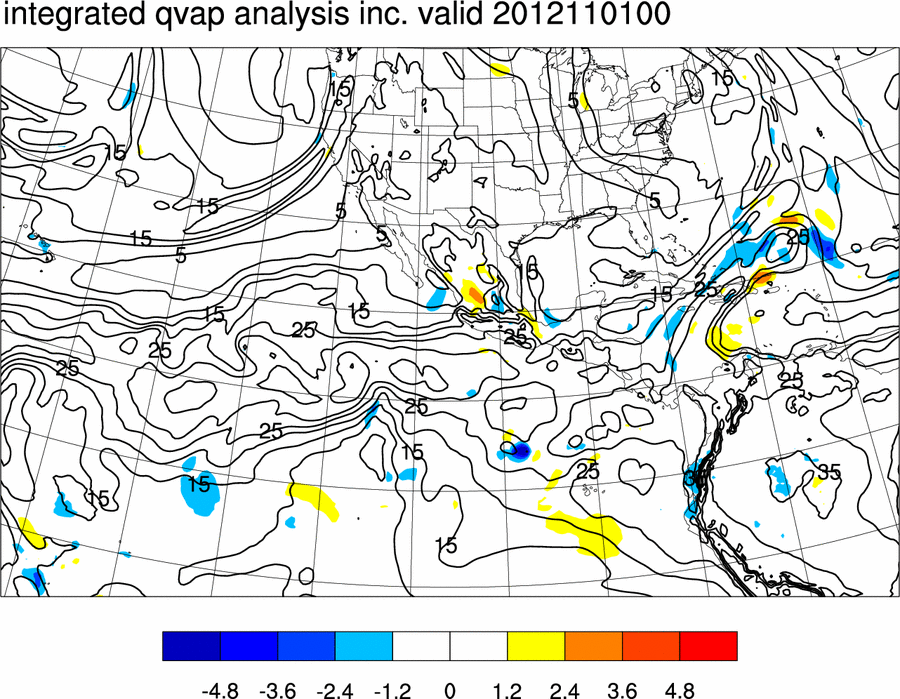

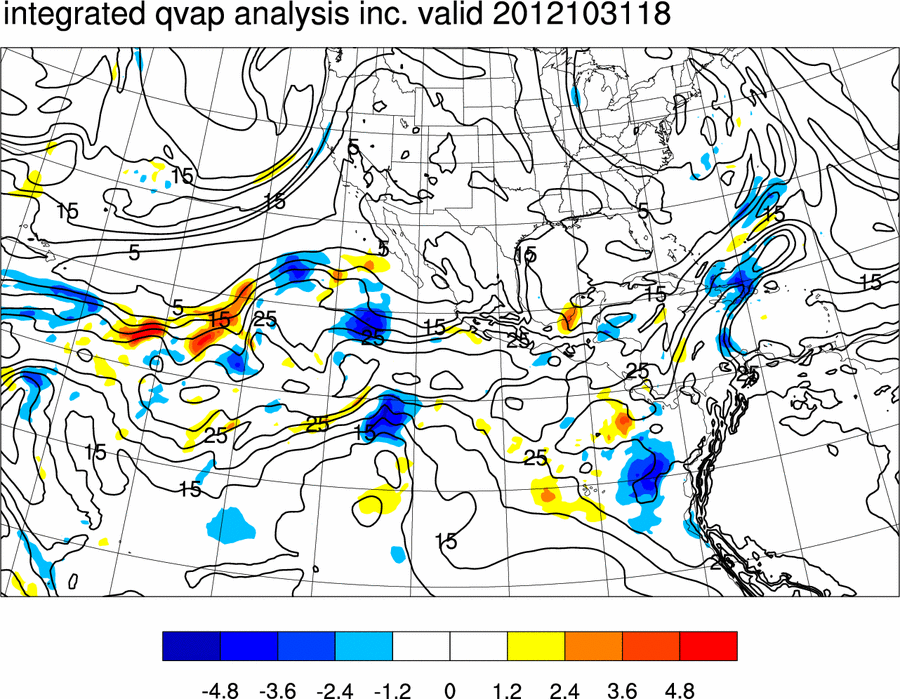

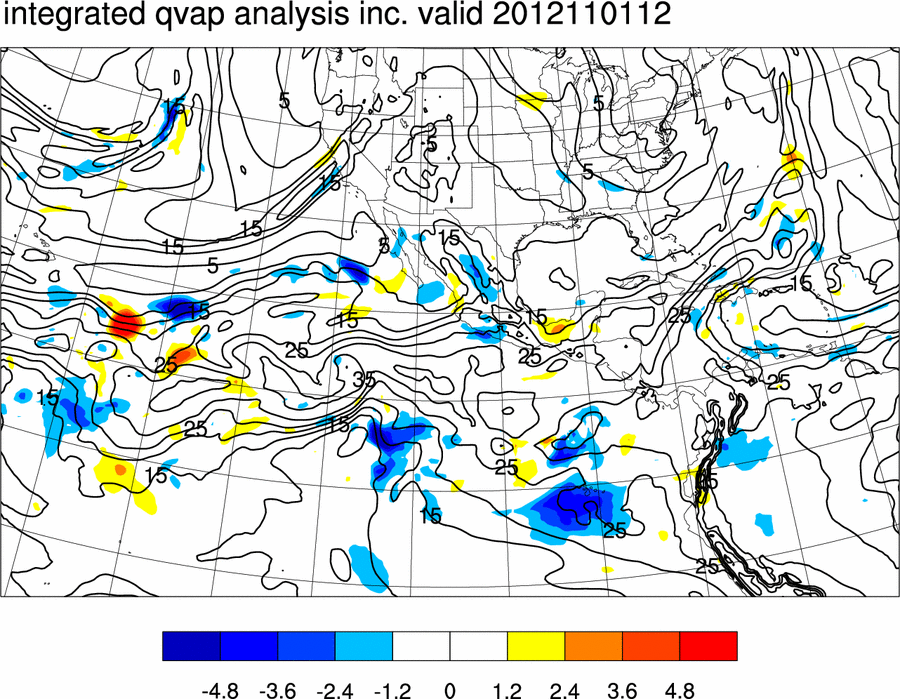

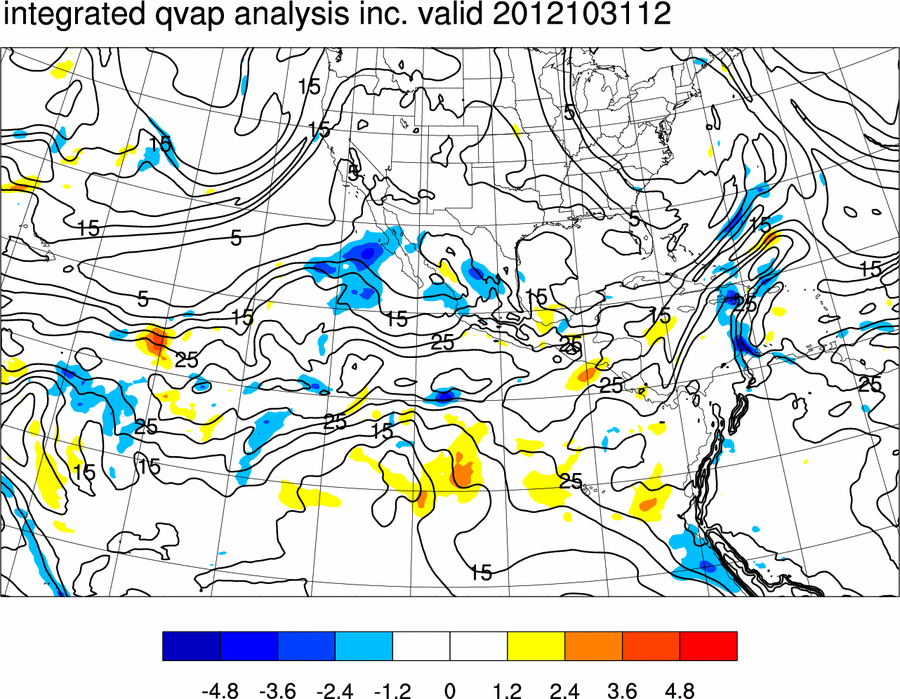

Precipitable Water Inc. Background ensemble-mean (contours, mm) and analysis increment (shading) precipitable water valid at analysis time.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

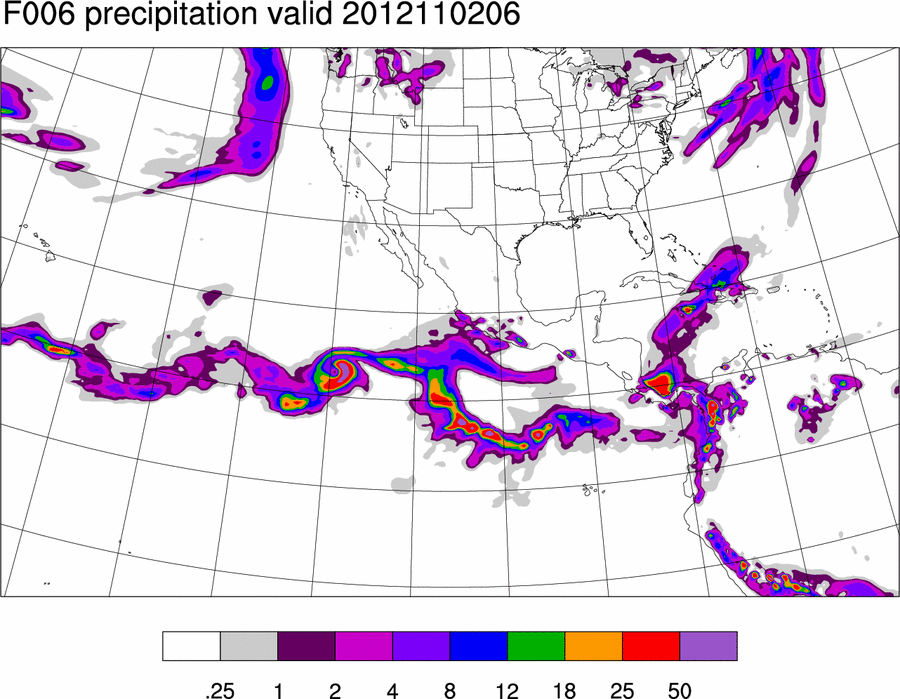

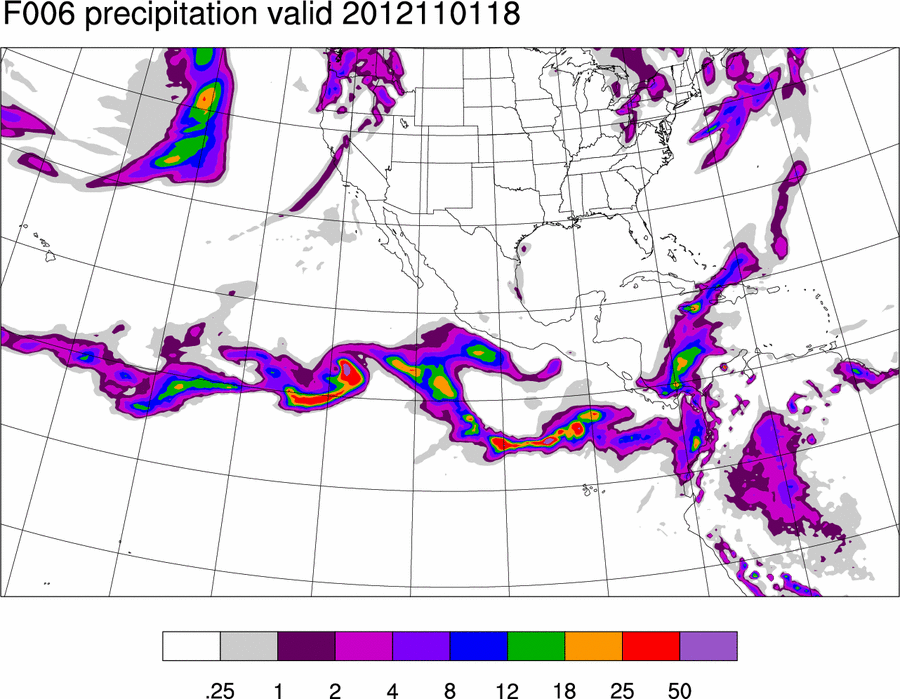

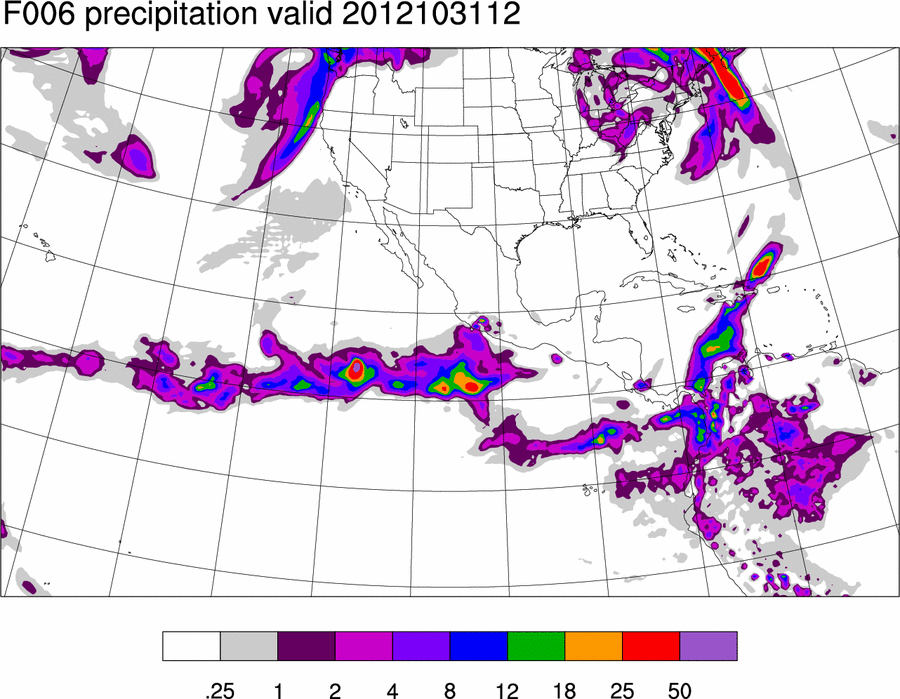

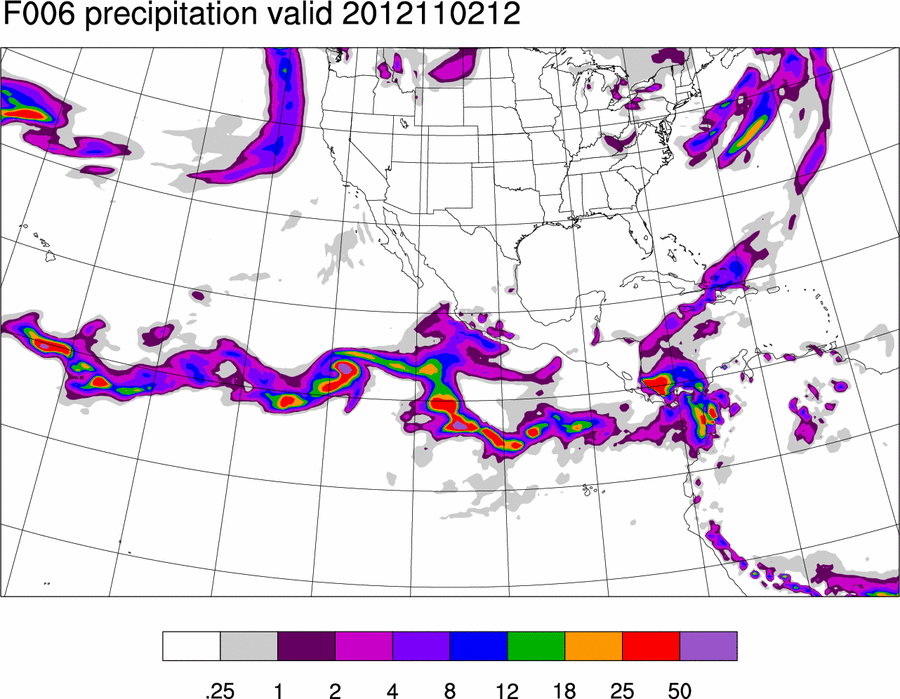

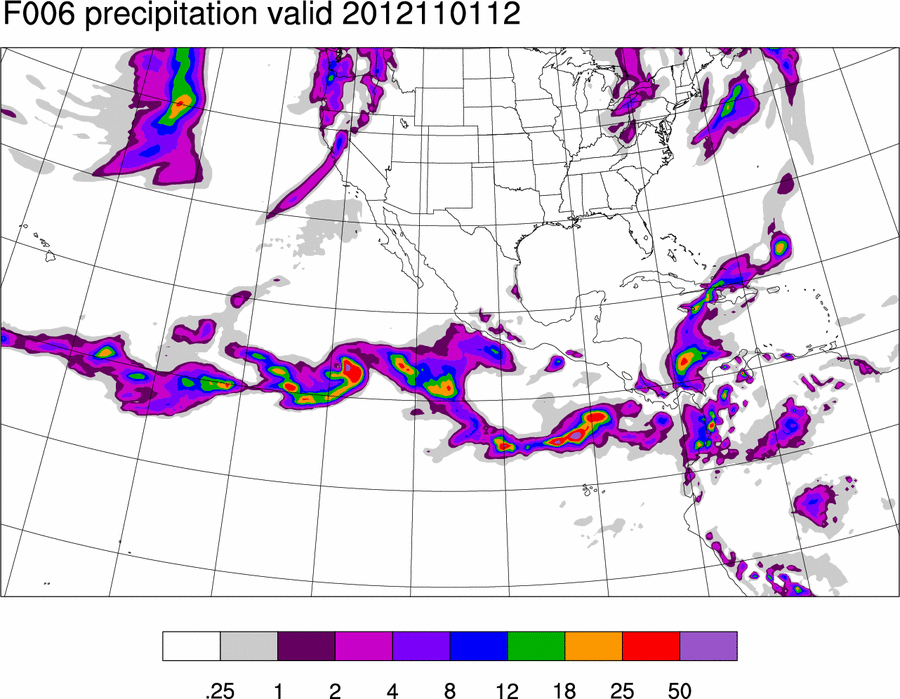

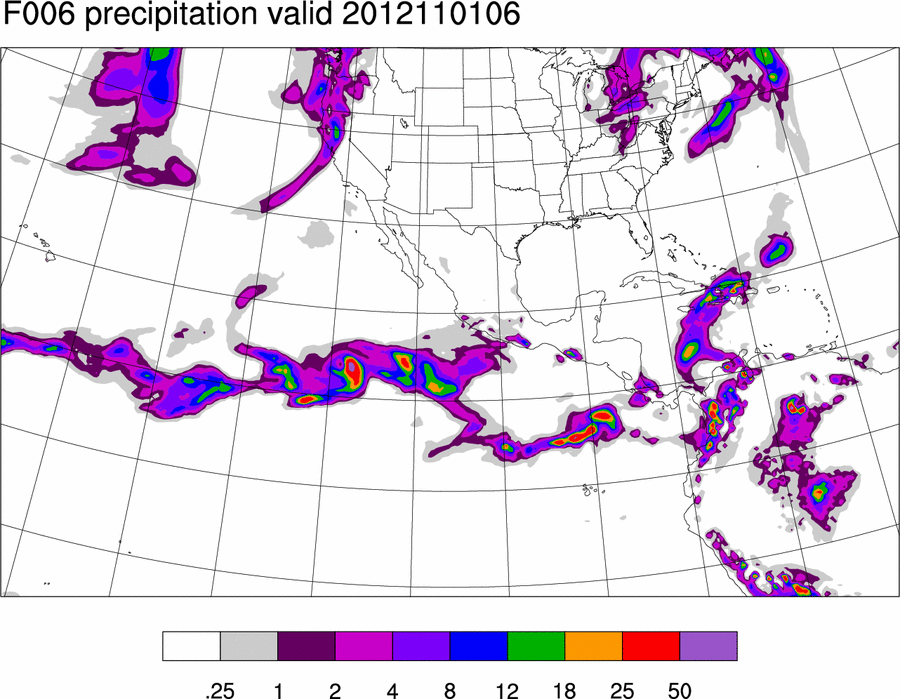

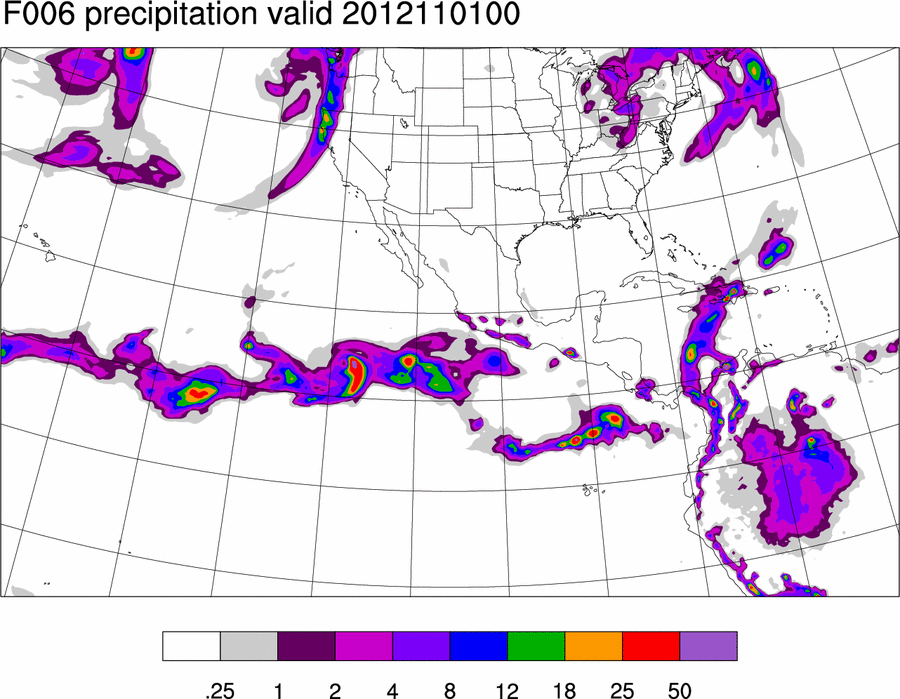

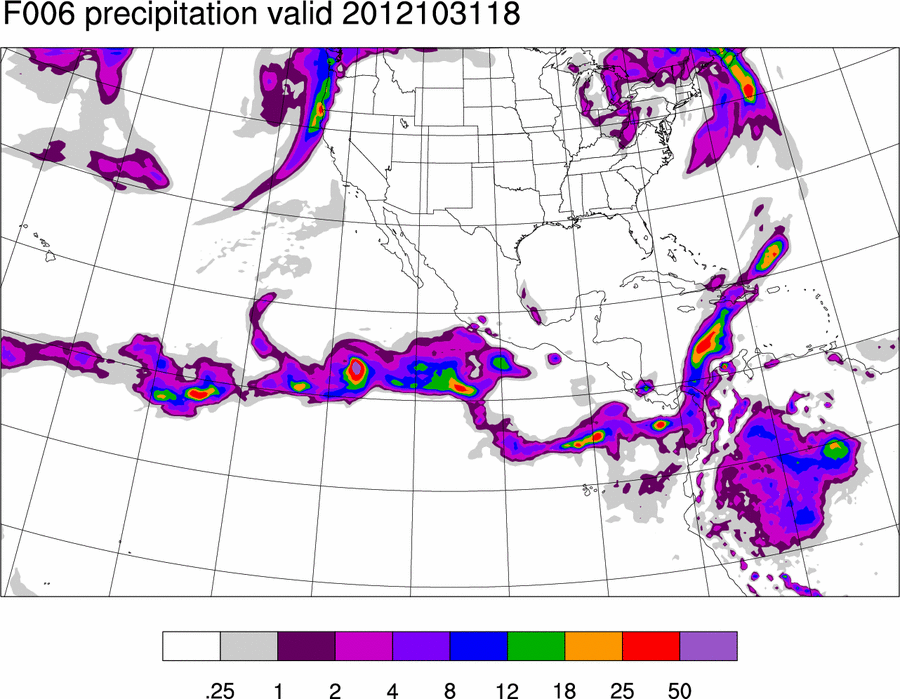

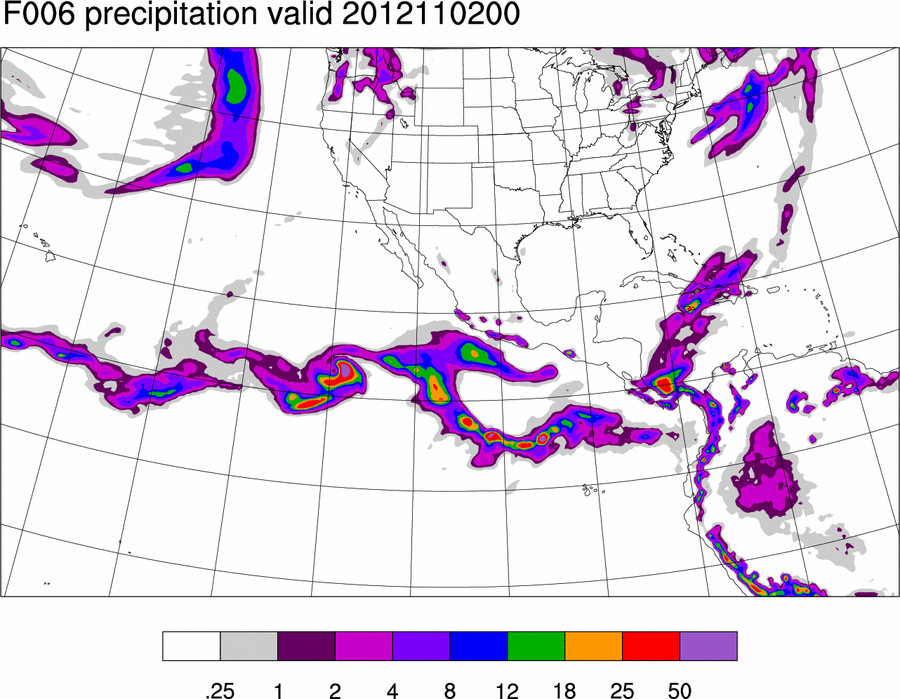

Precipitation Analysis ensemble mean SLP (contours, units hPa) and six hour precipitation (shading, units mm) valid at analysis time.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

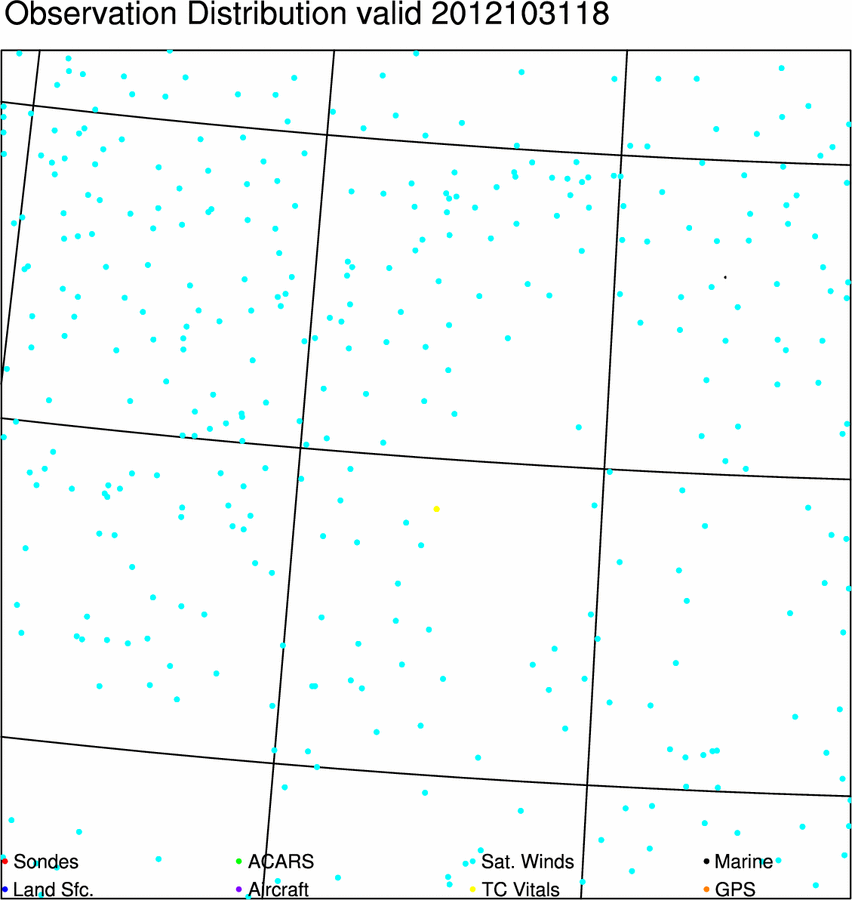

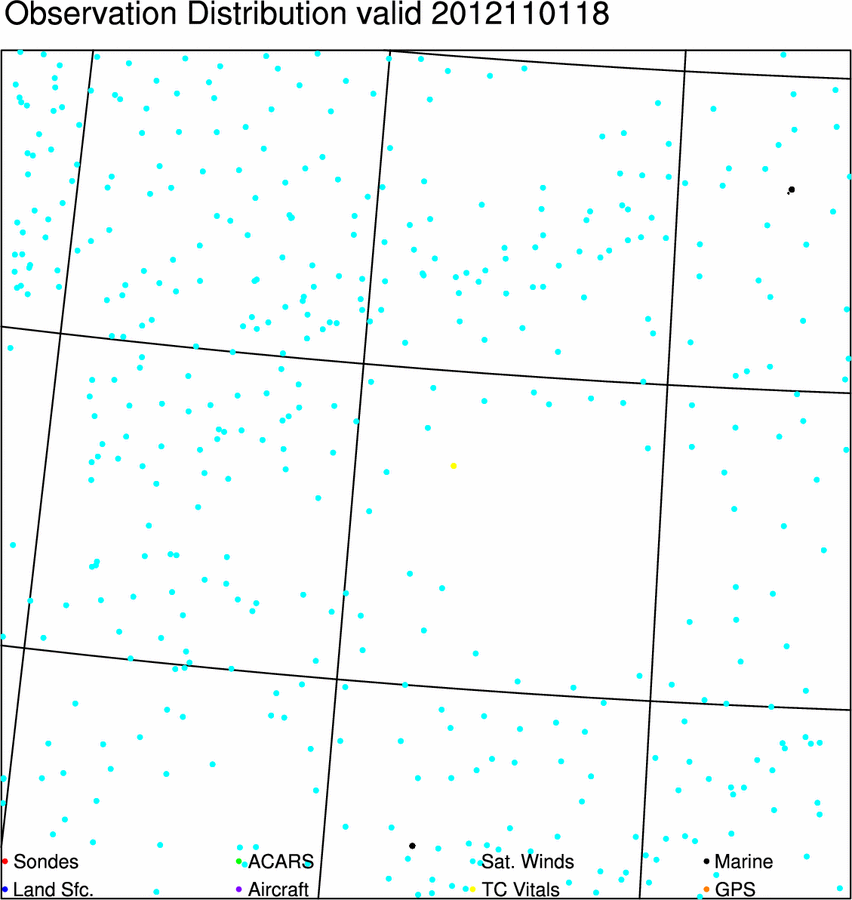

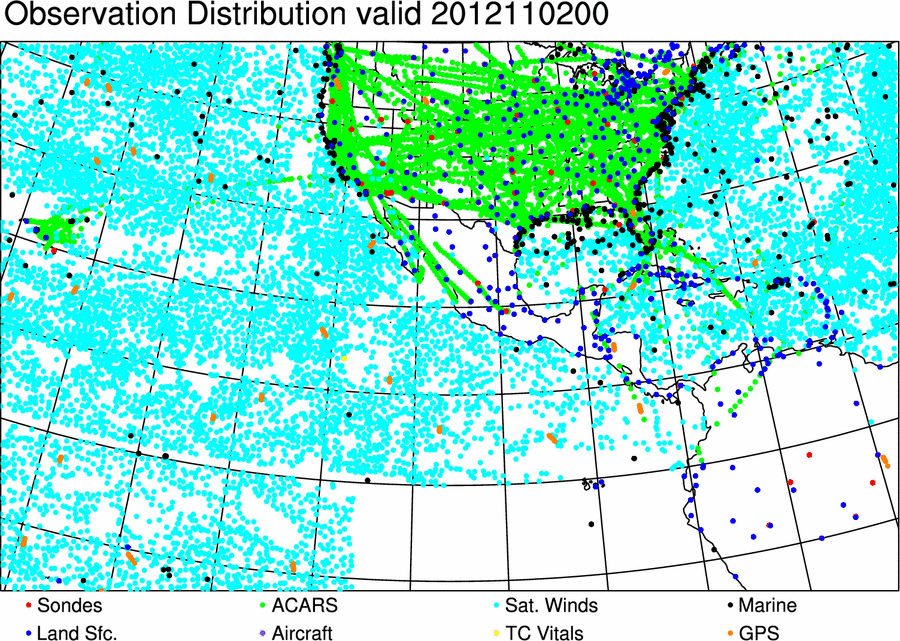

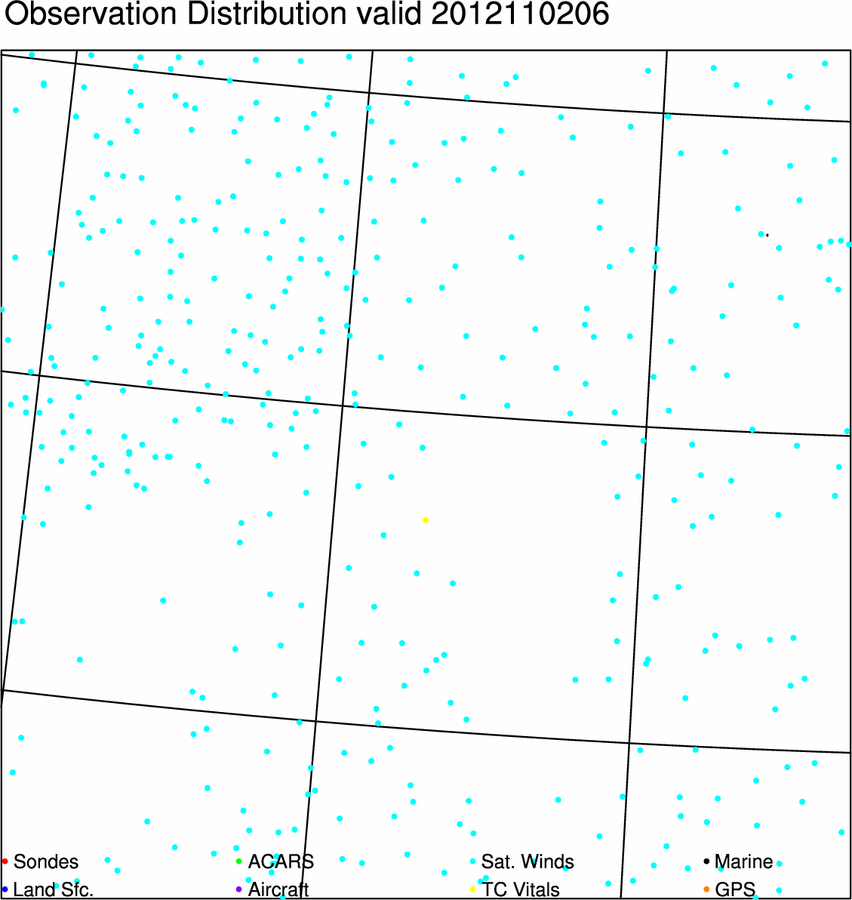

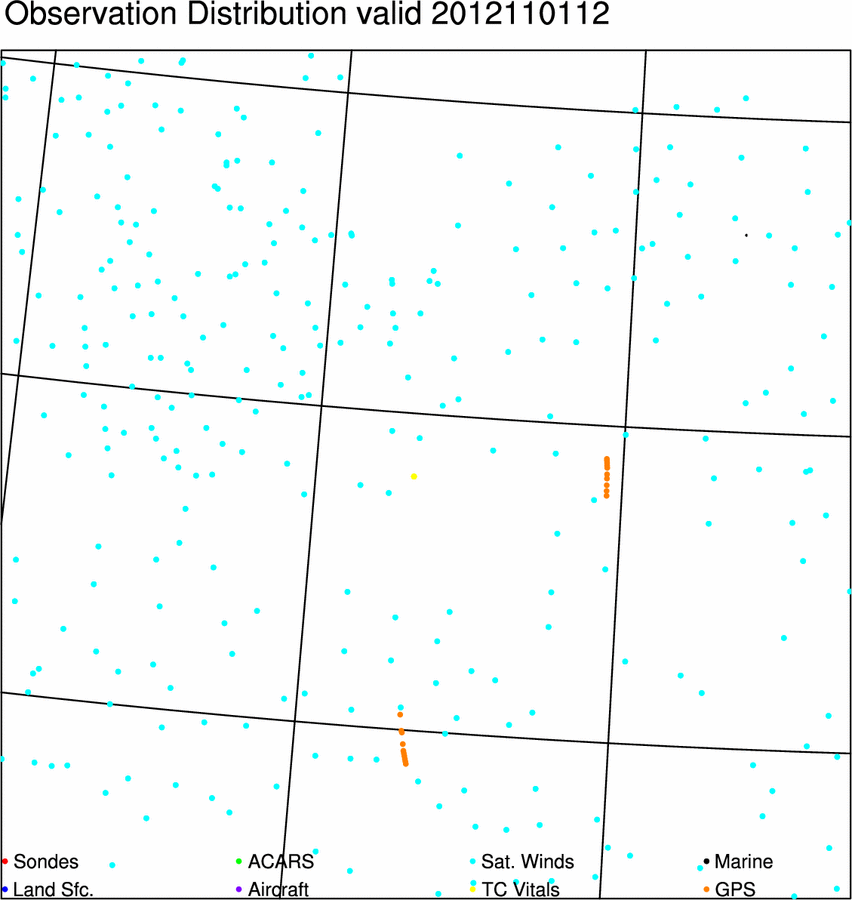

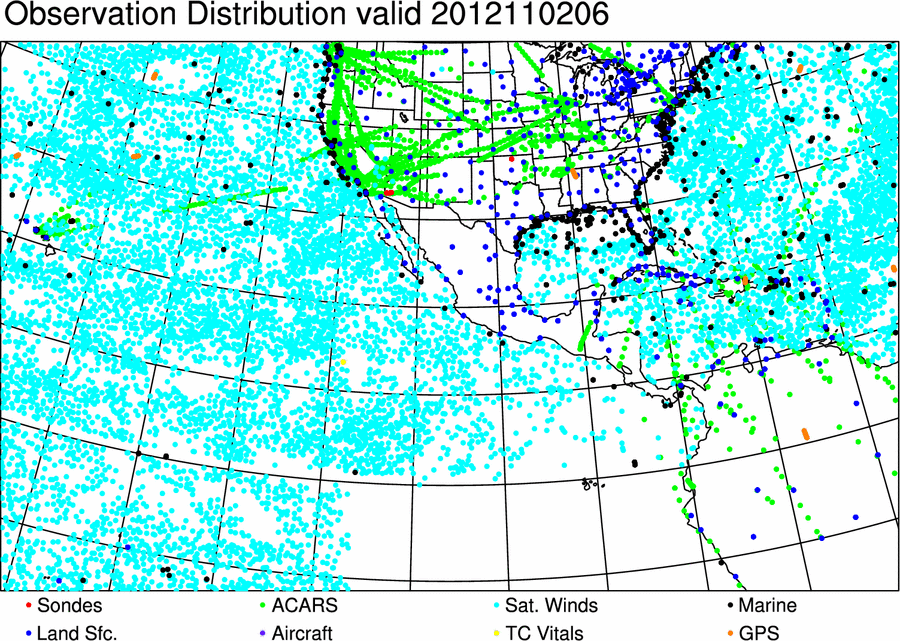

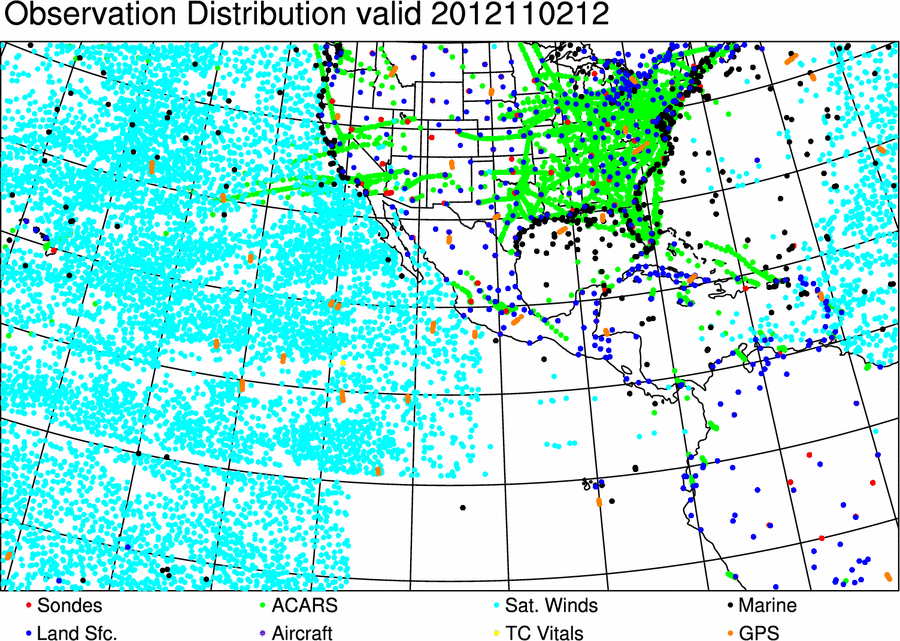

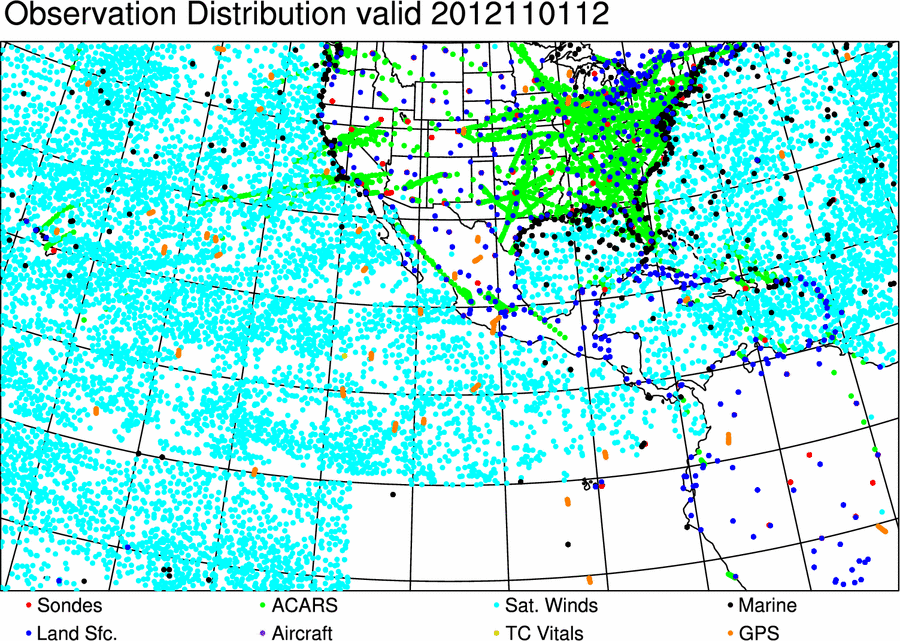

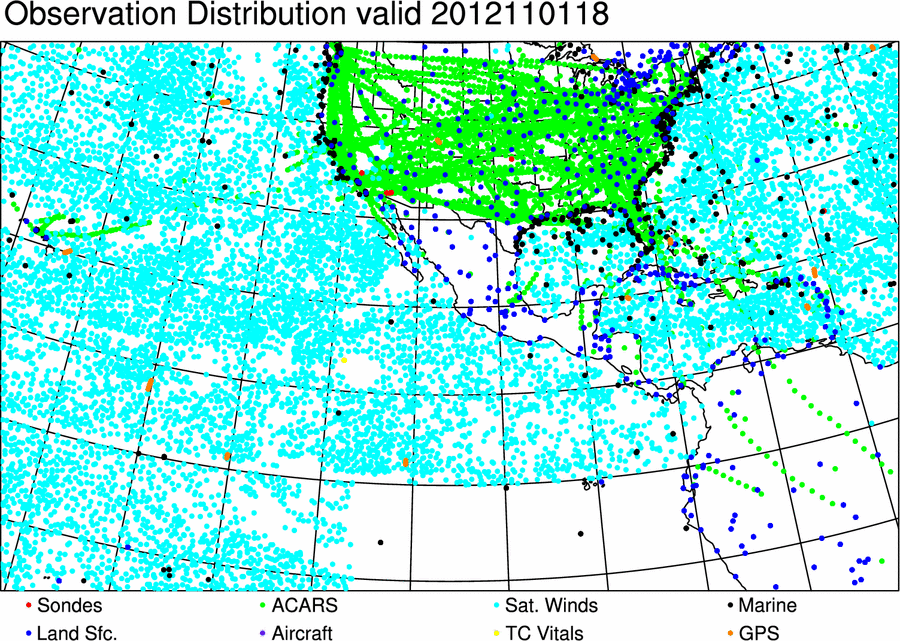

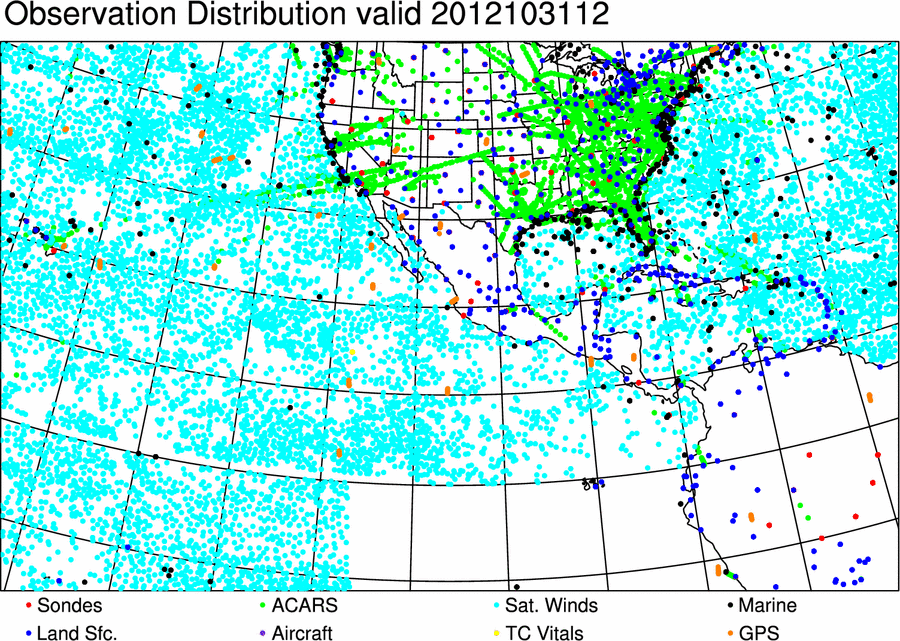

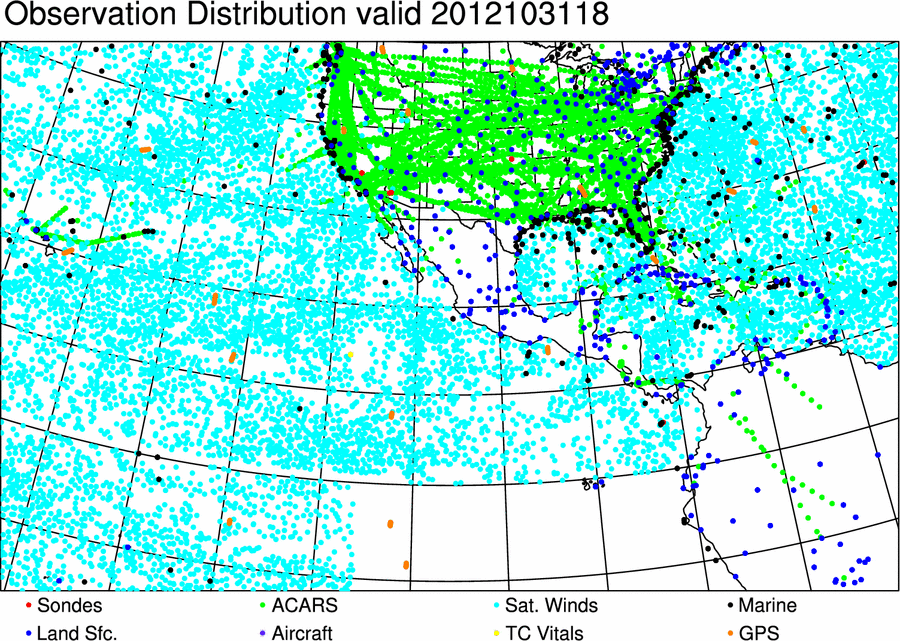

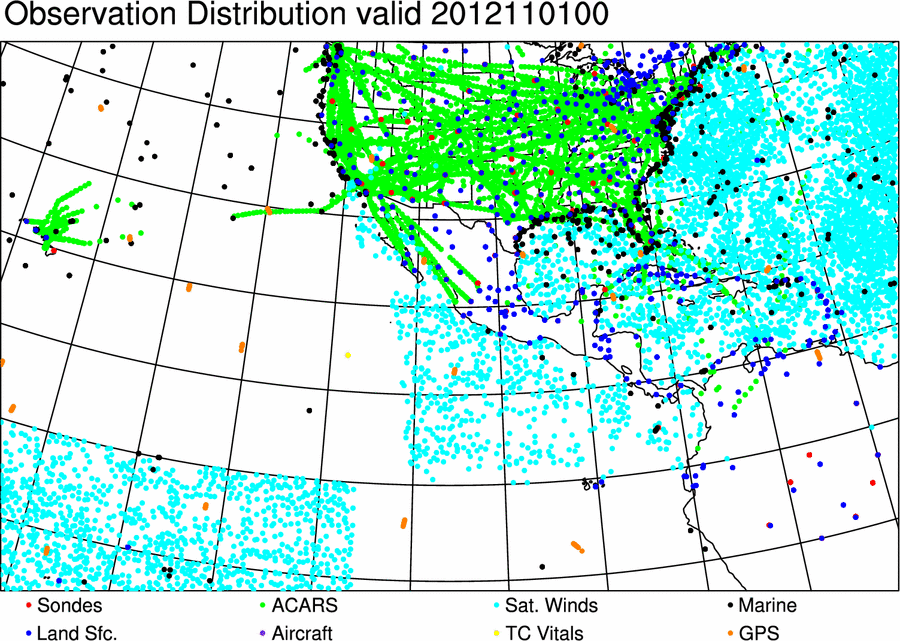

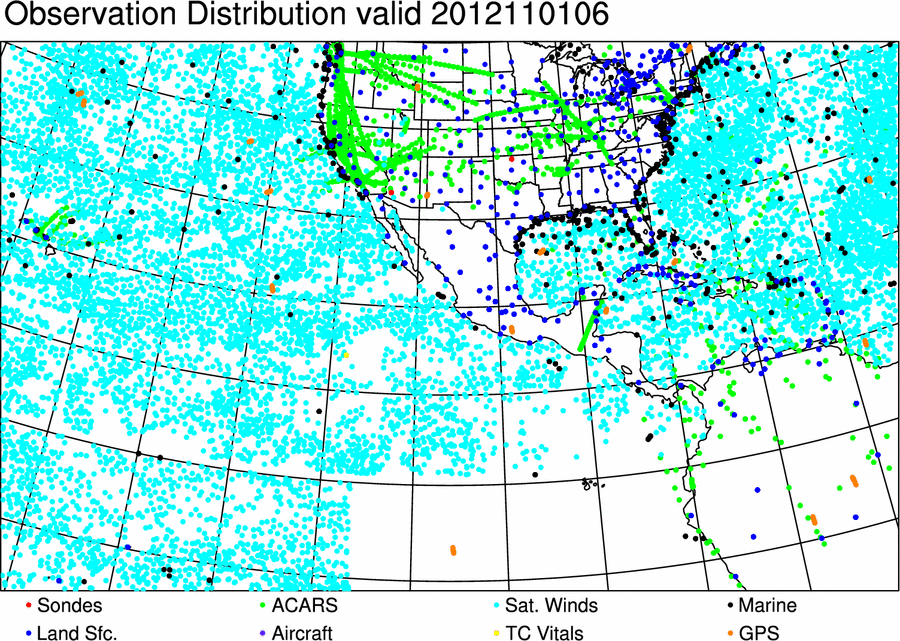

Observations Distribution of observations ingested into the assimilation system.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

ROSA

	Current Cycle	Cycle - 6 h	Cycle - 12 h	Cycle - 18 h	Cycle - 24 h	Cycle - 30 h	Cycle - 36 h	Cycle - 42 h	Cycle - 48 h	Loop

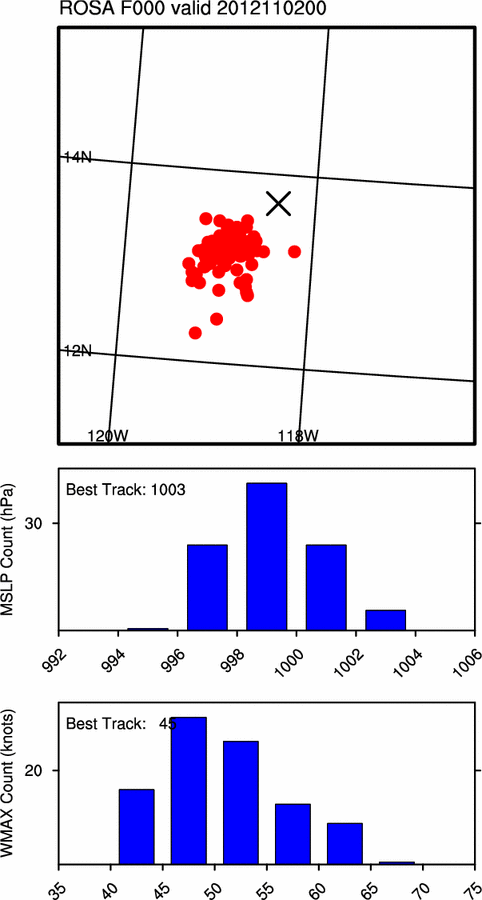

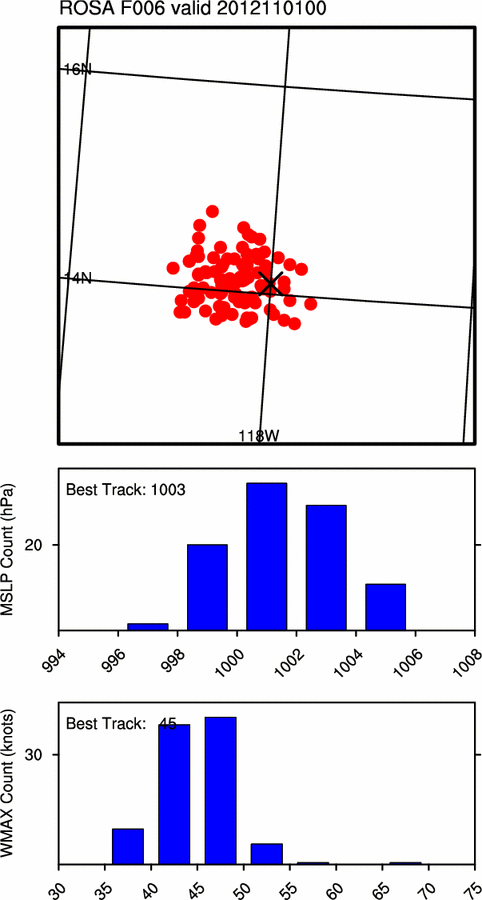

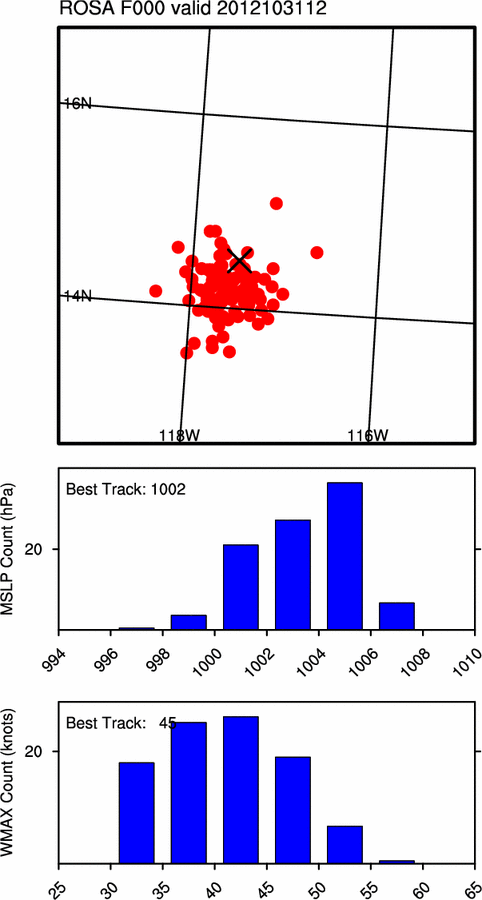

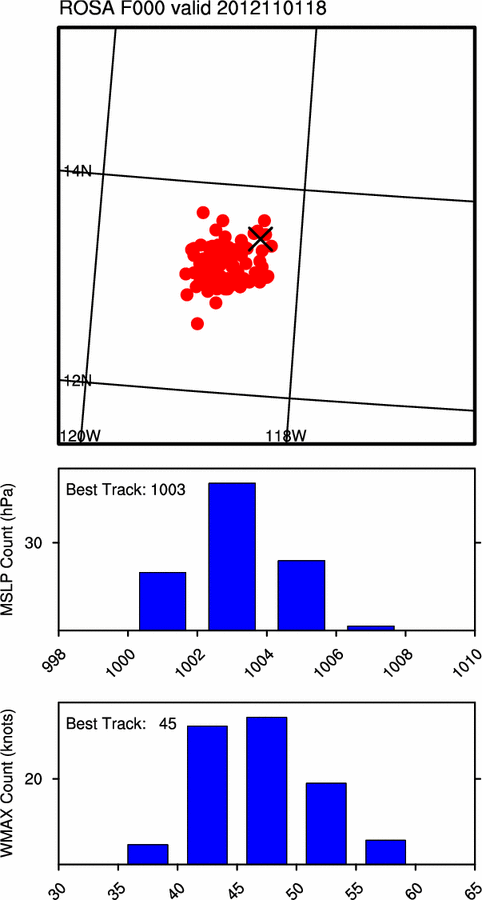

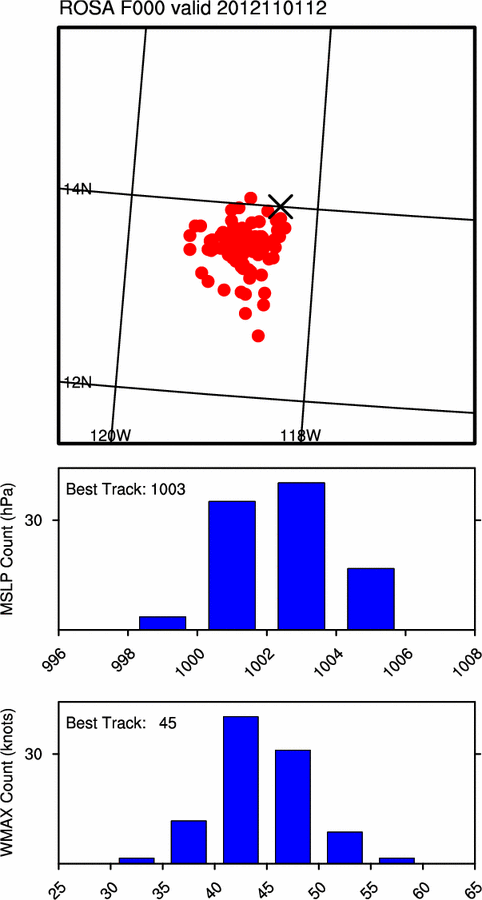

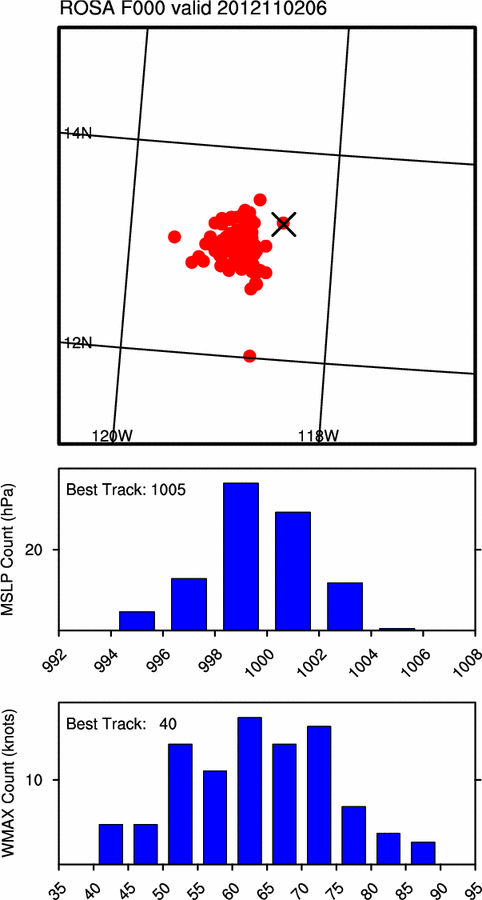

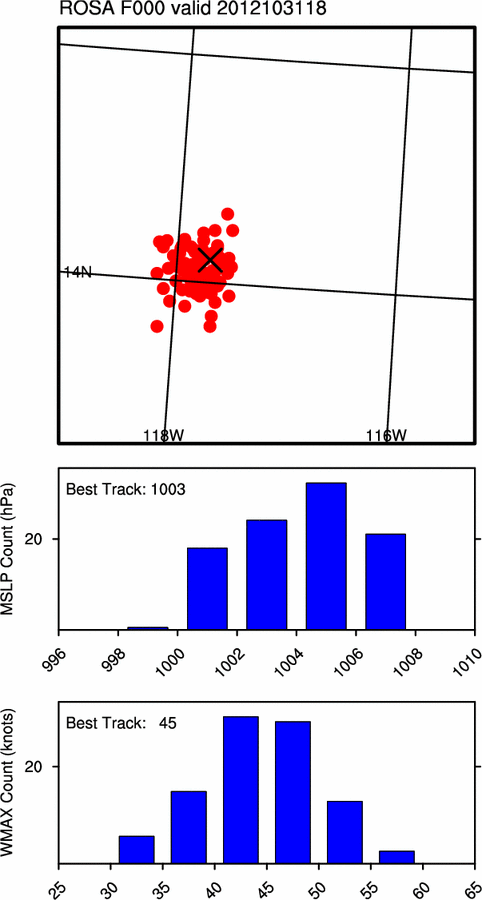

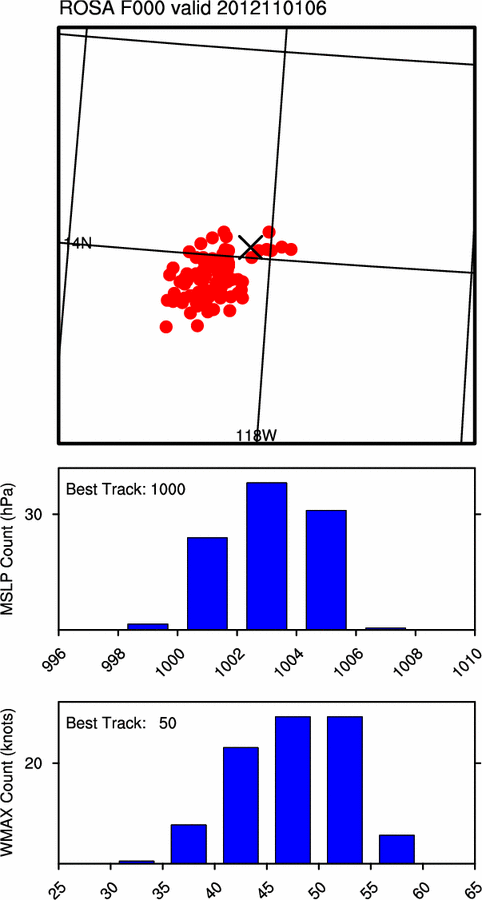

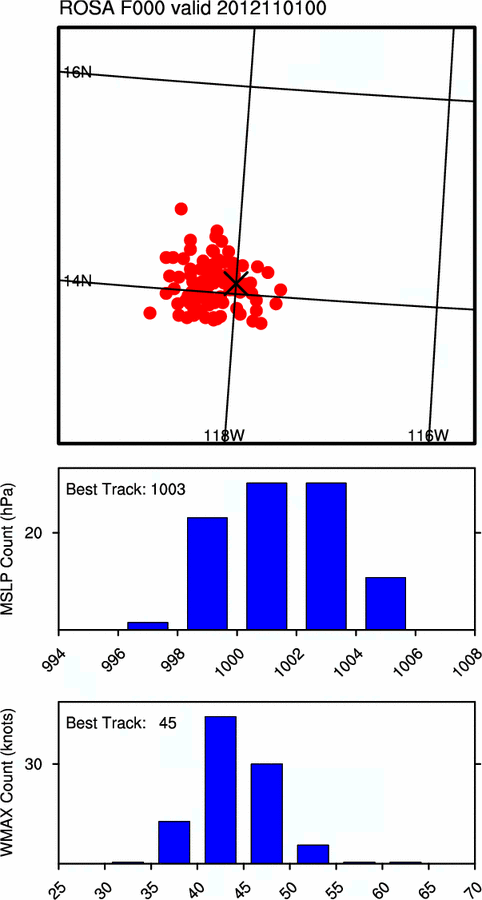

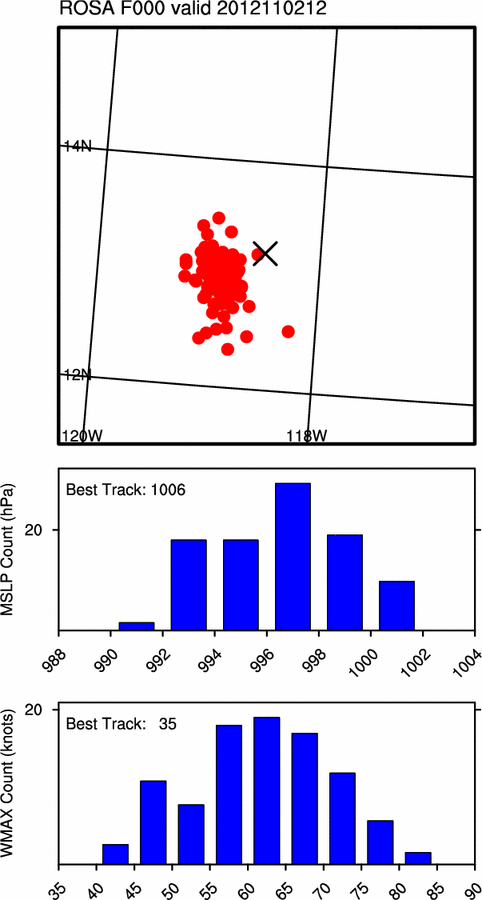

Analysis TC Vitals Analysis vortex position, minimum SLP, and maximum wind speed	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

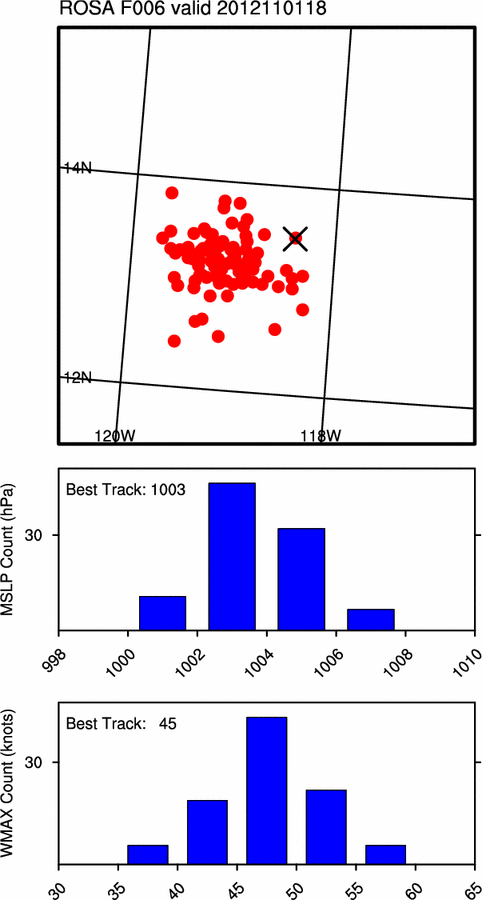

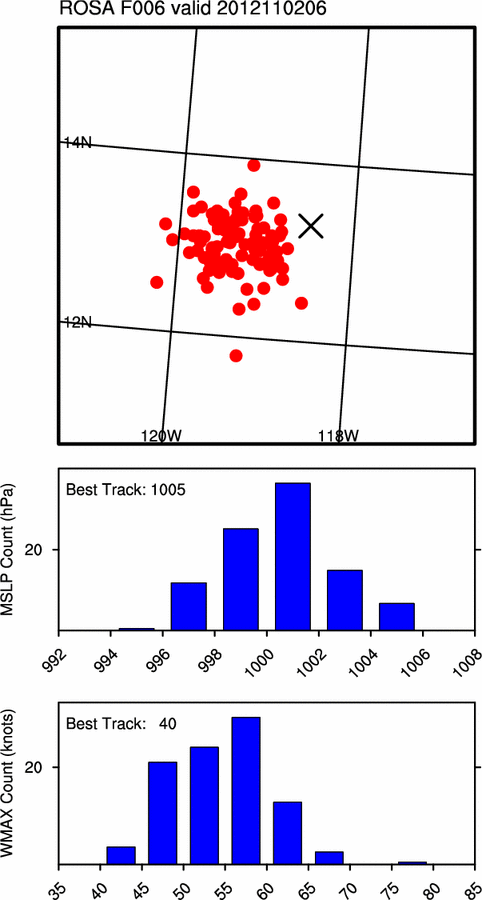

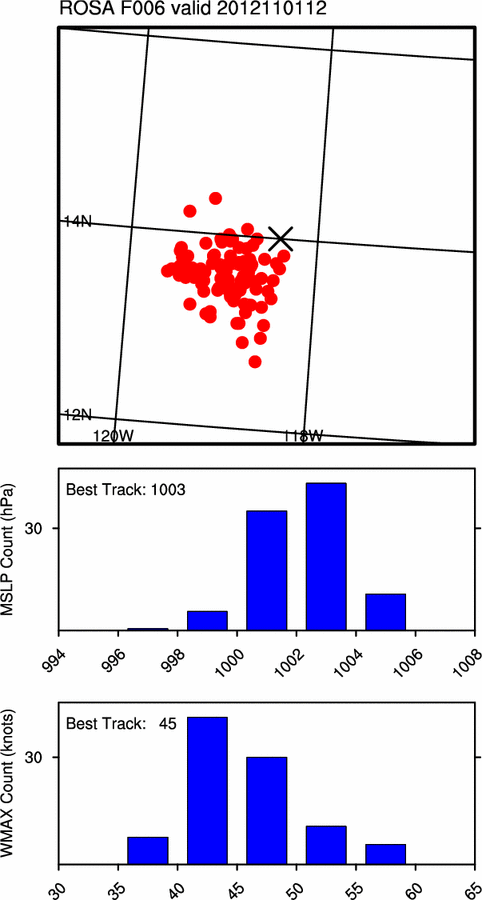

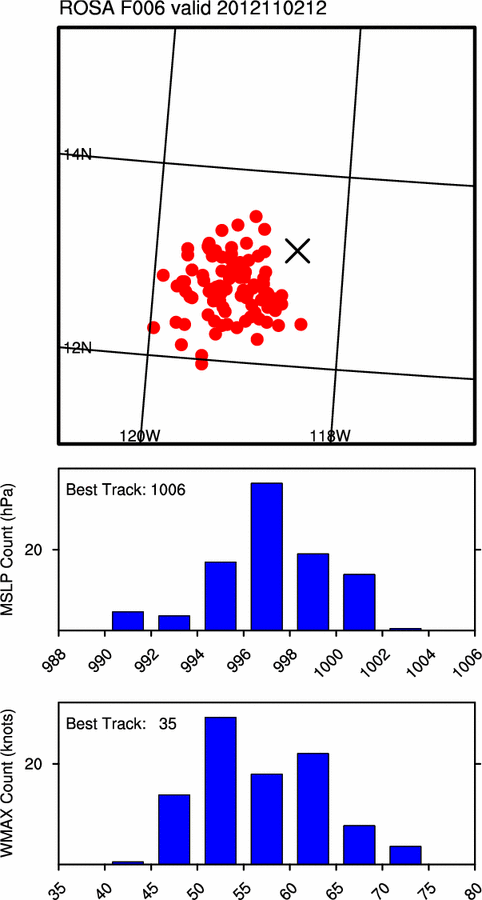

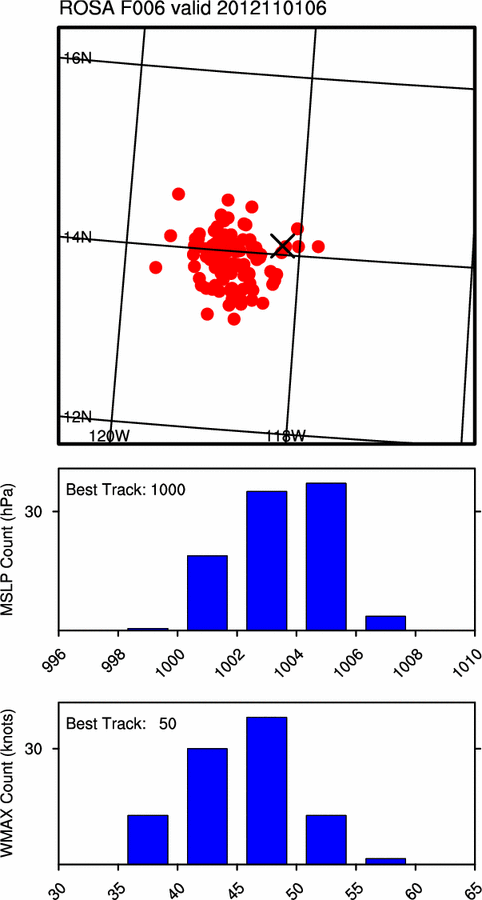

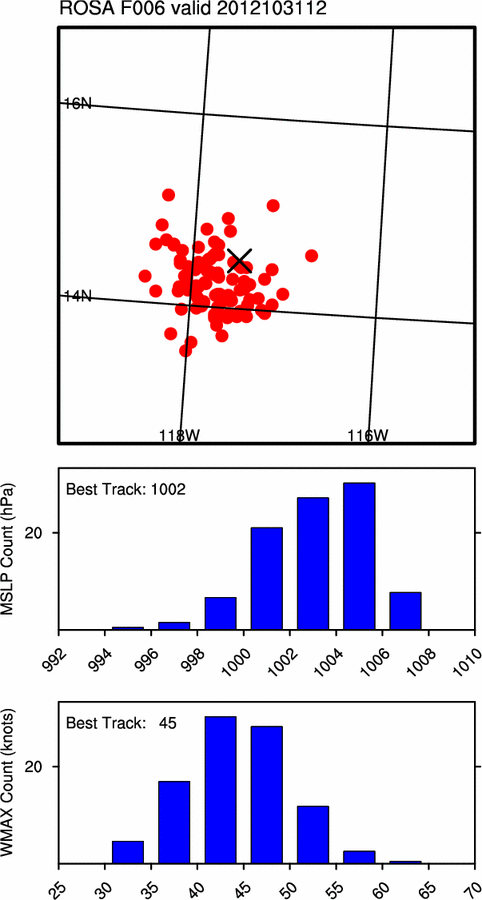

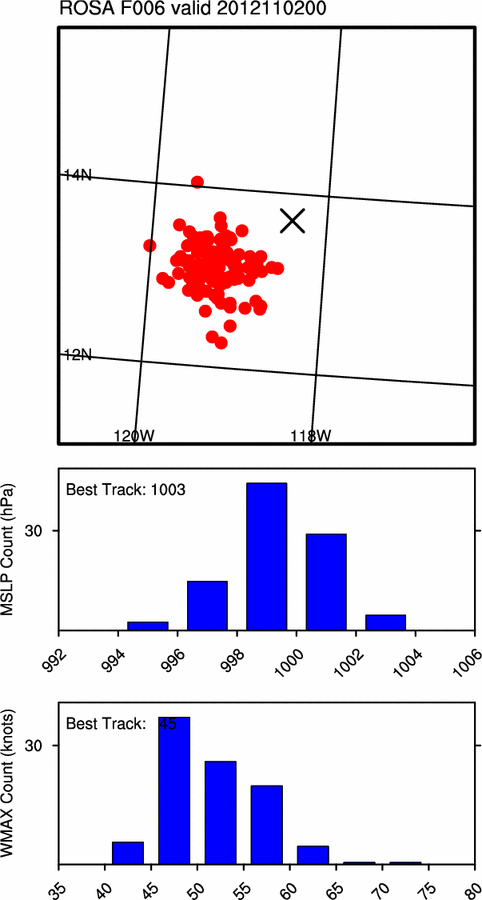

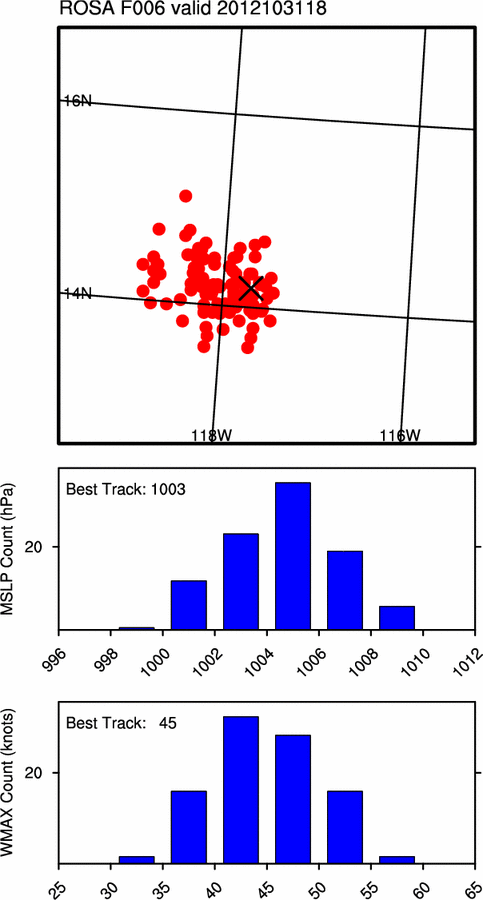

Background TC Vitals Background vortex position, minimum SLP, and maximum wind speed	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

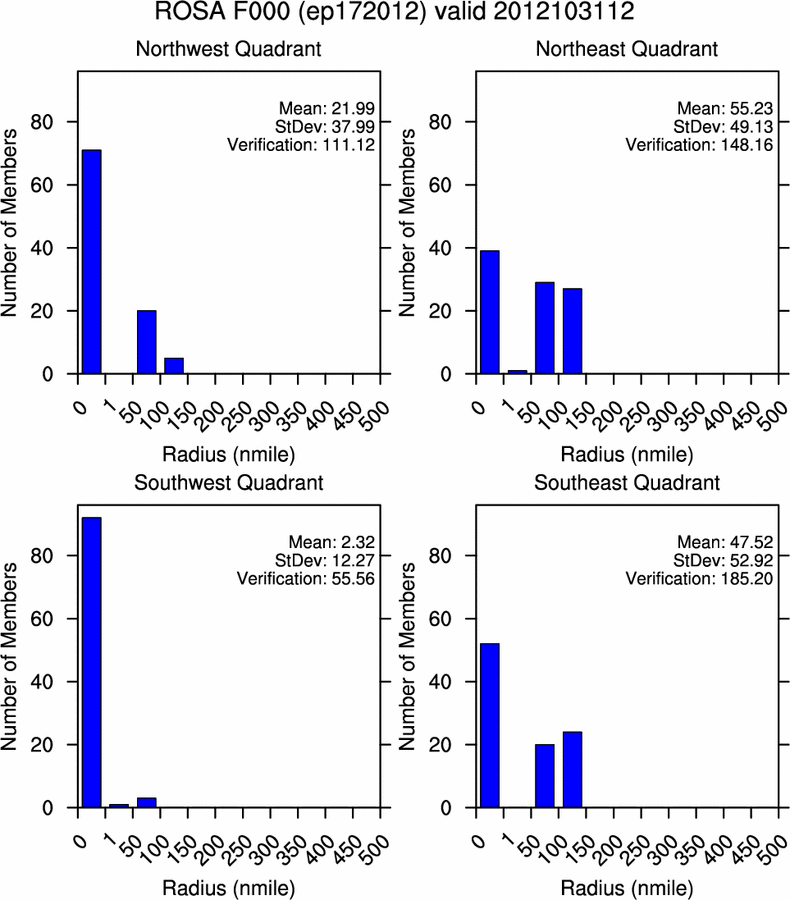

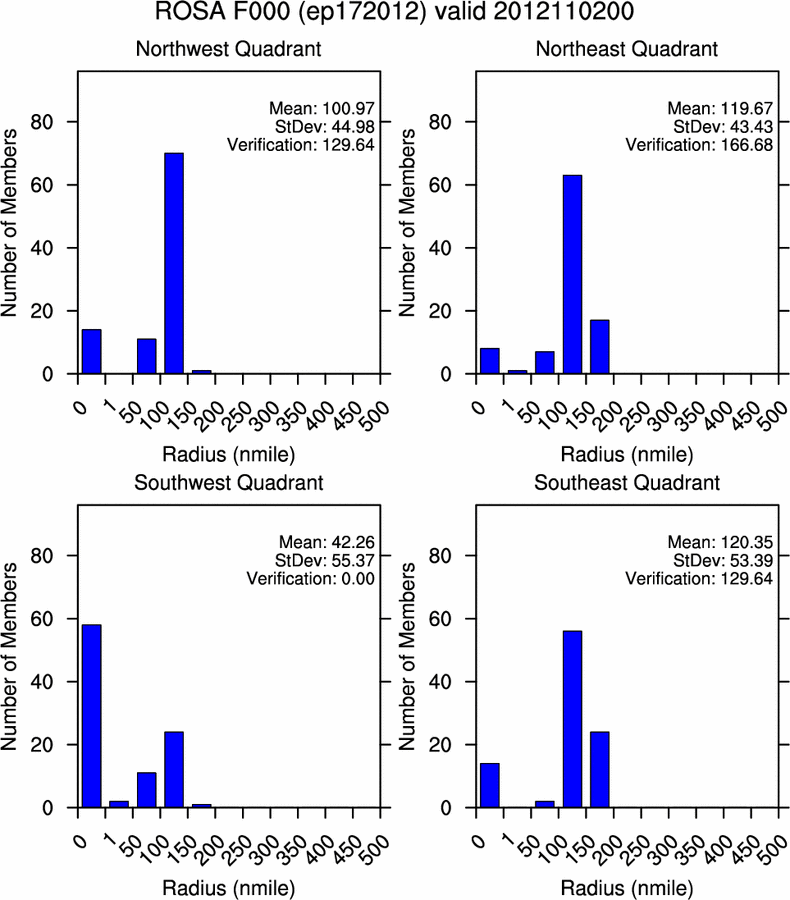

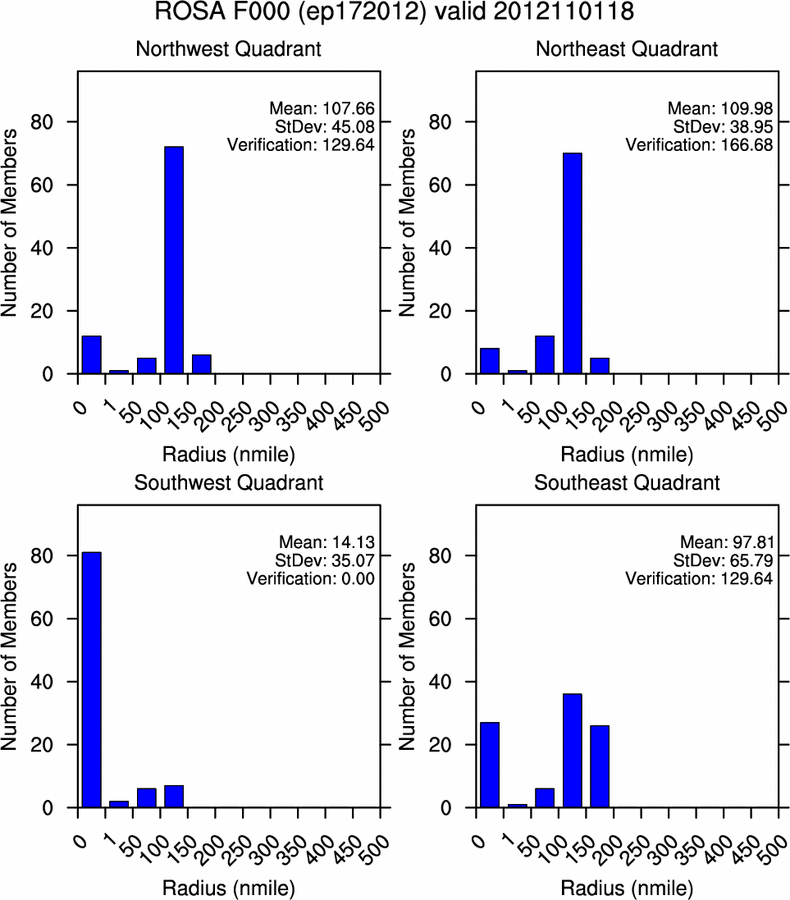

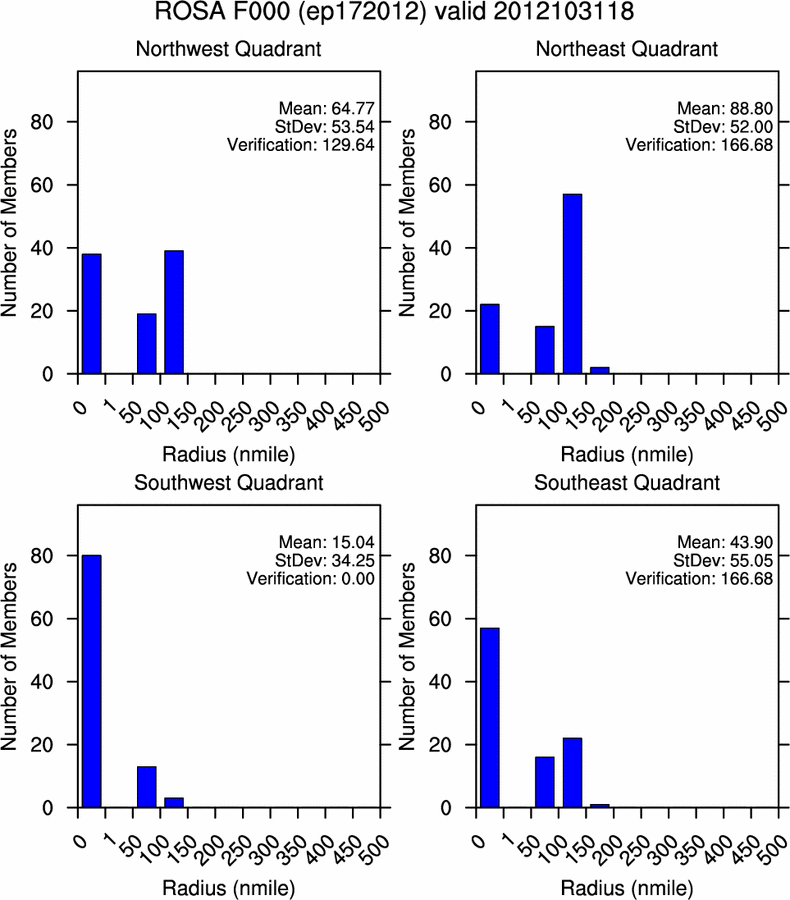

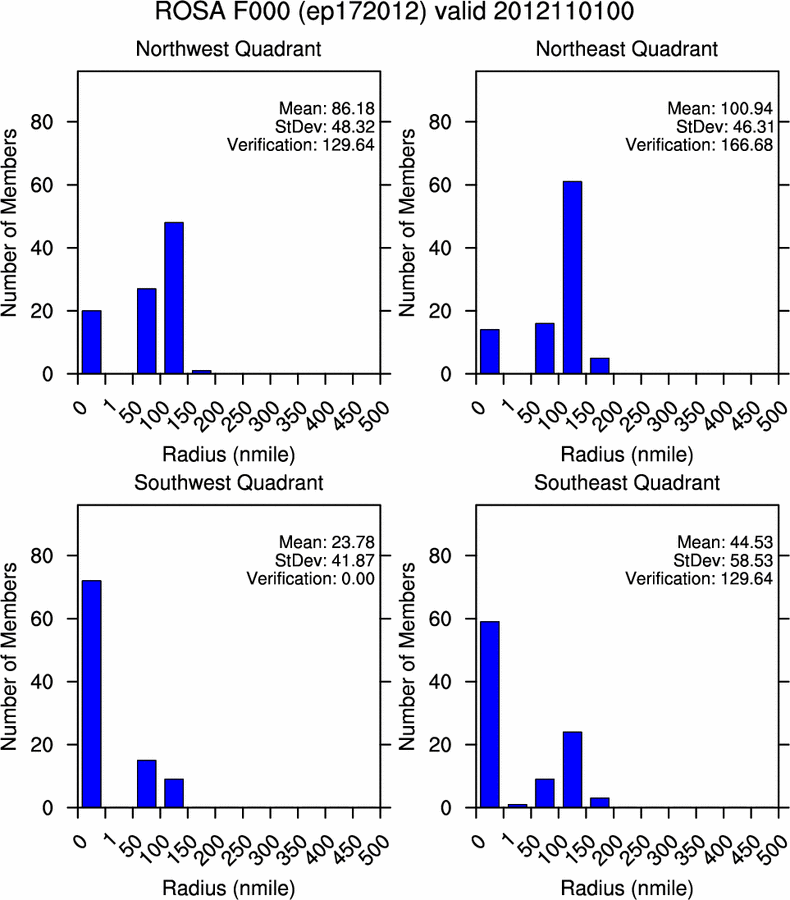

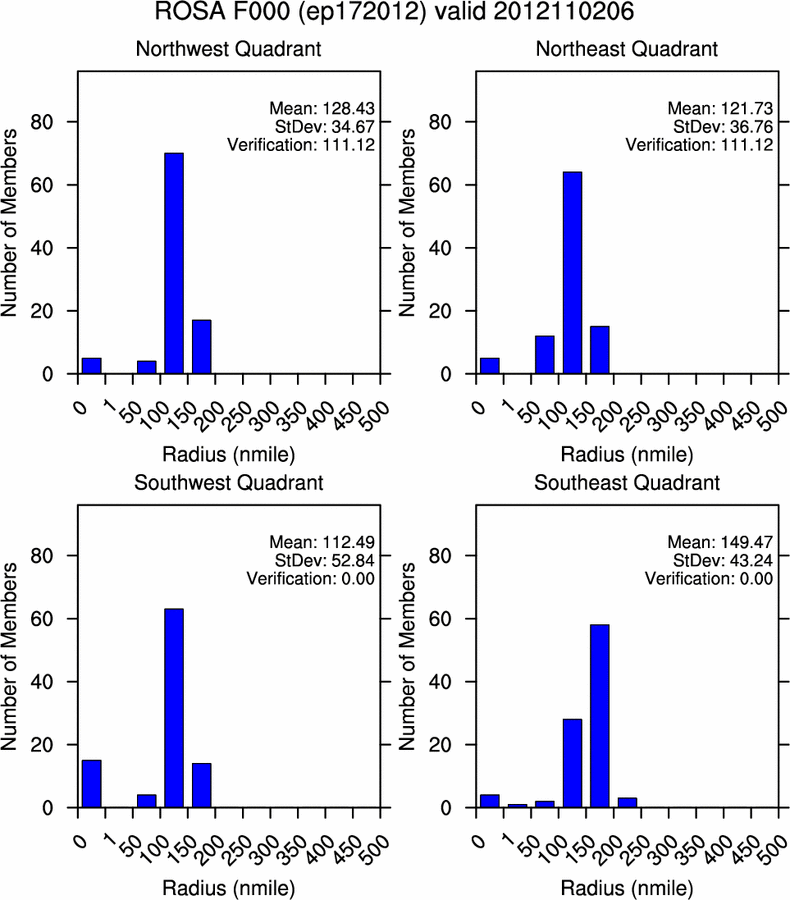

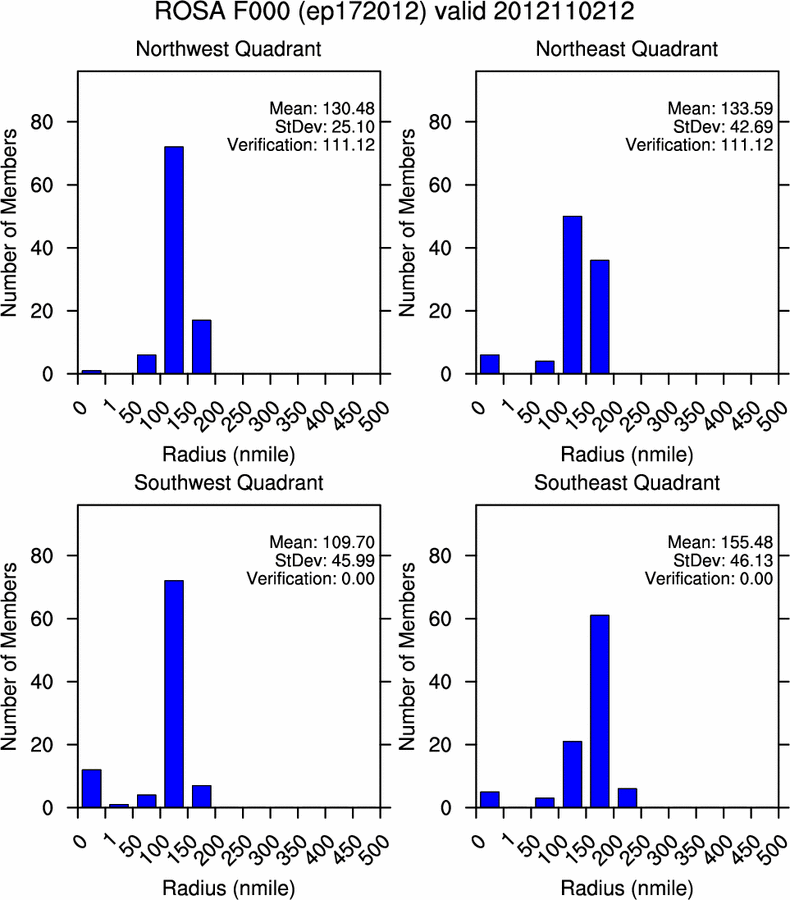

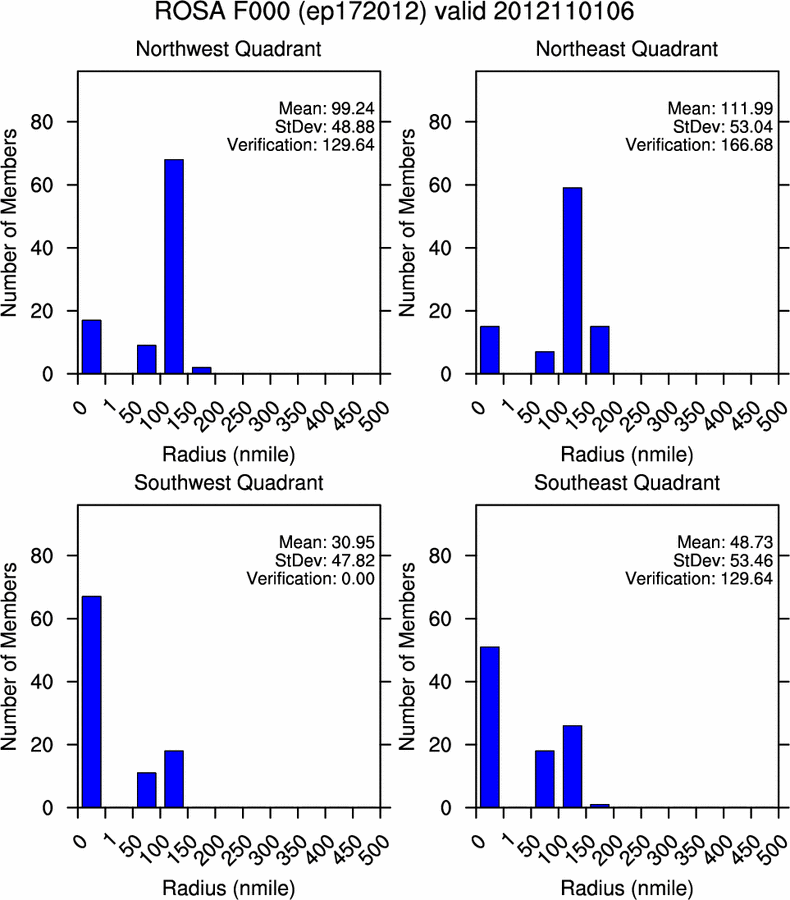

Analysis 34-knot radii Analysis 34-knot wind radii in each quadrant of the TC.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

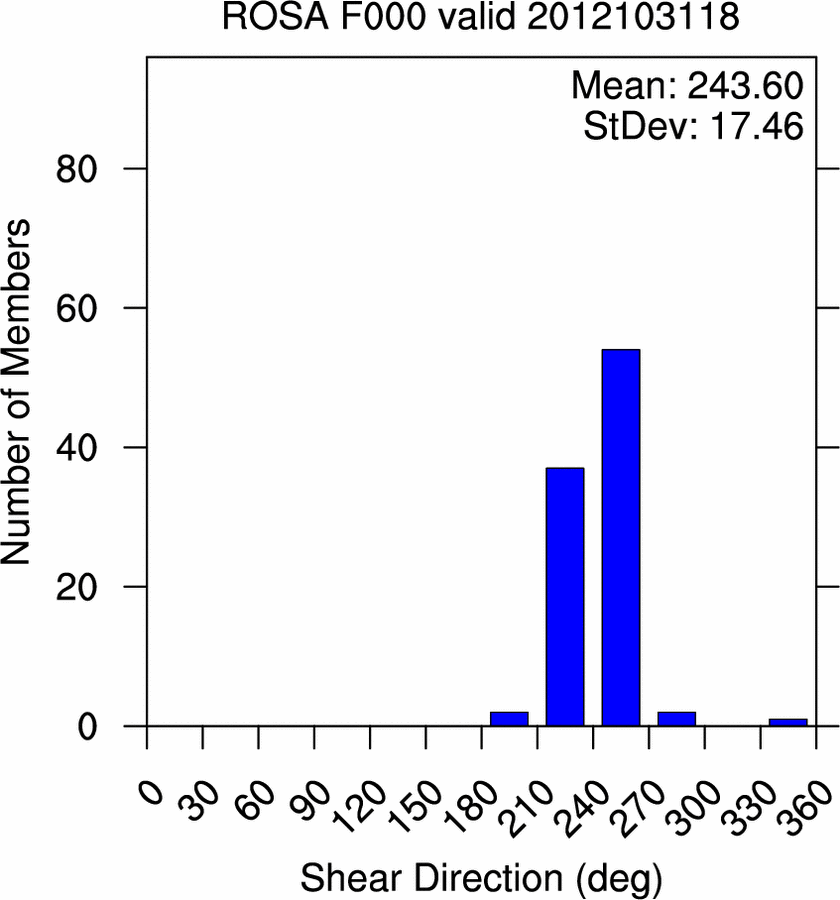

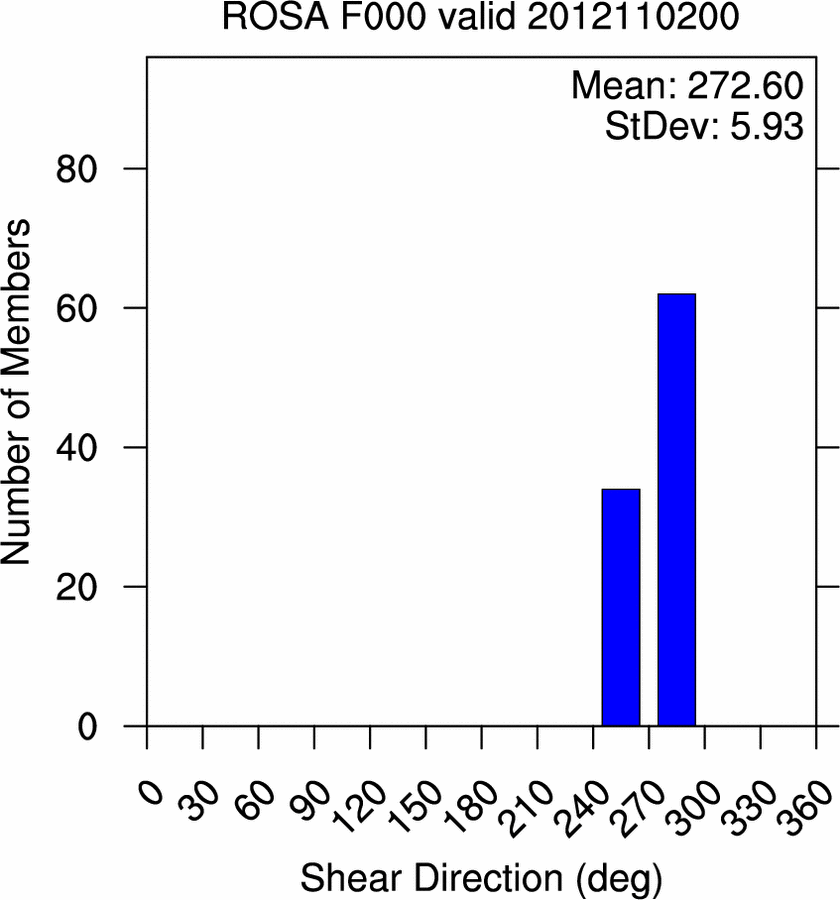

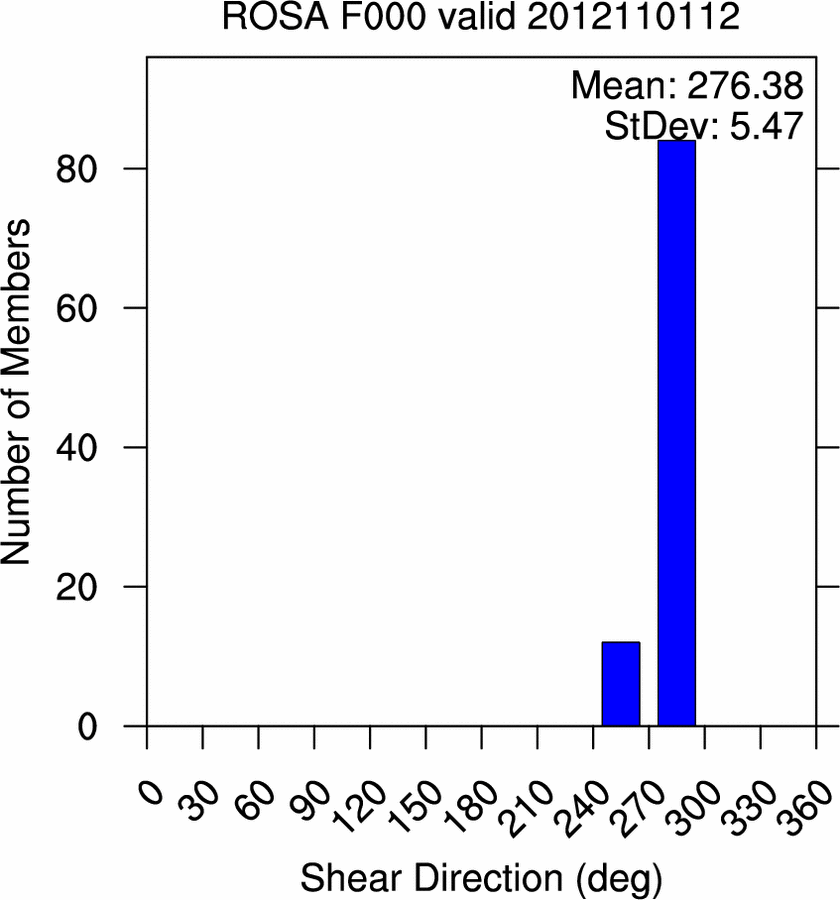

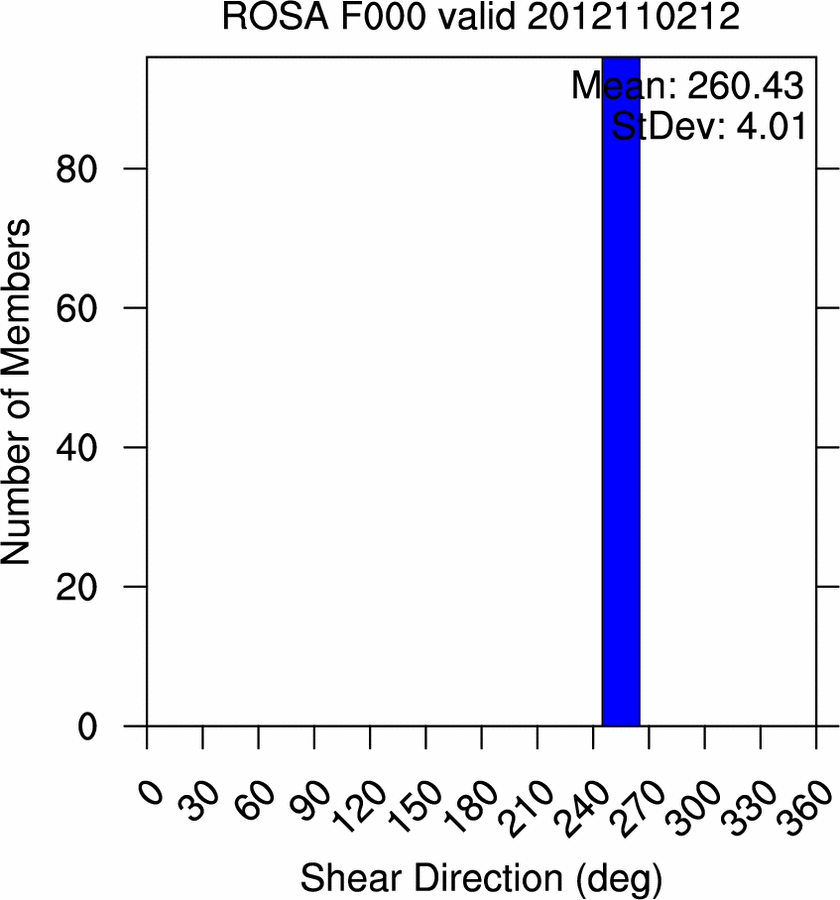

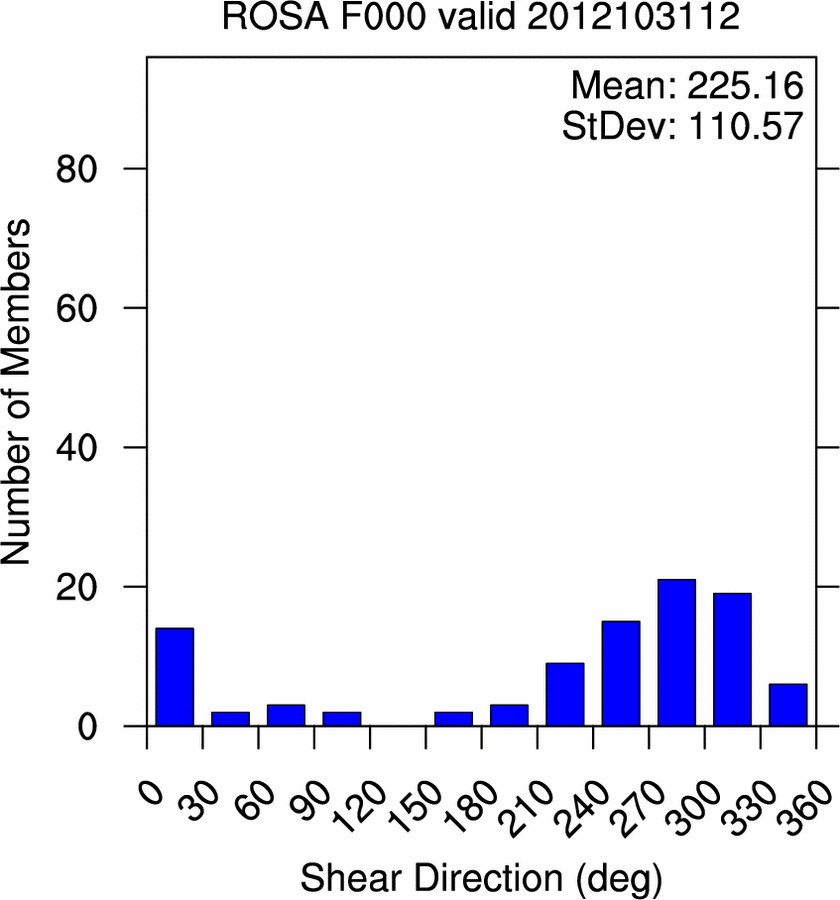

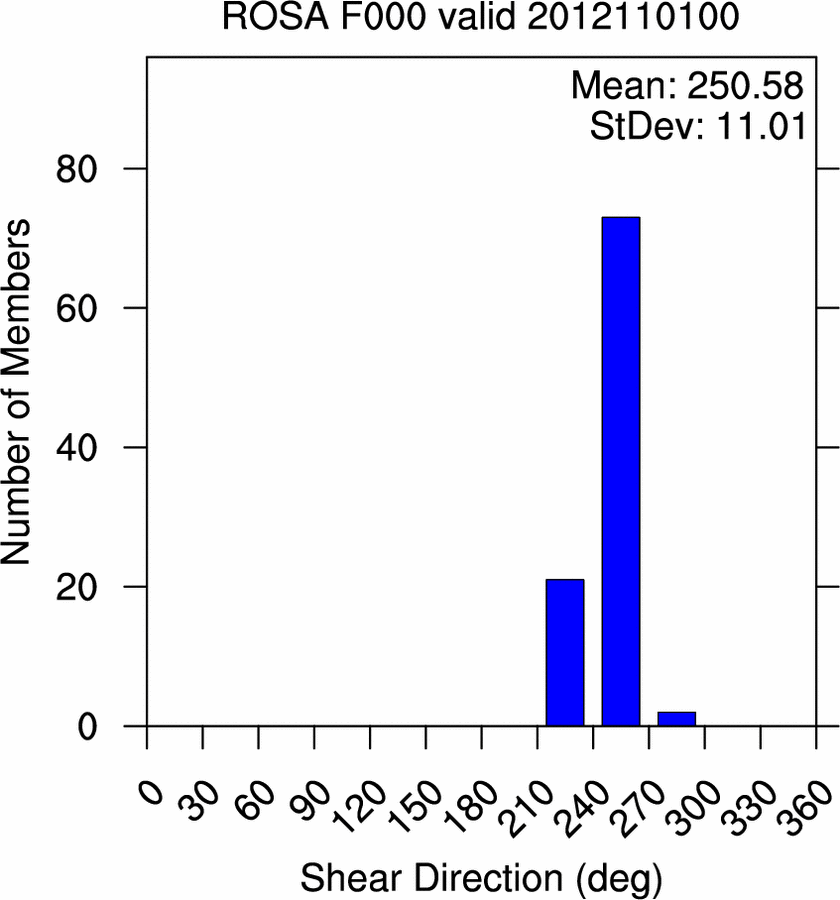

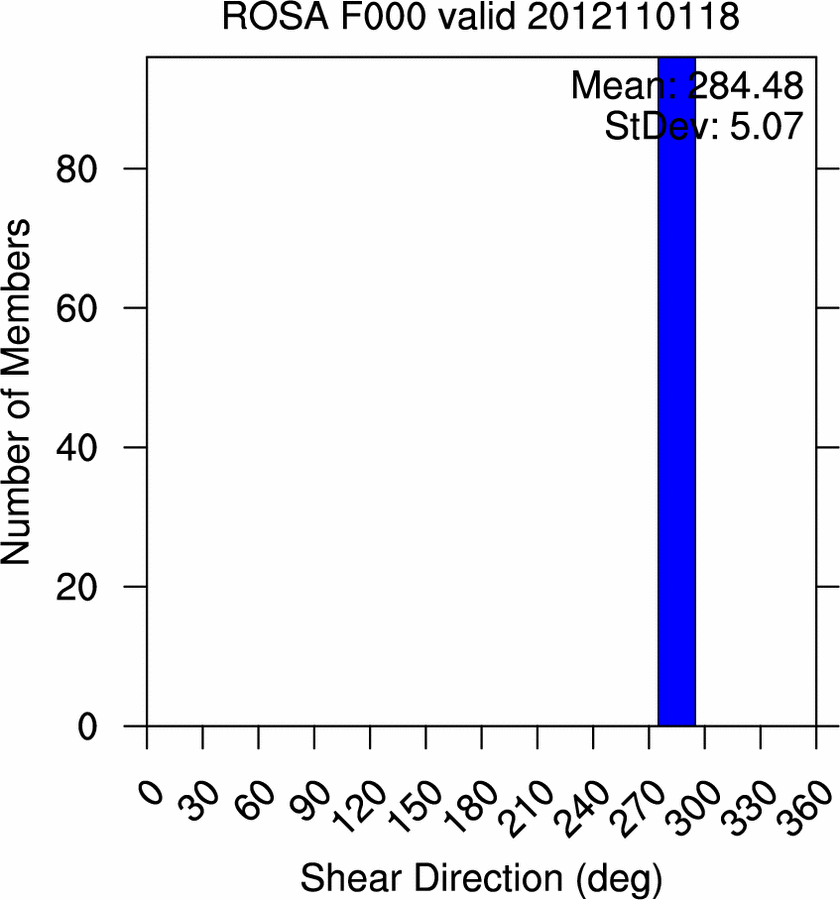

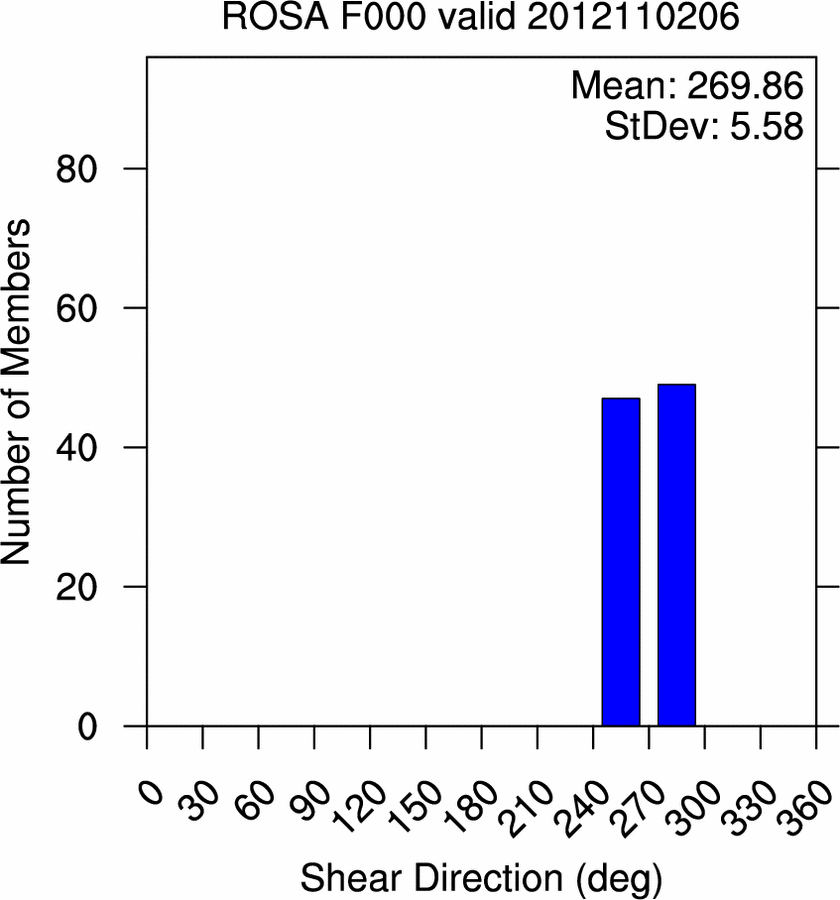

Analysis Shear Direction Analysis 200-850 hPa vertical wind shear direciton	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

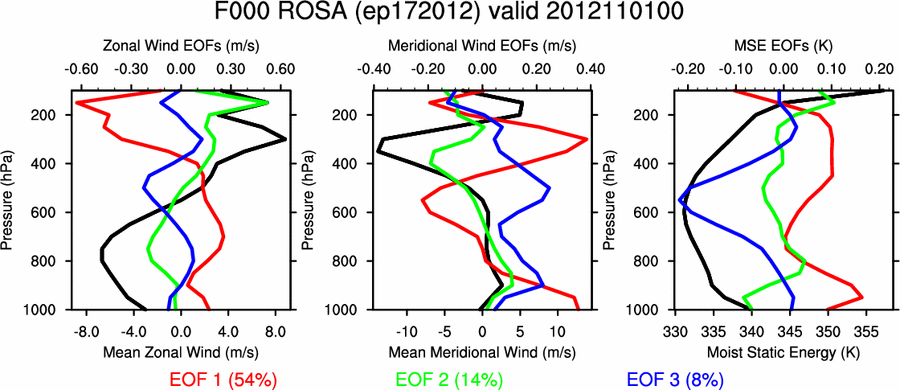

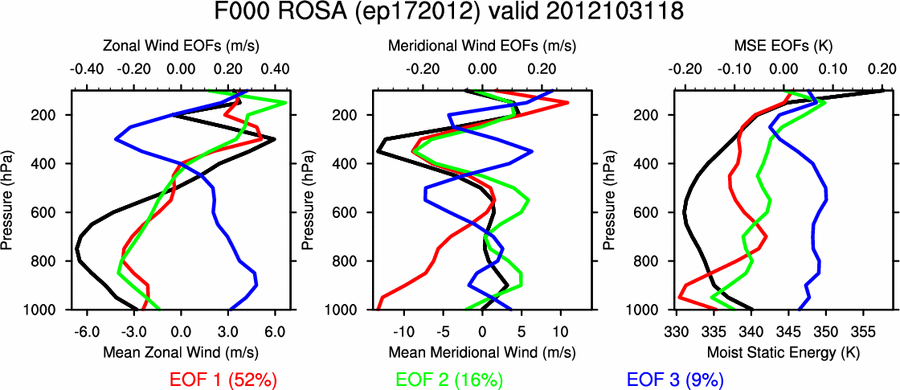

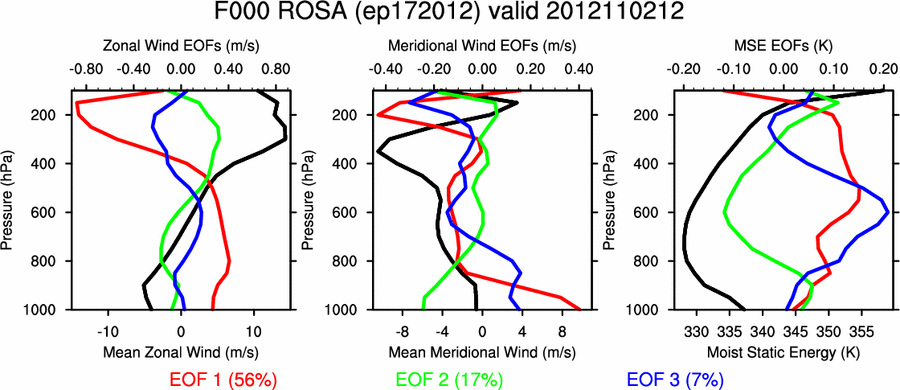

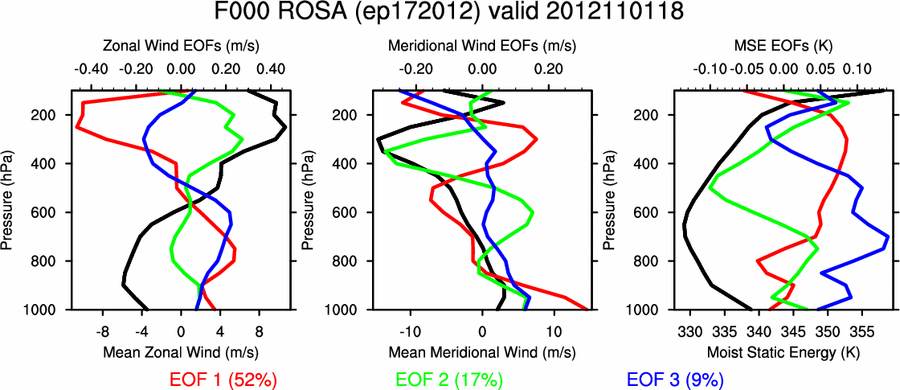

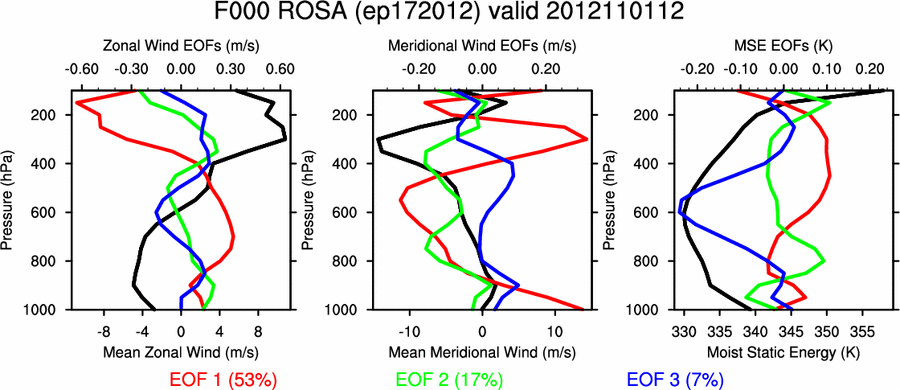

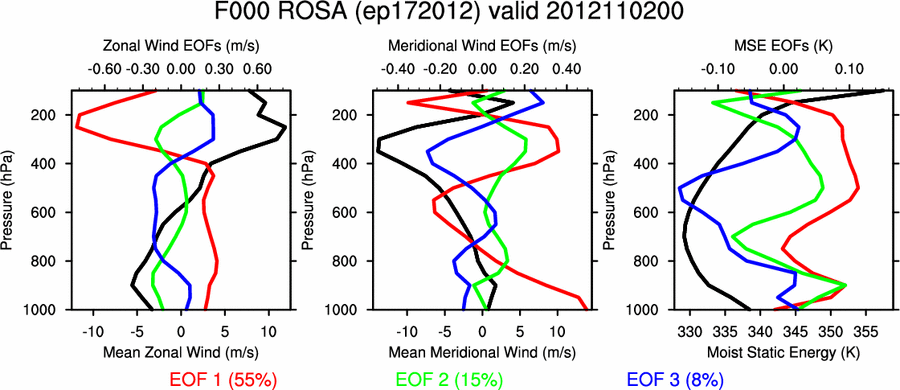

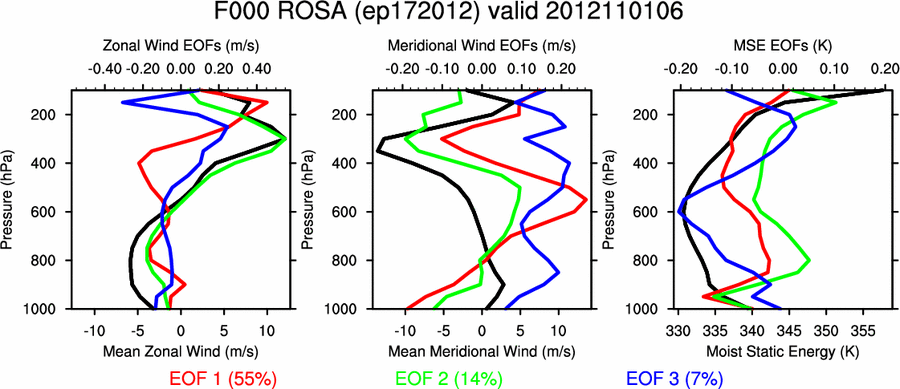

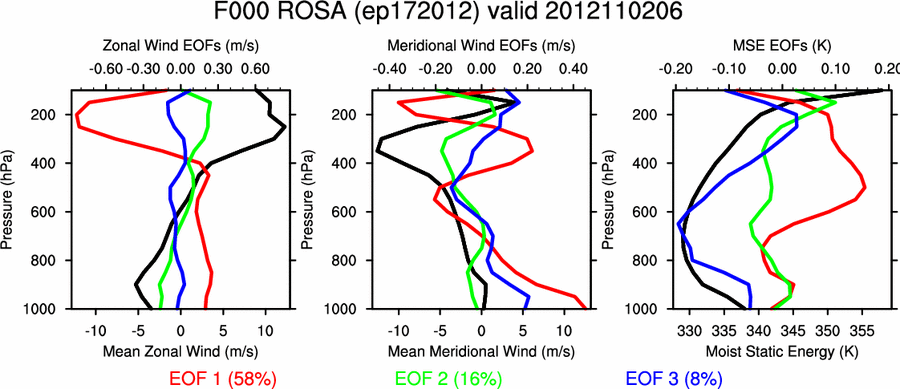

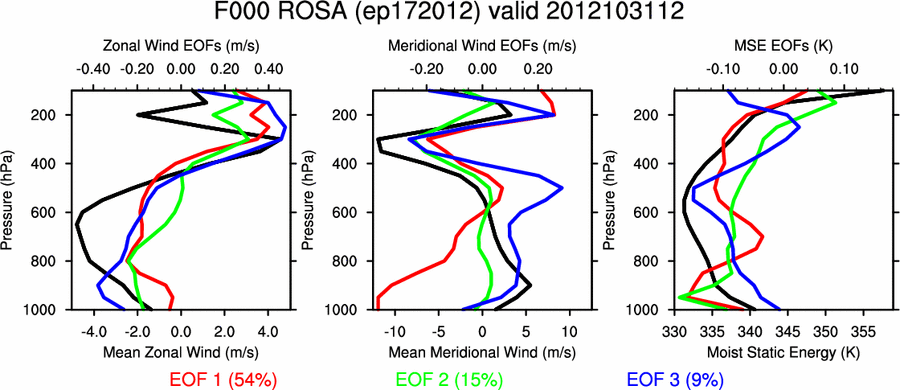

Analysis Env. Profiles Analysis environmental profiles and EOFs of the profiles	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

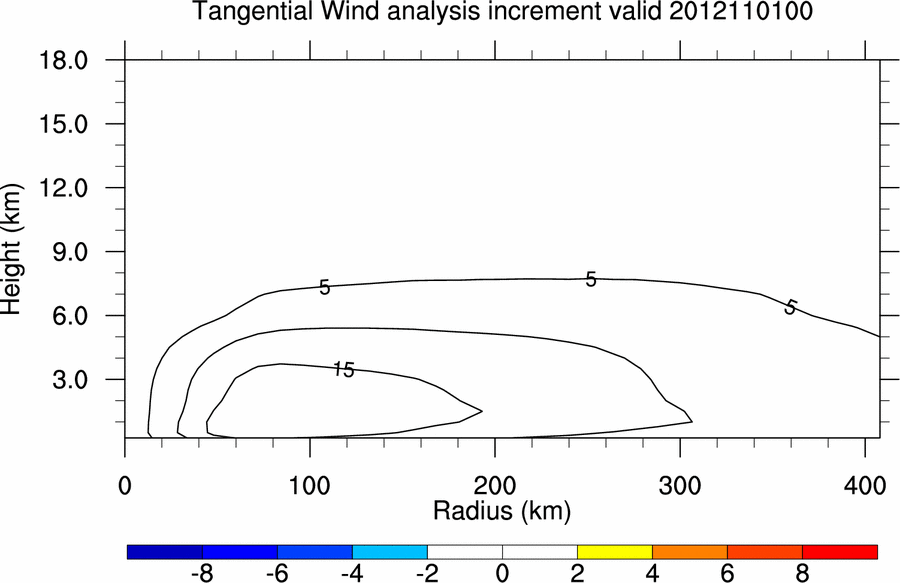

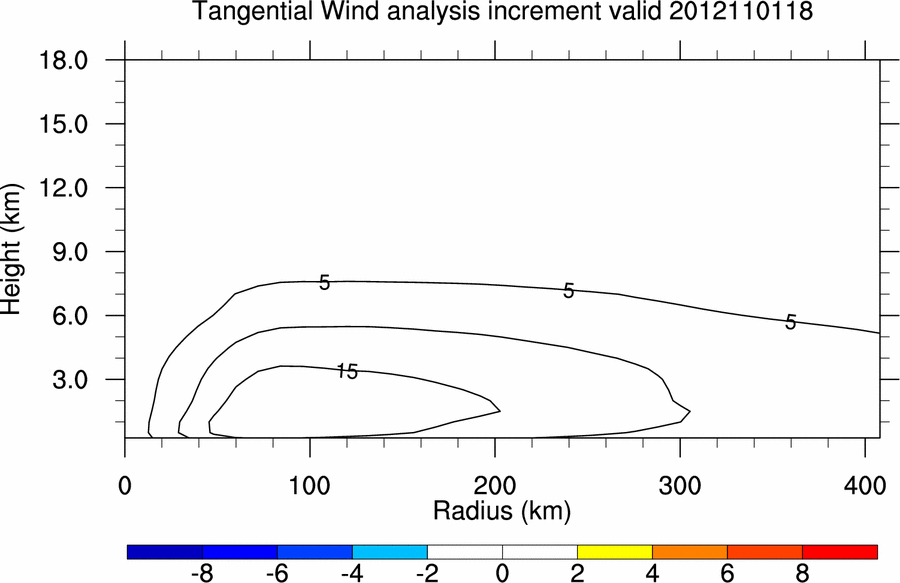

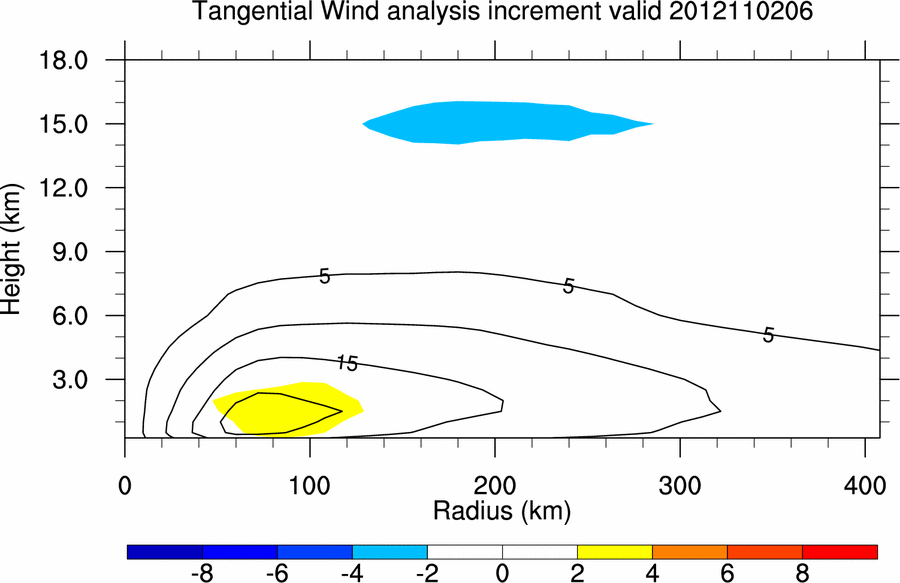

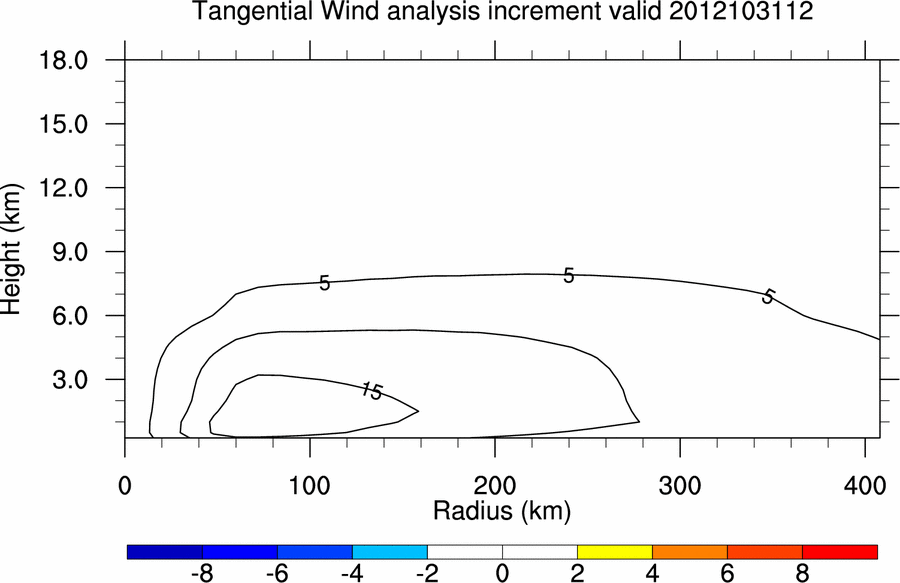

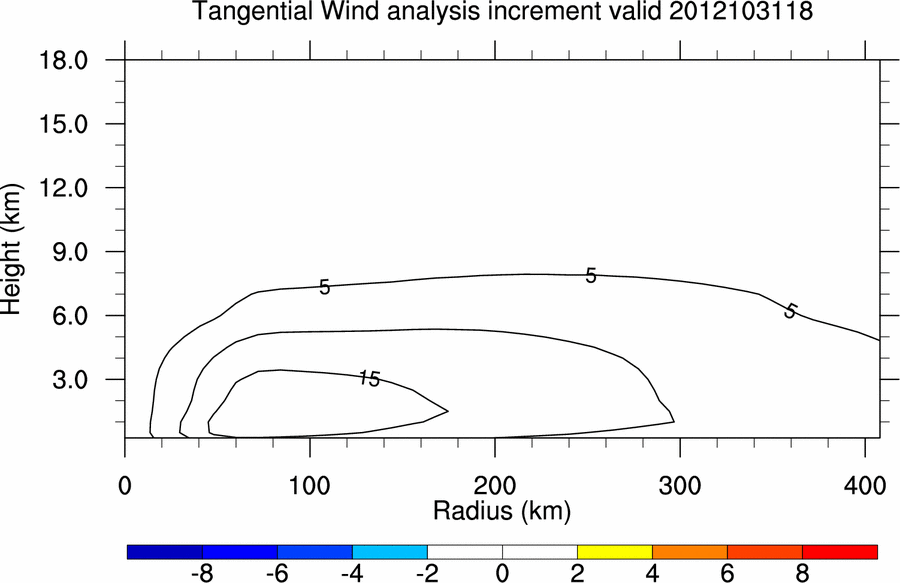

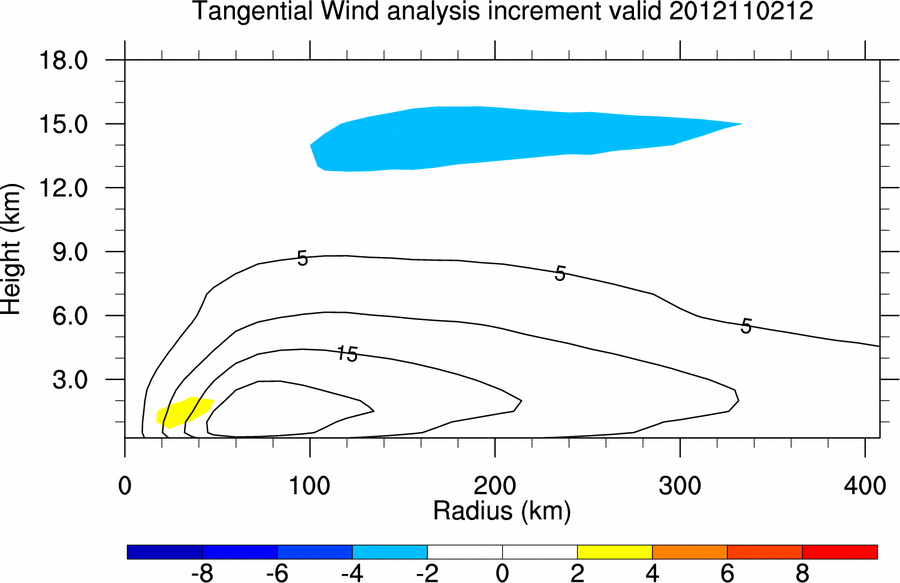

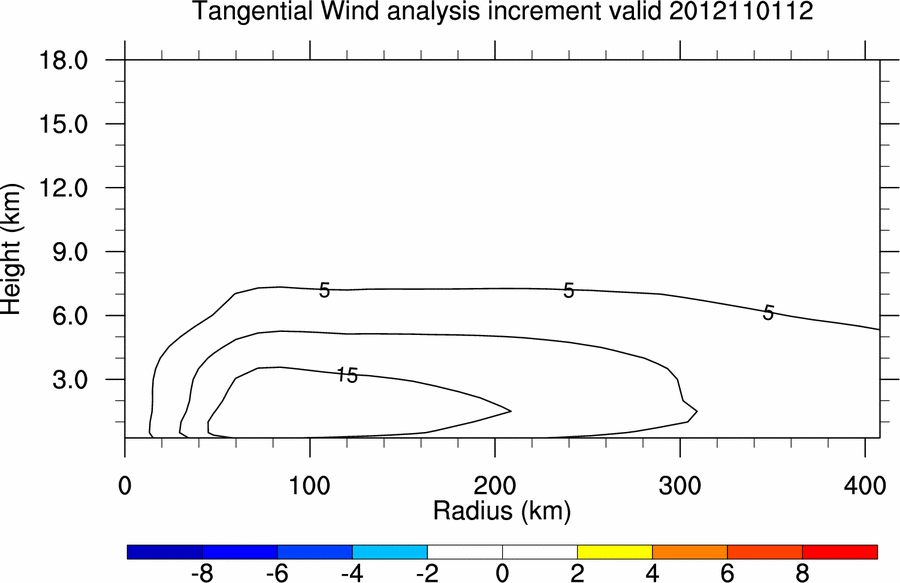

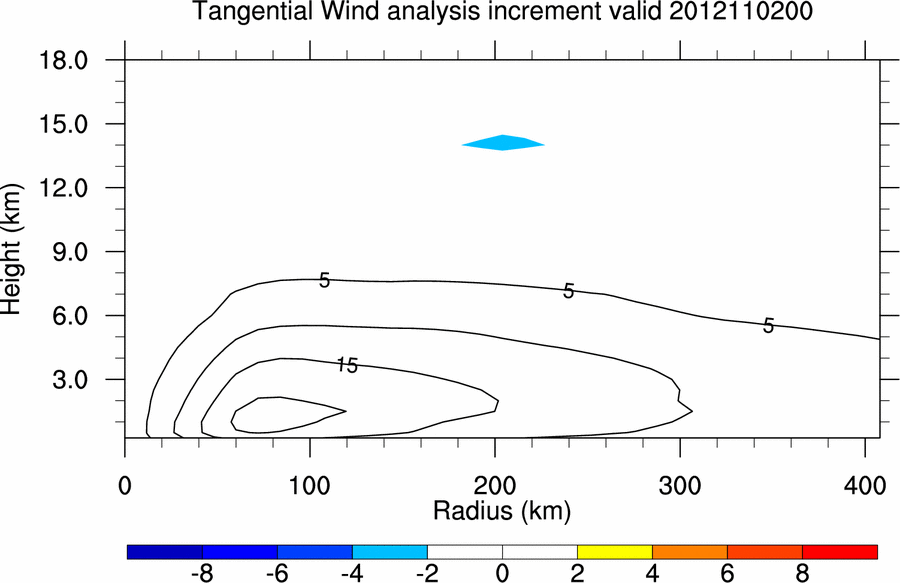

Tangential Wind Increment Analysis increment in the tangential wind	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

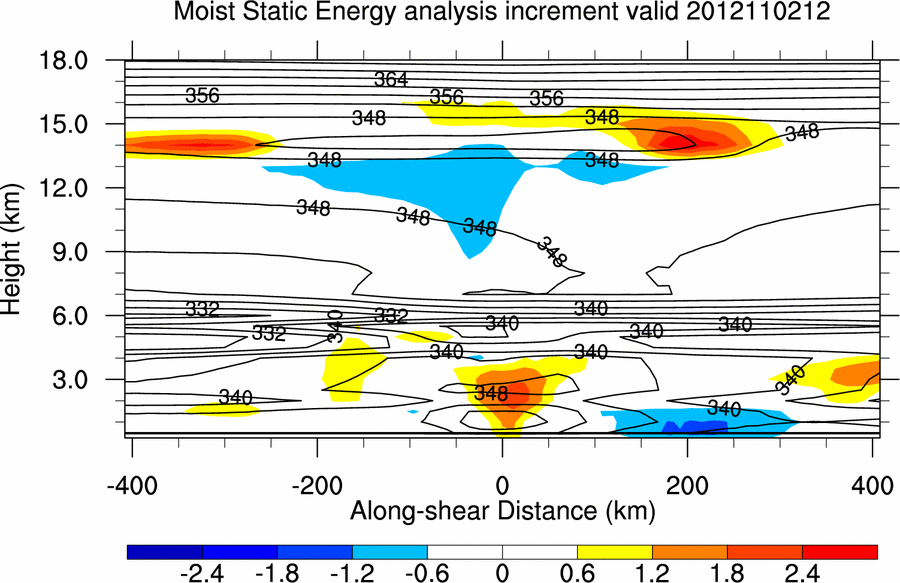

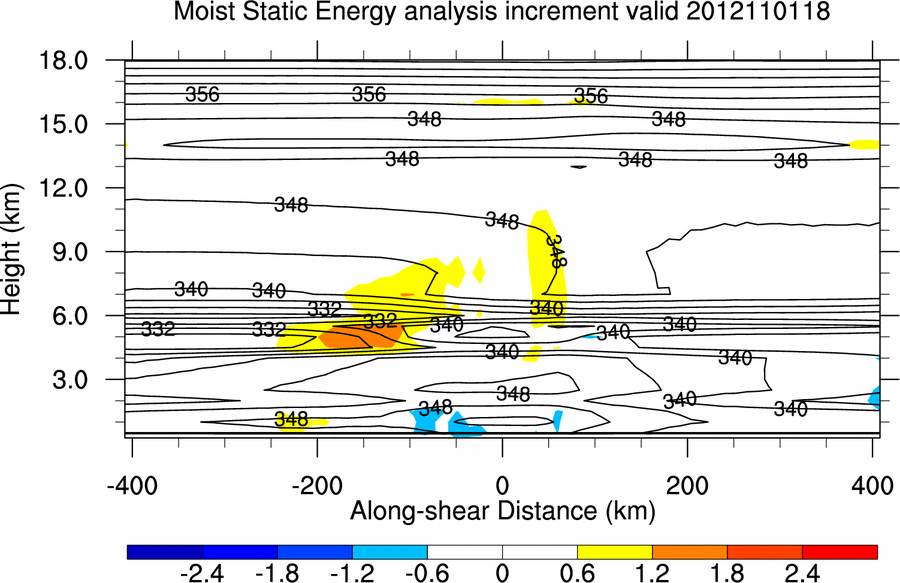

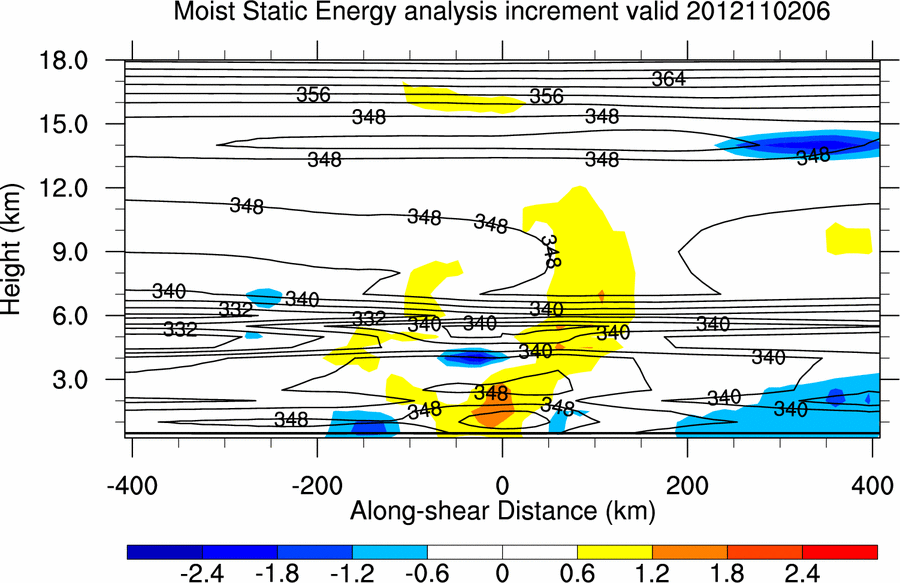

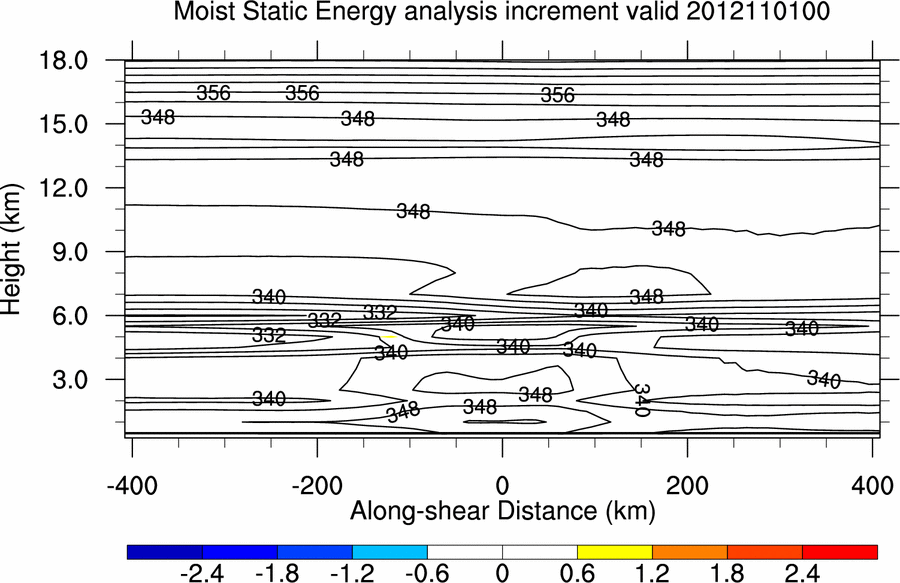

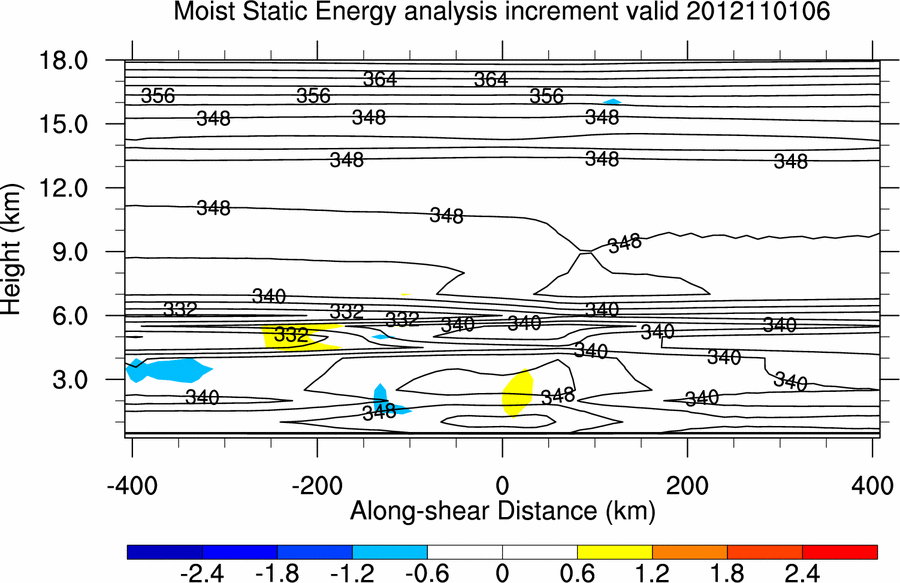

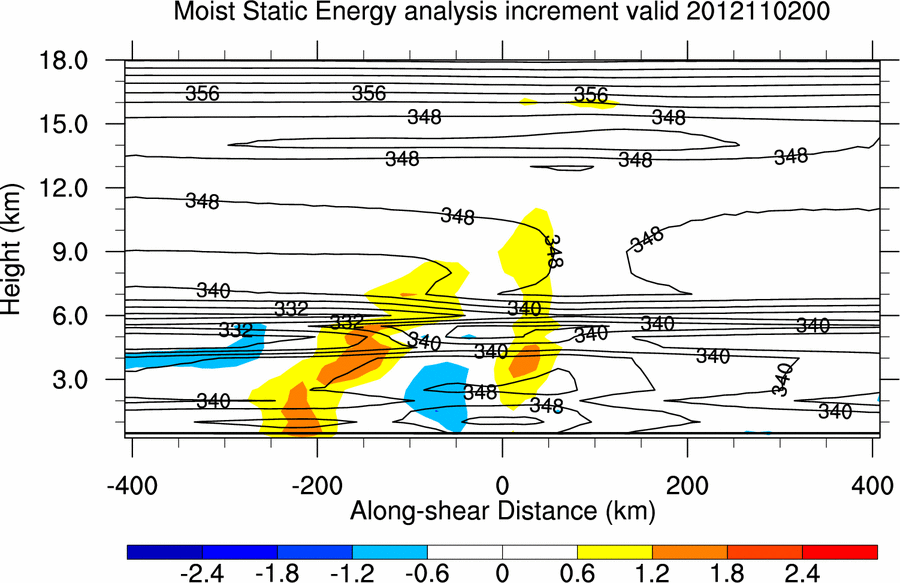

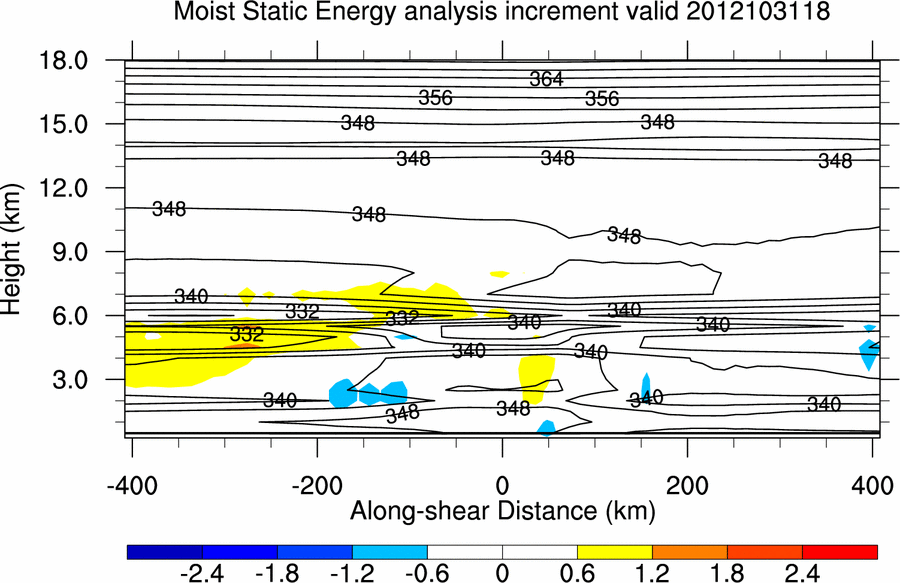

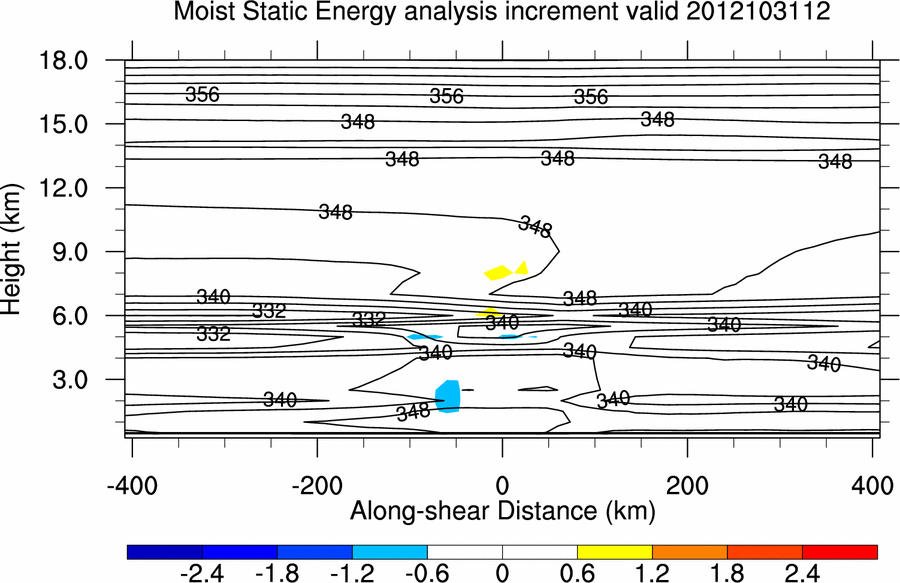

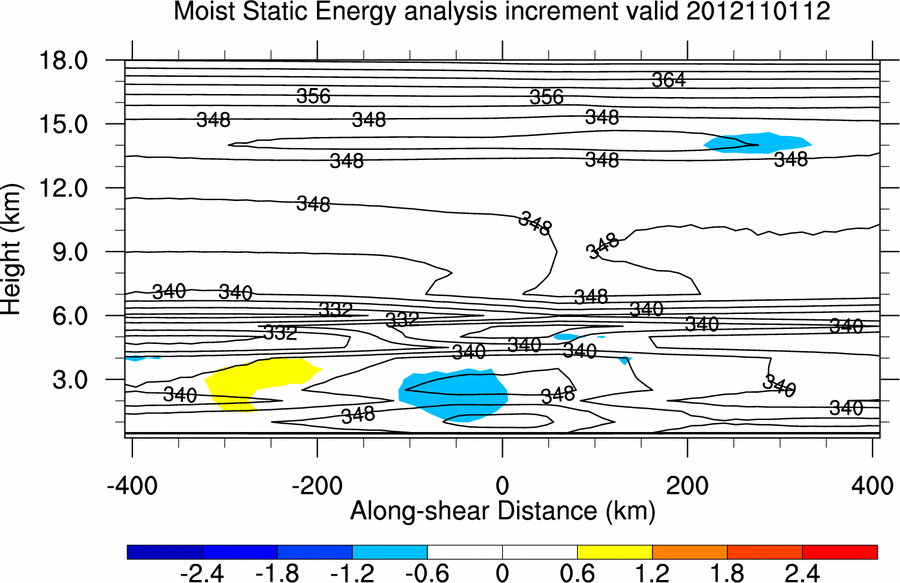

Along-shear MSE Increment Along-shear increment in moist static energy	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

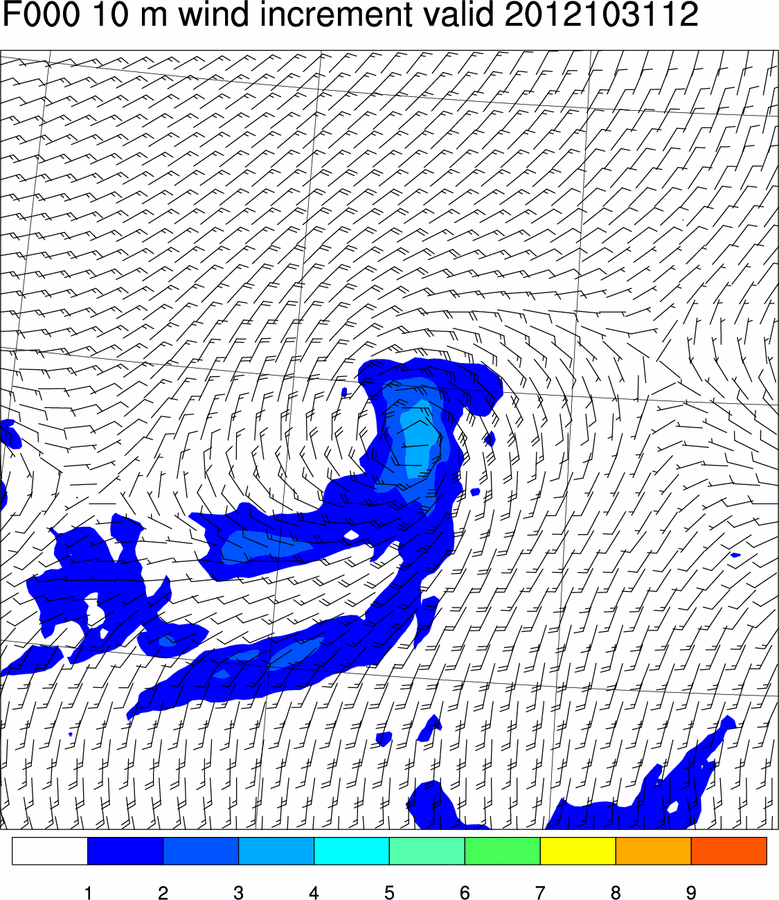

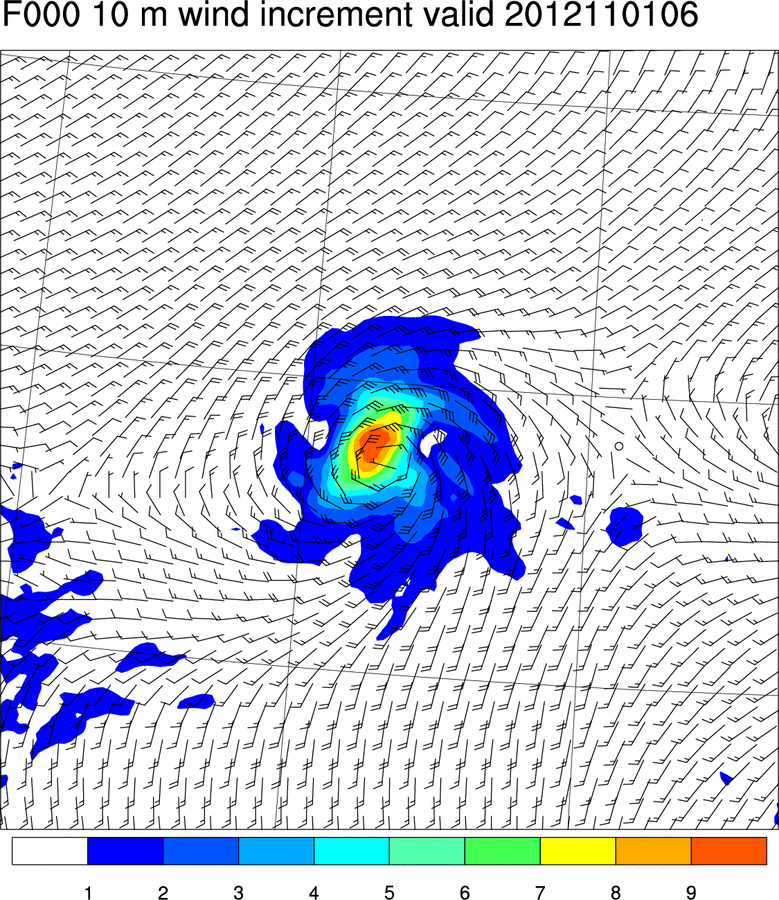

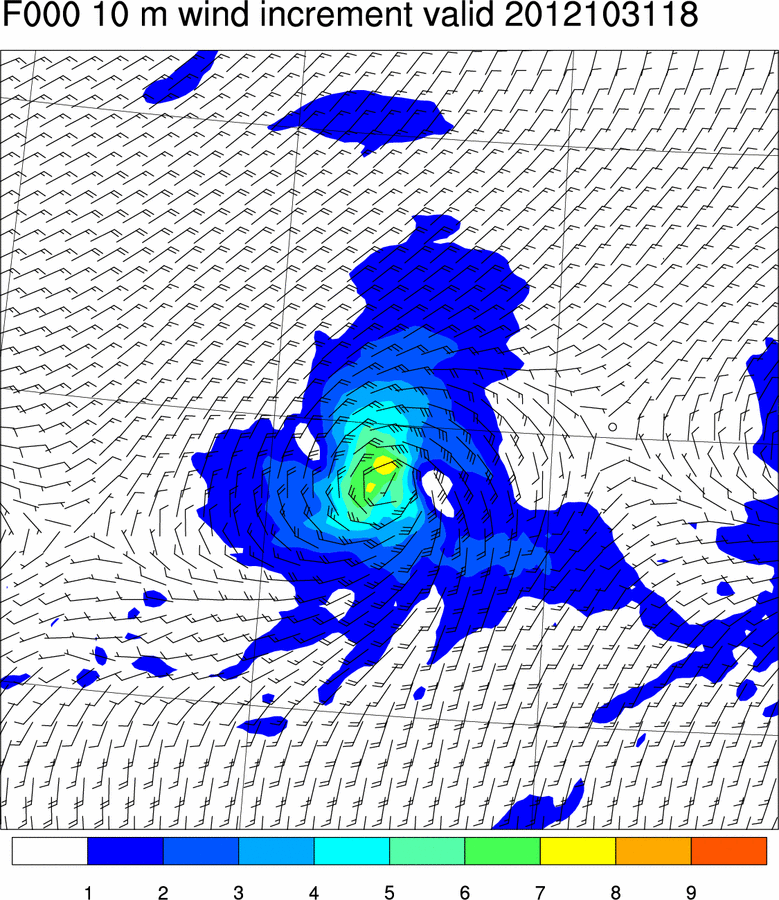

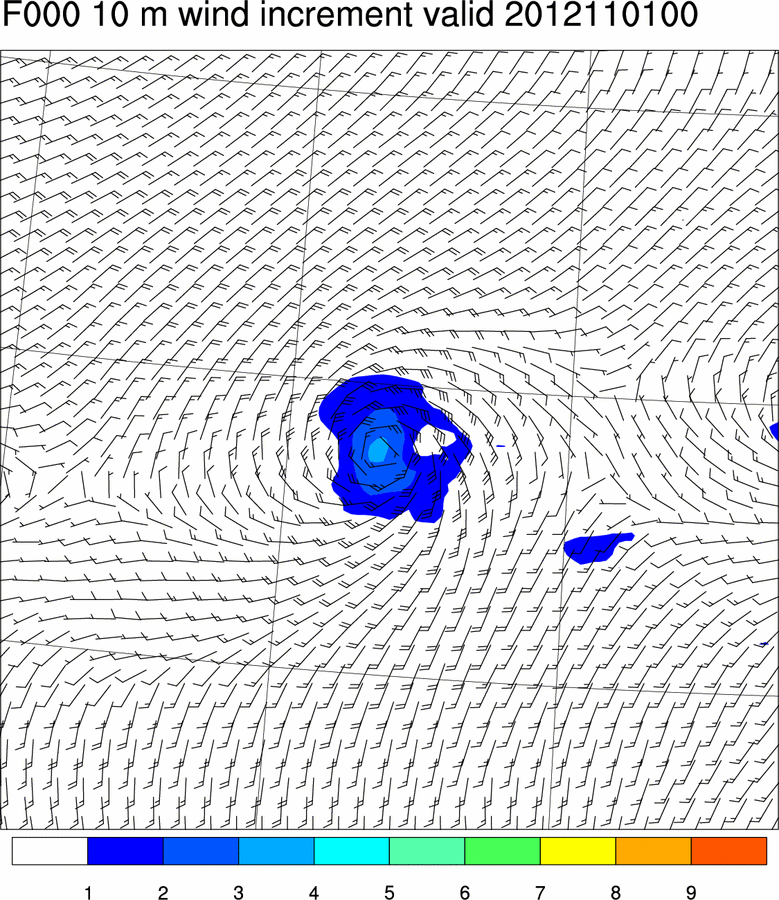

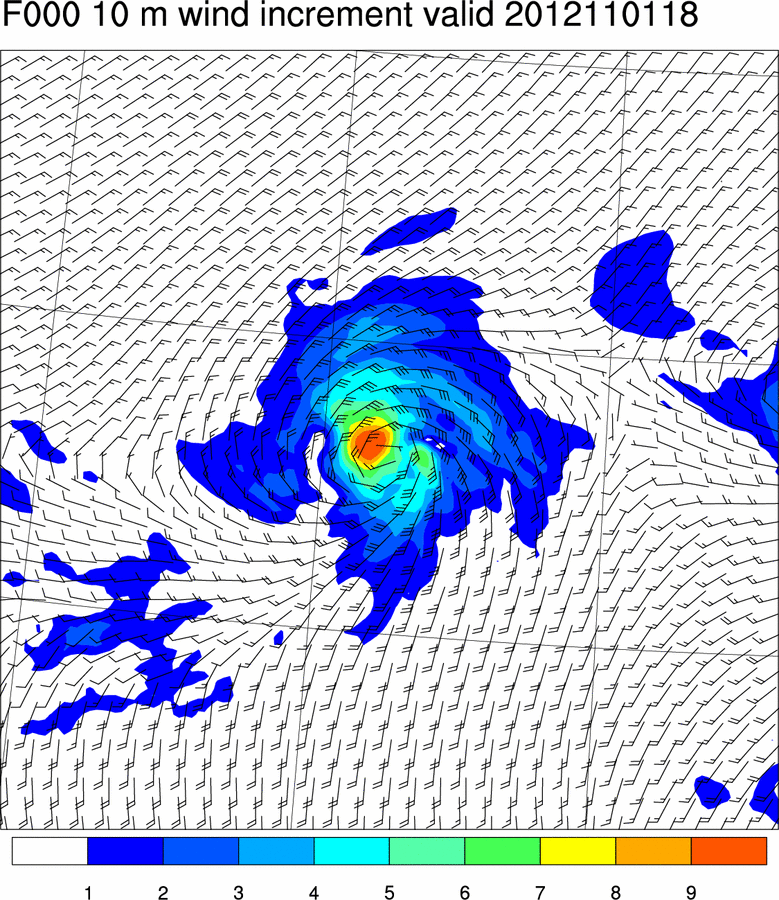

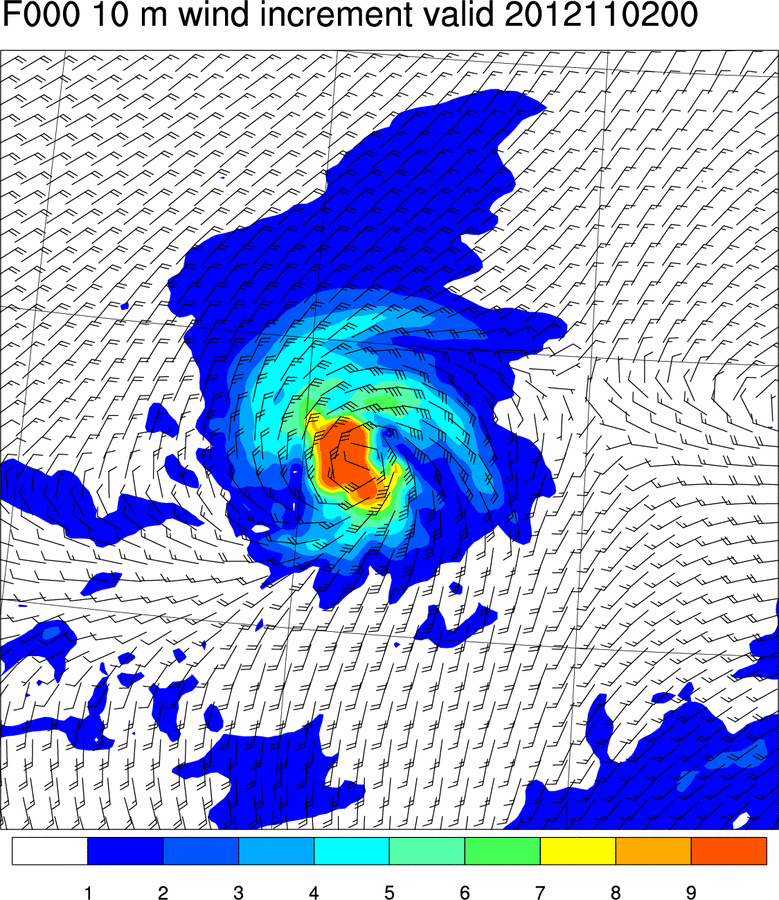

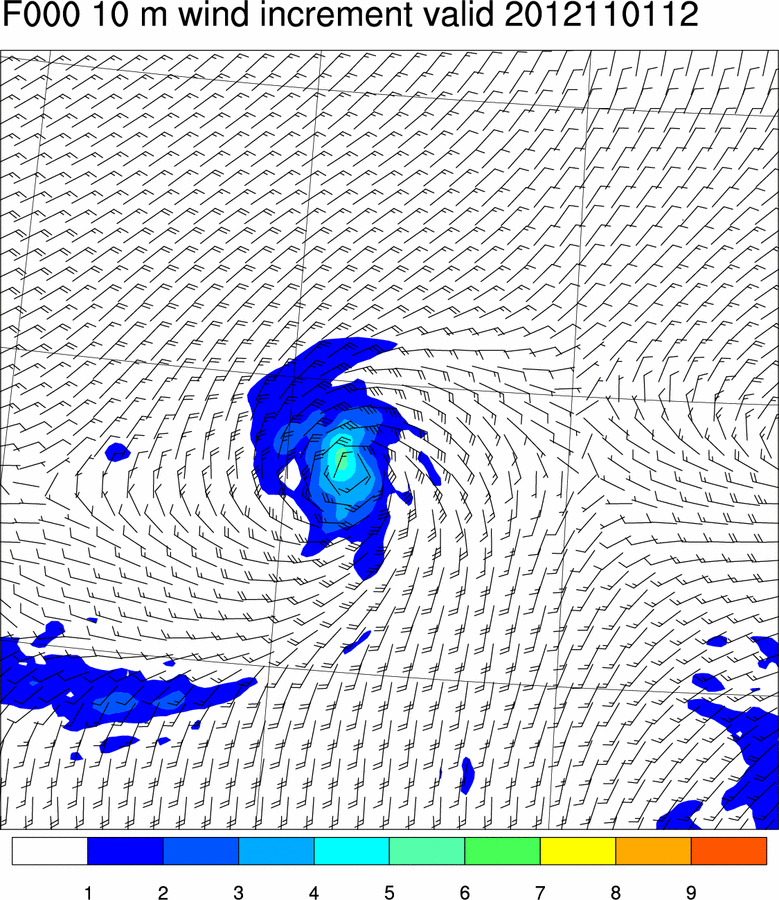

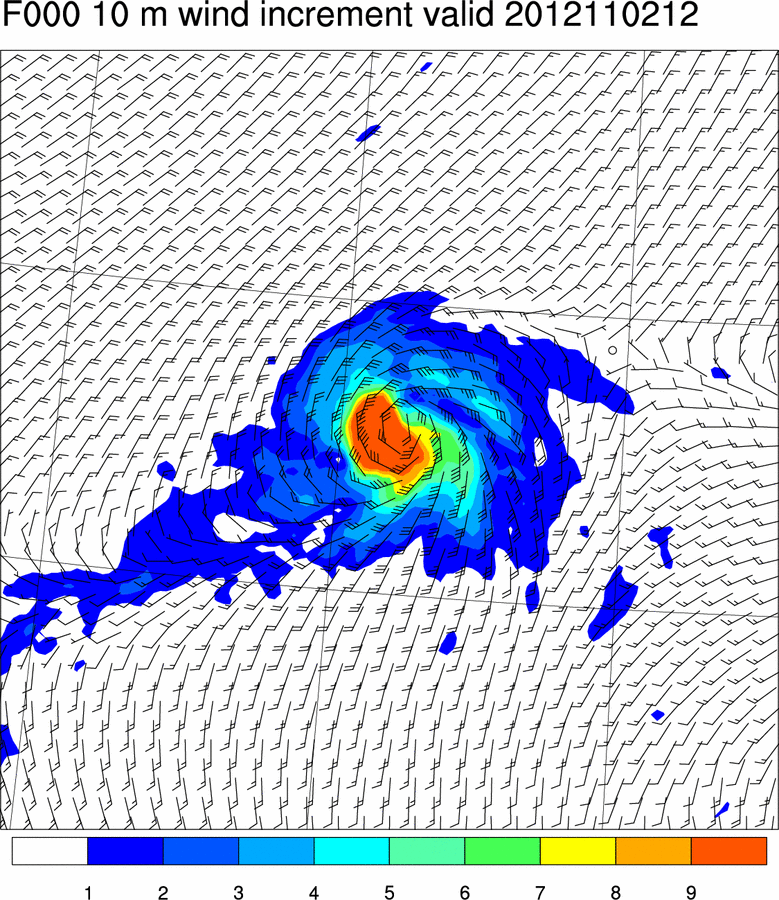

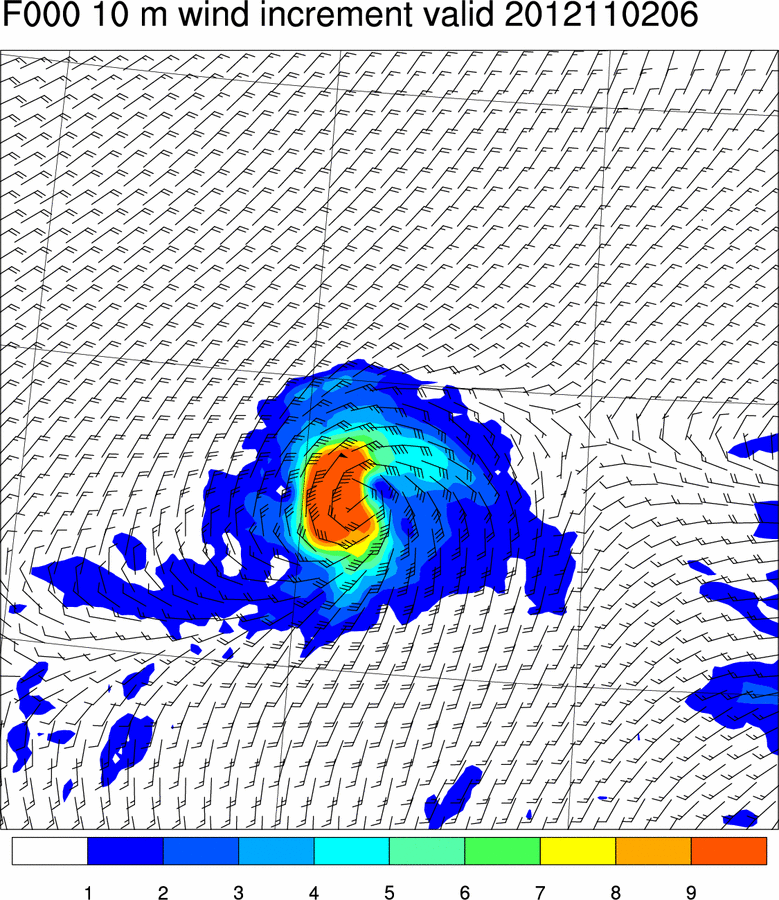

10 m Wind Increment Background ensemble-mean 10 m winds (barbs, knots) and analysis increment (shading, m/s).	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

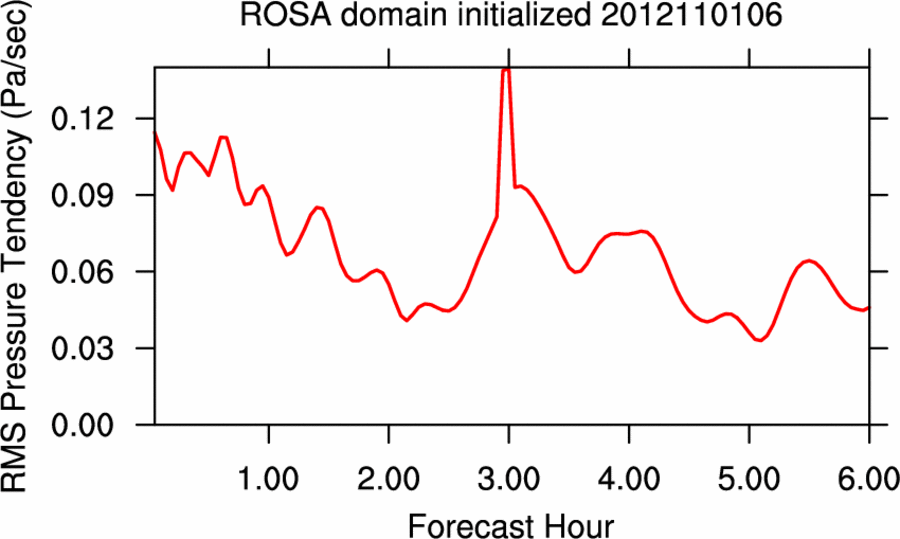

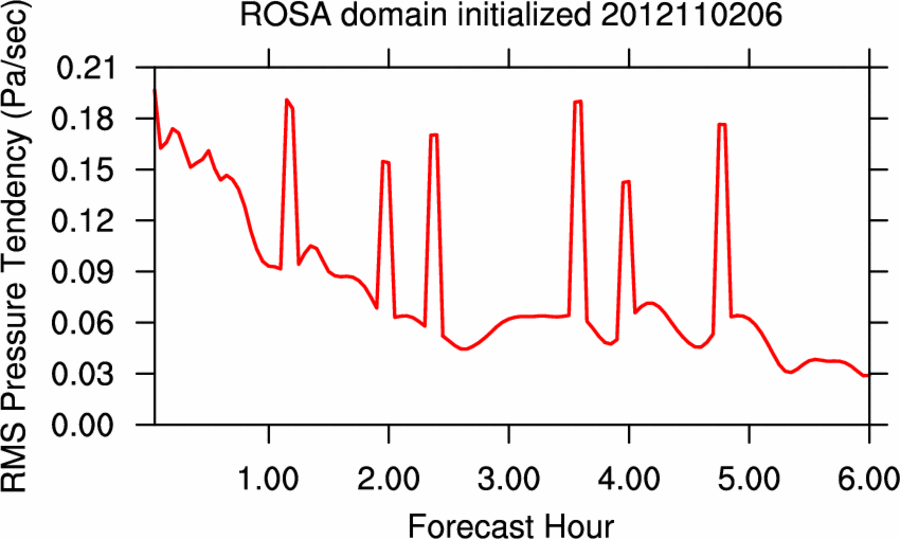

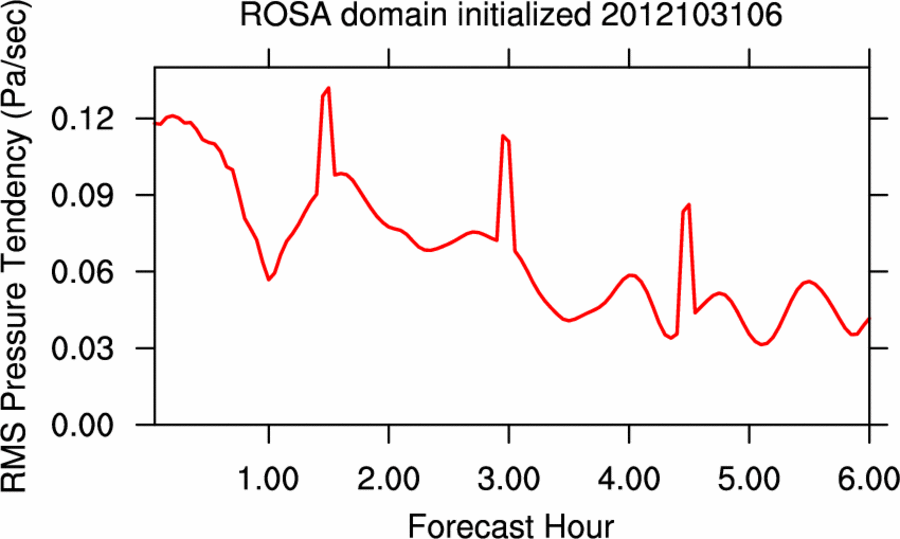

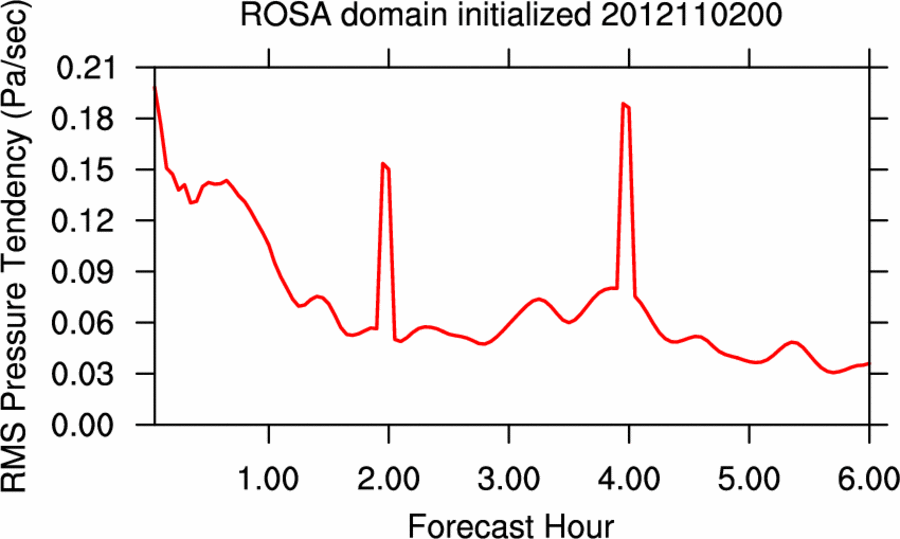

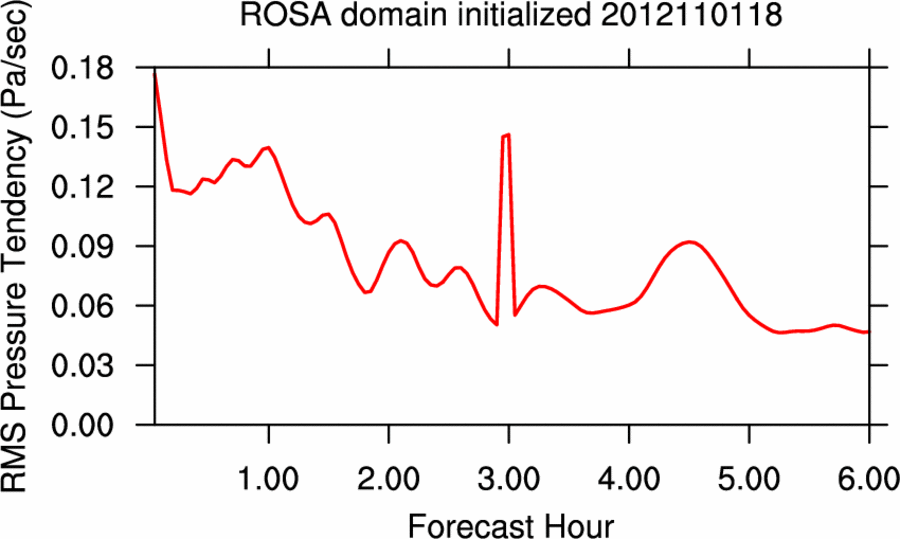

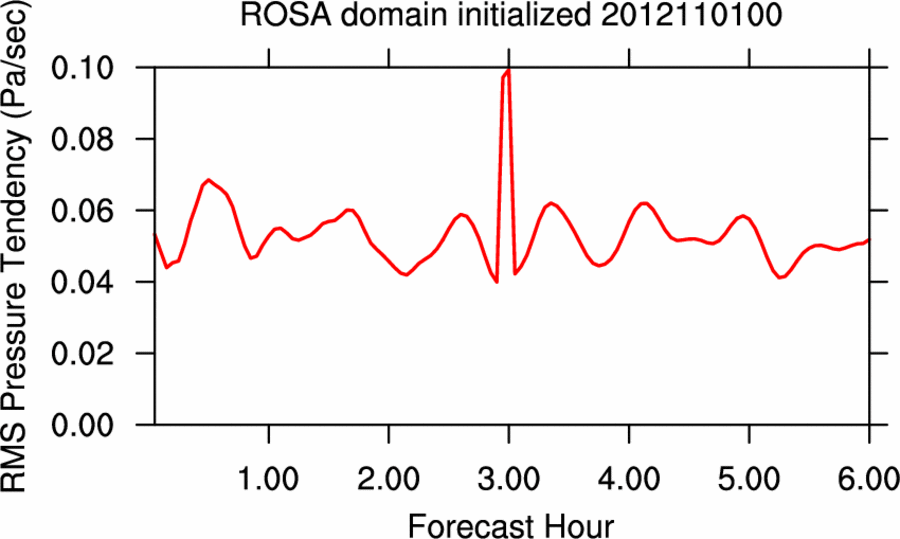

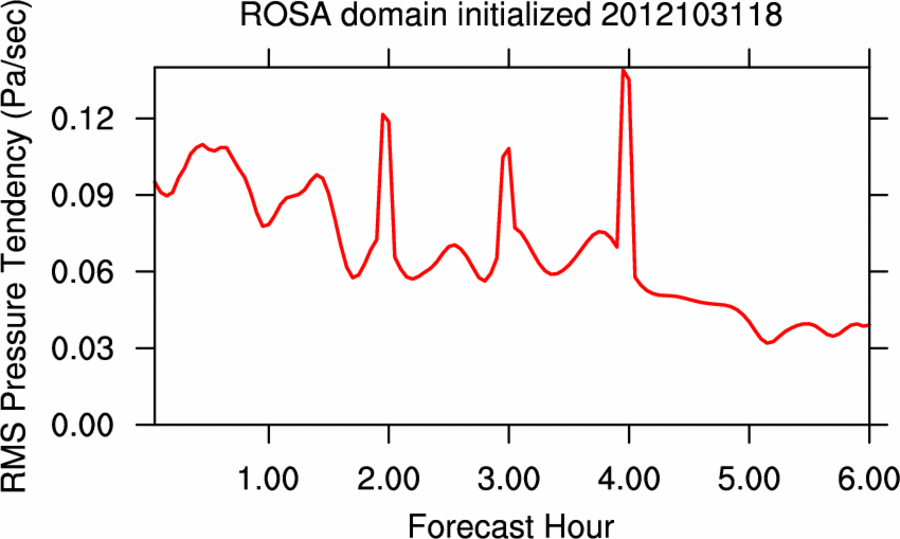

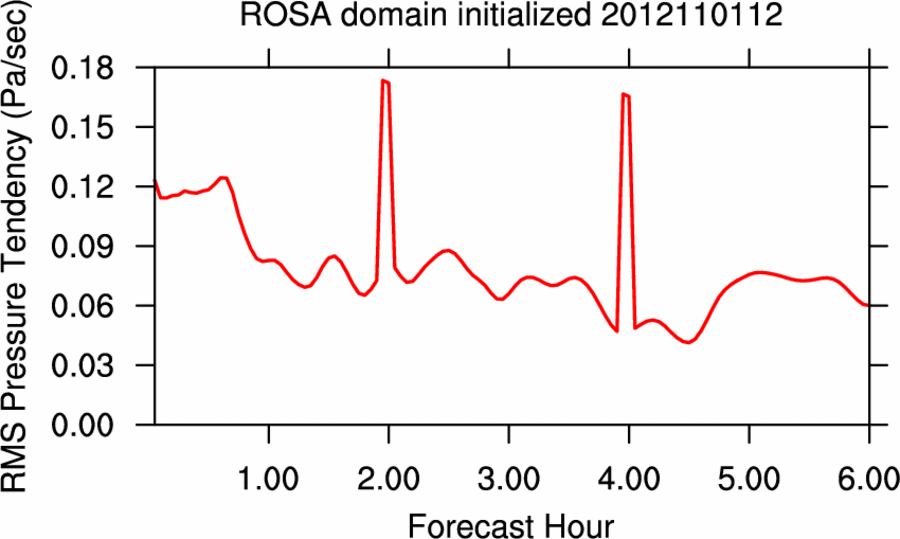

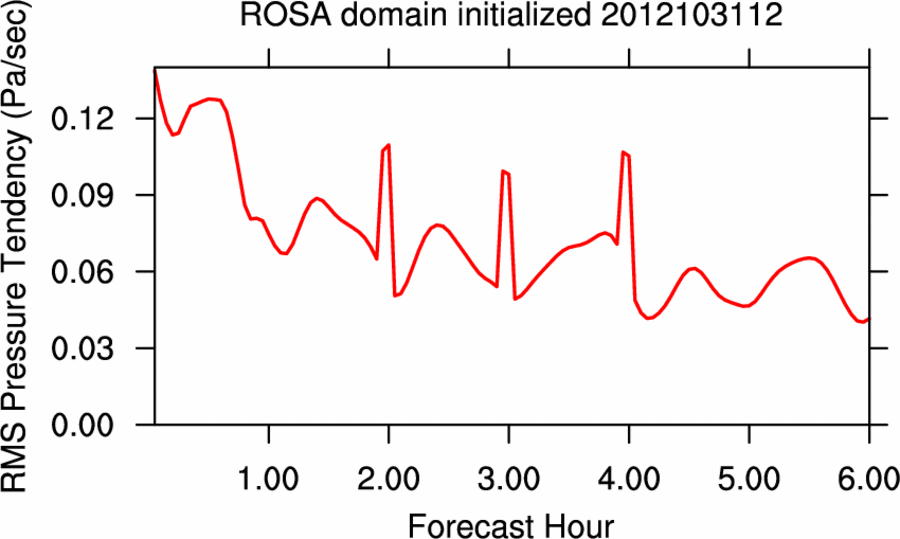

RMS Surface Pressure Tendency RMS surface pressure tendency over the entire nested domain as a function of time.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

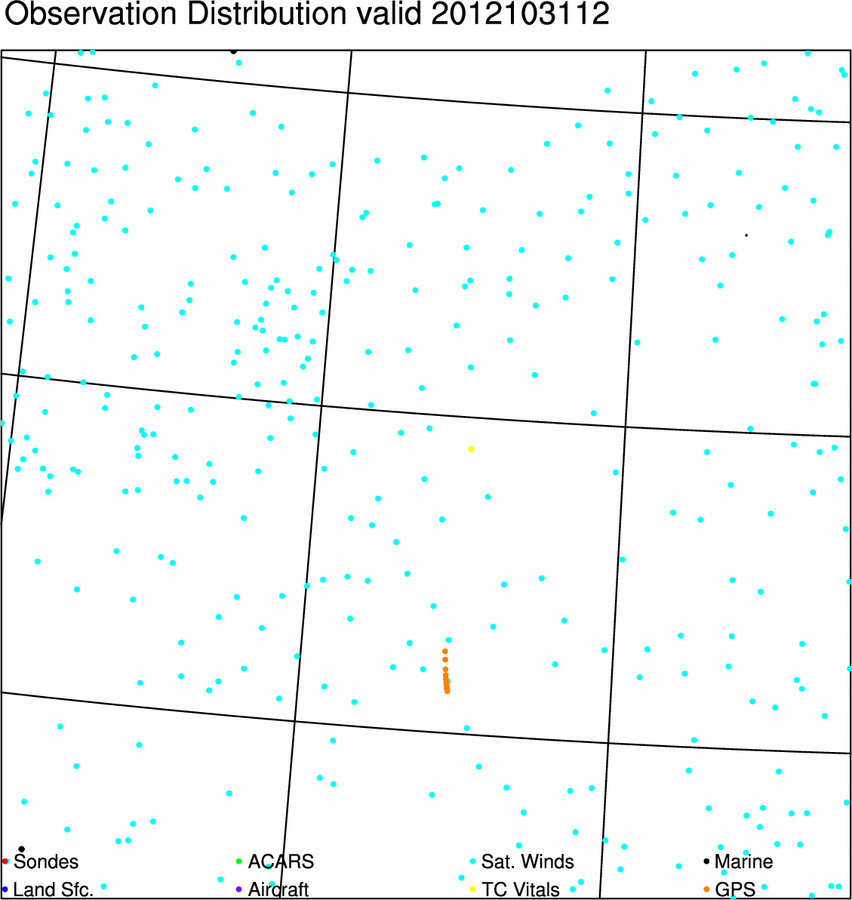

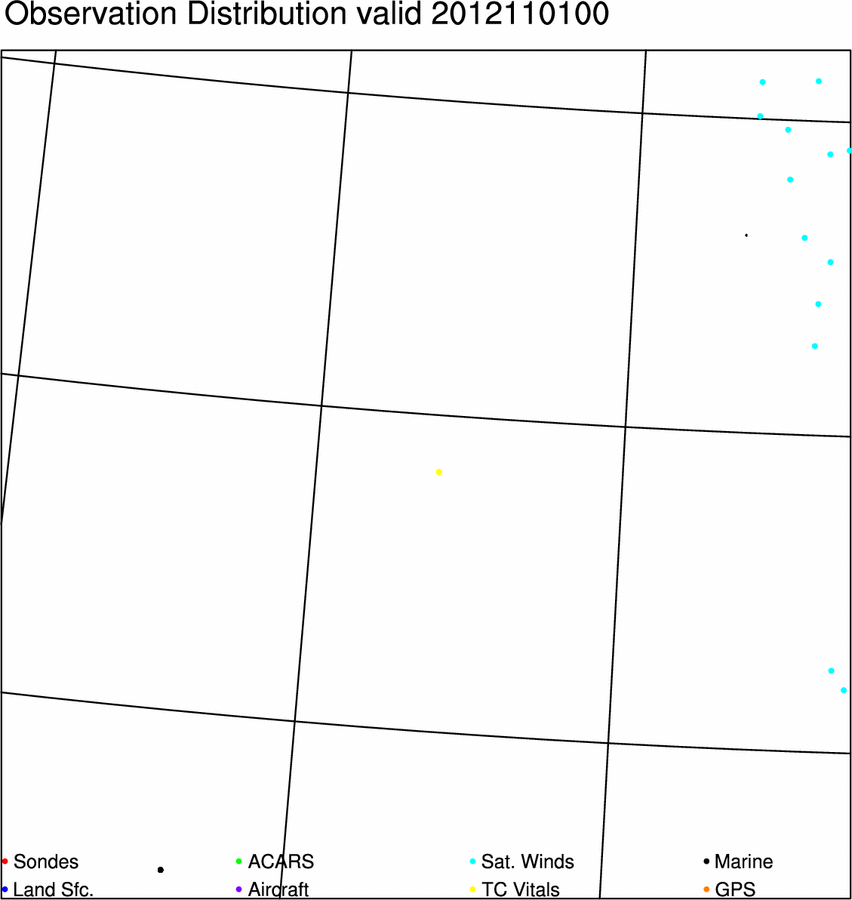

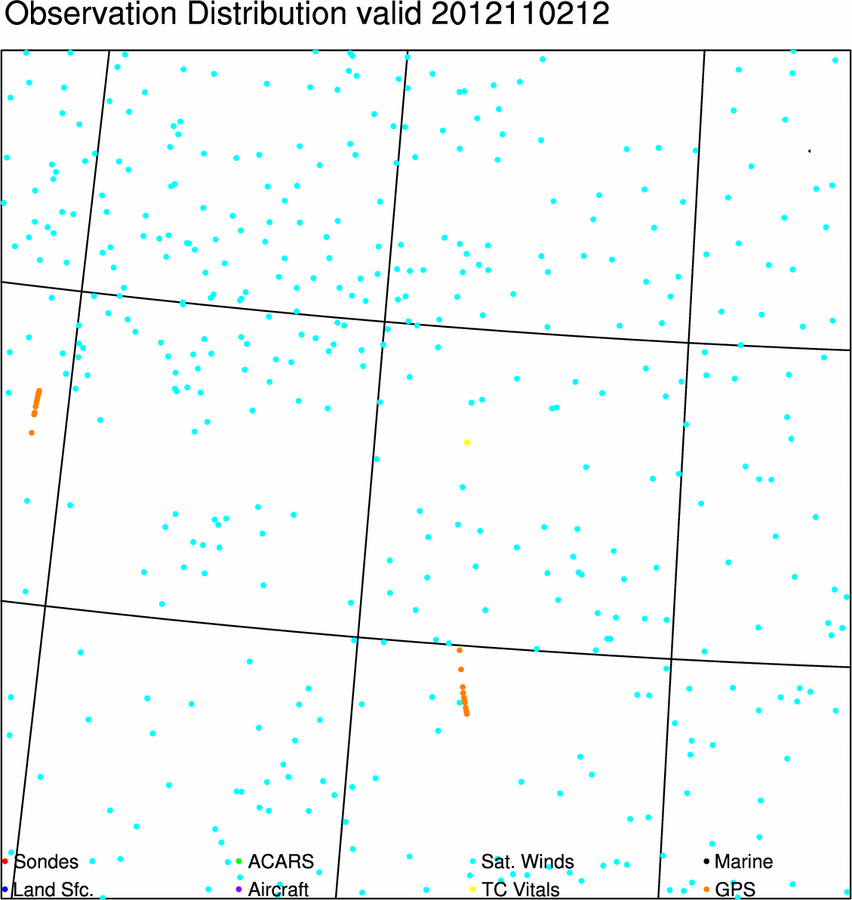

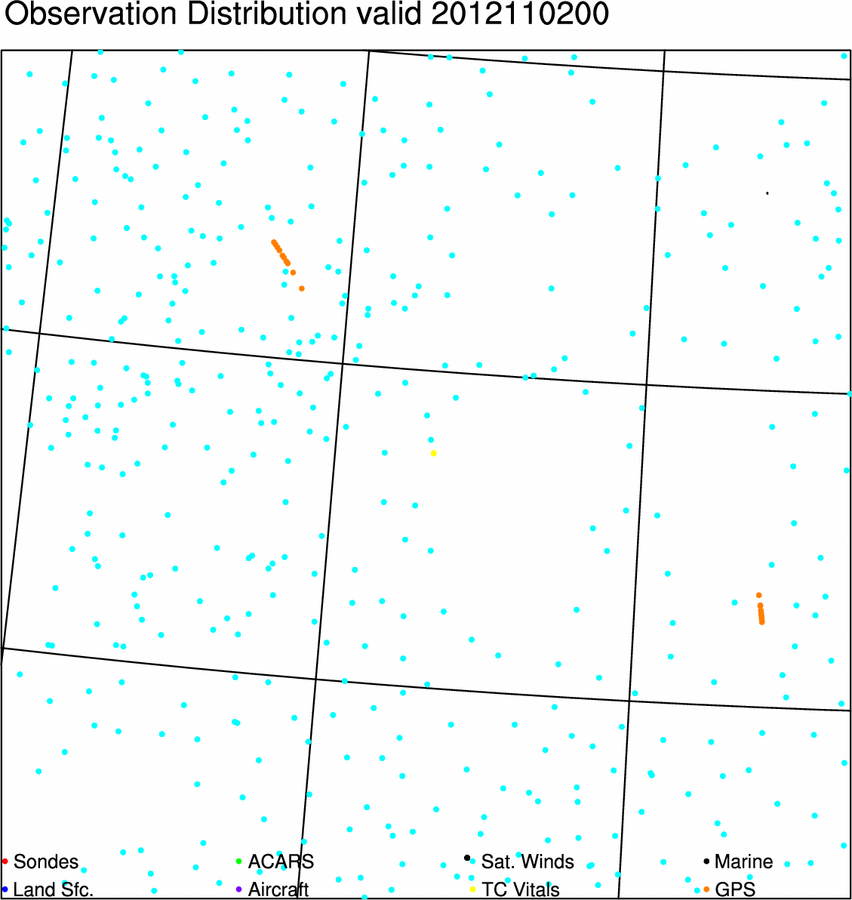

Observations Distribution of observations ingested into the assimilation system.	2012110212	2012110206	2012110200	2012110118	2012110112	2012110106	2012110100	2012103118	2012103112	Loop

Observation Diagnostics

	Tropics ( < 30N )	Midlatitude( > 30N )	Full Domain	< 500 km of TC

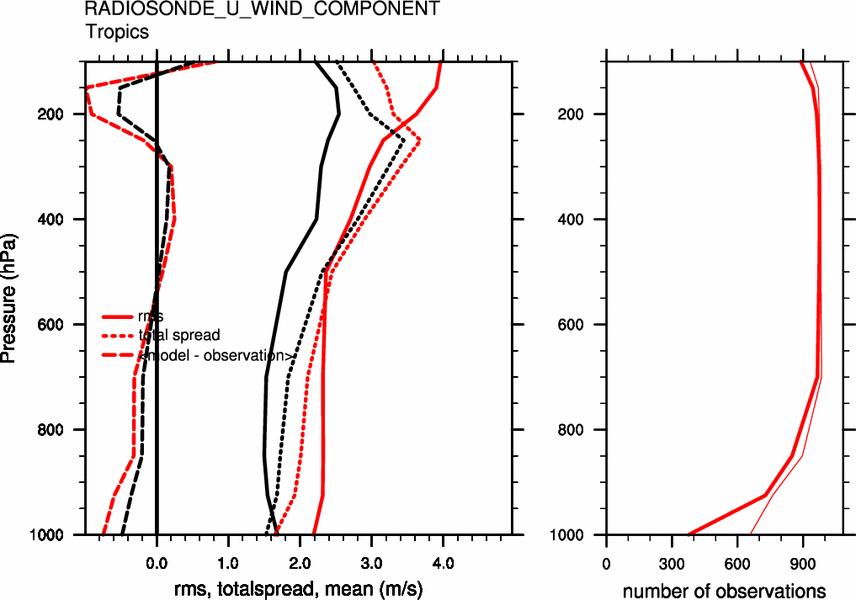

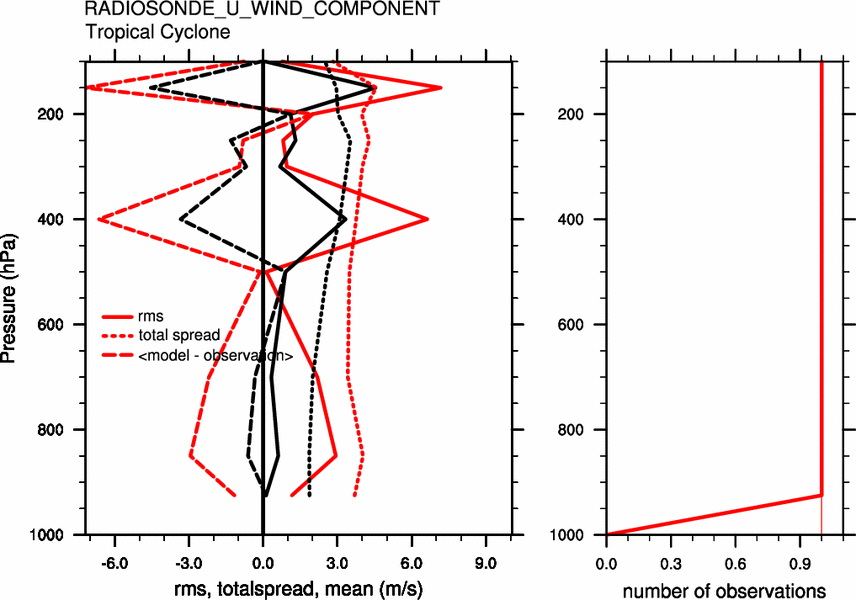

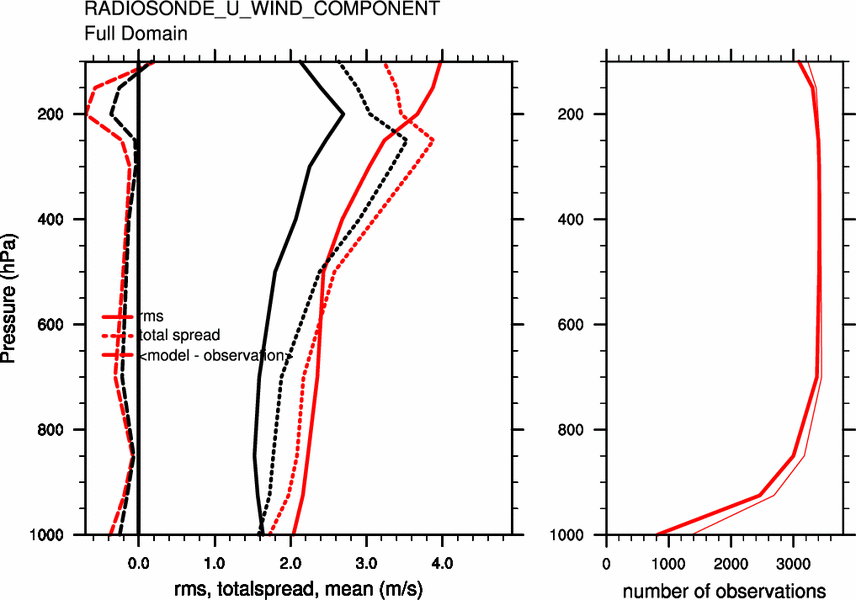

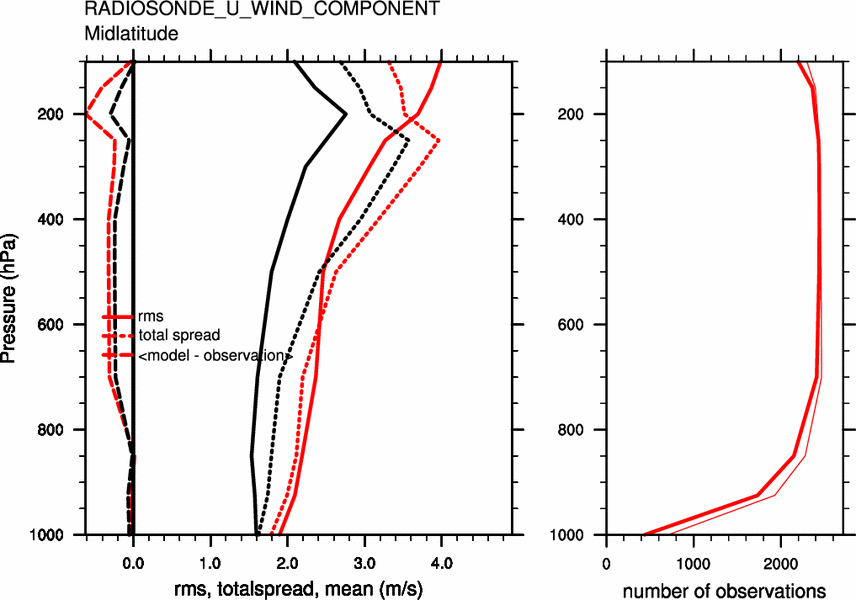

Rawinsonde U Wind Analysis (black) and background (red) errors against rawinsonde zonal wind observations over past 14 days.	obs	obs	obs	obs

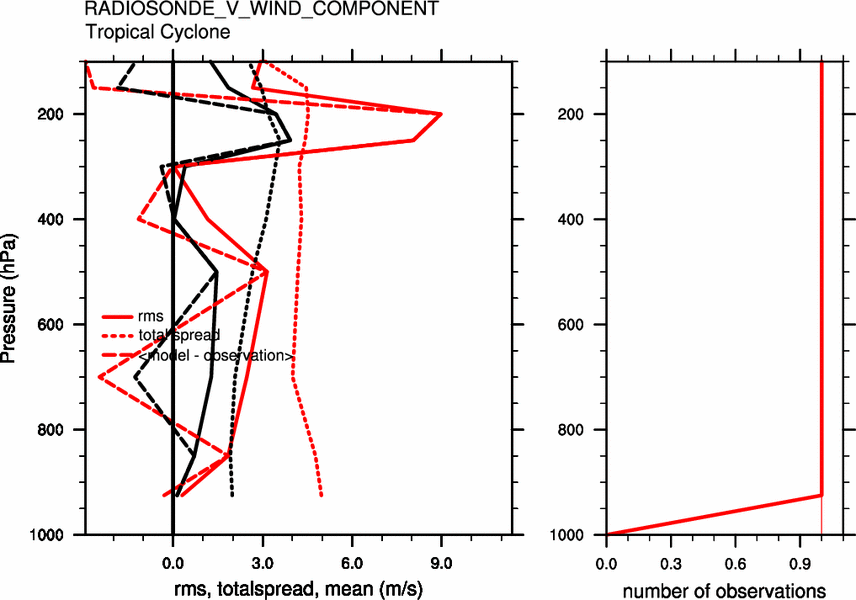

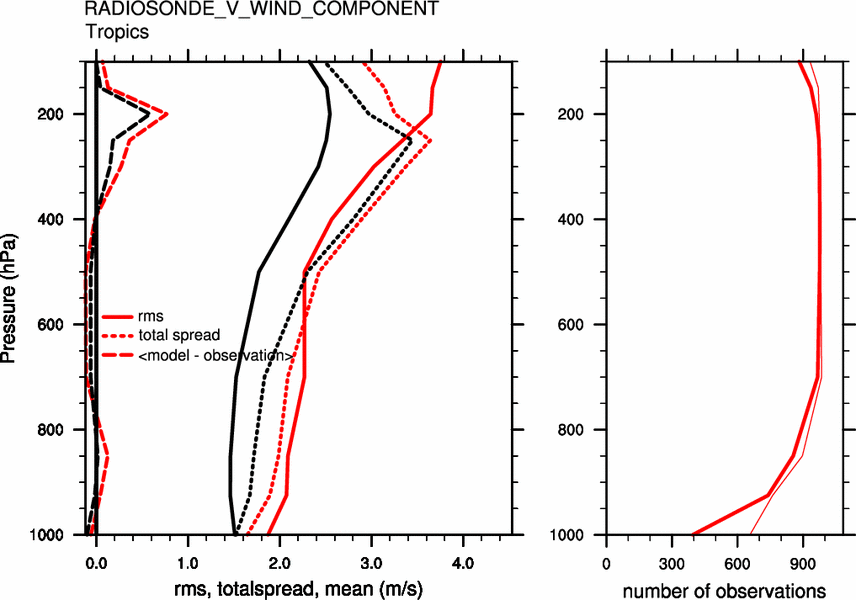

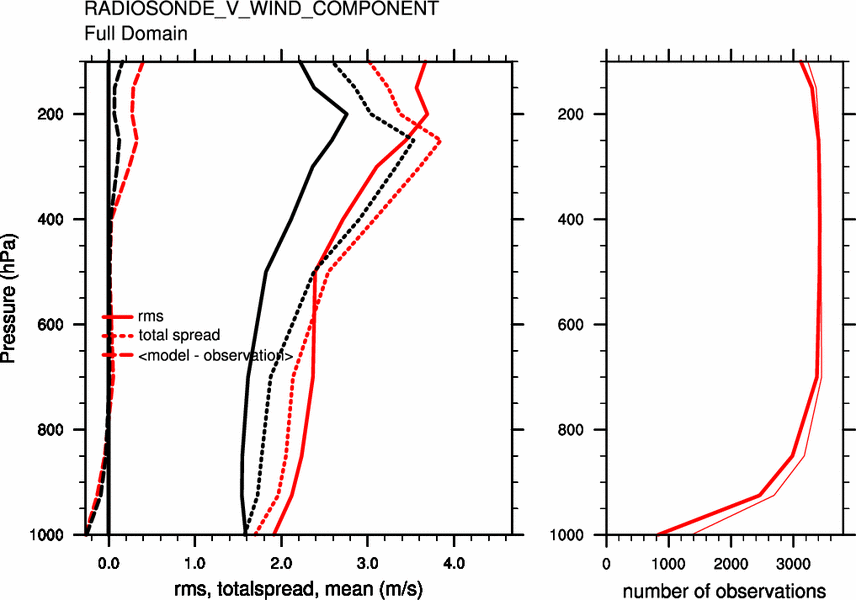

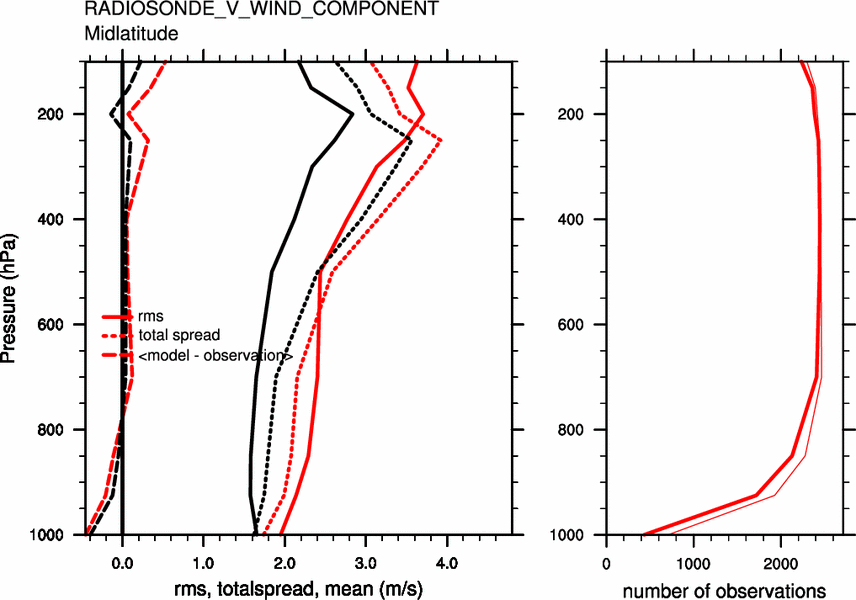

Rawinsonde V Wind Analysis (black) and background (red) errors against rawinsonde meridional wind observations over past 14 days.	obs	obs	obs	obs

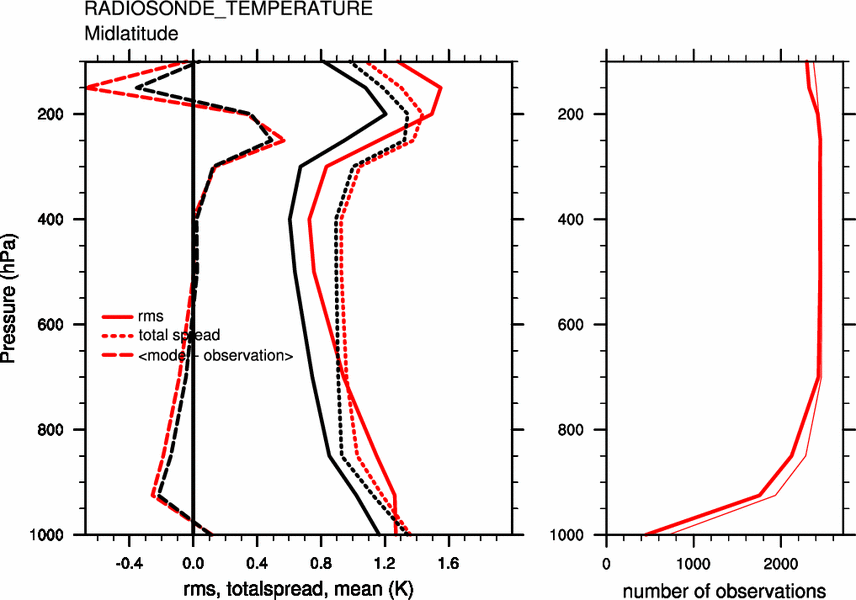

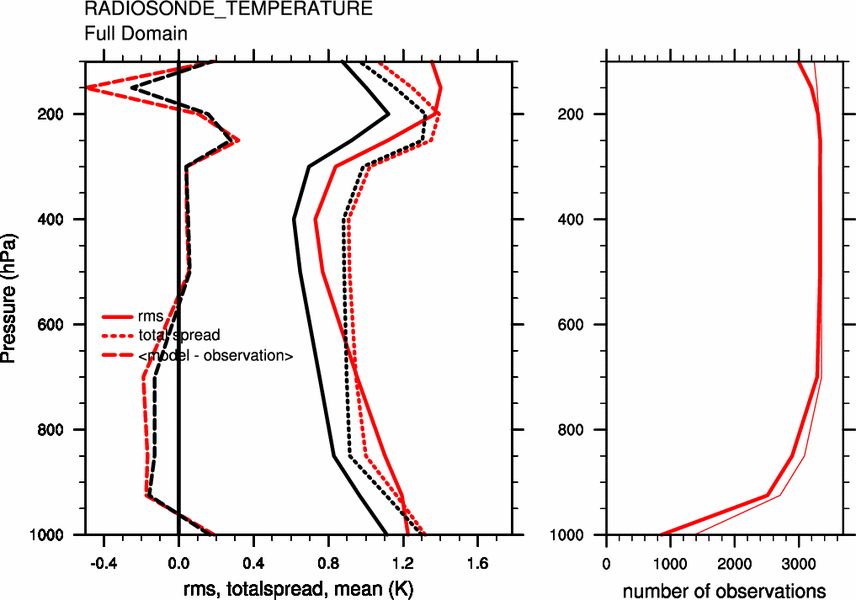

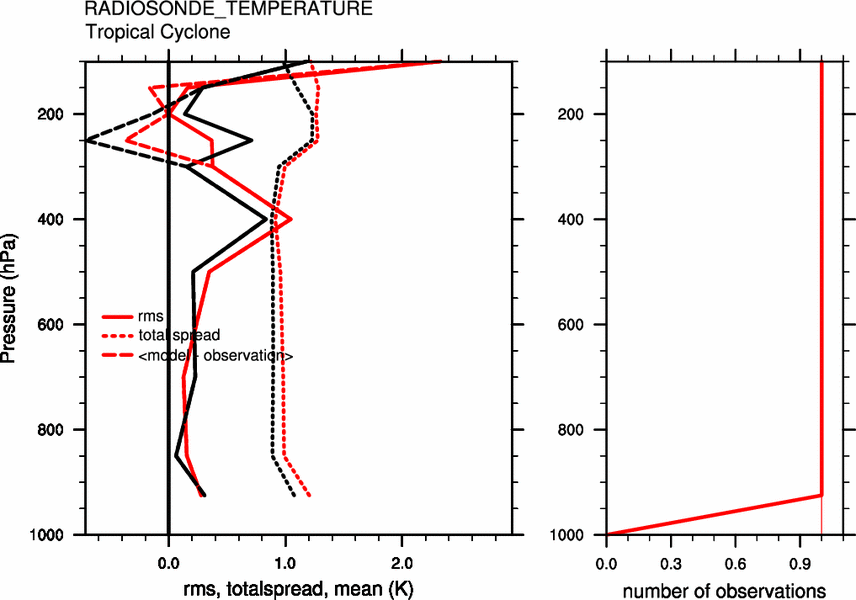

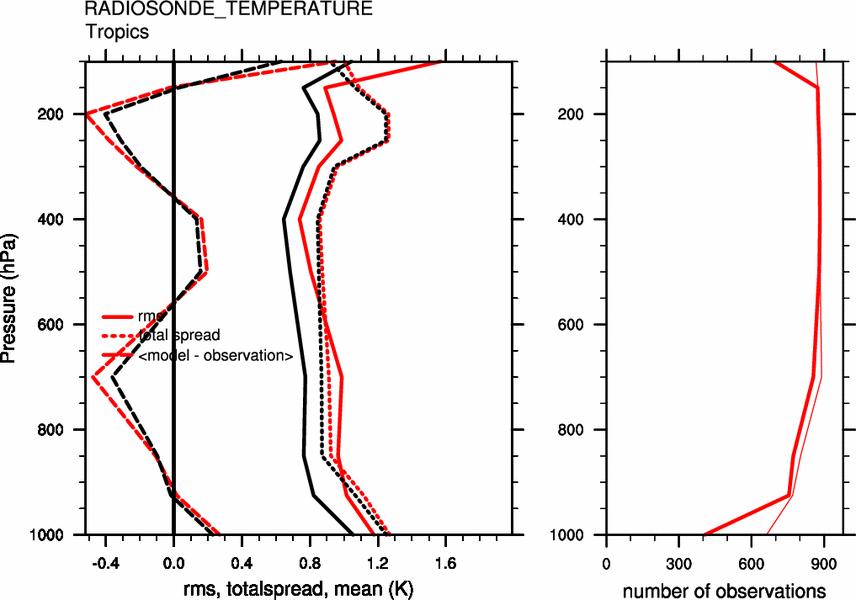

Rawinsonde Temperature Analysis (black) and background (red) errors against rawinsonde temperature observations over past 14 days.	obs	obs	obs	obs

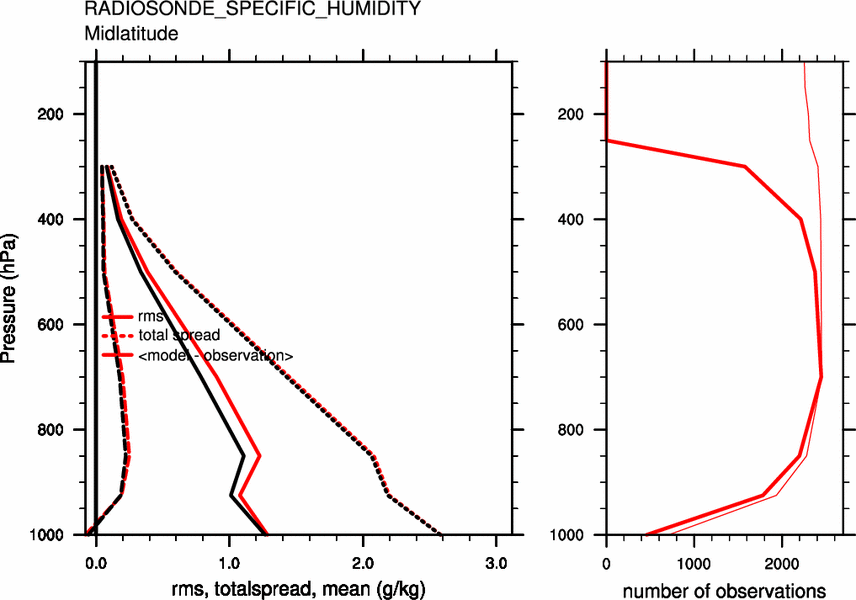

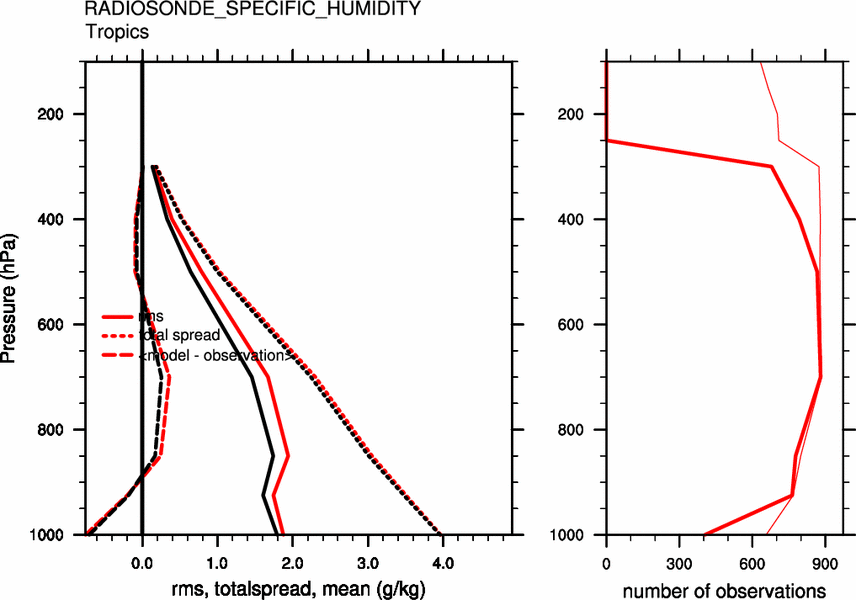

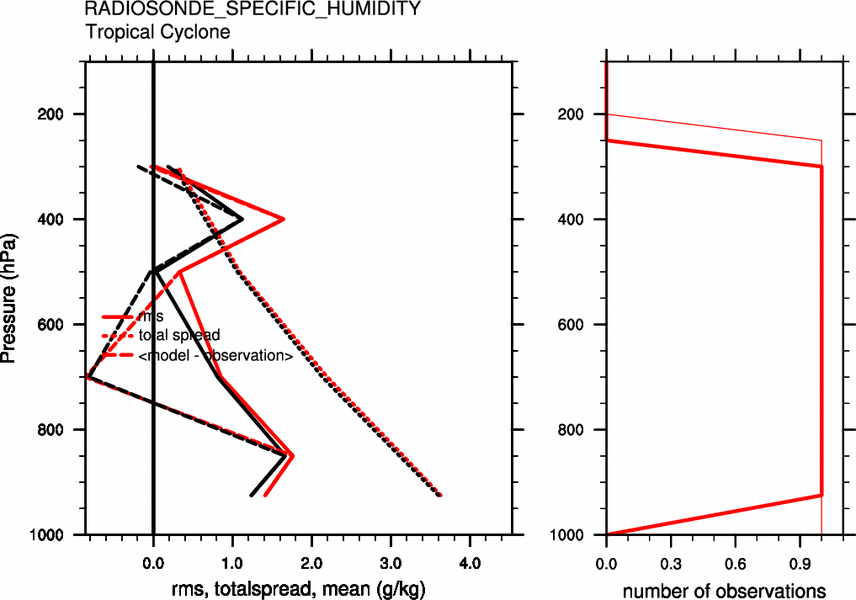

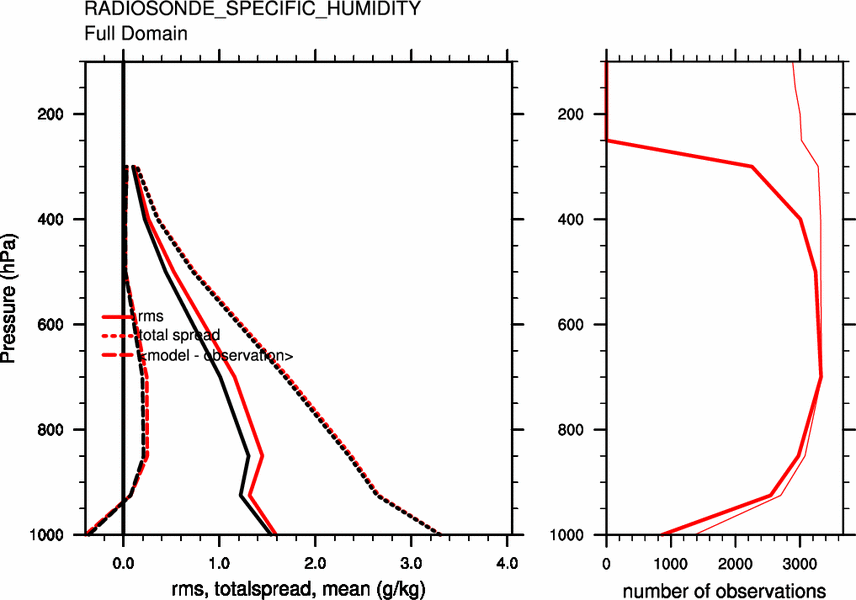

Rawinsonde Specific Humidity Analysis (black) and background (red) errors against rawinsonde humidity observations over past 14 days.	obs	obs	obs	obs

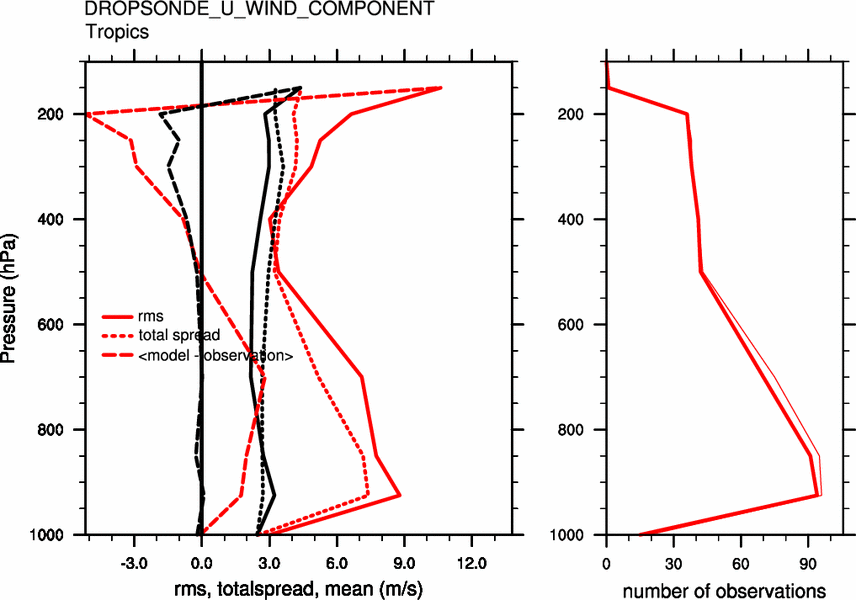

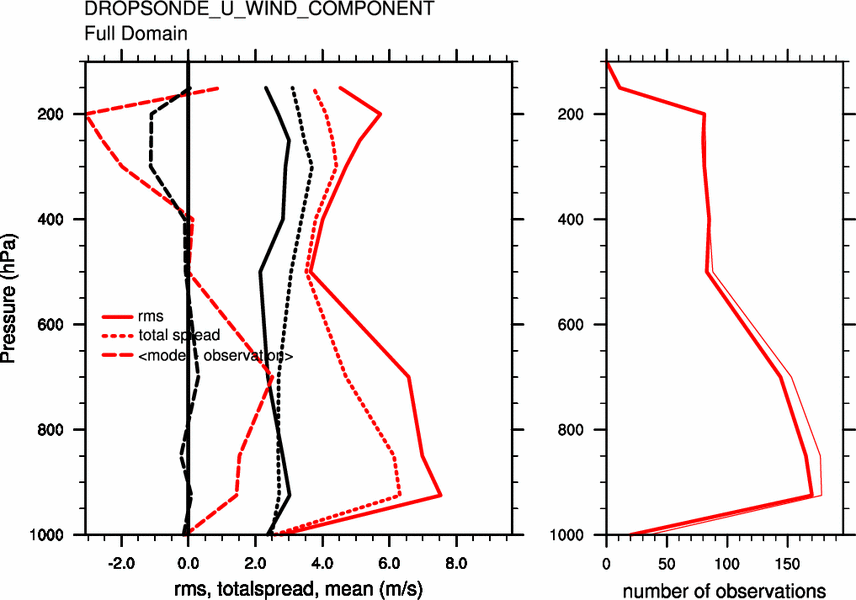

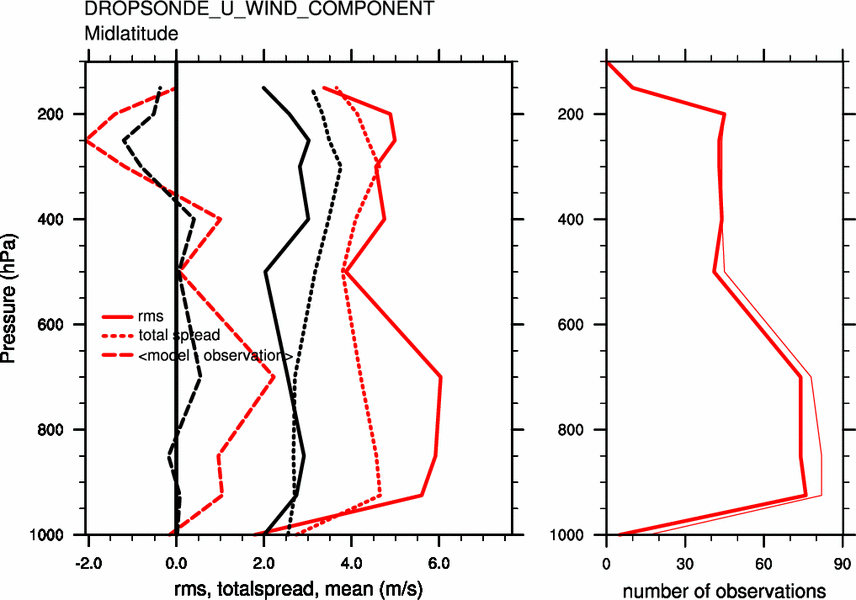

Dropsonde U Wind Analysis (black) and background (red) errors against dropsonde zonal wind observations over past 14 days.	obs	obs	obs	obs

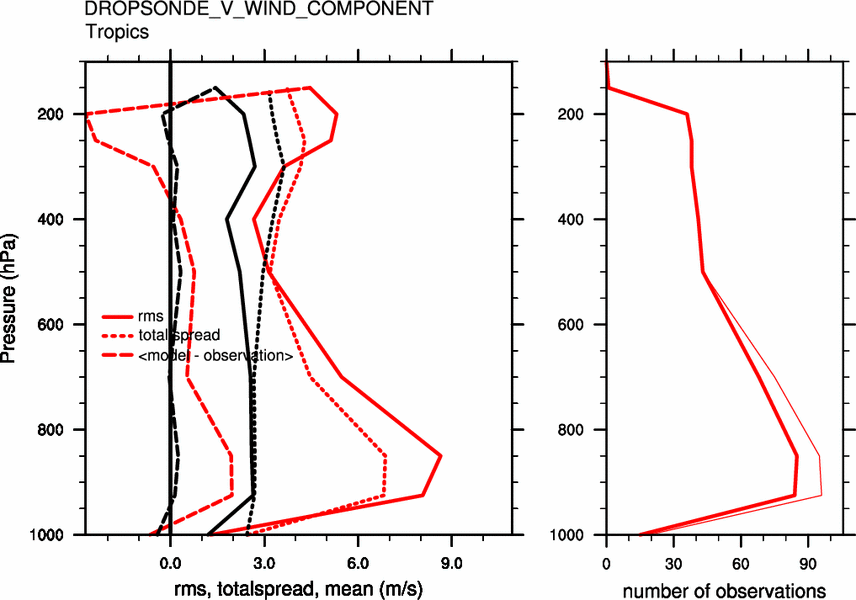

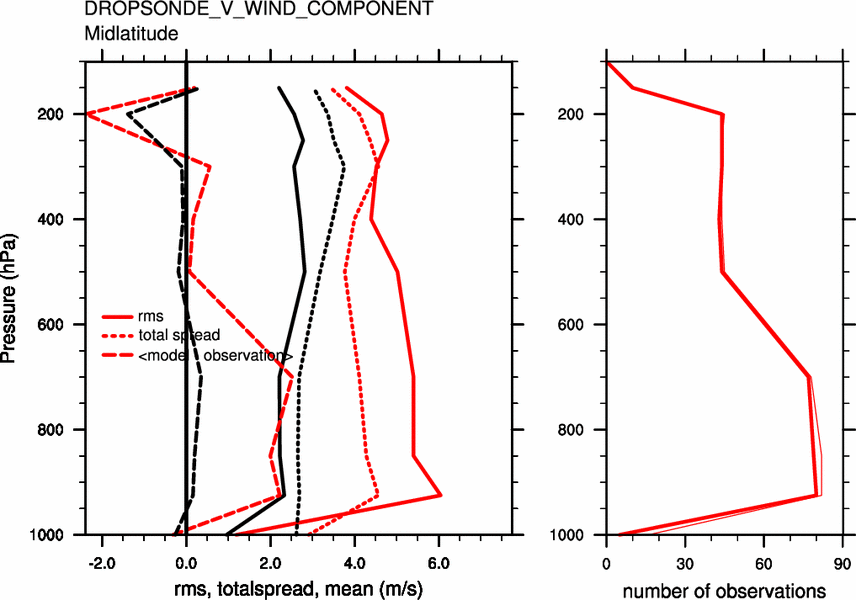

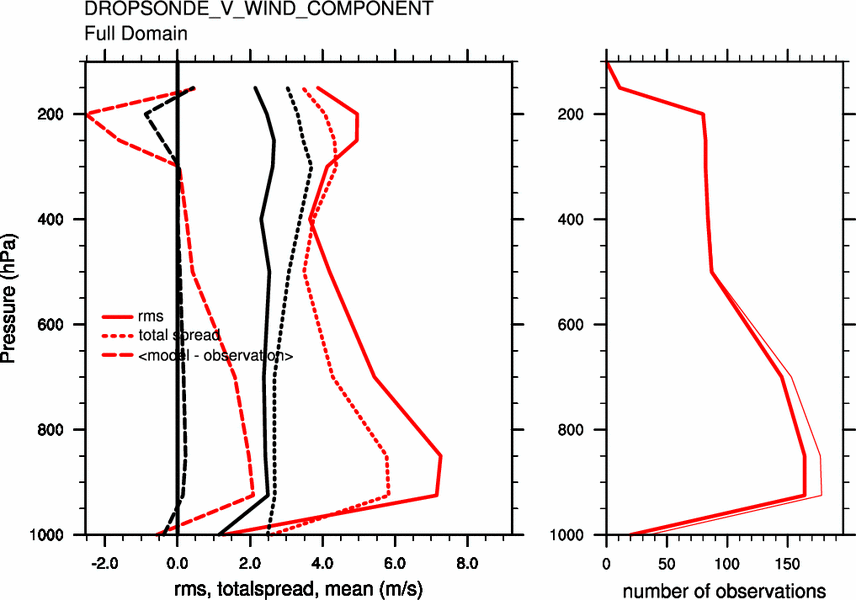

Dropsonde V Wind Analysis (black) and background (red) errors against dropsonde meridional wind observations over past 14 days.	obs	obs	obs	obs

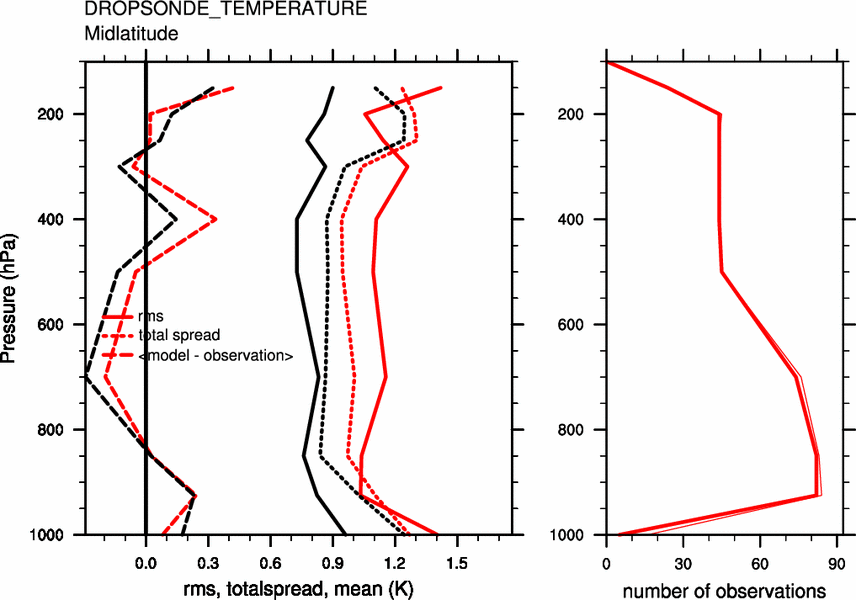

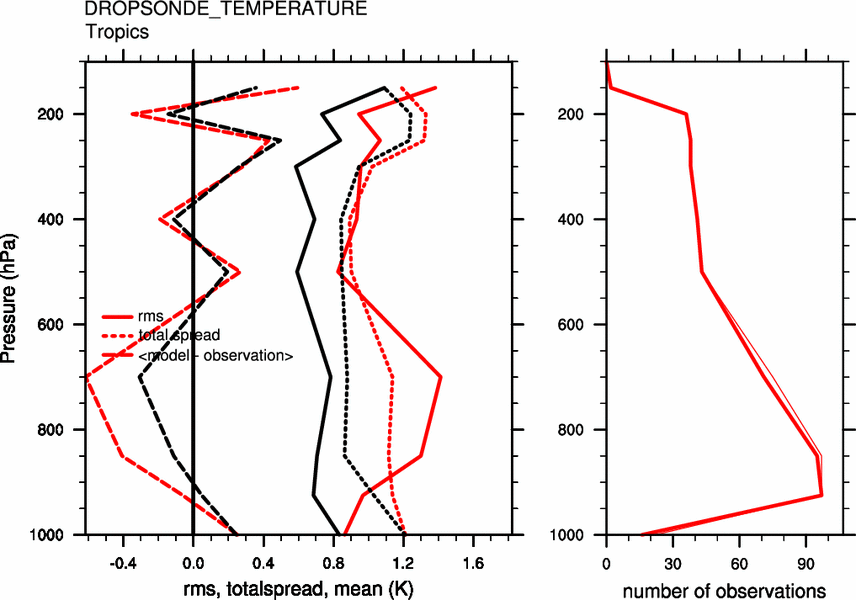

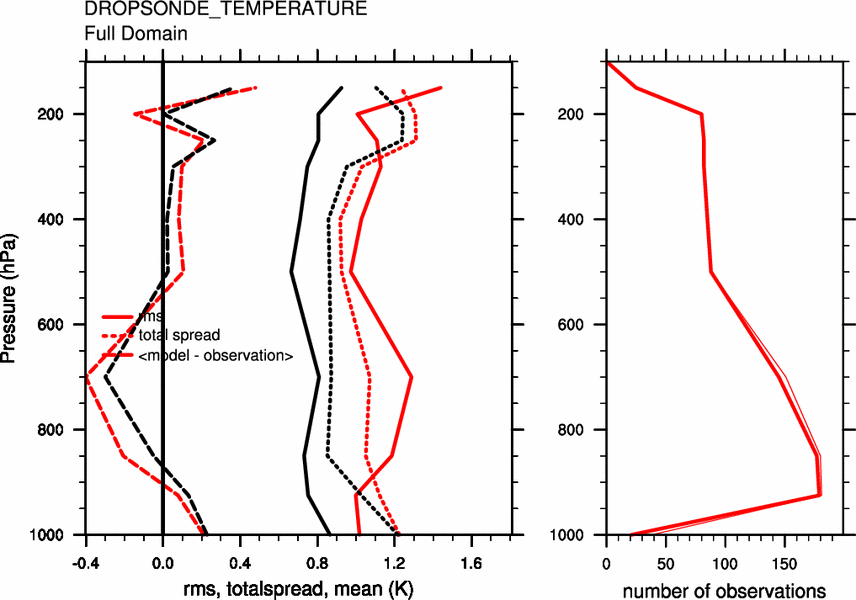

Dropsonde Temperature Analysis (black) and background (red) errors against dropsonde temperature observations over past 14 days.	obs	obs	obs	obs

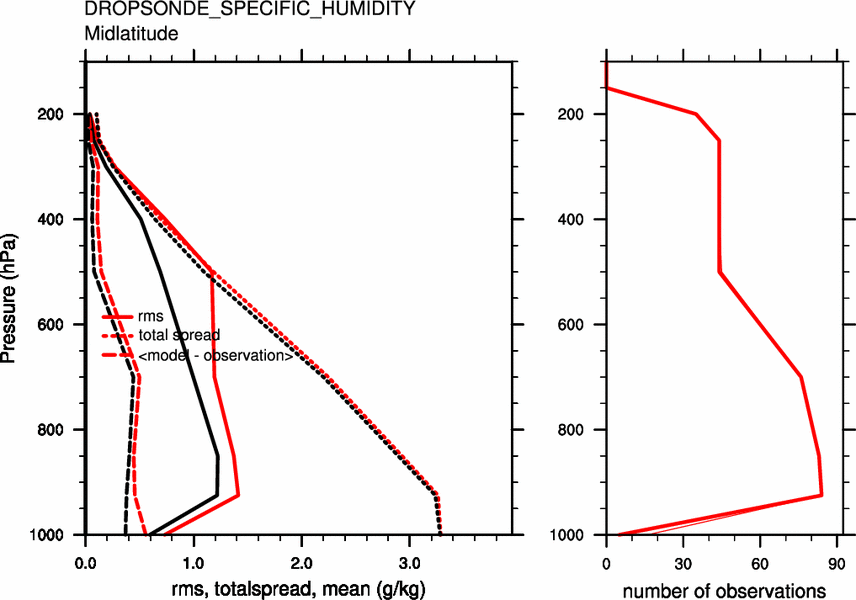

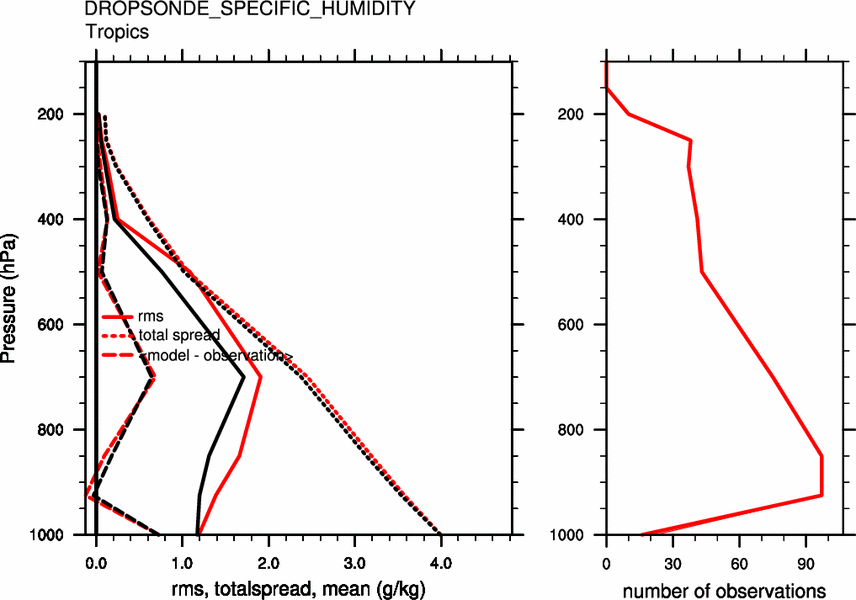

Dropsonde Specific Humidity Analysis (black) and background (red) errors against dropsonde humidity observations over past 14 days.	obs	obs	obs	obs

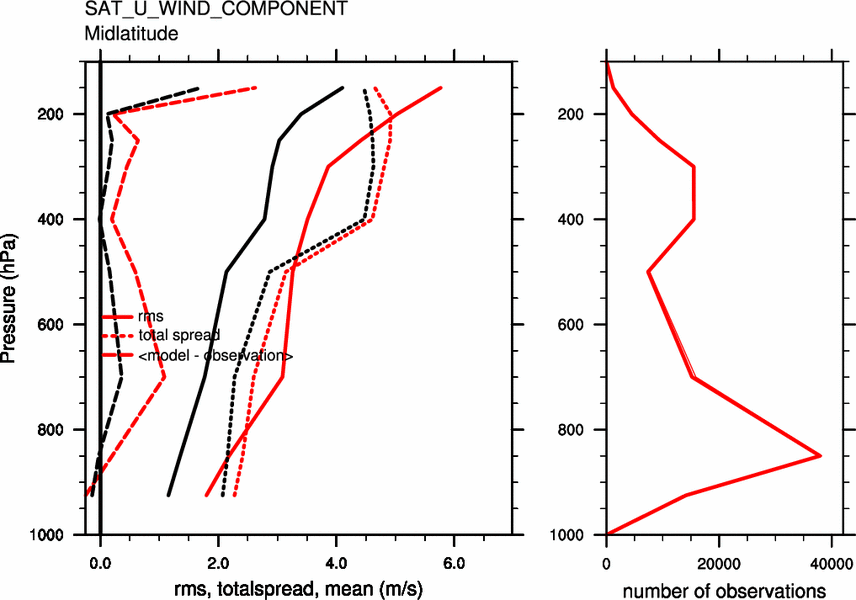

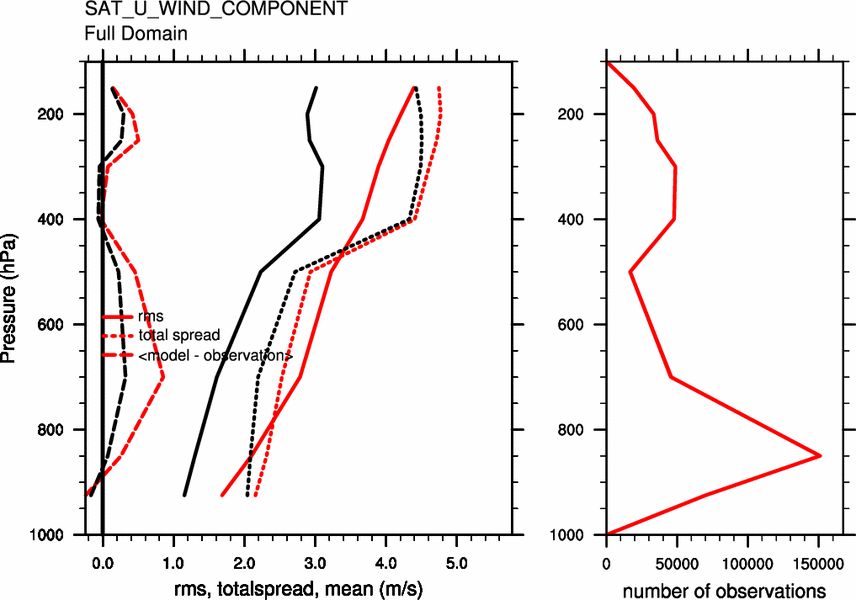

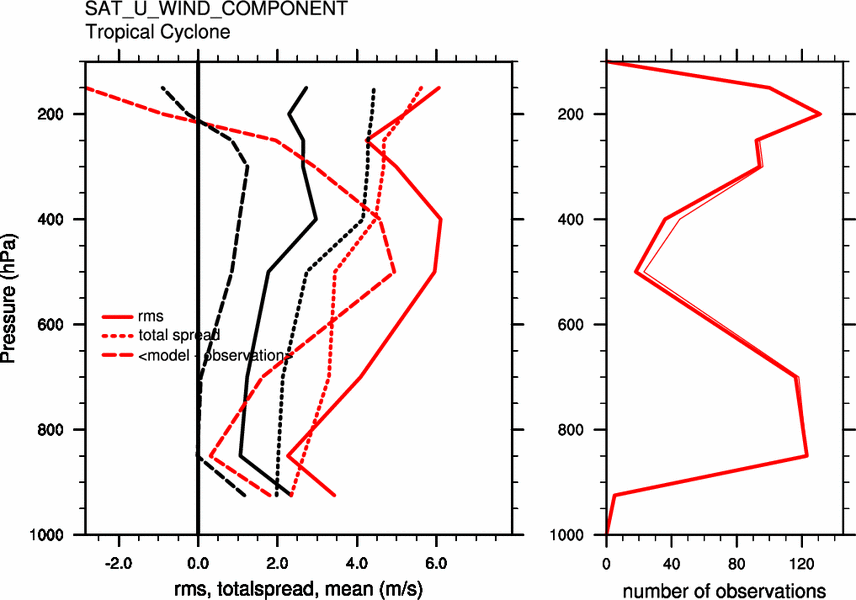

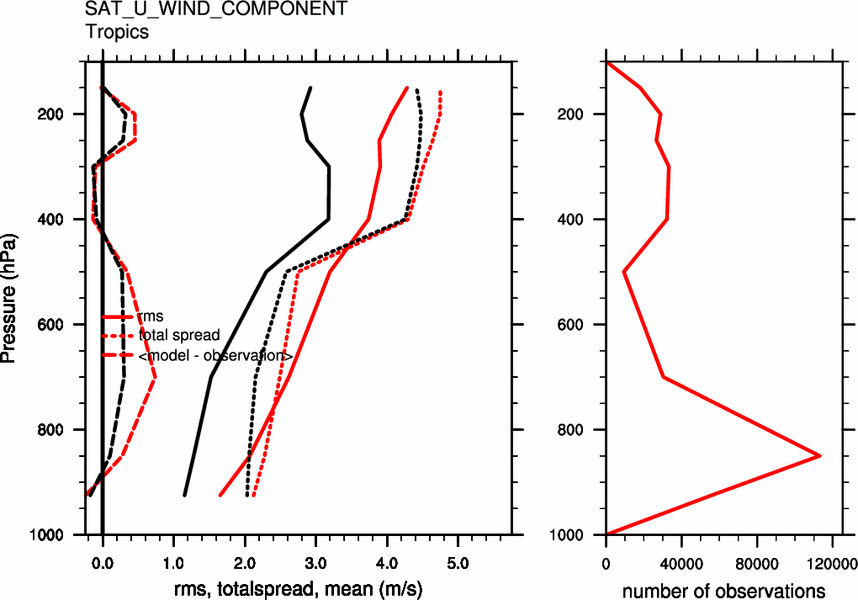

Satellite U Wind Analysis (black) and background (red) errors against satellite zonal wind observations over past 14 days.	obs	obs	obs	obs

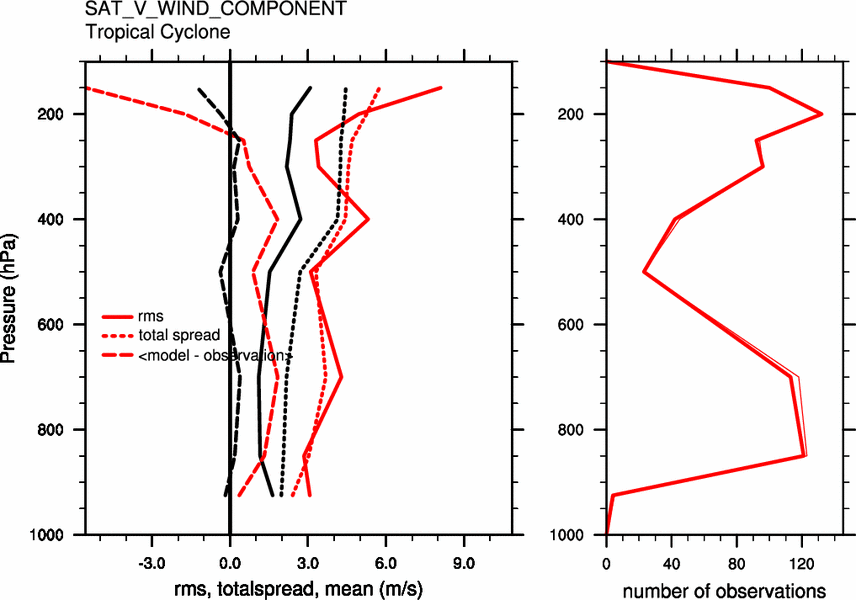

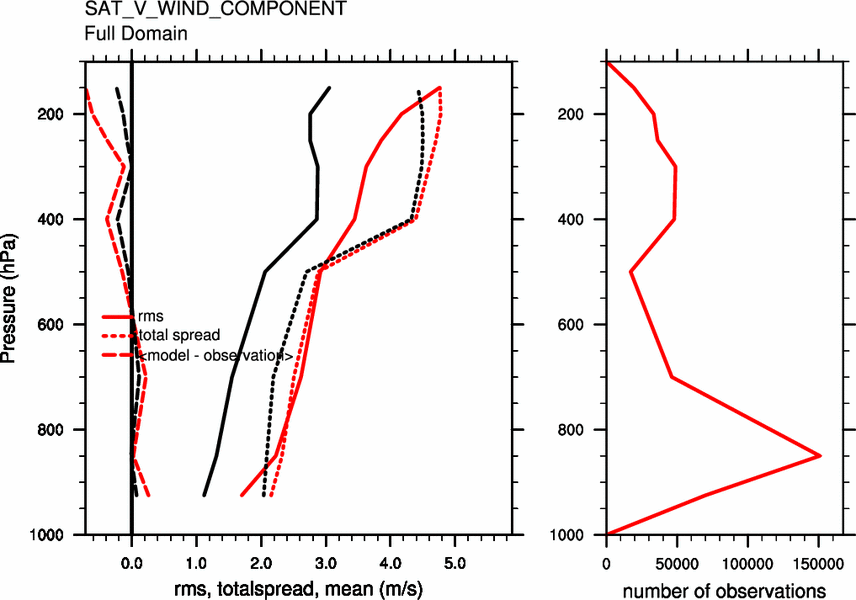

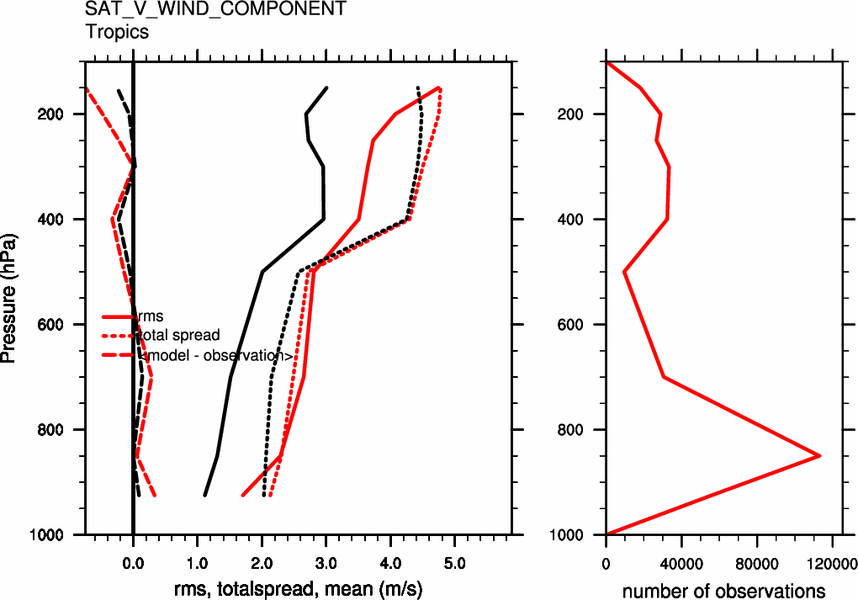

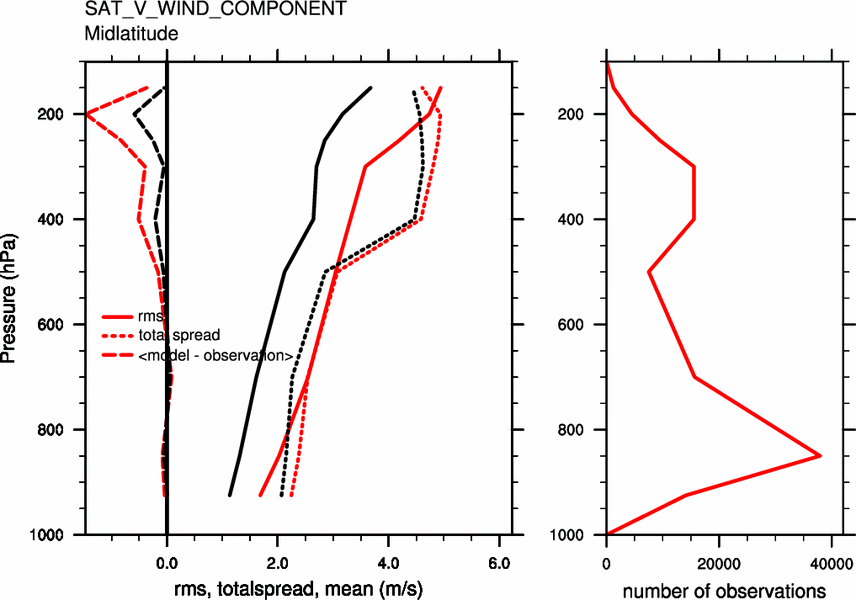

Satellite V Wind Analysis (black) and background (red) errors against satellite meridional wind observations over past 14 days.	obs	obs	obs	obs

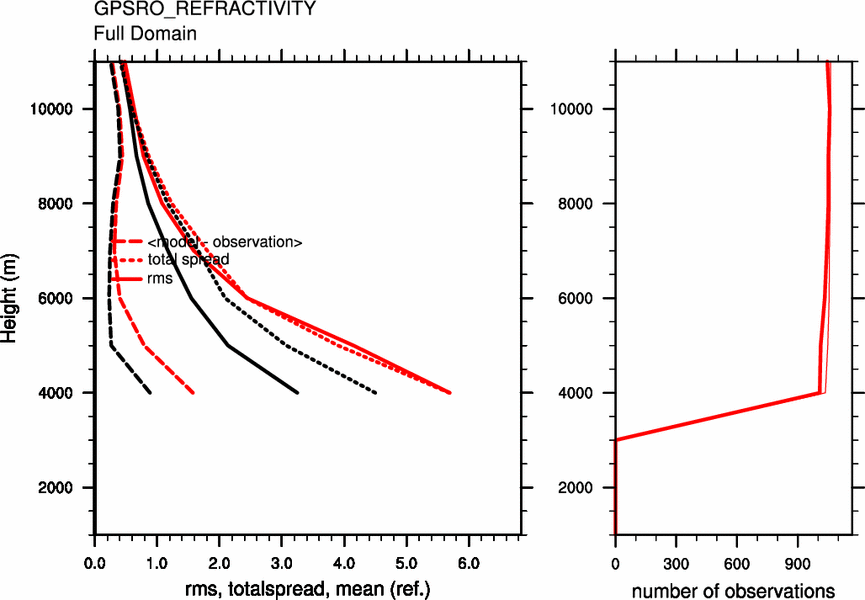

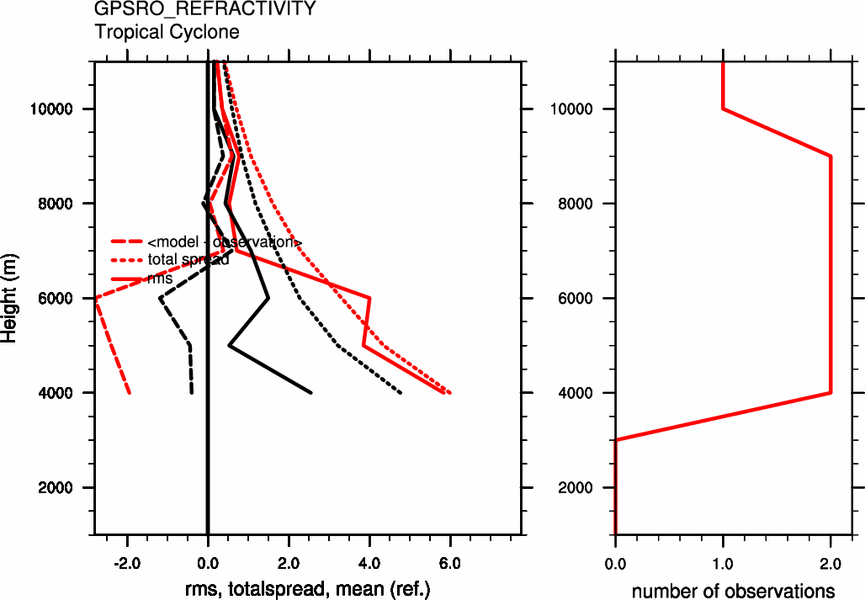

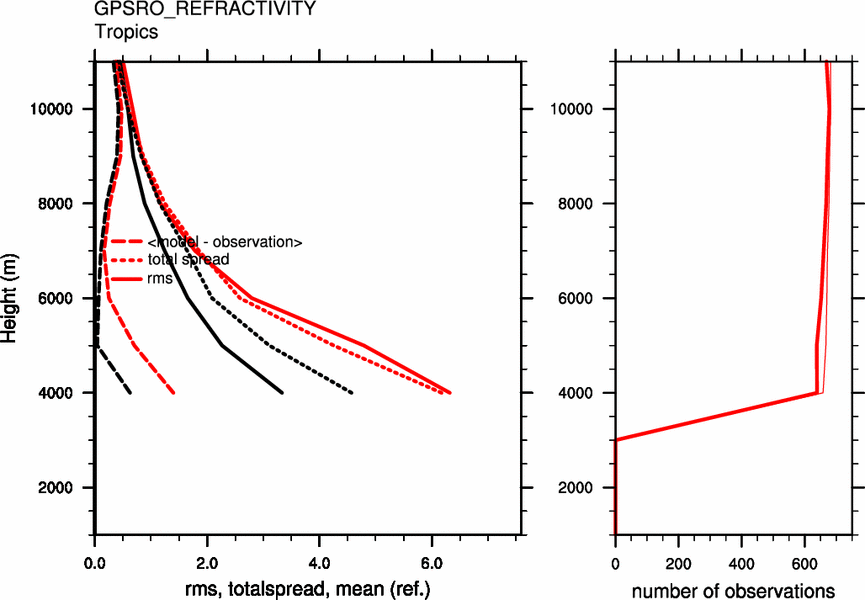

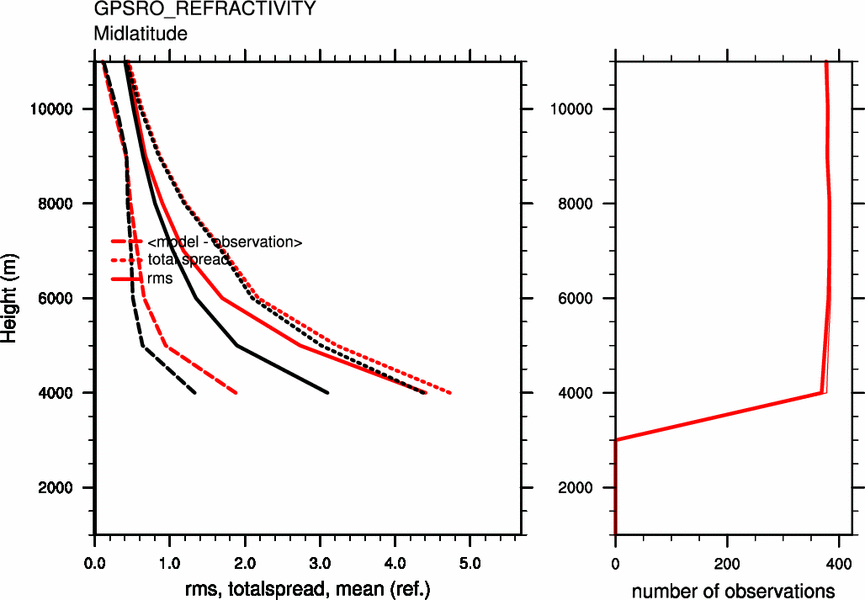

GPS Refractivity Analysis (black) and background (red) errors against GPS occultation observations over past 14 days.	obs	obs	obs	obs

Tropical Cyclone Verification

Notes:

• 96 member WRF-ARW ensemble, 36 km horizontal resolution, 36 vertical levels up to 20 hPa, WSM 6 class microphysics, YSU PBL, NOAH LSM.
• All INVEST and TC have a 12 km fixed-move nest.
• Analyses generated each six hours by assimilating surface pressure, rawinsonde data, dropsonde data, aircraft data, ACARS, cloud winds, TC position and minimum SLP data.
• This work is supported by the NOAA Hurricane Forecast Improvement Project and NSF Grant ATM-0850642.
• Calculations are carried out on NOAA t-jet.
