Surface map of METAR data over the CONUS#
Objective#
In this notebook, we will make a surface map based on current observations from worldwide METAR sites.
from datetime import datetime,timedelta
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
from metpy.calc import wind_components, reduce_point_density
from metpy.units import units
from metpy.plots import StationPlot
from metpy.plots.wx_symbols import current_weather, sky_cover, wx_code_map
# Load in a collection of functions that process GEMPAK weather conditions and cloud cover data.
%run /kt11/ktyle/python/metargem.py
Determine the date and hour to gather observations #
# Use the current time, or set your own for a past time.
# Set current to False if you want to specify a past time.
nowTime = datetime.now()
current = True
#current = False
if (current):
validTime = datetime.now()
year = validTime.year
month = validTime.month
day = validTime.day
hour = validTime.hour
minute = validTime.minute
validTime = datetime(year, month, day, hour, minute)
offset = timedelta(minutes = 5)
validTime = validTime - offset
else:
year = 2010
month = 2
day = 5
hour = 23
minute = 0
validTime = datetime(year, month, day, hour, minute)
timeStr = validTime.strftime("%Y-%m-%d %H UTC")
timeStr2 = validTime.strftime("%Y%m%d%H")
YYMMDDHH = validTime.strftime("%y%m%d%H")
print(timeStr)
print(validTime)
2025-04-03 18 UTC
2025-04-03 18:07:00
The METAR data are in hourly CSV files which can be opened by Pandas.#
metarFile = f'/ktyle_rit/scripts/sflist2/complete/{YYMMDDHH}.csv'
df = pd.read_csv(metarFile, sep='\\s+')
df
| STN | YYMMDD/HHMM | SLAT | SLON | SELV | PMSL | ALTI | TMPC | DWPC | SKNT | ... | P03C | CTYL | CTYM | CTYH | P06I | T6XC | T6NC | CEIL | P01I | SNEW | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | DYS | 250403/1800 | 32.43 | -99.85 | 545.0 | 1009.7 | 29.85 | 13.1 | 7.3 | 12.0 | ... | 0.7 | -9999.0 | -9999.0 | -9999.0 | 0.0 | 13.1 | 10.7 | 21.0 | -9999.0 | -9999.0 |
| 1 | NUW | 250403/1800 | 48.35 | -122.65 | 14.0 | 1022.3 | 30.18 | 9.4 | 5.6 | 7.0 | ... | 1.4 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | 9.4 | 4.4 | 35.0 | -9999.0 | -9999.0 |
| 2 | NYL | 250403/1800 | 32.65 | -114.62 | 65.0 | 1012.3 | 29.90 | 17.8 | 0.6 | 6.0 | ... | 0.9 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | 17.8 | 10.6 | -9999.0 | -9999.0 | -9999.0 |
| 3 | PAIM | 250403/1800 | 66.00 | -153.70 | 389.0 | 1014.4 | 29.88 | -6.6 | -8.2 | 1.0 | ... | 0.3 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -6.4 | -11.1 | 25.0 | -9999.0 | -9999.0 |
| 4 | PAGA | 250403/1800 | 64.73 | -156.93 | 46.0 | 1015.6 | 29.98 | -6.7 | -9.4 | 4.0 | ... | 0.2 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -6.7 | -9.4 | -9999.0 | -9999.0 | -9999.0 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 4349 | LQBK | 250403/1800 | -9999.00 | -9999.00 | -9999.0 | -9999.0 | 30.12 | 13.0 | 8.0 | 3.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| 4350 | LQMO | 250403/1800 | -9999.00 | -9999.00 | -9999.0 | -9999.0 | 30.06 | 15.0 | 2.0 | 10.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| 4351 | LQTZ | 250403/1800 | -9999.00 | -9999.00 | -9999.0 | -9999.0 | 30.15 | 9.0 | 9.0 | 2.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | 55.0 | -9999.0 | -9999.0 |
| 4352 | EGOP | 250403/1800 | -9999.00 | -9999.00 | -9999.0 | -9999.0 | 29.97 | 15.0 | 7.0 | 15.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | 64.0 | -9999.0 | -9999.0 |
| 4353 | EGQA | 250403/1800 | -9999.00 | -9999.00 | -9999.0 | -9999.0 | 30.30 | 10.0 | 7.0 | 9.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
4354 rows × 35 columns
Mapmaking made easy! Follow these steps:#
1. Set the bounds of your map.#
latN = 55
latS = 20
lonW = -125
lonE = -60
cLat = (latN + latS)/2
cLon = (lonW + lonE )/2
2. Select the projection (i.e. Cartopy’s coordinate reference system, aka CRS) for your map.#
proj_map = ccrs.LambertConformal(central_latitude=cLat, central_longitude=cLon)
3. Select the projection / CRS that is valid for the dataset you are plotting#
Tip: Many datasets' x- and y-coordinates are in degrees latitude and longitude. In this case, the map projection can be represented as PlateCarree.
proj_data = ccrs.PlateCarree()
Transform: When you create your figures, you will transform the data from its native (proj_data) coordinates to those that define your map (proj_map). When using MetPy's
stationplotclass, we only need to perform this transformation once per Axes, when the class is first instantiated.4. Select the resolution of the Cartopy Natural Earth cartographic features.#
# Uncomment / comment as desired
#res = '10m' # Most detailed, best for small regions (e.g. NYS)
res = '50m' # Medium detail, best for medium-sized regions (e.g. CONUS)
#res = '110m' # Least detailed, best for large/global maps
5. Select the cartographic features (e.g., physical ones such as coastlines or rivers, and political features like states or (national) borders) you will include in your maps.#
Save for later: You will actually add these features in the relevant Matplotlib cells later in the notebook.
Dataset-specific customizations#
Perform the spatial subset.
df2 = df.query('SLAT >= @latS & SLAT <= @latN & SLON >= @lonW & SLON <= @lonE')
Note: We're using a different Pandas function, query, to perform our subset. Its syntax is similar to that used in databases. Note how we phrase columns and previously-defined variables!
df2
| STN | YYMMDD/HHMM | SLAT | SLON | SELV | PMSL | ALTI | TMPC | DWPC | SKNT | ... | P03C | CTYL | CTYM | CTYH | P06I | T6XC | T6NC | CEIL | P01I | SNEW | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | DYS | 250403/1800 | 32.43 | -99.85 | 545.0 | 1009.7 | 29.85 | 13.1 | 7.3 | 12.0 | ... | 0.7 | -9999.0 | -9999.0 | -9999.0 | 0.00 | 13.1 | 10.7 | 21.0 | -9999.00 | -9999.0 |
| 1 | NUW | 250403/1800 | 48.35 | -122.65 | 14.0 | 1022.3 | 30.18 | 9.4 | 5.6 | 7.0 | ... | 1.4 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | 9.4 | 4.4 | 35.0 | -9999.00 | -9999.0 |
| 2 | NYL | 250403/1800 | 32.65 | -114.62 | 65.0 | 1012.3 | 29.90 | 17.8 | 0.6 | 6.0 | ... | 0.9 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | 17.8 | 10.6 | -9999.0 | -9999.00 | -9999.0 |
| 8 | CACQ | 250403/1800 | 47.00 | -65.45 | 34.0 | 1021.8 | -9999.00 | -2.0 | -4.0 | 9.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | -9999.0 |
| 9 | CAFC | 250403/1800 | 45.92 | -66.60 | 35.0 | 1019.2 | -9999.00 | -1.0 | -1.0 | 10.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | -9999.0 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 4182 | KWBF | 250403/1800 | 26.93 | -90.50 | 10.0 | -9999.0 | 29.94 | 26.0 | 26.0 | 18.0 | ... | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | -9999.0 | -9999.0 | -9999.0 | -9999.00 | -9999.0 |
| 4189 | 1AM | 250403/1800 | 47.28 | -110.80 | 1219.0 | 1016.1 | 29.93 | -2.3 | -4.5 | 12.0 | ... | 2.8 | -9999.0 | -9999.0 | -9999.0 | 0.01 | -1.7 | -4.4 | 12.0 | 0.00 | -9999.0 |
| 4190 | 1FM | 250403/1800 | 47.60 | -112.32 | 1116.0 | 1018.3 | 29.97 | -3.5 | -5.5 | 11.0 | ... | 3.1 | -9999.0 | -9999.0 | -9999.0 | 0.01 | -1.6 | -4.4 | 26.0 | 0.01 | -9999.0 |
| 4191 | 1IM | 250403/1800 | 47.32 | -111.47 | 1108.0 | 1017.7 | 29.97 | -2.2 | -4.2 | 11.0 | ... | 3.9 | -9999.0 | -9999.0 | -9999.0 | 0.01 | -0.7 | -3.0 | 20.0 | 0.01 | -9999.0 |
| 4192 | 1NM | 250403/1800 | 47.07 | -109.03 | 1161.0 | 1013.3 | 29.84 | -0.4 | -1.5 | 10.0 | ... | 1.9 | -9999.0 | -9999.0 | -9999.0 | 0.00 | 2.0 | -2.4 | 4.0 | 0.00 | -9999.0 |
2668 rows × 35 columns
Select the weather variables of interest. Also include the site ID, lat, lon, elevation, and time columns.
columnSubset = ['STN', 'YYMMDD/HHMM', 'SLAT', 'SLON', 'SELV', 'TMPC', 'DWPC', 'PMSL',
'SKNT', 'DRCT','ALTI','WNUM','VSBY','CHC1', 'CHC2', 'CHC3','CTYH', 'CTYM', 'CTYL']
df3 = df2[columnSubset]
df3
| STN | YYMMDD/HHMM | SLAT | SLON | SELV | TMPC | DWPC | PMSL | SKNT | DRCT | ALTI | WNUM | VSBY | CHC1 | CHC2 | CHC3 | CTYH | CTYM | CTYL | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | DYS | 250403/1800 | 32.43 | -99.85 | 545.0 | 13.1 | 7.3 | 1009.7 | 12.0 | 40.0 | 29.85 | -9999.0 | 10.00 | 214.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| 1 | NUW | 250403/1800 | 48.35 | -122.65 | 14.0 | 9.4 | 5.6 | 1022.3 | 7.0 | 250.0 | 30.18 | -9999.0 | 10.00 | 152.0 | 353.0 | 603.0 | -9999.0 | -9999.0 | -9999.0 |
| 2 | NYL | 250403/1800 | 32.65 | -114.62 | 65.0 | 17.8 | 0.6 | 1012.3 | 6.0 | 290.0 | 29.90 | -9999.0 | 10.00 | 1.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| 8 | CACQ | 250403/1800 | 47.00 | -65.45 | 34.0 | -2.0 | -4.0 | 1021.8 | 9.0 | 110.0 | -9999.00 | -9999.0 | -9999.00 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| 9 | CAFC | 250403/1800 | 45.92 | -66.60 | 35.0 | -1.0 | -1.0 | 1019.2 | 10.0 | 110.0 | -9999.00 | -9999.0 | -9999.00 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 4182 | KWBF | 250403/1800 | 26.93 | -90.50 | 10.0 | 26.0 | 26.0 | -9999.0 | 18.0 | 150.0 | 29.94 | 9.0 | 3.00 | 1.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| 4189 | 1AM | 250403/1800 | 47.28 | -110.80 | 1219.0 | -2.3 | -4.5 | 1016.1 | 12.0 | 280.0 | 29.93 | 20.0 | 9.00 | 123.0 | 404.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
| 4190 | 1FM | 250403/1800 | 47.60 | -112.32 | 1116.0 | -3.5 | -5.5 | 1018.3 | 11.0 | 10.0 | 29.97 | 740.0 | 1.50 | 106.0 | 263.0 | 344.0 | -9999.0 | -9999.0 | -9999.0 |
| 4191 | 1IM | 250403/1800 | 47.32 | -111.47 | 1108.0 | -2.2 | -4.2 | 1017.7 | 11.0 | 40.0 | 29.97 | 740.0 | 2.25 | 96.0 | 142.0 | 204.0 | -9999.0 | -9999.0 | -9999.0 |
| 4192 | 1NM | 250403/1800 | 47.07 | -109.03 | 1161.0 | -0.4 | -1.5 | 1013.3 | 10.0 | 40.0 | 29.84 | 740.0 | 5.00 | 44.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 | -9999.0 |
2668 rows × 19 columns
In these datasets, -9999.0 signfies missing values. Replace all instances of -9999.0 with NumPy’s NaN (not a number) value.
df4 = df3.replace(-9999.0, np.nan)
df4
| STN | YYMMDD/HHMM | SLAT | SLON | SELV | TMPC | DWPC | PMSL | SKNT | DRCT | ALTI | WNUM | VSBY | CHC1 | CHC2 | CHC3 | CTYH | CTYM | CTYL | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | DYS | 250403/1800 | 32.43 | -99.85 | 545.0 | 13.1 | 7.3 | 1009.7 | 12.0 | 40.0 | 29.85 | NaN | 10.00 | 214.0 | NaN | NaN | NaN | NaN | NaN |
| 1 | NUW | 250403/1800 | 48.35 | -122.65 | 14.0 | 9.4 | 5.6 | 1022.3 | 7.0 | 250.0 | 30.18 | NaN | 10.00 | 152.0 | 353.0 | 603.0 | NaN | NaN | NaN |
| 2 | NYL | 250403/1800 | 32.65 | -114.62 | 65.0 | 17.8 | 0.6 | 1012.3 | 6.0 | 290.0 | 29.90 | NaN | 10.00 | 1.0 | NaN | NaN | NaN | NaN | NaN |
| 8 | CACQ | 250403/1800 | 47.00 | -65.45 | 34.0 | -2.0 | -4.0 | 1021.8 | 9.0 | 110.0 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 9 | CAFC | 250403/1800 | 45.92 | -66.60 | 35.0 | -1.0 | -1.0 | 1019.2 | 10.0 | 110.0 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 4182 | KWBF | 250403/1800 | 26.93 | -90.50 | 10.0 | 26.0 | 26.0 | NaN | 18.0 | 150.0 | 29.94 | 9.0 | 3.00 | 1.0 | NaN | NaN | NaN | NaN | NaN |
| 4189 | 1AM | 250403/1800 | 47.28 | -110.80 | 1219.0 | -2.3 | -4.5 | 1016.1 | 12.0 | 280.0 | 29.93 | 20.0 | 9.00 | 123.0 | 404.0 | NaN | NaN | NaN | NaN |
| 4190 | 1FM | 250403/1800 | 47.60 | -112.32 | 1116.0 | -3.5 | -5.5 | 1018.3 | 11.0 | 10.0 | 29.97 | 740.0 | 1.50 | 106.0 | 263.0 | 344.0 | NaN | NaN | NaN |
| 4191 | 1IM | 250403/1800 | 47.32 | -111.47 | 1108.0 | -2.2 | -4.2 | 1017.7 | 11.0 | 40.0 | 29.97 | 740.0 | 2.25 | 96.0 | 142.0 | 204.0 | NaN | NaN | NaN |
| 4192 | 1NM | 250403/1800 | 47.07 | -109.03 | 1161.0 | -0.4 | -1.5 | 1013.3 | 10.0 | 40.0 | 29.84 | 740.0 | 5.00 | 44.0 | NaN | NaN | NaN | NaN | NaN |
2668 rows × 19 columns
Now that we have done our subsetting, create a generic object (we’ll call it data here)
data = df4
In our current data archive, multiple weather types are often not represented properly. To avoid a type conversion error, set stations whose weather type fall into this category to missing.
This will eventually be fixed!
data.loc[data['WNUM'] =='********', ['WNUM']] = '-9999.00'
data['WNUM'] = data['WNUM'].astype('float16')
/tmp/ipykernel_3402987/3580734062.py:1: FutureWarning: Setting an item of incompatible dtype is deprecated and will raise an error in a future version of pandas. Value '-9999.00' has dtype incompatible with float64, please explicitly cast to a compatible dtype first.
data.loc[data['WNUM'] =='********', ['WNUM']] = '-9999.00'
Read in several of the columns as Pandas Series; extract the value arrays from the Series objects; assign / convert units as necessary; convert GEMPAK cloud cover and present wx symbols to MetPy’s representation#
lats = data['SLAT'].values
lons = data['SLON'].values
tair = (data['TMPC'].values * units ('degC')).to('degF')
dewp = (data['DWPC'].values * units ('degC')).to('degF')
altm = (data['ALTI'].values * units('inHg')).to('mbar')
slp = data['PMSL'].values * units('hPa')
# Convert wind to components
u, v = wind_components(data['SKNT'].values * units.knots, data['DRCT'].values * units.degree)
# replace missing wx codes or those >= 100 with 0, and convert to MetPy's present weather code
wnum = (np.nan_to_num(data['WNUM'].values,True).astype(int))
convert_wnum (wnum)
# Need to handle missing (NaN) and convert to proper code
chc1 = (np.nan_to_num(data['CHC1'].values,True).astype(int))
chc2 = (np.nan_to_num(data['CHC2'].values,True).astype(int))
chc3 = (np.nan_to_num(data['CHC3'].values,True).astype(int))
cloud_cover = calc_clouds(chc1, chc2, chc3)
# Set a variable to be used for plotting the station ID's
stid = data['STN']
The next step deals with the removal of overlapping stations, using reduce_point_density. This returns a mask we can apply to data to filter the points.
# Project points so that we're filtering based on the way the stations are represented in the dataset
xy = proj_map.transform_points(proj_data, lons, lats)
# Reduce point density so that there's only one point within a circle whose distance is specified in meters.
# This value will need to change depending on how large of an area you are plotting.
density = 150000
mask = reduce_point_density(xy, density)
Note: In the call to
transform_points, we pass in the arrays of the stations' longitudes and latitudes. Since their units are in degrees, we need to also specify their corresponding map projection (PlateCarree) ... which we defined earlier in Mapmaking Made Easy Step 2.Simple station plotting using plot methods#
One way to create station plots with MetPy is to create an instance of StationPlot and call various plot methods, like plot_parameter, to plot arrays of data at locations relative to the center point.
In addition to plotting values, StationPlot has support for plotting text strings, symbols, and plotting values using custom formatting.
Plotting symbols involves mapping integer values to various custom font glyphs in our custom weather symbols font. MetPy provides mappings for converting WMO codes to their appropriate symbol. The sky_cover and current_weather functions below are two such mappings.
Now we just plot with arr[mask] for every arr of data we use in plotting.
# Set up a plot with map features
# First set dpi ("dots per inch") - higher values will give us a less pixelated final figure.
dpi = 125
fig = plt.figure(figsize=(24,18), dpi=dpi)
# Mapmaking Made Easy Step 2
ax = fig.add_subplot(1, 1, 1, projection=proj_map)
# Mapmaking Made Easy Step 1
# Set extent of map, extending the map bounds slightly compared to the subsetted data region;
# this helps eliminate data from being plotted beyond the frame of the map.
ax.set_extent ((lonW-0.5,lonE+0.5,latS-0.5,latN+0.5), crs=proj_data)
# Mapmaking Made Easy Step 5
ax.set_facecolor(cfeature.COLORS['water'])
land_mask = cfeature.NaturalEarthFeature('physical', 'land', res,
edgecolor='face',
facecolor=cfeature.COLORS['land'])
lake_mask = cfeature.NaturalEarthFeature('physical', 'lakes', res,
edgecolor='face',
facecolor=cfeature.COLORS['water'])
state_borders = cfeature.NaturalEarthFeature(category='cultural', name='admin_1_states_provinces_lakes',
scale=res, facecolor='none')
ax.add_feature(land_mask)
ax.add_feature(lake_mask)
ax.add_feature(state_borders, linestyle='solid', edgecolor='black')
#If we wanted to add grid lines to our plot:
#ax.gridlines()
# Create a station plot pointing to an Axes to draw on as well as the location of points
stationplot = StationPlot(ax, lons[mask], lats[mask], transform=proj_data,
fontsize=8)
stationplot.plot_parameter('NW', tair[mask], color='red', fontsize=10)
stationplot.plot_parameter('SW', dewp[mask], color='darkgreen', fontsize=10)
# Below, we are using a custom formatter to control how the sea-level pressure
# values are plotted. This uses the standard trailing 3-digits of the pressure value
# in tenths of millibars.
stationplot.plot_parameter('NE', slp[mask], color='purple', formatter=lambda v: format(10 * v, '.0f')[-3:])
stationplot.plot_symbol('C', cloud_cover[mask], sky_cover)
stationplot.plot_symbol('W', wnum[mask], current_weather,color='blue',fontsize=12)
stationplot.plot_text((2, 0),stid[mask], color='gray')
#zorder - Higher value zorder will plot the variable on top of lower value zorder. This is necessary for wind barbs to appear. Default is 1.
stationplot.plot_barb(u[mask], v[mask],zorder=2)

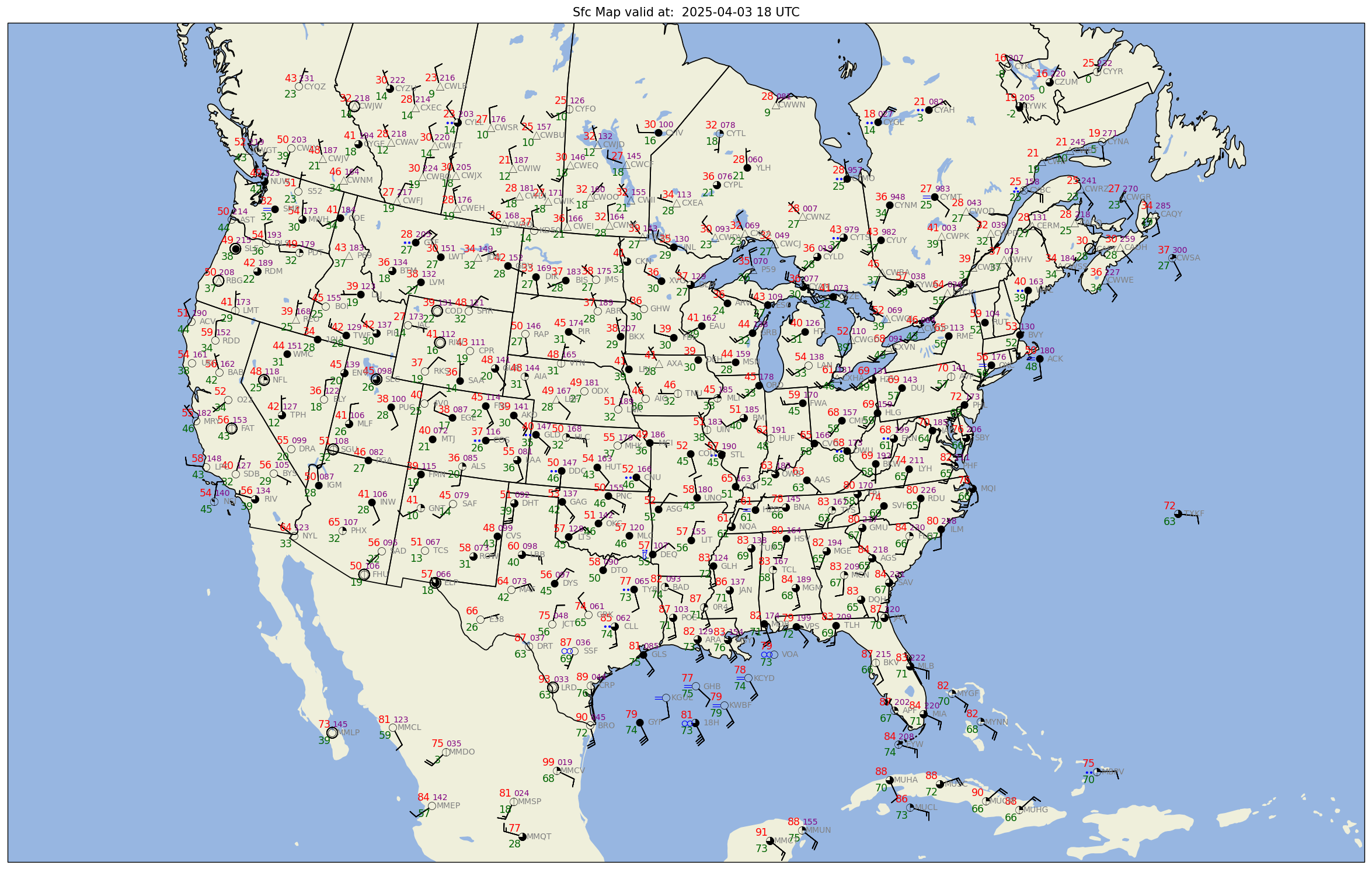

plotTitle = (f"Sfc Map valid at: {timeStr}")
ax.set_title (plotTitle);
# In order to see the entire figure, type the name of the figure object below.
fig
Save the figure as a PNG.#
figName = (f'{timeStr2}_sfmap.png')
fig.savefig(figName)
What’s Next?#
Next, you will create your own surface maps and customize various aspects of your figure.
