Shapefiles 1: Intro to Shapefiles
Contents
Shapefiles 1: Intro to Shapefiles¶
Overview:¶
Read in the state/province Natural Earth shapefile
Explore the shapefile using GeoPandas

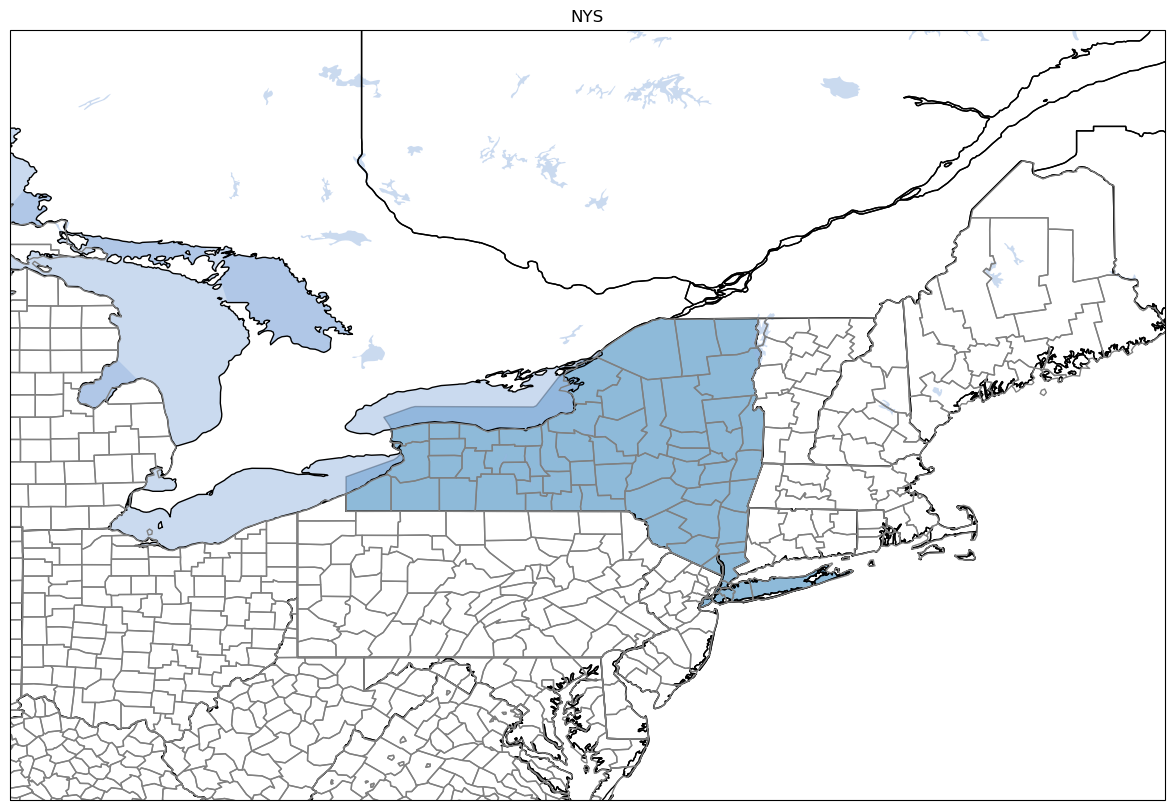

Plot the shapefile on a map and overlay with other Natural Earth shapefiles
Prerequisites¶
Concepts |
Importance |
Notes |
|---|---|---|
Pandas |
Necessary |
|
Cartopy |
Necessary |
Time to learn: 30 minutes
What is a shapefile?¶
From Wikipedia:
The shapefile format is a geospatial vector data format for geographic information system (GIS) software. It is developed and regulated by Esri as a mostly open specification for data interoperability among Esri and other GIS software products. The shapefile format can spatially describe vector features: points, lines, and polygons, representing, for example, water wells, rivers, and lakes. Each item usually has attributes that describe it, such as name or temperature.
Rasters versus Shapefiles: By virtue of being a *vector data format*, shapefiles do not becoming fuzzy/pixelated as one zooms in on maps that display features defined by shapefiles. This is in contrast to raster-based data. See the first reference at the end of the notebook for a nice explanation.
Note: We've already been using shapefiles, whenever we've added various Natural Earth backgrounds with Cartopy's feature. We'll examine shapefiles in more detail here, using Cartopy's shapereader.
Imports¶
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import geopandas as gp
import matplotlib.pyplot as plt
import pandas as pd
import cartopy.io.shapereader as shpreader
from metpy.plots import USCOUNTIES
import glob
import os
ERROR 1: PROJ: proj_create_from_database: Open of /knight/anaconda_aug22/envs/aug22_env/share/proj failed
Read in a shapefile¶
Use Cartopy’s shpreader.natural_earth method to read in the highest (10m) resolution states and provinces shapefile.
It will be automatically downloaded if not present, and is cached by default in a hidden subdirectory in your home directory.
res = '10m'
category = 'cultural'
name = 'admin_1_states_provinces'
shpfilename = shpreader.natural_earth(res, category, name)
shpfilename
'/home11/staff/ktyle/.local/share/cartopy/shapefiles/natural_earth/cultural/ne_10m_admin_1_states_provinces.shp'
What files matching this particular political boundary classification do we have?
path = os.path.dirname(shpfilename)
glob.glob(path + "/ne_10m_admin_1_states_provinces.*")
['/home11/staff/ktyle/.local/share/cartopy/shapefiles/natural_earth/cultural/ne_10m_admin_1_states_provinces.shp',
'/home11/staff/ktyle/.local/share/cartopy/shapefiles/natural_earth/cultural/ne_10m_admin_1_states_provinces.dbf',
'/home11/staff/ktyle/.local/share/cartopy/shapefiles/natural_earth/cultural/ne_10m_admin_1_states_provinces.shx',
'/home11/staff/ktyle/.local/share/cartopy/shapefiles/natural_earth/cultural/ne_10m_admin_1_states_provinces.prj',
'/home11/staff/ktyle/.local/share/cartopy/shapefiles/natural_earth/cultural/ne_10m_admin_1_states_provinces.cpg']
We have five files with different suffixes. The first three must be present (see the second reference at the end of the notebook). Here, we will read in the .shp file, using a Pandas-like library, Geopandas, which creates a geo-referenced Pandas Dataframe.
Explore the shapefile using Geopandas¶
Display all columns in the dataframe. Then create the dataframe and take a look at the first and last five rows (scroll to see all 84 columns).
pd.set_option('display.max_columns', None)
df = gp.read_file(shpfilename)
df
| featurecla | scalerank | adm1_code | diss_me | iso_3166_2 | wikipedia | iso_a2 | adm0_sr | name | name_alt | name_local | type | type_en | code_local | code_hasc | note | hasc_maybe | region | region_cod | provnum_ne | gadm_level | check_me | datarank | abbrev | postal | area_sqkm | sameascity | labelrank | name_len | mapcolor9 | mapcolor13 | fips | fips_alt | woe_id | woe_label | woe_name | latitude | longitude | sov_a3 | adm0_a3 | adm0_label | admin | geonunit | gu_a3 | gn_id | gn_name | gns_id | gns_name | gn_level | gn_region | gn_a1_code | region_sub | sub_code | gns_level | gns_lang | gns_adm1 | gns_region | min_label | max_label | min_zoom | wikidataid | name_ar | name_bn | name_de | name_en | name_es | name_fr | name_el | name_hi | name_hu | name_id | name_it | name_ja | name_ko | name_nl | name_pl | name_pt | name_ru | name_sv | name_tr | name_vi | name_zh | ne_id | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Admin-1 scale rank | 3 | ARG-1309 | 1309 | AR-E | None | AR | 1 | Entre Ríos | Entre-Rios | None | Provincia | Province | None | AR.ER | None | None | None | None | 10 | 1 | 20 | 3 | None | ER | 0 | -99 | 3 | 10 | 3 | 13 | AR08 | None | 2344682 | Entre Rios, AR, Argentina | Entre Ríos | -32.02750 | -59.2824 | ARG | ARG | 2 | Argentina | Argentina | ARG | 3434137 | Provincia de Entre Rios | -988655 | Entre Rios | 1 | None | AR.08 | None | None | 1 | khm | AR08 | None | 6.0 | 11.0 | 6.0 | Q44762 | إنتري ريوس | এন্ত্রে রিও প্রদেশ | Entre Ríos | Entre Ríos Province | Entre Ríos | Entre Ríos | Έντρε Ρίος | एन्ट्रे रियोस | Entre Ríos tartomány | Provinsi Entre Ríos | provincia di Entre Ríos | エントレ・リオス州 | 엔트레리오스 주 | Entre Ríos | Entre Ríos | Entre Ríos | Энтре-Риос | Entre Ríos | Entre Ríos eyaleti | Entre Ríos | 恩特雷里奥斯省 | 1159309789 | POLYGON ((-58.20011 -32.44713, -58.20012 -32.4... |
| 1 | Admin-1 scale rank | 6 | URY-8 | 8 | UY-PA | None | UY | 1 | Paysandú | None | None | Departamento | Department | None | UY.PA | None | None | None | None | 19 | 1 | 0 | 8 | None | PA | 0 | -99 | 6 | 8 | 2 | 10 | UY11 | None | 2347650 | Paysandú, UY, Uruguay | Paysandú | -32.09330 | -57.2240 | URY | URY | 2 | Uruguay | Uruguay | URY | 3441242 | Departamento de Paysandu | -908097 | Paysandu, Departamento de | 1 | None | UY.11 | None | None | 1 | fra | UY11 | None | 8.0 | 11.0 | 8.0 | Q16576 | إدارة بايساندو | পেসান্ডো বিভাগ | Departamento Paysandú | Paysandú Department | Departamento de Paysandú | Paysandú | Παϊσαντού | पयसंदु विभाग | Paysandú megye | Departemen Paysandú | dipartimento di Paysandú | パイサンドゥ県 | 파이산두 주 | Paysandú | Paysandú | Paysandú | Пайсанду | Paysandú | Paysandu Departmanı | Paysandú | 派桑杜省 | 1159307733 | POLYGON ((-58.20012 -32.44720, -58.20011 -32.4... |
| 2 | Admin-1 scale rank | 3 | PAK-1114 | 1114 | PK-SD | None | PK | 1 | Sind | Sindh | None | Province | Province | None | PK.SD | None | None | None | None | 2 | 1 | 20 | 2 | None | SD | 0 | -99 | 3 | 4 | 3 | 11 | PK05 | None | 2346499 | Sindh, PK, Pakistan | Sind | 26.37340 | 68.8685 | PAK | PAK | 2 | Pakistan | Pakistan | PAK | 1164807 | Sindh | -2774813 | Sindh | 1 | None | PK.05 | None | None | 1 | rus | PK05 | None | 5.0 | 10.5 | 5.0 | Q37211 | السند | সিন্ধু প্রদেশ | Sindh | Sindh | Sindh | Sind | Σιντ | सिंध | Szindh | Sindh | Sindh | シンド州 | 신드 주 | Sindh | Sindh | Sind | Синд | Sindh | Sind Eyaleti | Sindh | 信德省 | 1159309351 | MULTIPOLYGON (((68.18304 23.84216, 68.18301 23... |
| 3 | Admin-1 scale rank | 2 | IND-3264 | 3264 | IN-GJ | None | IN | 1 | Gujarat | None | None | None | None | None | IN.GJ | None | None | West | None | 20064 | 1 | 20 | 1 | None | None | 0 | -99 | 2 | 7 | 2 | 2 | IN32 | None | 2345743 | Gujarat, IN, India | Gujarat | 22.75010 | 71.3013 | IND | IND | 2 | India | India | IND | 1270770 | State of Gujarat | -2096768 | Gujarat, State of | 1 | None | IN.09 | None | None | 1 | nld | IN09 | None | 4.6 | 10.1 | 4.6 | Q1061 | غوجارات | গুজরাত | Gujarat | Gujarat | Guyarat | Gujarat | Γκουτζαράτ | गुजरात | Gudzsarát | Gujarat | Gujarat | グジャラート州 | 구자라트 주 | Gujarat | Gudźarat | Gujarate | Гуджарат | Gujarat | Gucerat | Gujarat | 古吉拉特邦 | 1159314179 | POLYGON ((68.18301 23.84209, 68.18304 23.84216... |
| 4 | Admin-1 scale rank | 2 | IDN-1185 | 1185 | ID-KI | None | ID | 5 | Kalimantan Timur | Kaltim | None | Propinsi | Province | None | ID.KI | None | None | None | None | 15 | 1 | 20 | 1 | None | KI | 0 | -99 | 2 | 16 | 6 | 11 | ID14 | None | 2345723 | East Kalimantan, ID, Indonesia | Kalimantan Timur | 1.28915 | 116.3540 | IDN | IDN | 2 | Indonesia | Indonesia | IDN | 1641897 | Provinsi Kalimantan Timur | -2680740 | Kalimantan Timur, Provinsi | 1 | None | ID.14 | None | None | 1 | ind | ID14 | None | 5.0 | 10.1 | 4.6 | Q3899 | كالمنتان الشرقية | কিলিমান্তান তিমুর | Ostkalimantan | East Kalimantan | Kalimantan Oriental | Kalimantan oriental | Ανατολικό Καλιμαντάν | पूर्व कालिमंतान | None | Kalimantan Timur | Kalimantan Orientale | 東カリマンタン州 | 칼리만탄티무르 주 | Oost-Kalimantan | Borneo Wschodnie | Kalimantan Oriental | Восточный Калимантан | Kalimantan Timur | Doğu Kalimantan | Đông Kalimantan | 東加里曼丹省 | 1159310009 | MULTIPOLYGON (((117.70361 4.16341, 117.70361 4... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 4589 | Admin-1 aggregation | 10 | MLT-5953 | 5953 | MT-20 | None | MT | 3 | Isla | Isla|Città Invicta | None | None | None | None | MT.SE.IS | None | None | Malta Xlokk | None | 0 | 0 | 0 | 10 | None | None | 0 | -99 | 20 | 7 | 1 | 8 | None | None | 24551400 | None | Malta | 35.88640 | 14.5149 | MLT | MLT | 5 | Malta | Malta | MLT | 8299724 | L-Isla | 11534632 | L-Isla | 1 | None | MT.25 | Southern Harbour | None | 1 | mlt | MT25 | None | 11.0 | 11.0 | 11.0 | Q846593 | سنجليا | সেনগ্লিয়া | Senglea | Senglea | Senglea | Isla | Σενγκλέα | सेंग्लिया | Isla | Senglea | Senglea | イシーラ | 셍글레아 | Senglea | Isla | Senglea | Сенглеа | L-Isla | Senglea | Senglea | 森格萊阿 | 1159318051 | POLYGON ((14.51073 35.88896, 14.51537 35.89113... |
| 4590 | Admin-1 aggregation | 10 | MLT-5955 | 5955 | MT-06 | None | MT | 3 | Cospicua | Bormla | None | None | None | None | MT.SE.BO | None | None | Malta Xlokk | None | 0 | 0 | 0 | 10 | None | None | 0 | -99 | 20 | 8 | 1 | 8 | None | None | 24551391 | None | Malta | 35.88000 | 14.5207 | MLT | MLT | 5 | Malta | Malta | MLT | 8299705 | Bormla | 11534041 | Bormla | 1 | None | MT.06 | Southern Harbour | None | 1 | mlt | MT06 | None | 11.0 | 11.0 | 11.0 | Q757225 | كوسبيكو | কসপিকোয়া | Cospicua | Cospicua | Bormla | Bormla | Κοσπίκουα | कोस्पिकुआ | Bormla | Cospicua | Cospicua | ボルムラ | 보름라 | Cospicua | Bormla | Cospicua | Бормла | Bormla | Cospicua | Cospicua | 科斯皮夸 | 1159318057 | POLYGON ((14.52937 35.88156, 14.52700 35.87772... |
| 4591 | Admin-1 aggregation | 10 | MLT-5942 | 5942 | MT-41 | None | MT | 3 | Pietà | None | None | None | None | None | MT.CE.PI | None | None | Malta Majjistral | None | 0 | 0 | 0 | 10 | None | None | 0 | -99 | 20 | 5 | 1 | 8 | None | None | 24551394 | None | Malta | 35.88910 | 14.4927 | MLT | MLT | 5 | Malta | Malta | MLT | 8299740 | Tal-Pieta | 11535783 | Tal-Pieta | 1 | None | MT.41 | Northern Harbour | None | 1 | mlt | MT41 | None | 11.0 | 11.0 | 11.0 | Q744070 | None | None | Pietà | Pietà | Pietà | Pietà | Πιετά | None | Pietà | None | Pietà | ピータ | 피타 | Pietà | Pietà | Pietà | Пьета | Pietà | None | None | 佩塔 | 1159318027 | POLYGON ((14.49801 35.89251, 14.49616 35.88830... |
| 4592 | Admin-1 aggregation | 10 | MLT-5940 | 5940 | MT-34 | None | MT | 3 | Msida | None | None | None | None | None | MT.CE.MS | None | None | Malta Majjistral | None | 0 | 0 | 0 | 10 | None | None | 0 | -99 | 20 | 5 | 1 | 8 | None | None | 24551414 | None | Malta | 35.89490 | 14.4825 | MLT | MLT | 5 | Malta | Malta | MLT | 8299722 | L-Imsida | 11534629 | L-Imsida | 1 | None | MT.23 | Northern Harbour | None | 1 | mlt | MT23 | None | 11.0 | 11.0 | 11.0 | Q585187 | مسيدا | সিডা | Msida | Msida | Msida | Msida | Μσίντα | सीडा | Msida | Msida | Msida | イムシーダ | 므시다 | Msida | Msida | Msida | Мсида | Msida | Msida | Msida | 姆西達 | 1159318023 | POLYGON ((14.48663 35.88636, 14.48231 35.88979... |
| 4593 | Admin-1 aggregation | 10 | MLT-5951 | 5951 | MT-03 | None | MT | 3 | Birgu | None | None | None | None | None | MT.SE.BR | None | None | Malta Xlokk | None | 0 | 0 | 0 | 10 | None | None | 0 | -99 | 20 | 5 | 1 | 8 | None | None | 24551404 | None | Malta | 35.88710 | 14.5260 | MLT | MLT | 5 | Malta | Malta | MLT | 8299702 | Il-Birgu | 11534037 | Il-Birgu | 1 | None | MT.03 | Southern Harbour | None | 1 | mlt | MT03 | None | 11.0 | 11.0 | 11.0 | Q752346 | بيرجو | বিরগো | Vittoriosa | Birgu | Birgu | Birgu | Μπίργκου | बिर्गु | Birgu | Birgu | Vittoriosa | ビルグ | 비르구 | Birgu | Birgu | Birgu | Биргу | Birgu | Birgu | Birgu | 比尔古 | 1159318047 | POLYGON ((14.52126 35.88711, 14.51537 35.89113... |
4594 rows × 84 columns
Examine the column names more concisely.
df.columns
Index(['featurecla', 'scalerank', 'adm1_code', 'diss_me', 'iso_3166_2',
'wikipedia', 'iso_a2', 'adm0_sr', 'name', 'name_alt', 'name_local',
'type', 'type_en', 'code_local', 'code_hasc', 'note', 'hasc_maybe',
'region', 'region_cod', 'provnum_ne', 'gadm_level', 'check_me',
'datarank', 'abbrev', 'postal', 'area_sqkm', 'sameascity', 'labelrank',
'name_len', 'mapcolor9', 'mapcolor13', 'fips', 'fips_alt', 'woe_id',
'woe_label', 'woe_name', 'latitude', 'longitude', 'sov_a3', 'adm0_a3',
'adm0_label', 'admin', 'geonunit', 'gu_a3', 'gn_id', 'gn_name',
'gns_id', 'gns_name', 'gn_level', 'gn_region', 'gn_a1_code',
'region_sub', 'sub_code', 'gns_level', 'gns_lang', 'gns_adm1',
'gns_region', 'min_label', 'max_label', 'min_zoom', 'wikidataid',
'name_ar', 'name_bn', 'name_de', 'name_en', 'name_es', 'name_fr',
'name_el', 'name_hi', 'name_hu', 'name_id', 'name_it', 'name_ja',
'name_ko', 'name_nl', 'name_pl', 'name_pt', 'name_ru', 'name_sv',
'name_tr', 'name_vi', 'name_zh', 'ne_id', 'geometry'],
dtype='object')
Tip: Countries are in the DataFrame's
admin column. We can chain together Pandas` methods such as sort_values and unique to show all of the countries included in the shapefile.
df.admin.sort_values().unique()
array(['Afghanistan', 'Akrotiri Sovereign Base Area', 'Aland', 'Albania',
'Algeria', 'American Samoa', 'Andorra', 'Angola', 'Anguilla',
'Antarctica', 'Antigua and Barbuda', 'Argentina', 'Armenia',
'Aruba', 'Ashmore and Cartier Islands', 'Australia', 'Austria',
'Azerbaijan', 'Bahrain', 'Bangladesh', 'Barbados',
'Baykonur Cosmodrome', 'Belarus', 'Belgium', 'Belize', 'Benin',
'Bermuda', 'Bhutan', 'Bolivia', 'Bosnia and Herzegovina',
'Botswana', 'Brazil', 'British Indian Ocean Territory',
'British Virgin Islands', 'Brunei', 'Bulgaria', 'Burkina Faso',
'Burundi', 'Cambodia', 'Cameroon', 'Canada', 'Cape Verde',
'Caribbean Netherlands', 'Cayman Islands',
'Central African Republic', 'Chad', 'Chile', 'China',
'Clipperton Island', 'Colombia', 'Comoros', 'Cook Islands',
'Coral Sea Islands', 'Costa Rica', 'Croatia', 'Cuba', 'Curaçao',
'Cyprus', 'Czech Republic', 'Democratic Republic of the Congo',
'Denmark', 'Dhekelia Sovereign Base Area', 'Djibouti', 'Dominica',
'Dominican Republic', 'East Timor', 'Ecuador', 'Egypt',
'El Salvador', 'Equatorial Guinea', 'Eritrea', 'Estonia',
'Ethiopia', 'Falkland Islands', 'Faroe Islands',
'Federated States of Micronesia', 'Fiji', 'Finland', 'France',
'French Polynesia', 'French Southern and Antarctic Lands', 'Gabon',
'Gambia', 'Gaza Strip', 'Georgia', 'Germany', 'Ghana', 'Gibraltar',
'Greece', 'Greenland', 'Grenada', 'Guam', 'Guatemala', 'Guernsey',
'Guinea', 'Guinea Bissau', 'Guyana', 'Haiti',
'Heard Island and McDonald Islands', 'Honduras',
'Hong Kong S.A.R.', 'Hungary', 'Iceland', 'India',
'Indian Ocean Territories', 'Indonesia', 'Iran', 'Iraq', 'Ireland',
'Isle of Man', 'Israel', 'Italy', 'Ivory Coast', 'Jamaica',
'Japan', 'Jersey', 'Jordan', 'Kazakhstan', 'Kenya', 'Kiribati',
'Kosovo', 'Kuwait', 'Kyrgyzstan', 'Laos', 'Latvia', 'Lebanon',
'Lesotho', 'Liberia', 'Libya', 'Liechtenstein', 'Lithuania',
'Luxembourg', 'Macau S.A.R', 'Macedonia', 'Madagascar', 'Malawi',
'Malaysia', 'Maldives', 'Mali', 'Malta', 'Marshall Islands',
'Mauritania', 'Mauritius', 'Mexico', 'Moldova', 'Monaco',
'Mongolia', 'Montenegro', 'Montserrat', 'Morocco', 'Mozambique',
'Myanmar', 'Namibia', 'Nauru', 'Nepal', 'Netherlands',
'New Caledonia', 'New Zealand', 'Nicaragua', 'Niger', 'Nigeria',
'Niue', 'Norfolk Island', 'North Korea', 'Northern Cyprus',
'Northern Mariana Islands', 'Norway', 'Oman', 'Pakistan', 'Palau',
'Panama', 'Papua New Guinea', 'Paraguay', 'Peru', 'Philippines',
'Pitcairn Islands', 'Poland', 'Portugal', 'Puerto Rico', 'Qatar',
'Republic of Serbia', 'Republic of the Congo', 'Romania', 'Russia',
'Rwanda', 'S. Sudan', 'Saint Barthelemy', 'Saint Helena',
'Saint Kitts and Nevis', 'Saint Lucia', 'Saint Martin',
'Saint Pierre and Miquelon', 'Saint Vincent and the Grenadines',
'Samoa', 'San Marino', 'Sao Tome and Principe', 'Saudi Arabia',
'Senegal', 'Seychelles', 'Siachen Glacier', 'Sierra Leone',
'Singapore', 'Sint Maarten', 'Slovakia', 'Slovenia',
'Solomon Islands', 'Somalia', 'Somaliland', 'South Africa',
'South Georgia and the Islands', 'South Korea', 'Spain',
'Spratly Is.', 'Sri Lanka', 'Sudan', 'Suriname', 'Swaziland',
'Sweden', 'Switzerland', 'Syria', 'Taiwan', 'Tajikistan',
'Thailand', 'The Bahamas', 'Togo', 'Tonga', 'Trinidad and Tobago',
'Tunisia', 'Turkey', 'Turkmenistan', 'Turks and Caicos Islands',
'Tuvalu', 'US Naval Base Guantanamo Bay', 'Uganda', 'Ukraine',
'United Arab Emirates', 'United Kingdom',
'United Republic of Tanzania',
'United States Minor Outlying Islands',
'United States Virgin Islands', 'United States of America',
'Uruguay', 'Uzbekistan', 'Vanuatu', 'Vatican', 'Venezuela',
'Vietnam', 'Wallis and Futuna', 'West Bank', 'Western Sahara',
'Yemen', 'Zambia', 'Zimbabwe'], dtype=object)
Let’s display all rows that are in the USA.
df.loc[df.admin == 'United States of America']
| featurecla | scalerank | adm1_code | diss_me | iso_3166_2 | wikipedia | iso_a2 | adm0_sr | name | name_alt | name_local | type | type_en | code_local | code_hasc | note | hasc_maybe | region | region_cod | provnum_ne | gadm_level | check_me | datarank | abbrev | postal | area_sqkm | sameascity | labelrank | name_len | mapcolor9 | mapcolor13 | fips | fips_alt | woe_id | woe_label | woe_name | latitude | longitude | sov_a3 | adm0_a3 | adm0_label | admin | geonunit | gu_a3 | gn_id | gn_name | gns_id | gns_name | gn_level | gn_region | gn_a1_code | region_sub | sub_code | gns_level | gns_lang | gns_adm1 | gns_region | min_label | max_label | min_zoom | wikidataid | name_ar | name_bn | name_de | name_en | name_es | name_fr | name_el | name_hi | name_hu | name_id | name_it | name_ja | name_ko | name_nl | name_pl | name_pt | name_ru | name_sv | name_tr | name_vi | name_zh | ne_id | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1291 | Admin-1 scale rank | 2 | USA-3514 | 3514 | US-MN | http://en.wikipedia.org/wiki/Minnesota | US | 1 | Minnesota | MN|Minn. | None | State | State | US27 | US.MN | None | None | Midwest | None | 0 | 1 | 20 | 1 | Minn. | MN | 0 | -99 | 0 | 9 | 1 | 1 | US27 | None | 2347582 | Minnesota, US, United States | Minnesota | 46.0592 | -93.3640 | US1 | USA | 2 | United States of America | United States of America | USA | 5037779 | Minnesota | -1 | None | 1 | None | US.MN | West North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1527 | مينيسوتا | মিনেসোটা | Minnesota | Minnesota | Minnesota | Minnesota | Μινεσότα | मिनेसोटा | Minnesota | Minnesota | Minnesota | ミネソタ州 | 미네소타 주 | Minnesota | Minnesota | Minnesota | Миннесота | Minnesota | Minnesota | Minnesota | 明尼蘇達州 | 1159315297 | POLYGON ((-95.16057 49.36949, -95.10282 49.353... |
| 1293 | Admin-1 scale rank | 2 | USA-3519 | 3519 | US-WA | http://en.wikipedia.org/wiki/Washington_(state) | US | 6 | Washington | WA|Wash. | None | State | State | US53 | US.WA | None | None | West | None | 0 | 1 | 20 | 1 | Wash. | WA | 0 | -99 | 0 | 10 | 1 | 1 | US53 | None | 2347606 | Washington, US, United States | Washington | 47.4865 | -120.3610 | US1 | USA | 2 | United States of America | United States of America | USA | 5815135 | Washington | -1 | None | 1 | None | US.WA | Pacific | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1223 | واشنطن | ওয়াশিংটন | Washington | Washington | Washington | État de Washington | Ουάσινγκτον | वाशिंगटन | Washington | Washington | Washington | ワシントン州 | 워싱턴주 | Washington | Waszyngton | Washington | Вашингтон | Washington | Vaşington | Washington | 华盛顿州 | 1159309547 | MULTIPOLYGON (((-122.65326 48.99251, -122.4333... |
| 1295 | Admin-1 scale rank | 2 | USA-3518 | 3518 | US-ID | http://en.wikipedia.org/wiki/Idaho | US | 1 | Idaho | ID|Idaho | None | State | State | US16 | US.ID | None | None | West | None | 0 | 1 | 20 | 1 | Idaho | ID | 0 | -99 | 0 | 5 | 1 | 1 | US16 | None | 2347571 | Idaho, US, United States | Idaho | 43.7825 | -114.1330 | US1 | USA | 2 | United States of America | United States of America | USA | 5596512 | Idaho | -1 | None | 1 | None | US.ID | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1221 | أيداهو | আইডাহো | Idaho | Idaho | Idaho | Idaho | Αϊντάχο | आयडाहो | Idaho | Idaho | Idaho | アイダホ州 | 아이다호주 | Idaho | Idaho | Idaho | Айдахо | Idaho | Idaho | Idaho | 爱达荷州 | 1159315339 | POLYGON ((-117.03815 48.99251, -116.93818 48.9... |
| 1296 | Admin-1 scale rank | 2 | USA-3515 | 3515 | US-MT | http://en.wikipedia.org/wiki/Montana | US | 1 | Montana | MT|Mont. | None | State | State | US30 | US.MT | None | None | West | None | 0 | 1 | 20 | 1 | Mont. | MT | 0 | -99 | 0 | 7 | 1 | 1 | US30 | None | 2347585 | Montana, US, United States | Montana | 46.9965 | -110.0440 | US1 | USA | 2 | United States of America | United States of America | USA | 5667009 | Montana | -1 | None | 1 | None | US.MT | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1212 | مونتانا | মন্টানা | Montana | Montana | Montana | Montana | Μοντάνα | मोन्टाना | Montana | Montana | Montana | モンタナ州 | 몬태나주 | Montana | Montana | Montana | Монтана | Montana | Montana | Montana | 蒙大拿州 | 1159315333 | POLYGON ((-116.04816 48.99251, -115.83913 48.9... |
| 1299 | Admin-1 scale rank | 2 | USA-3516 | 3516 | US-ND | http://en.wikipedia.org/wiki/North_Dakota | US | 1 | North Dakota | ND|N.D. | None | State | State | US38 | US.ND | None | None | Midwest | None | 0 | 1 | 20 | 1 | N.D. | ND | 0 | -99 | 0 | 12 | 1 | 1 | US38 | None | 2347593 | North Dakota, US, United States | North Dakota | 47.4675 | -100.3020 | US1 | USA | 2 | United States of America | United States of America | USA | 5690763 | North Dakota | -1 | None | 1 | None | US.ND | West North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1207 | داكوتا الشمالية | নর্থ ডাকোটা | North Dakota | North Dakota | Dakota del Norte | Dakota du Nord | Βόρεια Ντακότα | उत्तर डेकोटा | Észak-Dakota | Dakota Utara | Dakota del Nord | ノースダコタ州 | 노스다코타주 | North Dakota | Dakota Północna | Dakota do Norte | Северная Дакота | North Dakota | Kuzey Dakota | Bắc Dakota | 北达科他州 | 1159315337 | POLYGON ((-104.04757 48.99262, -103.96949 48.9... |
| 1301 | Admin-1 scale rank | 2 | USA-3562 | 3562 | US-MI | http://en.wikipedia.org/wiki/Michigan | US | 1 | Michigan | MI|Mich. | None | State | State | US26 | US.MI | None | None | Midwest | None | 0 | 1 | 20 | 1 | Mich. | MI | 0 | -99 | 0 | 8 | 1 | 1 | US26 | None | 2347581 | Michigan, US, United States | Michigan | 43.4343 | -84.9479 | US1 | USA | 2 | United States of America | United States of America | USA | 5001836 | Michigan | -1 | None | 1 | None | US.MI | East North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1166 | ميشيغان | মিশিগান | Michigan | Michigan | Míchigan | Michigan | Μίσιγκαν | मिशिगन | Michigan | Michigan | Michigan | ミシガン州 | 미시간 주 | Michigan | Michigan | Michigan | Мичиган | Michigan | Michigan | Michigan | 密歇根州 | 1159314665 | POLYGON ((-88.37646 48.30511, -88.34726 48.298... |
| 1302 | Admin-1 scale rank | 2 | USA-3561 | 3561 | US-ME | http://en.wikipedia.org/wiki/Maine | US | 6 | Maine | ME|Maine | None | State | State | US23 | US.ME | None | None | Northeast | None | 0 | 1 | 20 | 1 | Maine | ME | 0 | -99 | 0 | 5 | 1 | 1 | US23 | None | 2347578 | Maine, US, United States | Maine | 45.1480 | -69.1973 | US1 | USA | 2 | United States of America | United States of America | USA | 4971068 | Maine | -1 | None | 1 | None | US.ME | New England | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q724 | مين | মেইন | Maine | Maine | Maine | Maine | Μέιν | मेन | Maine | Maine | Maine | メイン州 | 메인 주 | Maine | Maine | Maine | Мэн | Maine | Maine | Maine | 缅因州 | 1159308501 | MULTIPOLYGON (((-69.22197 47.45969, -69.06966 ... |
| 1305 | Admin-1 scale rank | 2 | USA-3550 | 3550 | US-OH | http://en.wikipedia.org/wiki/Ohio | US | 1 | Ohio | OH|Ohio | None | State | State | US39 | US.OH | None | None | Midwest | None | 0 | 1 | 20 | 1 | Ohio | OH | 0 | -99 | 0 | 4 | 1 | 1 | US39 | None | 2347594 | Ohio, US, United States | Ohio | 40.0924 | -82.6719 | US1 | USA | 2 | United States of America | United States of America | USA | 5165418 | Ohio | -1 | None | 1 | None | US.OH | East North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1397 | أوهايو | ওহাইও | Ohio | Ohio | Ohio | Ohio | Οχάιο | ओहायो | Ohio | Ohio | Ohio | オハイオ州 | 오하이오 주 | Ohio | Ohio | Ohio | Огайо | Ohio | Ohio | Ohio | 俄亥俄州 | 1159315315 | POLYGON ((-83.13086 41.93803, -83.12345 41.920... |
| 1306 | Admin-1 scale rank | 2 | USA-3538 | 3538 | US-NH | http://en.wikipedia.org/wiki/New_Hampshire | US | 1 | New Hampshire | NH|N.H. | None | State | State | US33 | US.NH | None | None | Northeast | None | 0 | 1 | 20 | 1 | N.H. | NH | 0 | -99 | 0 | 13 | 1 | 1 | US33 | None | 2347588 | New Hampshire, US, United States | New Hampshire | 43.5993 | -71.6301 | US1 | USA | 2 | United States of America | United States of America | USA | 5090174 | New Hampshire | -1 | None | 1 | None | US.NH | New England | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q759 | نيوهامشير | নিউ হ্যাম্প্শায়ার | New Hampshire | New Hampshire | Nuevo Hampshire | New Hampshire | Νιου Χάμσαϊρ | नया हेम्पशायर | New Hampshire | New Hampshire | New Hampshire | ニューハンプシャー州 | 뉴햄프셔 주 | New Hampshire | New Hampshire | Nova Hampshire | Нью-Гэмпшир | New Hampshire | New Hampshire | New Hampshire | 新罕布什尔州 | 1159315303 | POLYGON ((-71.16033 45.24577, -71.14173 45.252... |
| 1307 | Admin-1 scale rank | 2 | USA-3559 | 3559 | US-NY | http://en.wikipedia.org/wiki/New_York | US | 3 | New York | NY|N.Y. | None | State | State | US36 | US.NY | None | None | Northeast | None | 0 | 1 | 20 | 1 | N.Y. | NY | 0 | -99 | 0 | 8 | 1 | 1 | US36 | None | 2347591 | New York, US, United States | New York | 43.1988 | -75.3242 | US1 | USA | 2 | United States of America | United States of America | USA | 5128638 | New York | -1 | None | 1 | None | US.NY | Middle Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1384 | نيويورك | নিউ ইয়র্ক | New York | New York | Nueva York | État de New York | Νέα Υόρκη | न्यूयॉर्क | New York | New York | New York | ニューヨーク州 | 뉴욕 주 | New York | Nowy Jork | Nova Iorque | Нью-Йорк | New York | New York | New York | 纽约州 | 1159312155 | MULTIPOLYGON (((-74.69588 44.99803, -74.59611 ... |
| 1308 | Admin-1 scale rank | 2 | USA-3540 | 3540 | US-VT | http://en.wikipedia.org/wiki/Vermont | US | 1 | Vermont | VT | None | State | State | US50 | US.VT | None | None | Northeast | None | 0 | 1 | 20 | 1 | Vt. | VT | 0 | -99 | 0 | 7 | 1 | 1 | US50 | None | 2347604 | Vermont, US, United States | Vermont | 44.0886 | -72.7317 | US1 | USA | 2 | United States of America | United States of America | USA | 5242283 | Vermont | -1 | None | 1 | None | US.VT | New England | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q16551 | فيرمونت | ভার্মন্ট | Vermont | Vermont | Vermont | Vermont | Βερμόντ | वर्मांट | Vermont | Vermont | Vermont | バーモント州 | 버몬트 주 | Vermont | Vermont | Vermont | Вермонт | Vermont | Vermont | Vermont | 佛蒙特州 | 1159315305 | POLYGON ((-73.35134 45.00463, -73.29942 45.004... |
| 1309 | Admin-1 scale rank | 2 | USA-3560 | 3560 | US-PA | http://en.wikipedia.org/wiki/Pennsylvania | US | 1 | Pennsylvania | Commonwealth of Pennsylvania|PA | None | State | State | US42 | US.PA | None | None | Northeast | None | 0 | 1 | 20 | 1 | Pa. | PA | 0 | -99 | 0 | 12 | 1 | 1 | US42 | None | 2347597 | Pennsylvania, US, United States | Pennsylvania | 40.8601 | -77.6094 | US1 | USA | 2 | United States of America | United States of America | USA | 6254927 | Pennsylvania | -1 | None | 1 | None | US.PA | Middle Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1400 | بنسيلفانيا | পেন্সিল্ভেনিয়া | Pennsylvania | Pennsylvania | Pensilvania | Pennsylvanie | Πενσιλβανία | पेन्सिलवेनिया | Pennsylvania | Pennsylvania | Pennsylvania | ペンシルベニア州 | 펜실베이니아주 | Pennsylvania | Pensylwania | Pensilvânia | Пенсильвания | Pennsylvania | Pensilvanya | Pennsylvania | 宾夕法尼亚州 | 1159315331 | POLYGON ((-80.52023 42.32378, -80.50415 42.326... |
| 1310 | Admin-1 scale rank | 2 | USA-3520 | 3520 | US-AZ | http://en.wikipedia.org/wiki/Arizona | US | 1 | Arizona | AZ|Ariz. | None | State | State | US04 | US.AZ | None | None | West | None | 0 | 1 | 20 | 1 | Ariz. | AZ | 0 | -99 | 0 | 7 | 1 | 1 | US04 | None | 2347561 | Arizona, US, United States | Arizona | 34.3046 | -111.9350 | US1 | USA | 2 | United States of America | United States of America | USA | 5551752 | Arizona | -1 | None | 1 | None | US.AZ | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q816 | أريزونا | অ্যারিজোনা | Arizona | Arizona | Arizona | Arizona | Αριζόνα | एरीजोना | Arizona | Arizona | Arizona | アリゾナ州 | 애리조나주 | Arizona | Arizona | Arizona | Аризона | Arizona | Arizona | Arizona | 亞利桑那州 | 1159315341 | POLYGON ((-111.00627 31.32718, -111.06712 31.3... |
| 1313 | Admin-1 scale rank | 2 | USA-3521 | 3521 | US-CA | http://en.wikipedia.org/wiki/California | US | 8 | California | CA|Calif. | None | State | State | US06 | US.CA | None | None | West | None | 0 | 1 | 20 | 1 | Calif. | CA | 0 | -99 | 0 | 10 | 1 | 1 | US06 | None | 2347563 | California, US, United States | California | 36.7496 | -119.5910 | US1 | USA | 2 | United States of America | United States of America | USA | 5332921 | California | -1 | None | 1 | None | US.CA | Pacific | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q99 | كاليفورنيا | ক্যালিফোর্নিয়া | Kalifornien | California | California | Californie | Καλιφόρνια | कैलिफ़ोर्निया | Kalifornia | California | California | カリフォルニア州 | 캘리포니아주 | Californië | Kalifornia | Califórnia | Калифорния | Kalifornien | Kaliforniya | California | 加利福尼亚州 | 1159308415 | MULTIPOLYGON (((-114.72428 32.71284, -114.7645... |
| 1314 | Admin-1 scale rank | 2 | USA-3524 | 3524 | US-NM | http://en.wikipedia.org/wiki/New_Mexico | US | 1 | New Mexico | NM|N.M. | None | State | State | US35 | US.NM | None | None | West | None | 0 | 1 | 20 | 1 | N.M. | NM | 0 | -99 | 0 | 10 | 1 | 1 | US35 | None | 2347590 | New Mexico, US, United States | New Mexico | 34.5002 | -106.0240 | US1 | USA | 2 | United States of America | United States of America | USA | 5481136 | New Mexico | -1 | None | 1 | None | US.NM | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1522 | نيومكسيكو | নিউ মেক্সিকো | New Mexico | New Mexico | Nuevo México | Nouveau-Mexique | Νέο Μεξικό | नया मेक्सिको | Új-Mexikó | New Mexico | Nuovo Messico | ニューメキシコ州 | 뉴멕시코주 | New Mexico | Nowy Meksyk | Novo México | Нью-Мексико | New Mexico | New Mexico | New Mexico | 新墨西哥州 | 1159315347 | POLYGON ((-108.13750 31.77754, -108.16334 31.7... |
| 1316 | Admin-1 scale rank | 2 | USA-3536 | 3536 | US-TX | http://en.wikipedia.org/wiki/Texas | US | 4 | Texas | TX|Tex. | None | State | State | US48 | US.TX | None | None | South | None | 0 | 1 | 20 | 1 | Tex. | TX | 0 | -99 | 0 | 5 | 1 | 1 | US48 | None | 2347602 | Texas, US, United States | Texas | 31.1310 | -98.7607 | US1 | USA | 2 | United States of America | United States of America | USA | 4736286 | Texas | -1 | None | 1 | None | US.TX | West South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1439 | تكساس | টেক্সাস | Texas | Texas | Texas | Texas | Τέξας | टॅक्सस | Texas | Texas | Texas | テキサス州 | 텍사스 주 | Texas | Teksas | Texas | Техас | Texas | Teksas | Texas | 得克萨斯州 | 1159315211 | MULTIPOLYGON (((-106.47313 31.75507, -106.4928... |
| 1664 | Admin-1 scale rank | 2 | USA-3563 | 3563 | US-AK | http://en.wikipedia.org/wiki/Alaska | US | 6 | Alaska | AK|Alaska | None | State | State | US02 | US.AK | None | None | West | None | 0 | 1 | 20 | 1 | Alaska | AK | 0 | -99 | 0 | 6 | 1 | 1 | US02 | None | 2347560 | Alaska, US, United States | Alaska | 65.3609 | -151.6040 | US1 | USA | 2 | United States of America | United States of America | USA | 5879092 | Alaska | -1 | None | 1 | None | US.AK | Pacific | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q797 | ألاسكا | আলাস্কা | Alaska | Alaska | Alaska | Alaska | Αλάσκα | अलास्का | Alaszka | Alaska | Alaska | アラスカ州 | 알래스카주 | Alaska | Alaska | Alasca | Аляска | Alaska | Alaska | Alaska | 阿拉斯加州 | 1159308731 | MULTIPOLYGON (((-141.00556 69.65095, -141.0054... |
| 2072 | Admin-1 scale rank | 2 | USA-3535 | 3535 | US-LA | http://en.wikipedia.org/wiki/Louisiana | US | 5 | Louisiana | LA | None | State | State | US22 | US.LA | None | None | South | None | 0 | 1 | 20 | 1 | La. | LA | 0 | -99 | 0 | 9 | 1 | 1 | US22 | None | 2347577 | Louisiana, US, United States | Louisiana | 30.5274 | -91.9991 | US1 | USA | 2 | United States of America | United States of America | USA | 4331987 | Louisiana | -1 | None | 1 | None | US.LA | West South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1588 | لويزيانا | লুইজিয়ানা | Louisiana | Louisiana | Luisiana | Louisiane | Λουιζιάνα | लुईज़ियाना | Louisiana | Louisiana | Louisiana | ルイジアナ州 | 루이지애나 주 | Louisiana | Luizjana | Luisiana | Луизиана | Louisiana | Louisiana | Louisiana | 路易斯安那州 | 1159315221 | MULTIPOLYGON (((-89.52599 30.19278, -89.53637 ... |
| 2073 | Admin-1 scale rank | 2 | USA-3544 | 3544 | US-MS | http://en.wikipedia.org/wiki/Mississippi | US | 5 | Mississippi | MS|Miss. | None | State | State | US28 | US.MS | None | None | South | None | 0 | 1 | 20 | 1 | Miss. | MS | 0 | -99 | 0 | 11 | 1 | 1 | US28 | None | 2347583 | Mississippi, US, United States | Mississippi | 32.8657 | -89.7189 | US1 | USA | 2 | United States of America | United States of America | USA | 4436296 | Mississippi | -1 | None | 1 | None | US.MS | East South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1494 | مسيسيبي | মিসিসিপি | Mississippi | Mississippi | Misisipi | Mississippi | Μισισίπι | मिसिसिप्पी | Mississippi | Mississippi | Mississippi | ミシシッピ州 | 미시시피주 | Mississippi | Missisipi | Mississippi | Миссисипи | Mississippi | Mississippi | Mississippi | 密西西比州 | 1159315231 | MULTIPOLYGON (((-88.40315 30.38760, -88.40734 ... |
| 2074 | Admin-1 scale rank | 2 | USA-3541 | 3541 | US-AL | http://en.wikipedia.org/wiki/Alabama | US | 5 | Alabama | AL|Ala. | None | State | State | US01 | US.AL | None | None | South | None | 0 | 1 | 20 | 1 | Ala. | AL | 0 | -99 | 0 | 7 | 1 | 1 | US01 | None | 2347559 | Alabama, US, United States | Alabama | 32.8551 | -86.7184 | US1 | USA | 2 | United States of America | United States of America | USA | 4829764 | Alabama | -1 | None | 1 | None | US.AL | East South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q173 | ألاباما | অ্যালাবামা | Alabama | Alabama | Alabama | Alabama | Αλαμπάμα | अलाबामा | Alabama | Alabama | Alabama | アラバマ州 | 앨라배마주 | Alabama | Alabama | Alabama | Алабама | Alabama | Alabama | Alabama | 亚拉巴马州 | 1159315233 | MULTIPOLYGON (((-87.41963 30.47962, -87.42683 ... |
| 2075 | Admin-1 scale rank | 2 | USA-3542 | 3542 | US-FL | http://en.wikipedia.org/wiki/Florida | US | 5 | Florida | FL|Fla. | None | State | State | US12 | US.FL | None | None | South | None | 0 | 1 | 20 | 8 | Fla. | FL | 0 | -99 | 0 | 7 | 1 | 1 | US12 | None | 2347568 | Florida, US, United States | Florida | 28.1568 | -81.6228 | US1 | USA | 2 | United States of America | United States of America | USA | 4155751 | Florida | -1 | None | 1 | None | US.FL | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q812 | فلوريدا | ফ্লোরিডা | Florida | Florida | Florida | Floride | Φλόριντα | फ़्लोरिडा | Florida | Florida | Florida | フロリダ州 | 플로리다주 | Florida | Floryda | Flórida | Флорида | Florida | Florida | Florida | 佛罗里达州 | 1159315207 | MULTIPOLYGON (((-81.50003 30.71218, -81.49926 ... |
| 2076 | Admin-1 scale rank | 2 | USA-3543 | 3543 | US-GA | http://en.wikipedia.org/wiki/Georgia_(U.S._state) | US | 6 | Georgia | GA|Ga. | None | State | State | US13 | US.GA | None | None | South | None | 0 | 1 | 20 | 1 | Ga. | GA | 0 | -99 | 0 | 7 | 1 | 1 | US13 | None | 2347569 | Georgia, US, United States | Georgia | 32.8547 | -83.4078 | US1 | USA | 2 | United States of America | United States of America | USA | 4197000 | Georgia | -1 | None | 1 | None | US.GA | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1428 | جورجيا | জর্জিয়া | Georgia | Georgia | Georgia | Géorgie | Τζόρτζια | जॉर्जिया | Georgia | Georgia | Georgia | ジョージア州 | 조지아주 | Georgia | Georgia | Geórgia | Джорджия | Georgia | Georgia | Georgia | 喬治亞州 | 1159311857 | MULTIPOLYGON (((-80.89029 32.03266, -80.88939 ... |
| 2077 | Admin-1 scale rank | 2 | USA-3545 | 3545 | US-SC | http://en.wikipedia.org/wiki/South_Carolina | US | 1 | South Carolina | SC|S.C. | None | State | State | US45 | US.SC | None | None | South | None | 0 | 1 | 20 | 1 | S.C. | SC | 0 | -99 | 0 | 14 | 1 | 1 | US45 | None | 2347599 | South Carolina, US, United States | South Carolina | 33.8578 | -80.6471 | US1 | USA | 2 | United States of America | United States of America | USA | 4597040 | South Carolina | -1 | None | 1 | None | US.SC | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1456 | كارولاينا الجنوبية | সাউথ ক্যারোলাইনা | South Carolina | South Carolina | Carolina del Sur | Caroline du Sud | Νότια Καρολίνα | दक्षिणी केरोलाइना | Dél-Karolina | Carolina Selatan | Carolina del Sud | サウスカロライナ州 | 사우스캐롤라이나주 | South Carolina | Karolina Południowa | Carolina do Sul | Южная Каролина | South Carolina | Güney Karolina | Nam Carolina | 南卡罗来纳州 | 1159315307 | MULTIPOLYGON (((-78.57316 33.88260, -78.60001 ... |
| 2078 | Admin-1 scale rank | 2 | USA-3549 | 3549 | US-NC | http://en.wikipedia.org/wiki/North_Carolina | US | 5 | North Carolina | NC|N.C. | None | State | State | US37 | US.NC | None | None | South | None | 0 | 1 | 20 | 1 | N.C. | NC | 0 | -99 | 0 | 14 | 1 | 1 | US37 | None | 2347592 | North Carolina, US, United States | North Carolina | 35.6152 | -78.8660 | US1 | USA | 2 | United States of America | United States of America | USA | 4482348 | North Carolina | -1 | None | 1 | None | US.NC | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1454 | كارولاينا الشمالية | নর্থ ক্যারোলাইনা | North Carolina | North Carolina | Carolina del Norte | Caroline du Nord | Βόρεια Καρολίνα | उत्तरी केरोलिना | Észak-Karolina | Carolina Utara | Carolina del Nord | ノースカロライナ州 | 노스캐롤라이나주 | North Carolina | Karolina Północna | Carolina do Norte | Северная Каролина | North Carolina | Kuzey Karolina | Bắc Carolina | 北卡罗来纳州 | 1159314887 | MULTIPOLYGON (((-76.03173 36.55028, -76.03091 ... |
| 2079 | Admin-1 scale rank | 2 | USA-3552 | 3552 | US-VA | http://en.wikipedia.org/wiki/Virginia | US | 6 | Virginia | VA | None | State | State | US51 | US.VA | None | None | South | None | 0 | 1 | 20 | 1 | Va. | VA | 0 | -99 | 0 | 8 | 1 | 1 | US51 | None | 2347605 | Virginia, US, United States | Virginia | 37.7403 | -78.2431 | US1 | USA | 2 | United States of America | United States of America | USA | 6254928 | Virginia | -1 | None | 1 | None | US.VA | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1370 | فرجينيا | ভার্জিনিয়া | Virginia | Virginia | Virginia | Virginie | Βιρτζίνια | वर्जीनिया | Virginia | Virginia | Virginia | バージニア州 | 버지니아 주 | Virginia | Wirginia | Virgínia | Виргиния | Virginia | Virjinya | Virginia | 弗吉尼亚州 | 1159315259 | MULTIPOLYGON (((-76.01325 36.55016, -76.04459 ... |
| 2080 | Admin-1 scale rank | 2 | USA-3556 | 3556 | US-DC | http://en.wikipedia.org/wiki/Washington,_D.C. | US | 1 | District of Columbia | DC|D.C. | None | Federal District | Federal District | US11 | US.DC | None | None | South | None | 0 | 1 | 20 | 1 | D.C. | DC | 0 | 9 | 9 | 20 | 1 | 1 | US11 | None | 2347567 | District of Columbia, US, United States | District of Columbia | 38.8922 | -77.0113 | US1 | USA | 2 | United States of America | United States of America | USA | 4138106 | District of Columbia | -1 | None | 1 | None | US.DC | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q61 | واشنطن العاصمة | ওয়াশিংটন | Washington | Washington | Washington D. C. | Washington | Ουάσινγκτον | वॉशिंगटन डी॰ सी॰ | Washington | Washington | Washington | ワシントンD.C. | 워싱턴 D.C. | Washington D.C. | Waszyngton | Washington | Вашингтон | Washington | Washington | Washington | 華盛頓哥倫比亞特區 | 1159315327 | POLYGON ((-77.02293 38.80277, -77.02739 38.819... |
| 2081 | Admin-1 scale rank | 2 | USA-3557 | 3557 | US-MD | http://en.wikipedia.org/wiki/Maryland | US | 1 | Maryland | MD | None | State | State | US24 | US.MD | None | None | South | None | 0 | 1 | 20 | 1 | Md. | MD | 0 | -99 | 0 | 8 | 1 | 1 | US24 | None | 2347579 | Maryland, US, United States | Maryland | 39.3874 | -77.0454 | US1 | USA | 2 | United States of America | United States of America | USA | 4361885 | Maryland | -1 | None | 1 | None | US.MD | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1391 | ماريلند | মেরিল্যান্ড | Maryland | Maryland | Maryland | Maryland | Μέριλαντ | मैरीलैंड | Maryland | Maryland | Maryland | メリーランド州 | 메릴랜드 주 | Maryland | Maryland | Maryland | Мэриленд | Maryland | Maryland | Maryland | 马里兰州 | 1159315329 | MULTIPOLYGON (((-75.64786 37.96572, -75.65368 ... |
| 2082 | Admin-1 scale rank | 2 | USA-3555 | 3555 | US-DE | http://en.wikipedia.org/wiki/Delaware | US | 1 | Delaware | DE|Del. | None | State | State | US10 | US.DE | None | None | South | None | 0 | 1 | 20 | 1 | Del. | DE | 0 | -99 | 0 | 8 | 1 | 1 | US10 | None | 2347566 | Delaware, US, United States | Delaware | 38.8657 | -75.4112 | US1 | USA | 2 | United States of America | United States of America | USA | 4142224 | Delaware | -1 | None | 1 | None | US.DE | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1393 | ديلاوير | ডেলাওয়্যার | Delaware | Delaware | Delaware | Delaware | Ντέλαγουερ | डेलावेयर | Delaware | Delaware | Delaware | デラウェア州 | 델라웨어 주 | Delaware | Delaware | Delaware | Делавэр | Delaware | Delaware | Delaware | 特拉华州 | 1159315325 | POLYGON ((-75.05773 38.45344, -75.05809 38.453... |
| 2083 | Admin-1 scale rank | 2 | USA-3558 | 3558 | US-NJ | http://en.wikipedia.org/wiki/New_Jersey | US | 5 | New Jersey | NJ|N.J. | None | State | State | US34 | US.NJ | None | None | Northeast | None | 0 | 1 | 20 | 1 | N.J. | NJ | 0 | -99 | 0 | 10 | 1 | 1 | US34 | None | 2347589 | New Jersey, US, United States | New Jersey | 40.0449 | -74.4653 | US1 | USA | 2 | United States of America | United States of America | USA | 5101760 | New Jersey | -1 | None | 1 | None | US.NJ | Middle Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1408 | نيوجيرسي | নিউ জার্সি | New Jersey | New Jersey | Nueva Jersey | New Jersey | Νιου Τζέρσεϊ | न्यू जर्सी | New Jersey | New Jersey | New Jersey | ニュージャージー州 | 뉴저지 주 | New Jersey | New Jersey | Nova Jérsia | Нью-Джерси | New Jersey | New Jersey | New Jersey | 新泽西州 | 1159315267 | MULTIPOLYGON (((-73.90713 40.99079, -73.90770 ... |
| 2084 | Admin-1 scale rank | 2 | USA-3537 | 3537 | US-CT | http://en.wikipedia.org/wiki/Connecticut | US | 1 | Connecticut | CT|Conn. | None | State | State | US09 | US.CT | None | None | Northeast | None | 0 | 1 | 20 | 1 | Conn. | CT | 0 | -99 | 0 | 11 | 1 | 1 | US09 | None | 2347565 | Connecticut, US, United States | Connecticut | 41.6486 | -72.7594 | US1 | USA | 2 | United States of America | United States of America | USA | 4831725 | Connecticut | -1 | None | 1 | None | US.CT | New England | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q779 | كونيتيكت | কানেটিকাট | Connecticut | Connecticut | Connecticut | Connecticut | Κονέκτικατ | कनेक्टिकट | Connecticut | Connecticut | Connecticut | コネチカット州 | 코네티컷 주 | Connecticut | Connecticut | Connecticut | Коннектикут | Connecticut | Connecticut | Connecticut | 康乃狄克州 | 1159315301 | POLYGON ((-71.84717 41.31082, -71.87147 41.302... |
| 2085 | Admin-1 scale rank | 2 | USA-3539 | 3539 | US-RI | http://en.wikipedia.org/wiki/Rhode_Island | US | 6 | Rhode Island | State of Rhode Island and Providence Plantatio... | None | State | State | US44 | US.RI | None | None | Northeast | None | 0 | 1 | 20 | 1 | R.I. | RI | 0 | -99 | 0 | 12 | 1 | 1 | US44 | None | 2347598 | Rhode Island, US, United States | Rhode Island | 41.6242 | -71.5082 | US1 | USA | 2 | United States of America | United States of America | USA | 5224323 | Rhode Island | -1 | None | 1 | None | US.RI | New England | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1387 | رود آيلاند | রোড আইল্যান্ড | Rhode Island | Rhode Island | Rhode Island | Rhode Island | Ρόουντ Άιλαντ | रोड आइलैंड | Rhode Island | Rhode Island | Rhode Island | ロードアイランド州 | 로드아일랜드주 | Rhode Island | Rhode Island | Rhode Island | Род-Айленд | Rhode Island | Rhode Island | Rhode Island | 羅德島州 | 1159312213 | MULTIPOLYGON (((-71.23686 41.70956, -71.23839 ... |
| 2086 | Admin-1 scale rank | 2 | USA-3513 | 3513 | US-MA | http://en.wikipedia.org/wiki/Massachusetts | US | 6 | Massachusetts | Commonwealth of Massachusetts|MA|Mass. | None | State | State | US25 | US.MA | None | None | Northeast | None | 0 | 1 | 20 | 1 | Mass. | MA | 0 | -99 | 0 | 13 | 1 | 1 | US25 | None | 2347580 | Massachusetts, US, United States | Massachusetts | 42.3739 | -71.9993 | US1 | USA | 2 | United States of America | United States of America | USA | 6254926 | Massachusetts | -1 | None | 1 | None | US.MA | New England | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q771 | ماساتشوستس | ম্যাসাচুসেট্স | Massachusetts | Massachusetts | Massachusetts | Massachusetts | Μασαχουσέτη | मैसाचूसिट्स | Massachusetts | Massachusetts | Massachusetts | マサチューセッツ州 | 매사추세츠 주 | Massachusetts | Massachusetts | Massachusetts | Массачусетс | Massachusetts | Massachusetts | Massachusetts | 麻薩諸塞州 | 1159312157 | MULTIPOLYGON (((-71.19396 41.67686, -71.19026 ... |
| 2169 | Admin-1 scale rank | 2 | USA-3525 | 3525 | US-OR | http://en.wikipedia.org/wiki/Oregon | US | 6 | Oregon | OR|Ore. | None | State | State | US41 | US.OR | None | None | West | None | 0 | 1 | 20 | 1 | Ore. | OR | 0 | -99 | 0 | 6 | 1 | 1 | US41 | None | 2347596 | Oregon, US, United States | Oregon | 43.8333 | -120.3860 | US1 | USA | 2 | United States of America | United States of America | USA | 5744337 | Oregon | -1 | None | 1 | None | US.OR | Pacific | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q824 | أوريغون | অরেগন | Oregon | Oregon | Oregón | Oregon | Όρεγκον | औरिगन | Oregon | Oregon | Oregon | オレゴン州 | 오리건 주 | Oregon | Oregon | Oregon | Орегон | Oregon | Oregon | Oregon | 俄勒冈州 | 1159309549 | MULTIPOLYGON (((-124.49245 42.92984, -124.4636... |
| 2912 | Admin-1 scale rank | 2 | USA-3517 | 3517 | US-HI | http://en.wikipedia.org/wiki/Hawaii | US | 8 | Hawaii | HI|Hawaii | None | State | State | US15 | US.HI | None | None | West | None | 0 | 1 | 20 | 1 | Hawaii | HI | 0 | -99 | 0 | 6 | 1 | 1 | US15 | None | 2347570 | Hawaii, US, United States | Hawaii | 21.4919 | -157.9990 | US1 | USA | 2 | United States of America | United States of America | USA | 5855797 | Hawaii | -1 | None | 1 | None | US.HI | Pacific | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q782 | هاواي | হাওয়াই | Hawaii | Hawaii | Hawái | Hawaï | Χαβάη | हवाई | Hawaii | Hawaii | Hawaii | ハワイ州 | 하와이주 | Hawaï | Hawaje | Havaí | Гавайи | Hawaii | Hawaii | Hawaii | 夏威夷州 | 1159308409 | MULTIPOLYGON (((-154.89962 19.56702, -154.8466... |
| 3274 | Admin-1 scale rank | 2 | USA-3526 | 3526 | US-UT | http://en.wikipedia.org/wiki/Utah | US | 1 | Utah | UT | None | State | State | US49 | US.UT | None | None | West | None | 0 | 1 | 20 | 1 | Utah | UT | 0 | -99 | 0 | 4 | 1 | 1 | US49 | None | 2347603 | Utah, US, United States | Utah | 39.5007 | -111.5440 | US1 | USA | 2 | United States of America | United States of America | USA | 5549030 | Utah | -1 | None | 1 | None | US.UT | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q829 | يوتا | ইউটা | Utah | Utah | Utah | Utah | Γιούτα | यूटाह | Utah | Utah | Utah | ユタ州 | 유타 주 | Utah | Utah | Utah | Юта | Utah | Utah | Utah | 犹他州 | 1159315349 | POLYGON ((-111.05024 41.99983, -111.05024 41.9... |
| 3275 | Admin-1 scale rank | 2 | USA-3527 | 3527 | US-WY | http://en.wikipedia.org/wiki/Wyoming | US | 1 | Wyoming | WY|Wyo. | None | State | State | US56 | US.WY | None | None | West | None | 0 | 1 | 20 | 1 | Wyo. | WY | 0 | -99 | 0 | 7 | 1 | 1 | US56 | None | 2347609 | Wyoming, US, United States | Wyoming | 42.9999 | -107.5520 | US1 | USA | 2 | United States of America | United States of America | USA | 5843591 | Wyoming | -1 | None | 1 | None | US.WY | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1214 | وايومنغ | ওয়াইয়োমিং | Wyoming | Wyoming | Wyoming | Wyoming | Ουαϊόμινγκ | वायोमिंग | Wyoming | Wyoming | Wyoming | ワイオミング州 | 와이오밍주 | Wyoming | Wyoming | Wyoming | Вайоминг | Wyoming | Wyoming | Wyoming | 怀俄明州 | 1159315351 | POLYGON ((-111.04999 41.00005, -111.05002 41.0... |
| 3276 | Admin-1 scale rank | 2 | USA-3523 | 3523 | US-NV | http://en.wikipedia.org/wiki/Nevada | US | 1 | Nevada | NV|Nev. | None | State | State | US32 | US.NV | None | None | West | None | 0 | 1 | 20 | 1 | Nev. | NV | 0 | -99 | 0 | 6 | 1 | 1 | US32 | None | 2347587 | Nevada, US, United States | Nevada | 39.4299 | -117.0200 | US1 | USA | 2 | United States of America | United States of America | USA | 5509151 | Nevada | -1 | None | 1 | None | US.NV | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1227 | نيفادا | নেভাডা | Nevada | Nevada | Nevada | Nevada | Νεβάδα | नेवाडा | Nevada | Nevada | Nevada | ネバダ州 | 네바다주 | Nevada | Nevada | Nevada | Невада | Nevada | Nevada | Nevada | 内华达州 | 1159315345 | POLYGON ((-114.04255 42.00008, -114.04252 41.8... |
| 3277 | Admin-1 scale rank | 2 | USA-3522 | 3522 | US-CO | http://en.wikipedia.org/wiki/Colorado | US | 1 | Colorado | CO|Colo. | None | State | State | US08 | US.CO | None | None | West | None | 0 | 1 | 20 | 1 | Colo. | CO | 0 | -99 | 0 | 8 | 1 | 1 | US08 | None | 2347564 | Colorado, US, United States | Colorado | 38.9998 | -105.5430 | US1 | USA | 2 | United States of America | United States of America | USA | 5417618 | Colorado | -1 | None | 1 | None | US.CO | Mountain | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1261 | كولورادو | কলোরাডো | Colorado | Colorado | Colorado | Colorado | Κολοράντο | कॉलराडो | Colorado | Colorado | Colorado | コロラド州 | 콜로라도 주 | Colorado | Kolorado | Colorado | Колорадо | Colorado | Colorado | Colorado | 科羅拉多州 | 1159315343 | POLYGON ((-109.04633 40.99983, -108.88932 40.9... |
| 3278 | Admin-1 scale rank | 2 | USA-3534 | 3534 | US-SD | http://en.wikipedia.org/wiki/South_Dakota | US | 1 | South Dakota | SD|S.D. | None | State | State | US46 | US.SD | None | None | Midwest | None | 0 | 1 | 20 | 1 | S.D. | SD | 0 | -99 | 0 | 12 | 1 | 1 | US46 | None | 2347600 | South Dakota, US, United States | South Dakota | 44.4711 | -100.2550 | US1 | USA | 2 | United States of America | United States of America | USA | 5769223 | South Dakota | -1 | None | 1 | None | US.SD | West North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1211 | داكوتا الجنوبية | সাউথ ডাকোটা | South Dakota | South Dakota | Dakota del Sur | Dakota du Sud | Νότια Ντακότα | दक्षिण डकोटा | Dél-Dakota | Dakota Selatan | Dakota del Sud | サウスダコタ州 | 사우스다코타주 | South Dakota | Dakota Południowa | Dakota do Sul | Южная Дакота | South Dakota | Güney Dakota | Nam Dakota | 南达科他州 | 1159315367 | POLYGON ((-104.03930 44.99993, -104.03859 45.0... |
| 3279 | Admin-1 scale rank | 2 | USA-3532 | 3532 | US-NE | http://en.wikipedia.org/wiki/Nebraska | US | 1 | Nebraska | NE|Nebr. | None | State | State | US31 | US.NE | None | None | Midwest | None | 0 | 1 | 20 | 1 | Nebr. | NE | 0 | -99 | 0 | 8 | 1 | 1 | US31 | None | 2347586 | Nebraska, US, United States | Nebraska | 41.5002 | -99.6855 | US1 | USA | 2 | United States of America | United States of America | USA | 5073708 | Nebraska | -1 | None | 1 | None | US.NE | West North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1553 | نبراسكا | নেব্রাস্কা | Nebraska | Nebraska | Nebraska | Nebraska | Νεμπράσκα | नेब्रास्का | Nebraska | Nebraska | Nebraska | ネブラスカ州 | 네브래스카 주 | Nebraska | Nebraska | Nebraska | Небраска | Nebraska | Nebraska | Nebraska | 內布拉斯加州 | 1159315363 | POLYGON ((-104.05373 40.99983, -104.05292 41.1... |
| 3280 | Admin-1 scale rank | 2 | USA-3530 | 3530 | US-KS | http://en.wikipedia.org/wiki/Kansas | US | 1 | Kansas | KS|Kans. | None | State | State | US20 | US.KS | None | None | Midwest | None | 0 | 1 | 20 | 1 | Kans. | KS | 0 | -99 | 0 | 6 | 1 | 1 | US20 | None | 2347575 | Kansas, US, United States | Kansas | 38.5000 | -98.3309 | US1 | USA | 2 | United States of America | United States of America | USA | 4273857 | Kansas | -1 | None | 1 | None | US.KS | West North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1558 | كانساس | ক্যান্সাস | Kansas | Kansas | Kansas | Kansas | Κάνσας | केन्सास | Kansas | Kansas | Kansas | カンザス州 | 캔자스 주 | Kansas | Kansas | Kansas | Канзас | Kansas | Kansas | Kansas | 堪薩斯州 | 1159315359 | POLYGON ((-102.03957 36.99981, -102.03994 37.0... |
| 3281 | Admin-1 scale rank | 2 | USA-3533 | 3533 | US-OK | http://en.wikipedia.org/wiki/Oklahoma | US | 1 | Oklahoma | OK|Okla. | None | State | State | US40 | US.OK | None | None | South | None | 0 | 1 | 20 | 1 | Okla. | OK | 0 | -99 | 0 | 8 | 1 | 1 | US40 | None | 2347595 | Oklahoma, US, United States | Oklahoma | 35.4520 | -97.1309 | US1 | USA | 2 | United States of America | United States of America | USA | 4544379 | Oklahoma | -1 | None | 1 | None | US.OK | West South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1649 | أوكلاهوما | ওকলাহোমা | Oklahoma | Oklahoma | Oklahoma | Oklahoma | Οκλαχόμα | ओक्लाहोमा | Oklahoma | Oklahoma | Oklahoma | オクラホマ州 | 오클라호마주 | Oklahoma | Oklahoma | Oklahoma | Оклахома | Oklahoma | Oklahoma | Oklahoma | 奧克拉荷馬州 | 1159315365 | POLYGON ((-103.00024 36.50020, -103.00036 36.6... |
| 3282 | Admin-1 scale rank | 2 | USA-3529 | 3529 | US-IA | http://en.wikipedia.org/wiki/Iowa | US | 1 | Iowa | IA|Iowa | None | State | State | US19 | US.IA | None | None | Midwest | None | 0 | 1 | 20 | 1 | Iowa | IA | 0 | -99 | 0 | 4 | 1 | 1 | US19 | None | 2347574 | Iowa, US, United States | Iowa | 42.0423 | -93.3891 | US1 | USA | 2 | United States of America | United States of America | USA | 4862182 | Iowa | -1 | None | 1 | None | US.IA | West North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1546 | آيوا | আইওয়া | Iowa | Iowa | Iowa | Iowa | Αϊόβα | आयोवा | Iowa | Iowa | Iowa | アイオワ州 | 아이오와 주 | Iowa | Iowa | Iowa | Айова | Iowa | Iowa | Iowa | 艾奥瓦州 | 1159315357 | POLYGON ((-96.55546 43.28863, -96.54858 43.289... |
| 3283 | Admin-1 scale rank | 2 | USA-3531 | 3531 | US-MO | http://en.wikipedia.org/wiki/Missouri | US | 1 | Missouri | MO | None | State | State | US29 | US.MO | None | US.IL|USA-MOS | Midwest | None | 0 | 1 | 20 | 1 | Mo. | MO | 0 | -99 | 0 | 8 | 1 | 1 | US29 | US17 | 2347584 | Missouri, US, United States | Missouri | 38.5487 | -92.4460 | US1 | USA | 2 | United States of America | United States of America | USA | 4398678 | Missouri | -1 | None | 1 | None | US.MO | West North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1581 | ميزوري | মিসৌরি | Missouri | Missouri | Misuri | Missouri | Μιζούρι | मिसौरी | Missouri | Missouri | Missouri | ミズーリ州 | 미주리 주 | Missouri | Missouri | Missouri | Миссури | Missouri | Missouri | Missouri | 密蘇里州 | 1159315361 | POLYGON ((-95.63364 40.30918, -95.64995 40.311... |
| 4352 | Admin-1 scale rank | 2 | USA-3553 | 3553 | US-WI | http://en.wikipedia.org/wiki/Wisconsin | US | 1 | Wisconsin | WI|Wis. | None | State | State | US55 | US.WI | None | None | Midwest | None | 0 | 1 | 20 | 1 | Wis. | WI | 0 | -99 | 0 | 9 | 1 | 1 | US55 | None | 2347608 | Wisconsin, US, United States | Wisconsin | 44.3709 | -89.5831 | US1 | USA | 2 | United States of America | United States of America | USA | 5279468 | Wisconsin | -1 | None | 1 | None | US.WI | East North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1537 | ويسكونسن | উইসকনসিন | Wisconsin | Wisconsin | Wisconsin | Wisconsin | Ουισκόνσιν | विस्कॉन्सिन | Wisconsin | Wisconsin | Wisconsin | ウィスコンシン州 | 위스콘신 주 | Wisconsin | Wisconsin | Wisconsin | Висконсин | Wisconsin | Wisconsin | Wisconsin | 威斯康辛州 | 1159315321 | POLYGON ((-89.95764 47.28611, -89.98547 47.243... |
| 4353 | Admin-1 scale rank | 2 | USA-3546 | 3546 | US-IL | http://en.wikipedia.org/wiki/Illinois | US | 1 | Illinois | IL|Ill. | None | State | State | US17 | US.IL | None | None | Midwest | None | 0 | 1 | 20 | 1 | Ill. | IL | 0 | -99 | 0 | 8 | 1 | 1 | US17 | None | 2347572 | Illinois, US, United States | Illinois | 39.9460 | -89.1991 | US1 | USA | 2 | United States of America | United States of America | USA | 4896861 | Illinois | -1 | None | 1 | None | US.IL | East North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1204 | إلينوي | ইলিনয় | Illinois | Illinois | Illinois | Illinois | Ιλινόι | इलिनॉय | Illinois | Illinois | Illinois | イリノイ州 | 일리노이 주 | Illinois | Illinois | Illinois | Иллинойс | Illinois | Illinois | Illinois | 伊利诺伊州 | 1159315309 | POLYGON ((-90.58530 38.87808, -90.62653 38.890... |
| 4354 | Admin-1 scale rank | 2 | USA-3548 | 3548 | US-KY | http://en.wikipedia.org/wiki/Kentucky | US | 1 | Kentucky | Commonwealth of Kentucky|KY | None | State | State | US21 | US.KY | None | US.IN|USA-KEN | South | None | 0 | 1 | 20 | 1 | Ky. | KY | 0 | -99 | 0 | 8 | 1 | 1 | US21 | US18 | 2347576 | Kentucky, US, United States | Kentucky | 37.3994 | -85.5729 | US1 | USA | 2 | United States of America | United States of America | USA | 6254925 | Kentucky | -1 | None | 1 | None | US.KY | East South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1603 | كنتاكي | কেন্টাকি | Kentucky | Kentucky | Kentucky | Kentucky | Κεντάκι | केन्टकी | Kentucky | Kentucky | Kentucky | ケンタッキー州 | 켄터키 주 | Kentucky | Kentucky | Kentucky | Кентукки | Kentucky | Kentucky | Kentucky | 肯塔基州 | 1159315313 | MULTIPOLYGON (((-89.25331 36.56912, -89.22631 ... |
| 4355 | Admin-1 scale rank | 2 | USA-3528 | 3528 | US-AR | http://en.wikipedia.org/wiki/Arkansas | US | 1 | Arkansas | AR|Ark. | None | State | State | US05 | US.AR | None | None | South | None | 0 | 1 | 20 | 1 | Ark. | AR | 0 | -99 | 0 | 8 | 1 | 1 | US05 | None | 2347562 | Arkansas, US, United States | Arkansas | 34.7563 | -92.1428 | US1 | USA | 2 | United States of America | United States of America | USA | 4099753 | Arkansas | -1 | None | 1 | None | US.AR | West South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1612 | أركنساس | আর্কানসাস | Arkansas | Arkansas | Arkansas | Arkansas | Αρκάνσας | अरकांसास | Arkansas | Arkansas | Arkansas | アーカンソー州 | 아칸소 주 | Arkansas | Arkansas | Arkansas | Арканзас | Arkansas | Arkansas | Arkansas | 阿肯色州 | 1159315355 | POLYGON ((-90.30422 35.00008, -90.30124 34.995... |
| 4356 | Admin-1 scale rank | 2 | USA-3551 | 3551 | US-TN | http://en.wikipedia.org/wiki/Tennessee | US | 1 | Tennessee | TN|Tenn. | None | State | State | US47 | US.TN | None | None | South | None | 0 | 1 | 20 | 1 | Tenn. | TN | 0 | -99 | 0 | 9 | 1 | 1 | US47 | None | 2347601 | Tennessee, US, United States | Tennessee | 35.7514 | -86.3415 | US1 | USA | 2 | United States of America | United States of America | USA | 4662168 | Tennessee | -1 | None | 1 | None | US.TN | East South Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1509 | تينيسي | টেনেসী | Tennessee | Tennessee | Tennessee | Tennessee | Τενεσί | टेनेसी | Tennessee | Tennessee | Tennessee | テネシー州 | 테네시 주 | Tennessee | Tennessee | Tennessee | Теннесси | Tennessee | Tennessee | Tennessee | 田纳西州 | 1159315319 | POLYGON ((-89.67404 35.89629, -89.66730 35.915... |
| 4357 | Admin-1 scale rank | 2 | USA-3554 | 3554 | US-WV | http://en.wikipedia.org/wiki/West_Virginia | US | 1 | West Virginia | WV|W.Va. | None | State | State | US54 | US.WV | None | None | South | None | 0 | 1 | 20 | 1 | W.Va. | WV | 0 | -99 | 0 | 13 | 1 | 1 | US54 | None | 2347607 | West Virginia, US, United States | West Virginia | 38.6422 | -80.7128 | US1 | USA | 2 | United States of America | United States of America | USA | 4826850 | West Virginia | -1 | None | 1 | None | US.WV | South Atlantic | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1371 | فيرجينيا الغربية | পশ্চিম ভার্জিনিয়া | West Virginia | West Virginia | Virginia Occidental | Virginie-Occidentale | Δυτική Βιρτζίνια | पश्चिमी वर्जीनिया | Nyugat-Virginia | Virginia Barat | Virginia Occidentale | ウェストバージニア州 | 웨스트버지니아주 | West Virginia | Wirginia Zachodnia | Virgínia Ocidental | Западная Виргиния | West Virginia | Batı Virginia | Tây Virginia | 西維吉尼亞州 | 1159315323 | POLYGON ((-82.58945 38.41932, -82.58898 38.418... |
| 4358 | Admin-1 scale rank | 2 | USA-3547 | 3547 | US-IN | http://en.wikipedia.org/wiki/Indiana | US | 1 | Indiana | IN|Ind. | None | State | State | US18 | US.IN | None | None | Midwest | None | 0 | 1 | 20 | 1 | Ind. | IN | 0 | -99 | 0 | 7 | 1 | 1 | US18 | None | 2347573 | Indiana, US, United States | Indiana | 39.8874 | -86.1396 | US1 | USA | 2 | United States of America | United States of America | USA | 4921868 | Indiana | -1 | None | 1 | None | US.IN | East North Central | None | -1 | None | None | None | 3.5 | 7.5 | 2.0 | Q1415 | إنديانا | ইন্ডিয়ানা | Indiana | Indiana | Indiana | Indiana | Ιντιάνα | इंडियाना | Indiana | Indiana | Indiana | インディアナ州 | 인디애나 주 | Indiana | Indiana | Indiana | Индиана | Indiana | Indiana | Indiana | 印第安纳州 | 1159315311 | POLYGON ((-84.80608 41.69681, -84.80608 41.617... |
Tip: The name column corresponds to the states.
Examine the Geometry column¶
When Geopandas creates a dataframe from a Shapefile, a key column that gets added is the geometry one. Here we can see that each of the states have Geometry features consisting of Polygons or Multipolygons
df.loc[df.name == 'Colorado']['geometry']
3277 POLYGON ((-109.04633 40.99983, -108.88932 40.9...
Name: geometry, dtype: geometry
df.loc[df.name == 'New York']['geometry']
1307 MULTIPOLYGON (((-74.69588 44.99803, -74.59611 ...
Name: geometry, dtype: geometry
Question: Notice that Colorado's geometry is POLYGON while New York is MULTIPOLYGON. Can you think of a reason for the distinction? (Hint: are any islands part of the state?)
Make a Geopandas dataframe for New York State¶
dfNYS = df.loc[df.name == 'New York']

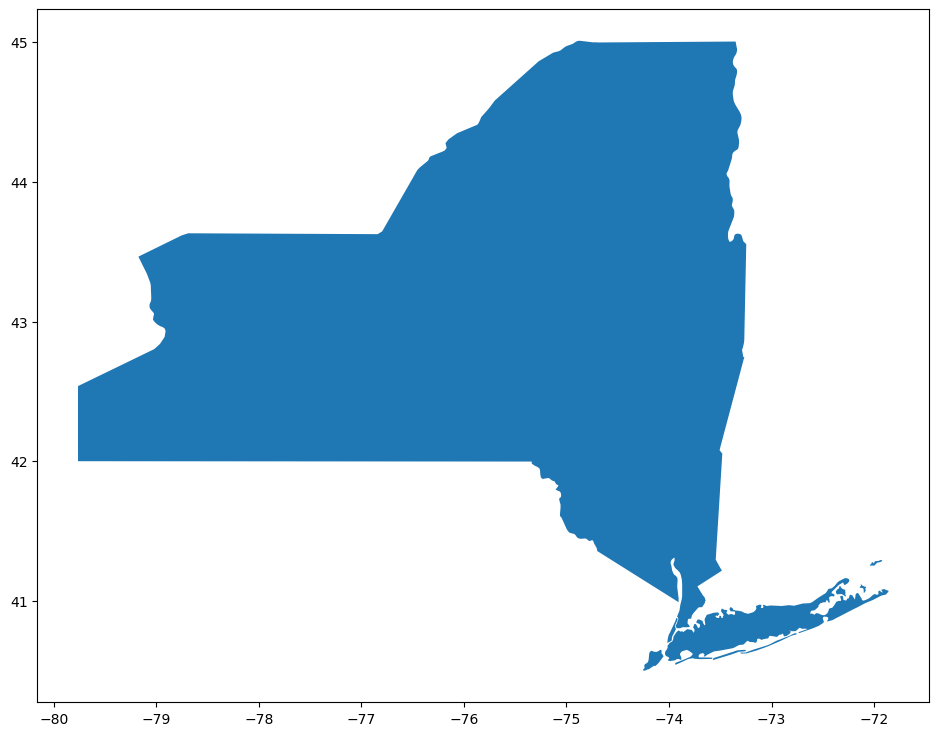

As with any Pandas Dataframe, we can directly call its plot method for a quick view.
dfNYS.plot(figsize=(12,9))
<AxesSubplot:>
We can create a GeoPandas series consisting only of the Geometry column.
geoNY = df.loc[df.name == 'New York']['geometry']
geoNY
1307 MULTIPOLYGON (((-74.69588 44.99803, -74.59611 ...
Name: geometry, dtype: geometry
Examine the values attribute of this Geopandas geometry object:
geoNY.values
<GeometryArray>
[<shapely.geometry.multipolygon.MultiPolygon object at 0x14ee135aaa40>]
Length: 1, dtype: geometry
Note: The object begins with shapely. It stems from the Shapely library. Although we did not explicitly list this library in our list of imports, it was imported as a result of the
import cartopy.io.shapereader as shpreader statement.
If we take just the first (and only element) of this array, what do we get?
nysPoly = geoNY.values[0]
nysPoly

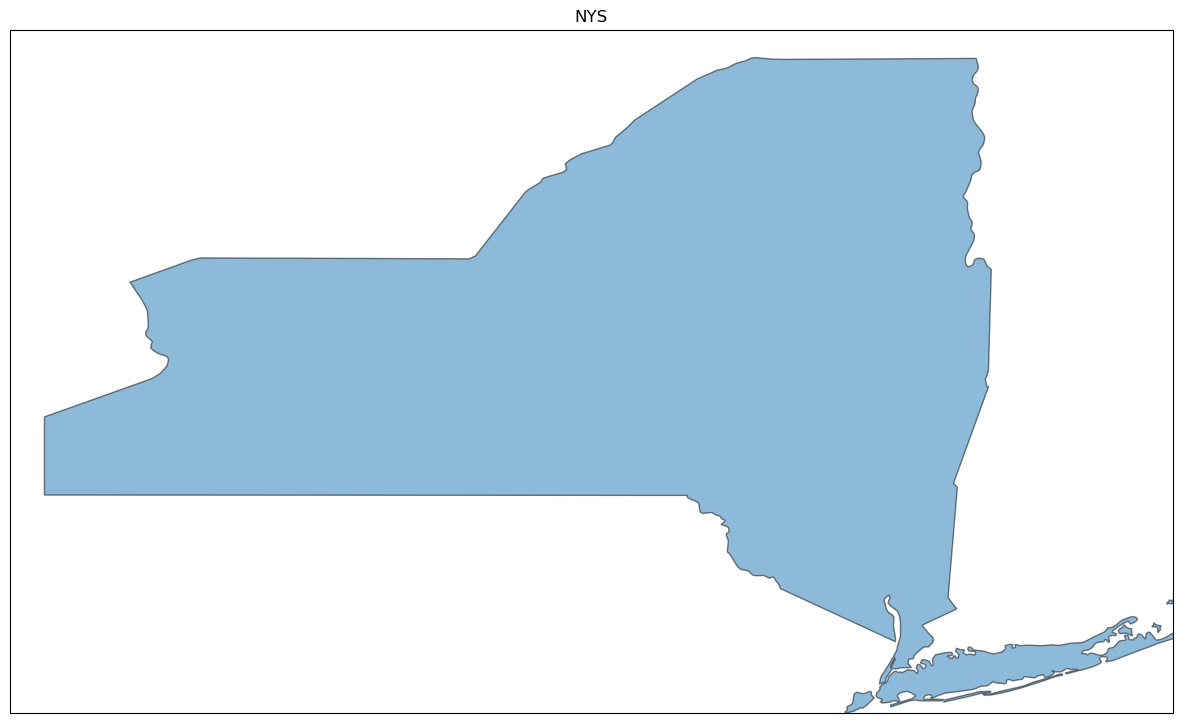

Plot the shapefile¶
We can now add this object to a Cartopy-referenced Matplotlib plot using Matplotlib’s add_geometries method.
First we’ll comment out all of the Natural Earth shapefiles we typically use. This will produce just a map of NYS.
fig = plt.figure(figsize=(15,10))
ax = plt.axes(projection=ccrs.PlateCarree())
plt.title('NYS')
ax.add_geometries(nysPoly, ccrs.PlateCarree(),
edgecolor='black', facecolor='tab:blue', alpha=0.5)
ax.set_extent([-80, -72,40.5,45.2], ccrs.PlateCarree());
Add additional features to the plot¶
Now, add some of Cartopy’s Natural Earth features to the plot. We should see that with the exception of the counties (which defaults to a slightly lower resolution (20m) than the others) everything should line up nicely. We’ll slightly expand the map extent so we’ll see neighboring state/province outlines.
res = '10m'
fig = plt.figure(figsize=(15,10))
ax = plt.axes(projection=ccrs.PlateCarree())
plt.title('NYS')
ax.coastlines(resolution=res)
ax.add_geometries(nysPoly, ccrs.PlateCarree(),
edgecolor='black', facecolor='tab:blue', alpha=0.5)
ax.add_feature (cfeature.LAKES.with_scale(res), alpha = 0.5)
ax.add_feature (cfeature.STATES.with_scale(res))
ax.add_feature(USCOUNTIES,edgecolor='grey',linewidth=1 );
ax.set_extent([-85, -67,37.5,49.5], ccrs.PlateCarree());
Tip: The USCOUNTIES shapefile also has a 5m version. To use it, append
.with_scale('5m') to USCOUNTIES.
Summary¶
Matplotlib and Cartopy, via the Shapely library, provides support for reading and displaying shapefiles.
Shapefiles are a form of vector graphics; unlike rasters, they do not degrade as one zooms into them.
The Geopandas library treats shapefiles as geo-referenced Pandas dataframes.
What’s Next?¶
We’ll return to cloud-optimized geotiffs, specifically those that are tile-based, with more detail automatically displayed as one zooms in to a particular region.
